maserati 222 / 222e biturbo radiator and cooling fans parts diagram

014 - radiator and cooling fans

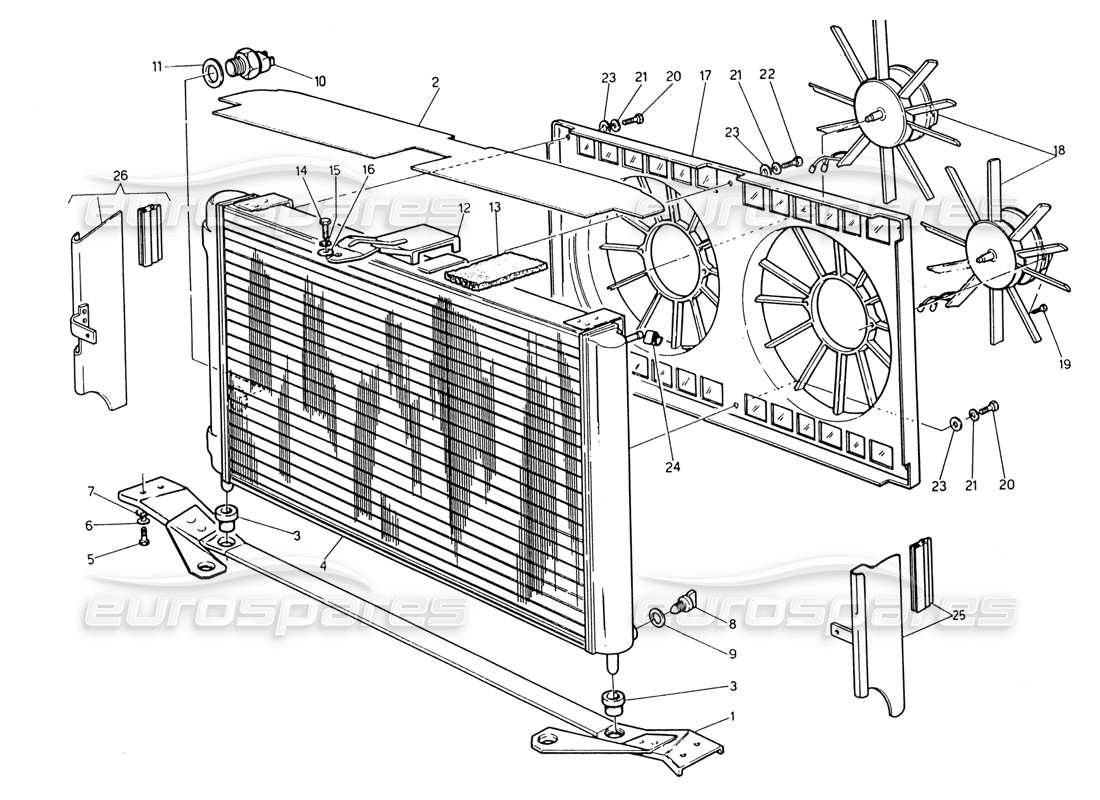

Maserati 222 / 222E Biturbo Radiator and Cooling Fans Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 314053108
                                      SUPPORT AFTER MOD.
                                      from £31.88
                                      from £31.88
                                      This part replaces part number 314020103 - and 1 more. Click to view details
                                      Maserati PART 314053108 Genuine Maserati Part - New (to order)
                                      # 001
                                      MPN: 324056101
                                      SUPPORT PRE MOD.
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 002
                                      MPN: 314037360
                                      CONVEYOR
                                      from £23.96
                                      from £23.96
                                      This part replaces part number 314053018 - and 2 more. Click to view details
                                      COPPER RADIATOR MOUNT. METAL Genuine Maserati Part - New (to order)
                                      # 002
                                      MPN: 314053018
                                      CONVEYOR
                                      Valid for 51
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 002
                                      MPN: 324056018
                                      CONVEYOR
                                      Valid for 54, 60, 70, 74
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 003
                                      MPN: 153401312
                                      BUSH
                                      BUSH Genuine Maserati Part - New (to order)
                                      # 003
                                      MPN: 324050109
                                      RADIATOR
                                      Valid for 51
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 004
                                      MPN: 314037100
                                      WATER RADIATOR (COPPER)
                                      from £630.57
                                      from £630.57
                                      WATER RADIATOR Genuine Maserati Part - New (to order)
                                      # 004
                                      MPN: 344001100
                                      WATER RADIATOR (ALUMINIUM)
                                      from £313.79
                                      from £313.79
                                      WATER RADIATOR Genuine Maserati Part - New (to order)
                                      # 007
                                      MPN: 163020080
                                      WASHER
                                      from £1.07
                                      from £1.07
                                      FLAT WASHER Genuine Maserati Part - New (to order)
                                      # 008
                                      MPN: 314020326
                                      DRAIN COCK
                                      Valid for 51
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 008
                                      MPN: 314037326
                                      DRAIN COCK
                                      Valid for 54, 55, 60, 61, 70, 71, 74, 75
                                      from £9.89
                                      from £9.89
                                      WATER DRAIN VALVE Genuine Maserati Part - New (to order)
                                      # 009
                                      MPN: 314020327
                                      WASHER
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 010
                                      MPN: 313320172
                                      SWITCH
                                      from £21.76
                                      from £21.76
                                      SWITCH Genuine Maserati Part - New (to order)
                                      # 011
                                      MPN: 53331300
                                      SWITCH WASHER
                                      from £1.07
                                      from £1.07
                                      WASHERS,GH.VEHICLE/337 Genuine Maserati Part - New In stock
                                      # 012
                                      MPN: 314020106
                                      UPPER RETAINER
                                      Valid for 51
                                      from £3.20
                                      from £3.20
                                      RADIATOR MOUNTING BRACKET Genuine Maserati Part - New (to order)
                                      # 012
                                      MPN: 314037106
                                      UPPER RETAINER
                                      Valid for 55, 61, 71, 75
                                      from £3.20
                                      from £3.20
                                      This part replaces part number 324056106
                                      RADIATOR FASTENING BRACKET Genuine Maserati Part - New (to order)
                                      # 012
                                      MPN: 324056106
                                      UPPER RETAINER
                                      Valid for 54, 60, 70, 74
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 013
                                      MPN: 314030308
                                      BUFFER
                                      Valid for 51
                                      from £1.50
                                      from £1.50
                                      RUBBER BUSHING Genuine Maserati Part - New (to order)
                                      # 013
                                      MPN: 314037308
                                      BUFFER
                                      Valid for 55, 61, 71, 75
                                      from £9.50
                                      from £9.50
                                      This part replaces part number 324056308
                                      SILENTBLOC Genuine Maserati Part - New (to order)
                                      # 013
                                      MPN: 324056308
                                      BUFFER
                                      Valid for 54, 60, 70, 74
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 017
                                      MPN: 313354105
                                      FAN BLADE SHROUD, ASSY AFTER MOD.
                                      Valid for 54, 55, 60, 61, 70, 71, 74, 75
                                      from £206.00
                                      from £206.00
                                      This part replaces part number 323356105
                                      FAN BLADE SHROUD ASSY Genuine Maserati Part - New (to order)
                                      # 017
                                      MPN: 323356105
                                      FAN BLADE SHROUD, ASSY
                                      Valid for 51
                                      Supersession
                                      Supersession
                                      This part replaces part number 313330105 - and 1 more. Click to view details
                                      Genuine Maserati Part (no longer available to order)
                                      # 018
                                      MPN: 313354102
                                      FAN MOTOR AFTER MOD.
                                      Valid for 54, 55, 60, 61, 70, 71, 74, 75
                                      Supersession
                                      Supersession
                                      Genuine Maserati Part (no longer available to order)
                                      # 018
                                      MPN: 323332102
                                      FAN MOTOR
                                      Valid for 51
                                      from £50.30
                                      from £50.30
                                      FAN MOTOR UNIT Genuine Maserati Part - New (to order)
                                      # 023
                                      MPN: 169020406
                                      WASHER
                                      from £0.77
                                      from £0.77
                                      FLAT WASHER Genuine Maserati Part - New In stock
                                      # 024
                                      MPN: 313320333
                                      SPRING CLAMP
                                      from £0.69
                                      from £0.69
                                      SPRING Genuine Maserati Part - New (to order)
                                      # 025
                                      MPN: 314053131
                                      LH SHIELD ASSY
                                      Valid for 51
                                      from £13.66
                                      from £13.66
                                      Maserati PART 314053131 Genuine Maserati Part - New (to order)
                                      # 025
                                      MPN: 324050128
                                      RH SHIELD
                                      Valid for 54, 60, 70, 74
                                      from £53.44
                                      from £53.44
                                      Maserati PART 324050128 Genuine Maserati Part - New (to order)
                                      # 026
                                      MPN: 324050129
                                      RH SHIELD
                                      from £59.45
                                      from £59.45
                                      RH SHIELD ASSY Genuine Maserati Part - New (to order)
