maserati 222 / 222e biturbo propeller shaft and carrier parts diagram

030 - Propeller Shaft and Carrier

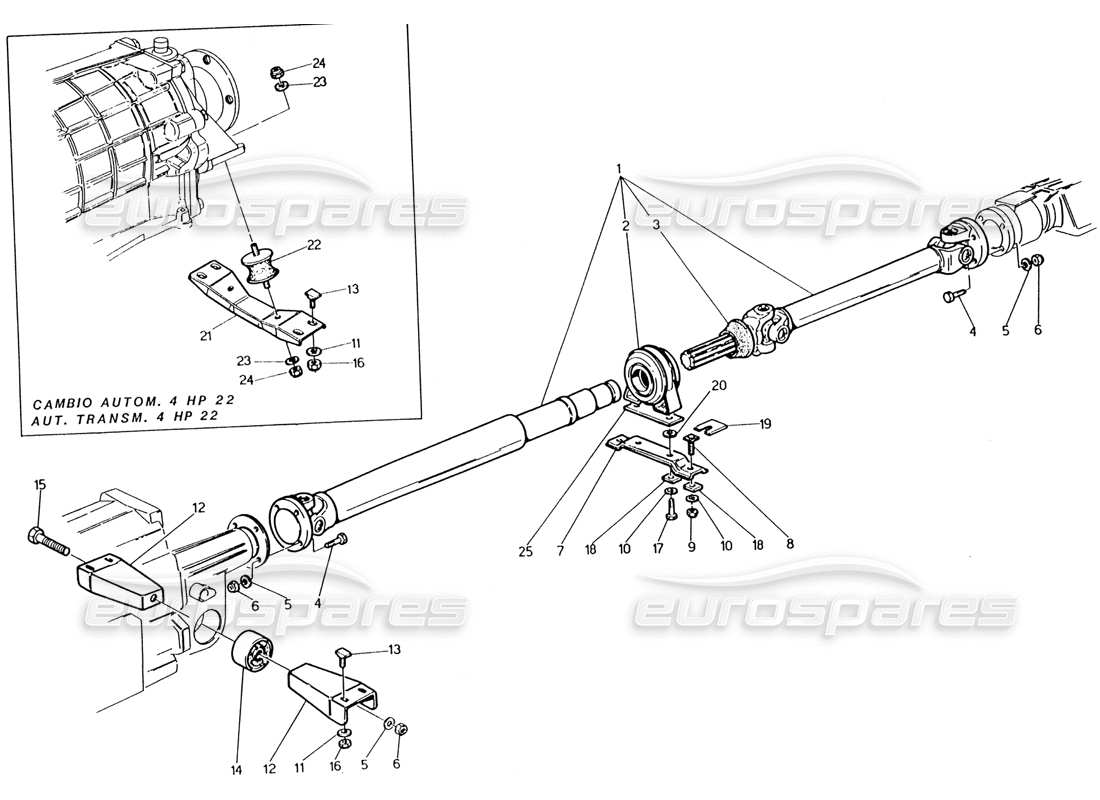

Maserati 222 / 222E Biturbo Propeller Shaft and Carrier Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 316020102
                              PROPELLERSHAFT ASSEMBLY C.M.
                              Valid for 51, 54, 60, 70, 74
                              from £582.54
                              from £582.54
                              This part replaces part number 316020100
                              DRIVE SHAFT Genuine Maserati Part - New (to order)
                              # 001
                              MPN: 316032102
                              PROPELLER SHAFT ASSEMBLY C.A. 3HP
                              Valid for Singapore
                              from £572.62
                              from £572.62
                              DRIVE SHAFT Genuine Maserati Part - New (to order)
                              # 001
                              MPN: 316055102
                              PROPELLER SHAFT ASSEMBLY C.A. 4 HP
                              Valid for 55, 61, 71, 75
                              from £574.31
                              from £574.31
                              DRIVE SHAFT Genuine Maserati Part - New (to order)
                              # 002
                              MPN: 316020103
                              CENTRAL SUPPORT FOR PROPELLER SHAFT
                              from £684.68
                              from £684.68
                              GKN CENTRAL MOUNT 507380 Genuine Maserati Part - New (to order)
                              # 003
                              MPN: 316020306
                              Dust bellows
                              from £4.63
                              from £4.63
                              TRANSM. SHAFT GAITER B9-DEC 091 Genuine Maserati Part - New (to order)
                              # 004
                              MPN: 316020300
                              BOLT
                              from £13.83
                              from £13.83
                              SCREW Genuine Maserati Part - New (to order)
                              # 006
                              MPN: 128360100
                              SELF LOCKING NUT
                              Maserati PART 128360100 Genuine Maserati Part - New (to order)
                              # 007
                              MPN: 316020330
                              PROPELLER SHAFT PLATE
                              from £4.63
                              from £4.63
                              DRIVE SHAFT PLATE Genuine Maserati Part - New (to order)
                              # 008
                              MPN: 316020110
                              BOLT
                              from £1.16
                              from £1.16
                              MUFFLER PLATE Genuine Maserati Part - New (to order)
                              # 009
                              MPN: 128350080
                              NUT
                              Supersession
                              Supersession
                              Genuine Maserati Part (no longer available to order)
                              # 011
                              MPN: 163020080
                              WASHER
                              from £1.08
                              from £1.08
                              FLAT WASHER Genuine Maserati Part - New (to order)
                              # 012
                              MPN: 314820302
                              SUPPORT
                              Valid for 51, 54, 60, 70, 74
                              from £2.97
                              from £2.97
                              GEARBOX CARRIER Genuine Maserati Part - New (to order)
                              # 012
                              MPN: 314832305
                              LH SUPPORT X C.A. 3 HP
                              Valid for Singapore cars
                              from £2.85
                              from £2.85
                              SUPP-SX CAMBIO AUT- Genuine Maserati Part - New (to order)
                              # 012
                              MPN: 314832306
                              RH SUPPORT X C.A. 3 HP
                              Valid for Singapore cars
                              from £2.61
                              from £2.61
                              SUPPORTO DX CA Genuine Maserati Part - New (to order)
                              # 013
                              MPN: 314820303
                              BOLT
                              from £12.44
                              from £12.44
                              SCREW Genuine Maserati Part - New (to order)
                              # 014
                              MPN: 314820100
                              SILENT BLOC
                              Valid for 51, 54, 60, 70, 74
                              from £35.41
                              from £35.41
                              GEARBOX MOUNT. BUSHING 9139006490 Genuine Maserati Part - New (to order)
                              # 015
                              MPN: 100810070
                              BOLT
                              Valid for 51, 54, 60, 70, 74
                              SCREW Genuine Maserati Part - New (to order)
                              # 016
                              MPN: 128350080
                              NUT
                              Supersession
                              Supersession
                              Genuine Maserati Part (no longer available to order)
                              # 017
                              MPN: 101208020
                              BOLT
                              Valid for 51, 54, 60, 70, 74
                              Maserati PART 101208020 Genuine Maserati Part - New (to order)
                              # 017
                              MPN: 101208025
                              BOLT
                              Valid for 55, 61, 71, 75
                              Maserati PART 101208025 Genuine Maserati Part - New (to order)
                              # 018
                              MPN: 316020334
                              PLATE
                              from £1.31
                              from £1.31
                              RING Genuine Maserati Part - New (to order)
                              # 019
                              MPN: 316020336
                              PLATE
                              from £0.69
                              from £0.69
                              PIASTRINO DI REGOLAZIONE Genuine Maserati Part - New (to order)
                              # 020
                              MPN: 316055335
                              SPACER
                              Valid for 51, 54, 60, 70, 74
                              SPACER Genuine Maserati Part - New (to order)
                              # 021
                              MPN: 314855305
                              BRACKET
                              Valid for 51, 54, 60, 70, 74
                              from £3.88
                              from £3.88
                              Maserati PART 314855305 Genuine Maserati Part - New (to order)
                              # 022
                              MPN: 314855104
                              SILENT BLOCK
                              Valid for 51, 54, 60, 70, 74
                              SILENT BLOCK Genuine Maserati Part - New (to order)
                              # 023
                              MPN: 314855306
                              WASHER
                              Valid for 51, 54, 60, 70, 74
                              from £2.16
                              from £2.16
                              WASHER Genuine Maserati Part - New (to order)
                              # 024
                              MPN: 128350080
                              NUT
                              Valid for 51, 54, 60, 70, 74
                              Supersession
                              Supersession
                              Genuine Maserati Part (no longer available to order)
