maserati 222 / 222e biturbo hand brake control parts diagram

041 - Hand Brake Control

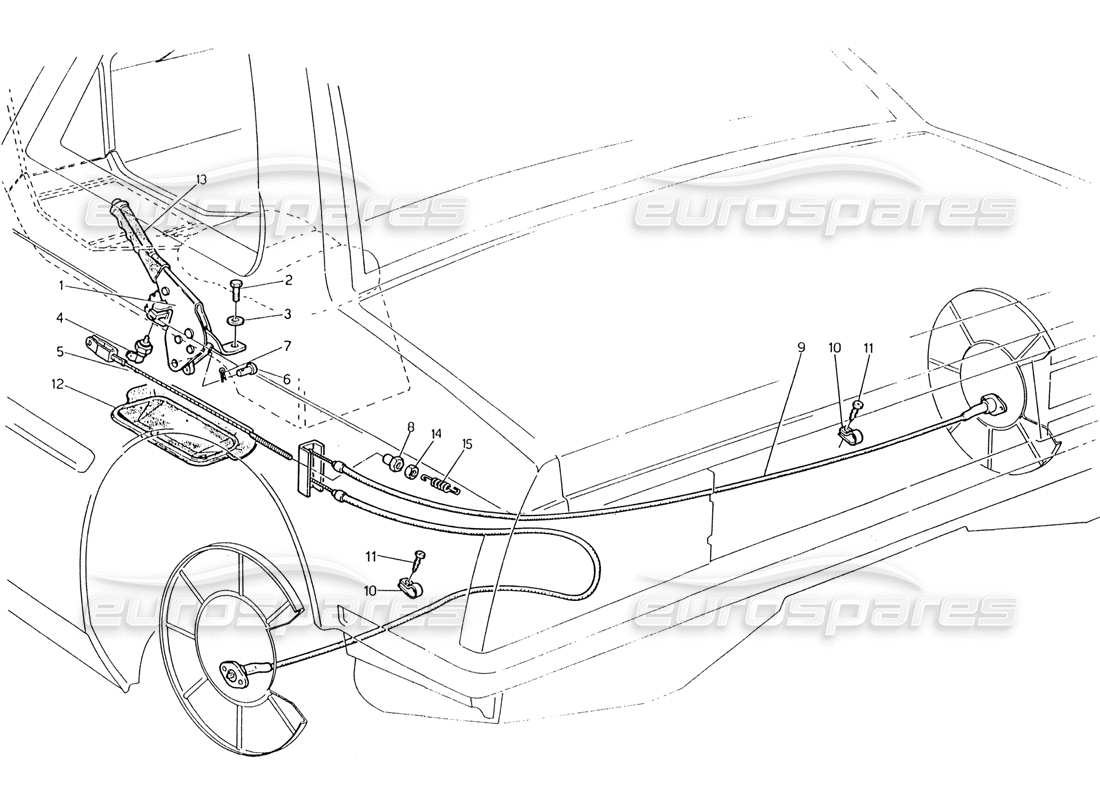

Maserati 222 / 222E Biturbo Hand Brake Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 318020109
                              LEVER ASSY
                              from £4.43
                              from £4.43
                              # 004
                              MPN: 30331157
                              SWITCH
                              from £0.61
                              from £0.61
                              # 005
                              MPN: 318020120
                              ROD
                              from £7.54
                              from £7.54
                              # 006
                              MPN: 318020327
                              PIN
                              from £4.57
                              from £4.57
                              # 007
                              MPN: 58841309
                              SAFETY CLIP
                              from £1.99
                              from £1.99
                              This part replaces part number 670000498 - and 2 more. Click to view details
                              # 008
                              MPN: 318020324
                              NUT
                              from £1.08
                              from £1.08
                              # 009
                              MPN: 318020118
                              CABLE ASSY
                              from £32.27
                              from £32.27
                              This part replaces part number 318020105
                              # 010
                              MPN: 163981307
                              CLIP
                              from £1.55
                              from £1.55
                              # 012
                              MPN: 318020355
                              DUST COVER
                              from £6.42
                              from £6.42
                              # 013
                              MPN: 328012354
                              KNOB FOR LEVER (BROWN COLOR)
                              Valid for 51
                              from £1.93
                              from £1.93
                              # 013
                              MPN: 328056110
                              KNOB FOR LEVER
                              Valid for 54, 55, 60, 61, 70, 71, 74, 75
                              from £47.45
                              from £47.45
                              # 014
                              MPN: 124900060
                              NUT
                              from £0.77
                              from £0.77
                              # 015
                              MPN: 318020325
                              SPRING
                              from £1.41
                              from £1.41
