maserati 418 / 4.24v / 430 heat exchangers - pipes parts diagram

005 - Heat Exchangers - Pipes

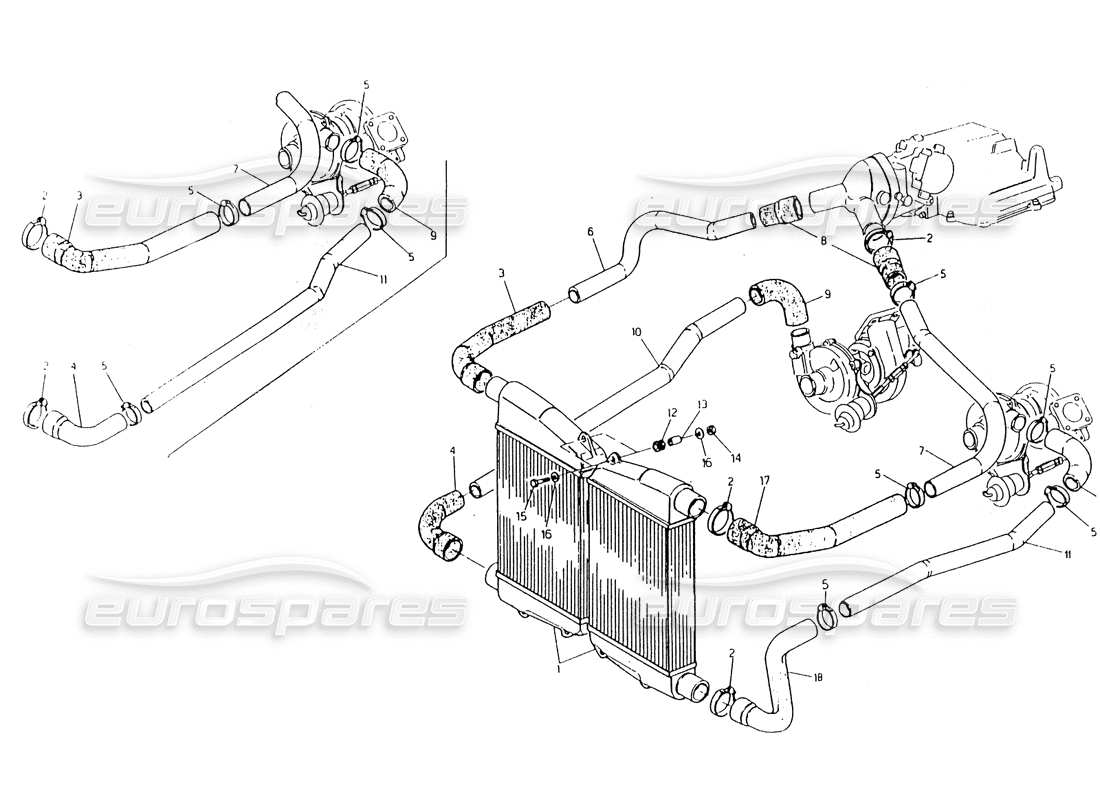

Maserati 418 / 4.24v / 430 Heat Exchangers - Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 001
                    MPN: 473360500
                    INTERCCOLER
                    from £120.75
                    from £120.75
                    This part replaces part number 312020141 - and 1 more. Click to view details
                    AIR-AIR EXCHANGER,BLACK PAINT Genuine Maserati Part - New (to order)
                    AIR-AIR EXCHANGER,BLACK PAINT Genuine Maserati Part - Used In stock
                    # 002
                    MPN: 312020136
                    CLAMP
                    Supersession
                    Supersession
                    Genuine Maserati Part (no longer available to order)
                    # 003
                    MPN: 312020480
                    UPPER SLEEVE
                    VALID FOR 58 / 59 / 67 / 68 / 77 / 78
                    Maserati PART 312020480 Genuine Maserati Part - New (to order)
                    # 003
                    MPN: 312020480
                    UPPER SLEEVE
                    VALID FOR 51 / 53 / 62 / 65 3V / 65 4V / 66 / 69 / 79
                    Maserati PART 312020480 Genuine Maserati Part - New (to order)
                    # 004
                    MPN: 453363540
                    LOWER SLEEVE
                    VALID FOR 58 / 59 / 67 / 68 / 77 / 78
                    from £8.15
                    from £8.15
                    Manicotto Genuine Maserati Part - New (to order)
                    # 004
                    MPN: 453363540
                    LOWER SLEEVE
                    VALID FOR 51 / 53 / 62 / 65 3V / 65 4V / 66 / 69 / 79
                    from £8.15
                    from £8.15
                    Manicotto Genuine Maserati Part - New (to order)
                    # 005
                    MPN: 312420106
                    CLAMP
                    Supersession
                    Supersession
                    Genuine Maserati Part (no longer available to order)
                    # 006
                    MPN: 312021478
                    RH UPPER AIR PIPE
                    Maserati PART 312021478 Genuine Maserati Part - New (to order)
                    # 007
                    MPN: 312021472
                    LH UPPER AIR PIPE
                    VALID FOR 58 / 59 / 67 / 68 / 77 / 78
                    from £22.85
                    from £22.85
                    LH PIPE Genuine Maserati Part - New (to order)
                    # 007
                    MPN: 312053472
                    LH UPPER AIR PIPE
                    VALID FOR 51 / 53 / 62 / 65 3V / 65 4V / 66 / 69 / 79
                    from £7.11
                    from £7.11
                    SLEEVE Genuine Maserati Part - New (to order)
                    # 008
                    MPN: 312020467
                    CONVEYOR UPPER SLEEVE
                    VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 68 / 69 / 77 / 78 / 79
                    Maserati PART 312020467 Genuine Maserati Part - New (to order)
                    # 009
                    MPN: 312421310
                    SLEEVE
                    VALID FOR 58 / 59 / 67 / 68 / 77 / 78
                    Supersession
                    Supersession
                    Genuine Maserati Part (no longer available to order)
                    # 009
                    MPN: 322460310
                    SLEEVE
                    VALID FOR 51 / 53 / 62
                    Supersession
                    Supersession
                    This part replaces part number 312421310
                    Genuine Maserati Part (no longer available to order)
                    # 010
                    MPN: 312021476
                    RH LOWER AIR PIPE
                    VALID FOR 51 / 53 / 62 / 65 3V / 65 4V / 66 / 69 / 79
                    Maserati PART 312021476 Genuine Maserati Part - New (to order)
                    # 010
                    MPN: 312053476
                    RH LOWER AIR PIPE
                    VALID FOR 58 / 59 / 67 / 68 / 77 / 78
                    from £0.96
                    from £0.96
                    Maserati PART 312053476 Genuine Maserati Part - New (to order)
                    # 011
                    MPN: 312021475
                    LH LOWER AIR PIPE
                    VALID FOR 58 / 59 / 67 / 68 / 77 / 78
                    from £33.29
                    from £33.29
                    LH PIPE Genuine Maserati Part - New (to order)
                    # 011
                    MPN: 312053475
                    LH LOWER AIR PIPE
                    VALID FOR 51 / 53 / 62 / 65 3V / 65 4V / 66 / 69 / 79
                    from £23.62
                    from £23.62
                    Maserati PART 312053475 Genuine Maserati Part - New (to order)
                    # 012
                    MPN: 312020484
                    FAIRLEAD
                    from £0.69
                    from £0.69
                    CABLE HOLDER Genuine Maserati Part - New (to order)
                    # 013
                    MPN: 312020485
                    FAIRLEAD BUSHING
                    Maserati PART 312020485 Genuine Maserati Part - New (to order)
                    # 014
                    MPN: 128300060
                    NUT
                    Supersession
                    Supersession
                    Genuine Maserati Part (no longer available to order)
                    # 017
                    MPN: 312053480
                    LH UPPER SLEEVE
                    VALID FOR 51 / 53 / 62 / 65 3V / 65 4V / 66 / 69 / 79
                    Maserati PART 312053480 Genuine Maserati Part - New (to order)
                    # 018
                    MPN: 312053481
                    LH LOWER SLEEVE
                    VALID FOR 51 / 53 / 62 / 65 3V / 65 4V / 66 / 69 / 79
                    from £173.26
                    from £173.26
                    SLEEVE Genuine Maserati Part - New (to order)
