maserati 418 / 4.24v / 430 differential parts diagram

013 - DIFFERENTIAL

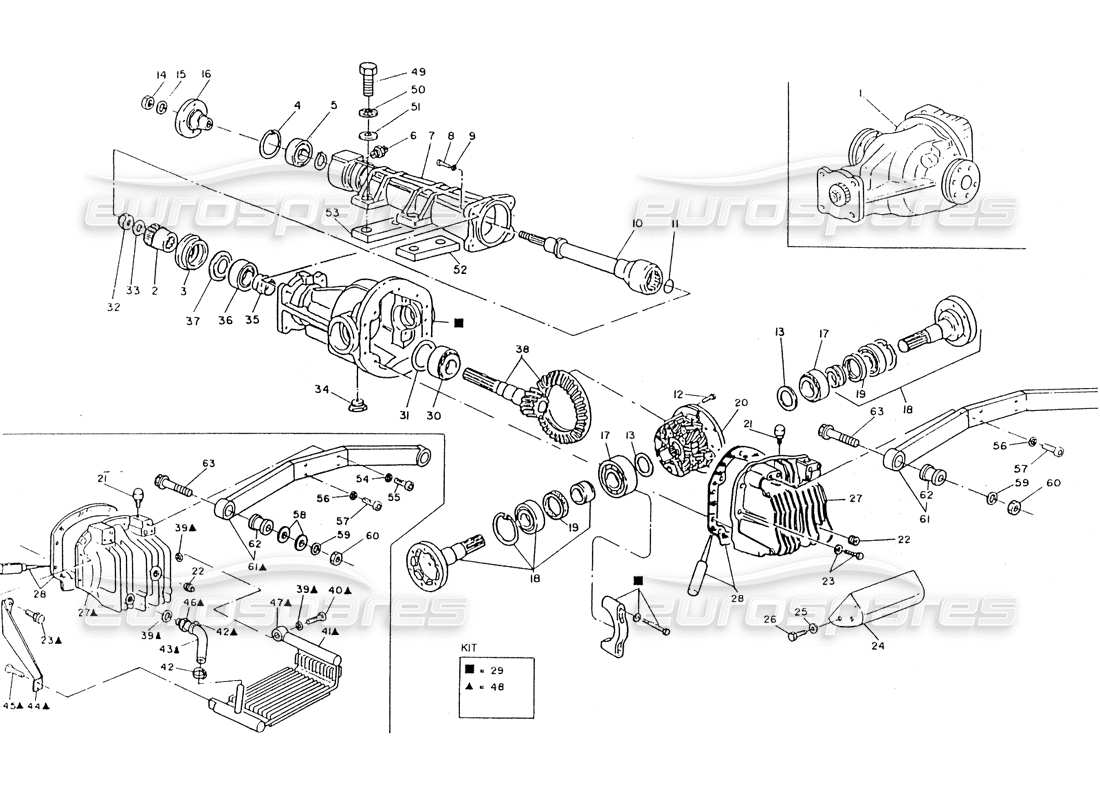

Maserati 418 / 4.24v / 430 Differential Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                        #
                                                                        Part number
                                                                        Description
                                                                        Key
                                                                        Price
                                                                        # 001
                                                                        MPN: 316259005
                                                                        DIFFERENTIAL UNIT, R=3,77 WITH MOD1F. COVER
                                                                        VALID FOR 59 / 68 / 78
                                                                        from £1,018.71
                                                                        from £1,018.71
                                                                        This part replaces part number 326253009 - and 1 more. Click to view details
                                                                        DIFFERENTIAL R=3,77 QUAIFE Genuine Maserati Part - New (to order)
                                                                        DIFFERENTIAL R=3,77 QUAIFE Genuine Maserati Part - Used In stock
                                                                        # 001
                                                                        MPN: 326253009
                                                                        DIFFERENTIAL UNIT, R=3,77
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 001
                                                                        MPN: 396250004
                                                                        DIFFERENTIAL UNIT, R=3,31 WITH MODIF. COVER
                                                                        VALID FOR 58 / 62 / 67 / 69 / 77 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 002
                                                                        MPN: 316220347
                                                                        GROOVED UNION
                                                                        from £116.03
                                                                        from £116.03
                                                                        This part replaces part number 316220342
                                                                        PINION UNION 12HU102004 Genuine Maserati Part - New (to order)
                                                                        # 003
                                                                        MPN: 316220121
                                                                        SEAL RING
                                                                        from £52.78
                                                                        from £52.78
                                                                        SEALING RING 12HU 019-002 Genuine Maserati Part - New (to order)
                                                                        # 005
                                                                        MPN: 178402030
                                                                        BEARING
                                                                        from £15.41
                                                                        from £15.41
                                                                        BEARING EU6206-2RS Genuine Maserati Part - New (to order)
                                                                        # 006
                                                                        MPN: 313620106
                                                                        SENSOR
                                                                        from £37.88
                                                                        from £37.88
                                                                        PULSE GENERATOR Genuine Maserati Part - New (to order)
                                                                        PULSE GENERATOR Eurospares Approved Part - New (to order)
                                                                        # 007
                                                                        MPN: 316255306
                                                                        SUPPORT
                                                                        BEFORE CHANGE
                                                                        from £26.55
                                                                        from £26.55
                                                                        SUPPORT Genuine Maserati Part - New (to order)
                                                                        # 007
                                                                        MPN: 326253305
                                                                        SUPPORT
                                                                        AFTER CHANGE
                                                                        Supersession
                                                                        Supersession
                                                                        This part replaces part number 316250305
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 008
                                                                        MPN: 101212035
                                                                        SCREW
                                                                        SCREW Genuine Maserati Part - New (to order)
                                                                        # 009
                                                                        MPN: 138420120
                                                                        LOCK WASHER
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 010
                                                                        MPN: 366202317
                                                                        SHAFT
                                                                        from £1,154.23
                                                                        from £1,154.23
                                                                        This part replaces part number 396250316
                                                                        ALBERO PROLUNGA DIFFERENZIAL Genuine Maserati Part - New (to order)
                                                                        # 012
                                                                        MPN: 316220357
                                                                        SCREW
                                                                        from £1.90
                                                                        from £1.90
                                                                        BULLONE Genuine Maserati Part - New (to order)
                                                                        # 013
                                                                        MPN: 316220353
                                                                        003 SHIM WASHER
                                                                        from £1.60
                                                                        from £1.60
                                                                        SHIMMING WASHER 003 Genuine Maserati Part - New (to order)
                                                                        # 013
                                                                        MPN: 316220354
                                                                        005 SHIM WASHER
                                                                        from £103.44
                                                                        from £103.44
                                                                        SHIMMING WASHER 005 2HA-047 Genuine Maserati Part - New (to order)
                                                                        # 013
                                                                        MPN: 316220355
                                                                        010 SHIM WASHER
                                                                        from £1.60
                                                                        from £1.60
                                                                        SHIMMING WASHER 010 02HA-048 Genuine Maserati Part - New (to order)
                                                                        # 013
                                                                        MPN: 316220356
                                                                        030 SHIM WASHER
                                                                        from £2.13
                                                                        from £2.13
                                                                        SHIMMING WASHER 030 2HA-049 Genuine Maserati Part - New In stock
                                                                        # 014
                                                                        MPN: 396250522
                                                                        RING NUT
                                                                        from £3.58
                                                                        from £3.58
                                                                        RING NUT WITH COLLAR M17X1X1 Genuine Maserati Part - New (to order)
                                                                        # 016
                                                                        MPN: 396250311
                                                                        FLANGE
                                                                        from £67.17
                                                                        from £67.17
                                                                        FLANGE Genuine Maserati Part - New (to order)
                                                                        # 017
                                                                        MPN: 316220126
                                                                        BEARING
                                                                        from £127.06
                                                                        from £127.06
                                                                        CUSCINETTO SB 7HA-024 Genuine Maserati Part - New (to order)
                                                                        # 018
                                                                        MPN: 316220013
                                                                        PROPELLER SHAFT COMPLETE ASSY
                                                                        from £332.84
                                                                        from £332.84
                                                                        ALBERO TRASMISSIONE Genuine Maserati Part - New (to order)
                                                                        # 019
                                                                        MPN: 316220125
                                                                        SEAL RING
                                                                        from £8.52
                                                                        from £8.52
                                                                        ANELLO TENUTA Genuine Maserati Part - New (to order)
                                                                        # 020
                                                                        MPN: 326256010
                                                                        QUAIFE DIFFERENTIAL CASING
                                                                        from £1,360.74
                                                                        from £1,360.74
                                                                        SCATOLA DIFFERENZIALE RANGER Genuine Maserati Part - New (to order)
                                                                        # 021
                                                                        MPN: 316220107
                                                                        BREATHER VALVE
                                                                        from £17.33
                                                                        from £17.33
                                                                        BLEEDER VALVE Genuine Maserati Part - New (to order)
                                                                        # 022
                                                                        MPN: 316220362
                                                                        LEVEL PLUG
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 023
                                                                        MPN: 316220364
                                                                        SCREW AND WASHER
                                                                        from £1.30
                                                                        from £1.30
                                                                        VITE Genuine Maserati Part - New (to order)
                                                                        # 024
                                                                        MPN: 316220327
                                                                        AIR DEFLECTOR
                                                                        from £0.56
                                                                        from £0.56
                                                                        AIR DUCT Genuine Maserati Part - New (to order)
                                                                        # 027
                                                                        MPN: 316220363
                                                                        COVER
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        from £223.09
                                                                        from £223.09
                                                                        COVER Genuine Maserati Part - New (to order)
                                                                        # 027
                                                                        MPN: 396250525
                                                                        COVER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £237.80
                                                                        from £237.80
                                                                        COVER Genuine Maserati Part - New (to order)
                                                                        # 028
                                                                        MPN: 316220365
                                                                        GASKET
                                                                        from £3.58
                                                                        from £3.58
                                                                        GASKET Genuine Maserati Part - New (to order)
                                                                        # 028
                                                                        MPN: 9441
                                                                        HYLOSIL SILICON
                                                                        from £15.59
                                                                        from £15.59
                                                                        SILICONE HYLOSIL Genuine Maserati Part - New (to order)
                                                                        # 029
                                                                        -
                                                                        DIFFERENTIAL CASING
                                                                        Not supplied
                                                                        # 030
                                                                        MPN: 316220123
                                                                        BEARING
                                                                        from £118.85
                                                                        from £118.85
                                                                        BEARING SB7HA-023-1 Genuine Maserati Part - New (to order)
                                                                        # 031
                                                                        MPN: 316220348
                                                                        003 SHIM WASHER
                                                                        from £4.03
                                                                        from £4.03
                                                                        Maserati PART 316220348 Genuine Maserati Part - New (to order)
                                                                        # 031
                                                                        MPN: 316220349
                                                                        005 SHIM WASHER
                                                                        from £4.50
                                                                        from £4.50
                                                                        SHIMMING WASHER 005 Genuine Maserati Part - New (to order)
                                                                        # 031
                                                                        MPN: 316220350
                                                                        010 SHIM WASHER
                                                                        from £14.00
                                                                        from £14.00
                                                                        SHIMMING WASHER 010 Genuine Maserati Part - New (to order)
                                                                        # 032
                                                                        MPN: 316220340
                                                                        SELF LOCKING NUT
                                                                        from £24.87
                                                                        from £24.87
                                                                        SELF-LOCKING NUT Genuine Maserati Part - New (to order)
                                                                        # 033
                                                                        MPN: 316220341
                                                                        WASHER
                                                                        from £1.30
                                                                        from £1.30
                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                        # 034
                                                                        MPN: 316220346
                                                                        DRAINING PLUG
                                                                        from £12.03
                                                                        from £12.03
                                                                        This part replaces part number 316220362
                                                                        OIL DRAINING PLUG 05HA059003 Genuine Maserati Part - New In stock
                                                                        # 035
                                                                        MPN: 316220345
                                                                        SPACER
                                                                        from £2.43
                                                                        from £2.43
                                                                        SPACER Genuine Maserati Part - New (to order)
                                                                        # 036
                                                                        MPN: 316220122
                                                                        BEARING
                                                                        from £84.38
                                                                        from £84.38
                                                                        BEARING SB7HA-022-2 Genuine Maserati Part - New (to order)
                                                                        # 037
                                                                        MPN: 316220351
                                                                        SEAL RING
                                                                        from £15.59
                                                                        from £15.59
                                                                        SEALING RING Genuine Maserati Part - New (to order)
                                                                        # 038
                                                                        MPN: 316225025
                                                                        CROWN WHEEL AND PINION (R=3.31)
                                                                        VALID FOR 58 / 62 / 67 / 69 / 77 / 79
                                                                        from £757.43
                                                                        from £757.43
                                                                        COPPIA CONICA RIC 12HA 10500 Genuine Maserati Part - New (to order)
                                                                        # 038
                                                                        MPN: 326253025
                                                                        CROWN WHEEL AND PINION (R=3.77)
                                                                        VALID FOR 51 / 53 / 59 / 65 3V / 65 4V / 66
                                                                        from £565.01
                                                                        from £565.01
                                                                        COPPIA CONICA R=3,77 12HA105 Genuine Maserati Part - New (to order)
                                                                        # 039
                                                                        MPN: 396250545
                                                                        WASHER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                        # 040
                                                                        MPN: 396250543
                                                                        CAPSTAN SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £8.29
                                                                        from £8.29
                                                                        THREADED UNION SCREW G3/4X14 Genuine Maserati Part - New (to order)
                                                                        # 041
                                                                        MPN: 396250160
                                                                        RADIATOR
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 042
                                                                        MPN: 396250540
                                                                        CLAMP
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £1.52
                                                                        from £1.52
                                                                        CLAMP Genuine Maserati Part - New (to order)
                                                                        # 043
                                                                        MPN: 396250537
                                                                        HOSE
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £44.89
                                                                        from £44.89
                                                                        DIFF.RADIATOR RUBBER SLEEVE 5824 Genuine Maserati Part - New (to order)
                                                                        # 044
                                                                        MPN: 396250538
                                                                        BRACKET
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 045
                                                                        MPN: 101208018
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Maserati PART 101208018 Genuine Maserati Part - New (to order)
                                                                        # 046
                                                                        MPN: 396250541

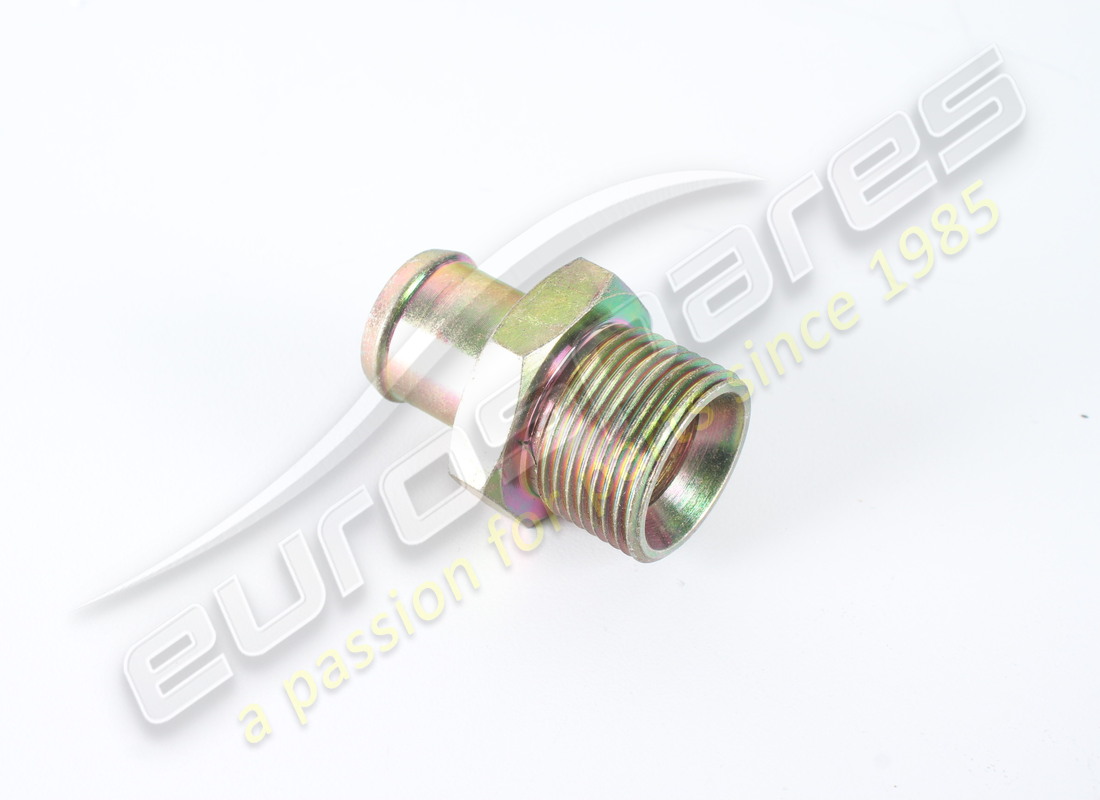

                                                                        UNION
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £26.38
                                                                        from £26.38
                                                                        DIFF. RADIATIOR SLEEVE UNION Genuine Maserati Part - New In stock
                                                                        # 047
                                                                        MPN: 396250546
                                                                        EYE UNION
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £5.73
                                                                        from £5.73
                                                                        UNION G3/4X14 925 Genuine Maserati Part - New (to order)
                                                                        # 048
                                                                        MPN: 396250876
                                                                        KIT, DIFFERENTIAL RADIATOR
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £610.19
                                                                        from £610.19
                                                                        RADIATOR KIT Genuine Maserati Part - New (to order)
                                                                        # 049
                                                                        MPN: 101312035
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Maserati PART 101312035 Genuine Maserati Part - New (to order)
                                                                        # 050
                                                                        MPN: 138420120
                                                                        LOCK WASHER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 051
                                                                        MPN: 14496601
                                                                        FLAT WASHER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        Genuine Ferrari Part (no longer available to order)
                                                                        # 052
                                                                        MPN: 316255506
                                                                        SPACER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £12.94
                                                                        from £12.94
                                                                        SPACER Genuine Maserati Part - New (to order)
                                                                        # 053
                                                                        MPN: 316255504
                                                                        SPACER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £38.79
                                                                        from £38.79
                                                                        SPACER Genuine Maserati Part - New (to order)
                                                                        # 054
                                                                        MPN: 43842
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 055
                                                                        MPN: 100810040
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £1.30
                                                                        from £1.30
                                                                        SCREW D= 10X1.5X40 Genuine Maserati Part - New (to order)
                                                                        # 056
                                                                        MPN: 138410100
                                                                        WASHER
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        Maserati PART 138410100 Genuine Maserati Part - New (to order)
                                                                        # 056
                                                                        MPN: 51581
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 057
                                                                        MPN: 101210020
                                                                        SCREW
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        Maserati PART 101210020 Genuine Maserati Part - New (to order)
                                                                        # 057
                                                                        MPN: 108008090
                                                                        SCREW
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Maserati PART 108008090 Genuine Maserati Part - New (to order)
                                                                        # 058
                                                                        MPN: 396250508
                                                                        WASHER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £5.02
                                                                        from £5.02
                                                                        MOUNTING WASHER Genuine Maserati Part - New (to order)
                                                                        # 059
                                                                        MPN: 136110110
                                                                        WASHER
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £2.13
                                                                        from £2.13
                                                                        WASHER 10X30X2.5 Genuine Maserati Part - New In stock
                                                                        # 059
                                                                        MPN: 346200334
                                                                        SPACER (1 MM)
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        SPACER (1 MM) Genuine Maserati Part - New (to order)
                                                                        # 061
                                                                        MPN: 326256105
                                                                        BRACKET FOR REAR DIFFERENTIAL
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        from £211.67
                                                                        from £211.67
                                                                        This part replaces part number 326256106 - and 1 more. Click to view details
                                                                        REAR DIFFERENTIAL COUPL. CROSS ME Genuine Maserati Part - New (to order)
                                                                        # 061
                                                                        MPN: 396250153
                                                                        BRACKET FOR REAR DIFFERENTIAL
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        Supersession
                                                                        Supersession
                                                                        Genuine Maserati Part (no longer available to order)
                                                                        # 062
                                                                        MPN: 346200101
                                                                        VIBRATION-DAMPING SUPPORT
                                                                        VALID FOR 51 / 53 / 65 3V / 65 4V / 66
                                                                        from £21.06
                                                                        from £21.06
                                                                        ANTI-VIBRATION MOUNT Genuine Maserati Part - New (to order)
                                                                        # 062
                                                                        MPN: 396250101
                                                                        VIBRATION-DAMPING SUPPORT
                                                                        VALID FOR 58 / 59 / 62 / 67 / 68 / 69 / 77 / 78 / 79
                                                                        from £9.11
                                                                        from £9.11
                                                                        SUPPORTO ANTIVIBRANTE TEN.DI Genuine Maserati Part - New (to order)
                                                                        # 063
                                                                        MPN: 326656309
                                                                        SCREW
                                                                        from £2.82
                                                                        from £2.82
                                                                        FLANGED BOLT D.10X1.5X85 Genuine Maserati Part - New In stock
                                                                        # 1.5
                                                                        MPN: 396250516
                                                                        WASHER
                                                                        WASHER Genuine Maserati Part - New (to order)
                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
