035 - External Finishing

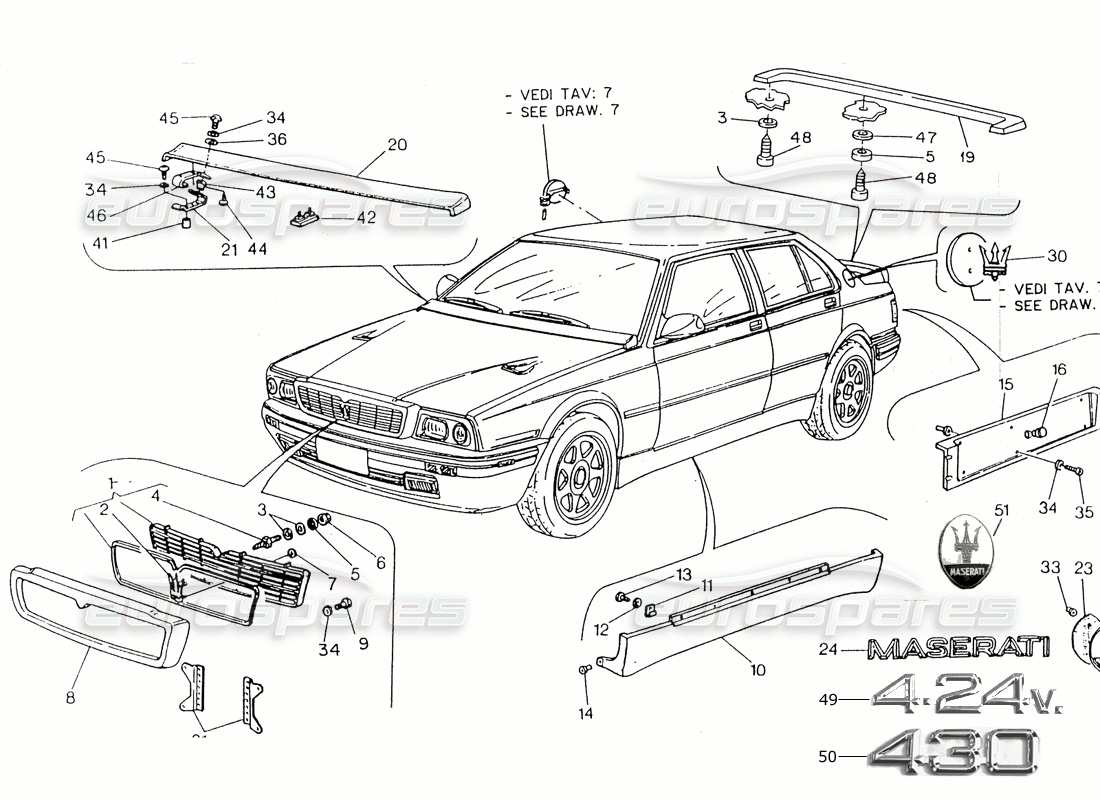

Maserati 418 / 4.24v / 430 External Finishing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 394150005
RADIATOR GRILL COMPLETE ASSY
Supersession
Supersession
# 002
MPN: 394150304
Badge
from £66.86
from £66.86
# 003
MPN: 314722507
NYLON WASHER
from £1.08
from £1.08
# 004
MPN: 314753517
SCREW
from £1.31
from £1.31
# 005
MPN: 136110055
FLAT WASHER
from £0.77
from £0.77
# 006
MPN: 122700050
NUT
# 007
MPN: 394150606
SPRING CLIP
from £0.74
from £0.74
# 008
MPN: 314152106
MASK
from £177.80
from £177.80
# 009
MPN: 112805016
SCREW
# 010
MPN: 328353239
LH RAIL COVER ASSY
from £50.76
from £50.76
# 010
MPN: 328353240
RH RAIL COVER ASSY
from £50.76
from £50.76
# 011
MPN: 318353359
BRACKET
from £18.09
from £18.09
# 012
MPN: 135000043
WASHER
from £1.08
from £1.08
# 013
MPN: 119142160
SCREW
from £0.85
from £0.85
# 014
MPN: 338320349
RIVET
from £0.85
from £0.85
# 015

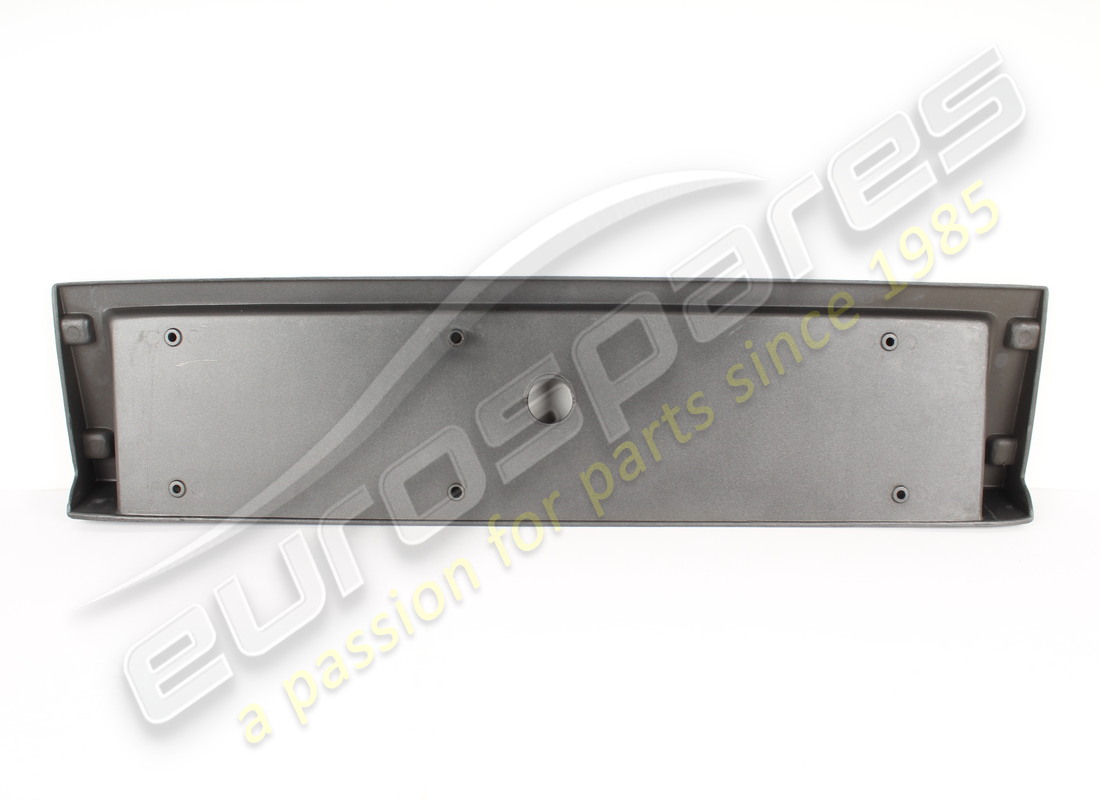

MPN: 326353641
REAR LICENSE PLATE HOUSING
from £2.85
from £2.85
# 016
MPN: 165000160
GROMMET
# 019
MPN: 324753201
REAR SPOILER
from £24.89
from £24.89
# 020
MPN: 318362190
WINDSHIELD WIPER COVER PANEL
from £142.28
from £142.28
This part replaces part number 318352191
# 021
MPN: 318352565
BRACKET
from £1.08
from £1.08
# 022

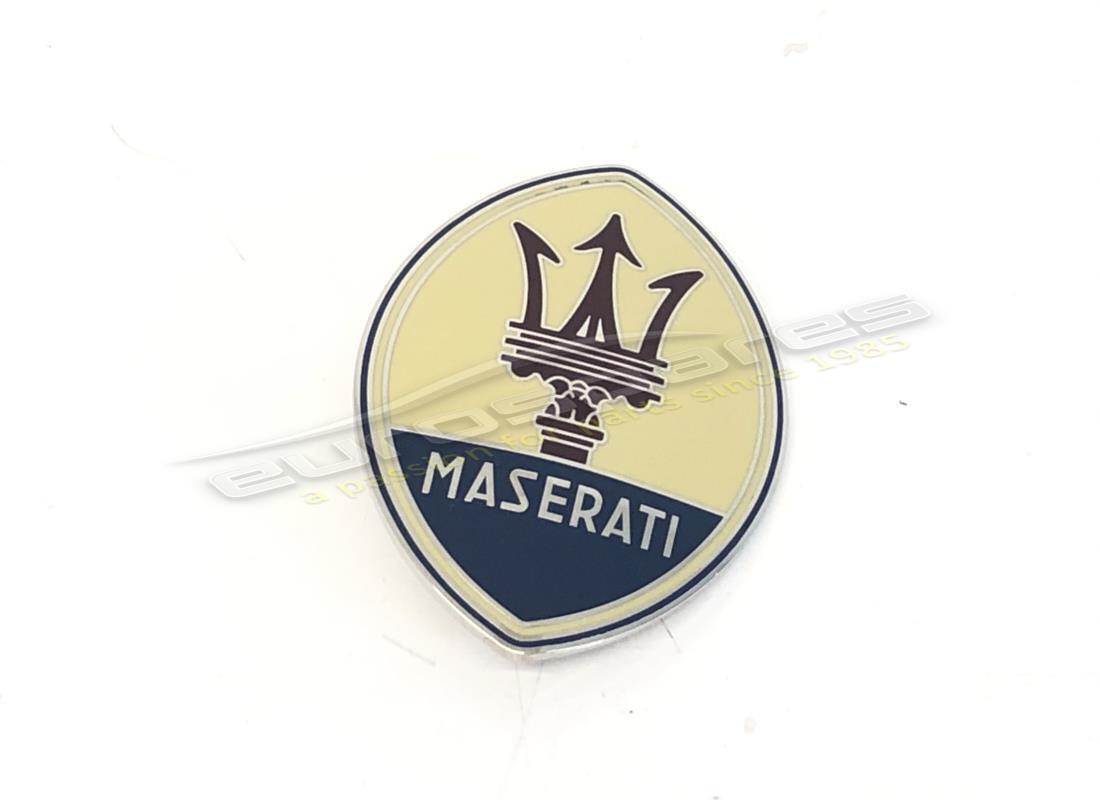

MPN: 328320109
BOOT OVAL BADGE
from £91.52
from £91.52
# 023
MPN: 318320362
GASKET FOR BADGE
from £0.74
from £0.74
# 024

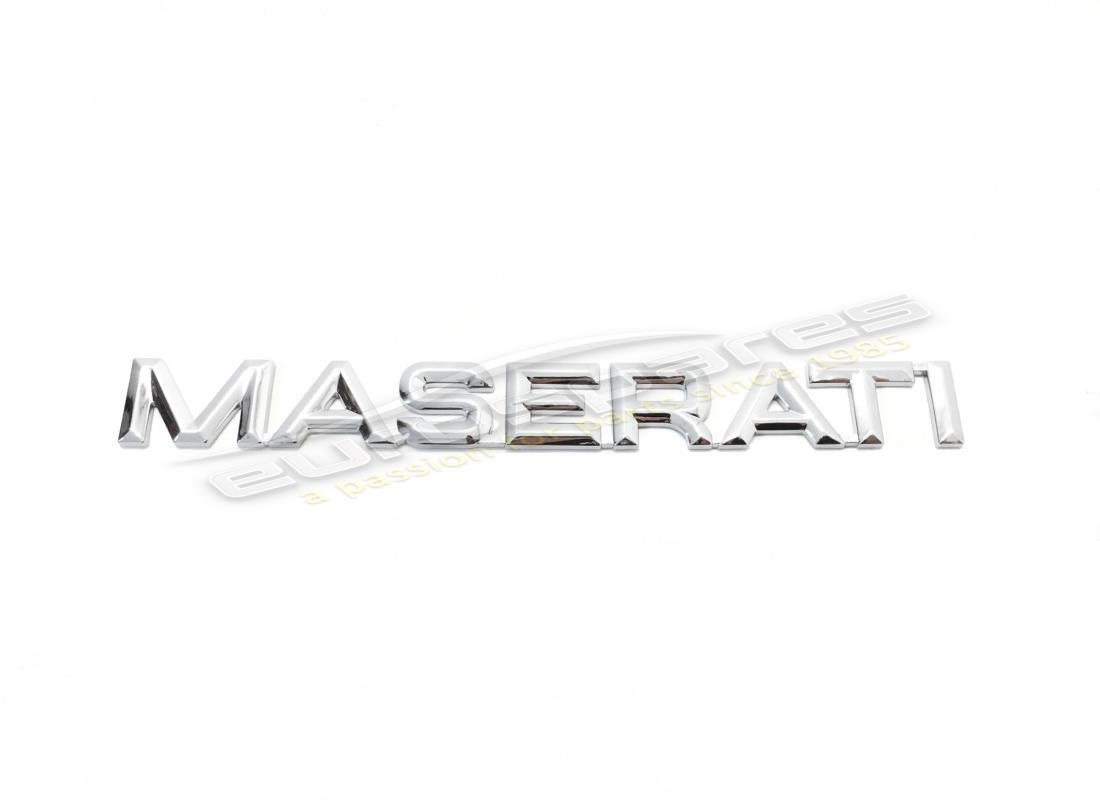

MPN: 318353360
Maserati BADGE
(plastic)
from £25.20
from £25.20
# 024
MPN: 318353360/A
Maserati BADGE
(metal)
# 030
MPN: 318350350
Maserati BADGE (CHROME PLATED)
VALID FOR 51 / 53 / 62 / 69 / 79
from £5.34
from £5.34
This part replaces part number 318320350
# 030

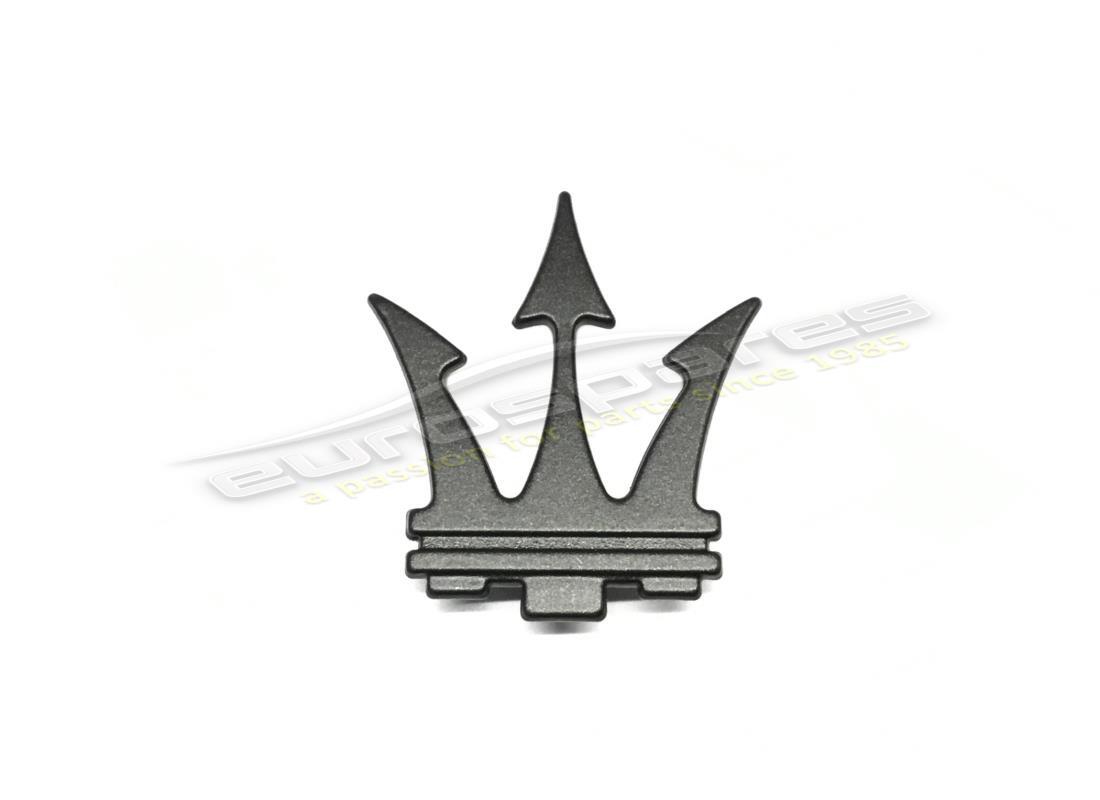

MPN: 318353350
Maserati BADGE (BLACK)
VALID FOR 58 / 59 / 65 3V / 65 4V / 66 / 67 / 68 / 77 / 78
from £42.53
from £42.53
# 031
MPN: 556320109
LICENSE PLATE HOLDER
from £0.51
from £0.51
# 033
MPN: 31471311
PIN SEAT
from £0.69
from £0.69
# 034
MPN: 135000043
WASHER
from £1.08
from £1.08
# 035
MPN: 167590414
SELF TAPPING SCREW
from £1.55
from £1.55
# 036
MPN: 136110055
FLAT WASHER
from £0.77
from £0.77
# 038
MPN: 119148190
SCREW
# 041
MPN: 318320315
BUSHING
from £1.04
from £1.04
# 042
MPN: 318352205
SCREW ANCHOR
from £0.69
from £0.69
# 043
MPN: 318352206
BUSH
from £1.08
from £1.08
# 044
MPN: 119142130
SCREW
# 045
MPN: 167590414
SELF TAPPING SCREW
from £1.55
from £1.55
# 046
MPN: 318352564
BRACKET
from £1.55
from £1.55
# 047
MPN: 314722506
NYLON WASHER
from £1.14
from £1.14
# 048
MPN: 119148190
SCREW
# 049

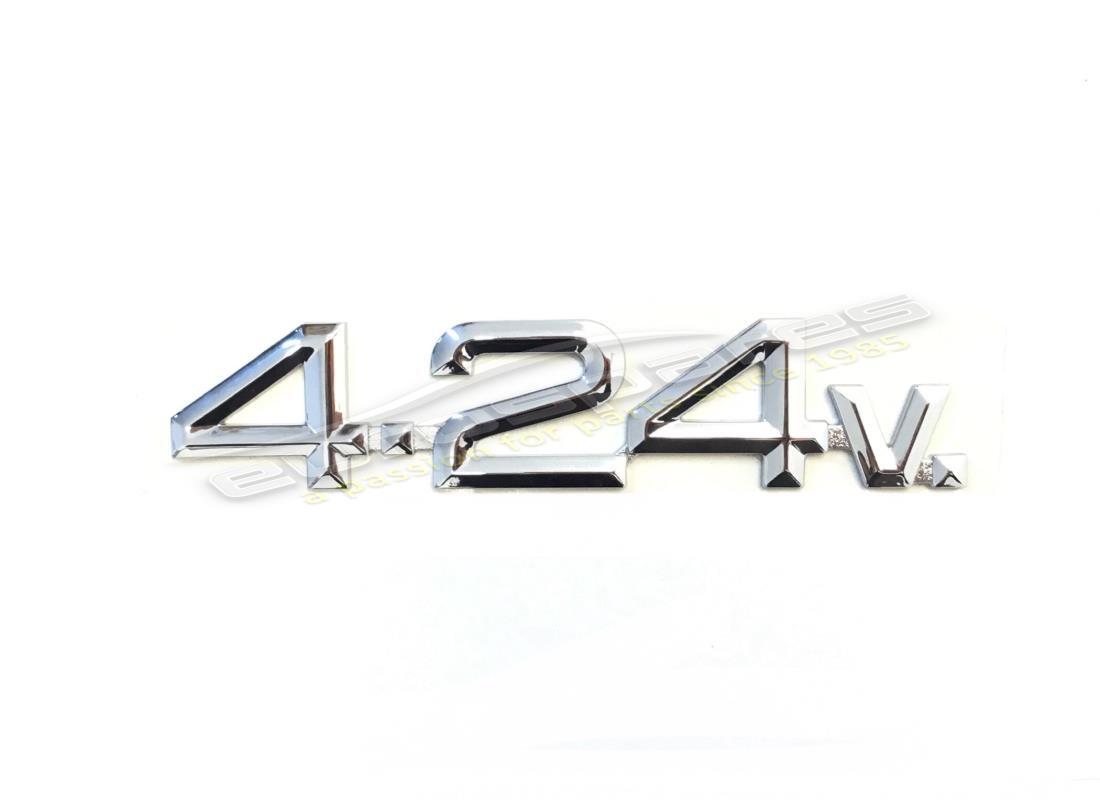

MPN: 328353369
4.24V BADGE
from £8.35
from £8.35
# 050

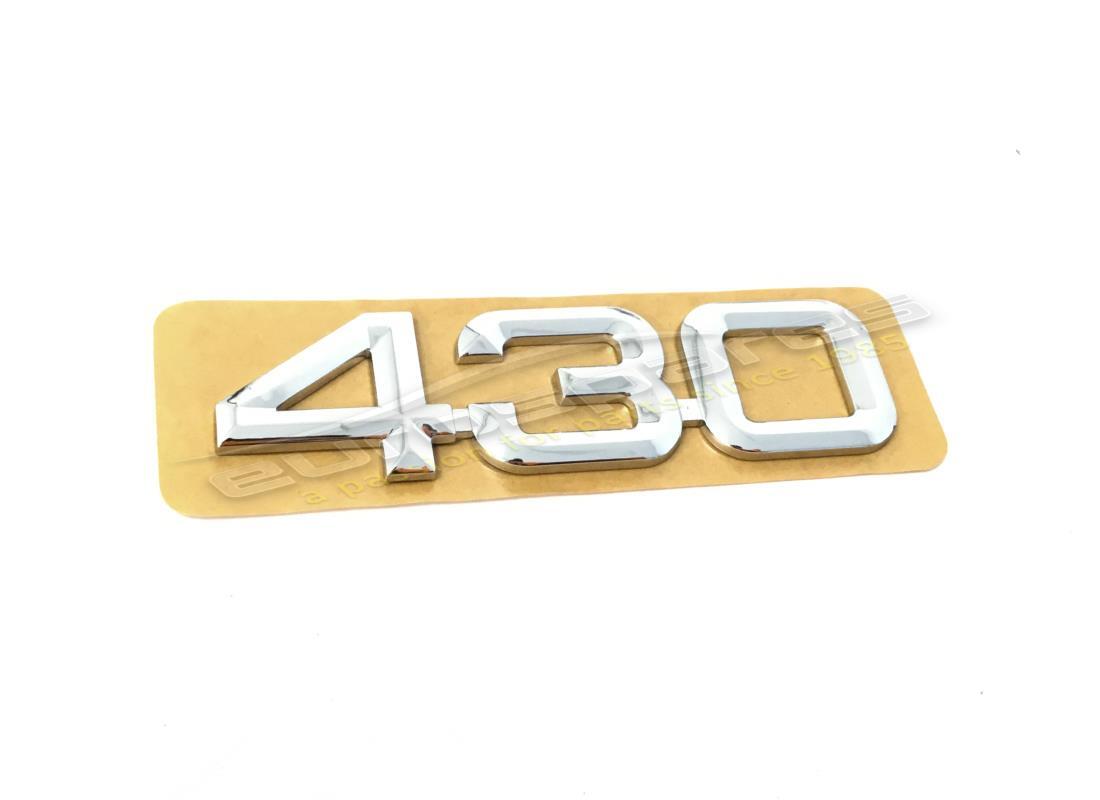

MPN: 328356361
430 BADGE
from £8.35
from £8.35
# 051
MPN: 328320109
BOOT BADGE
from £91.52
from £91.52
