maserati biturbo 2.5 (1984) cylinder block and oil sump parts diagram

004 - cylinder block and oil sump

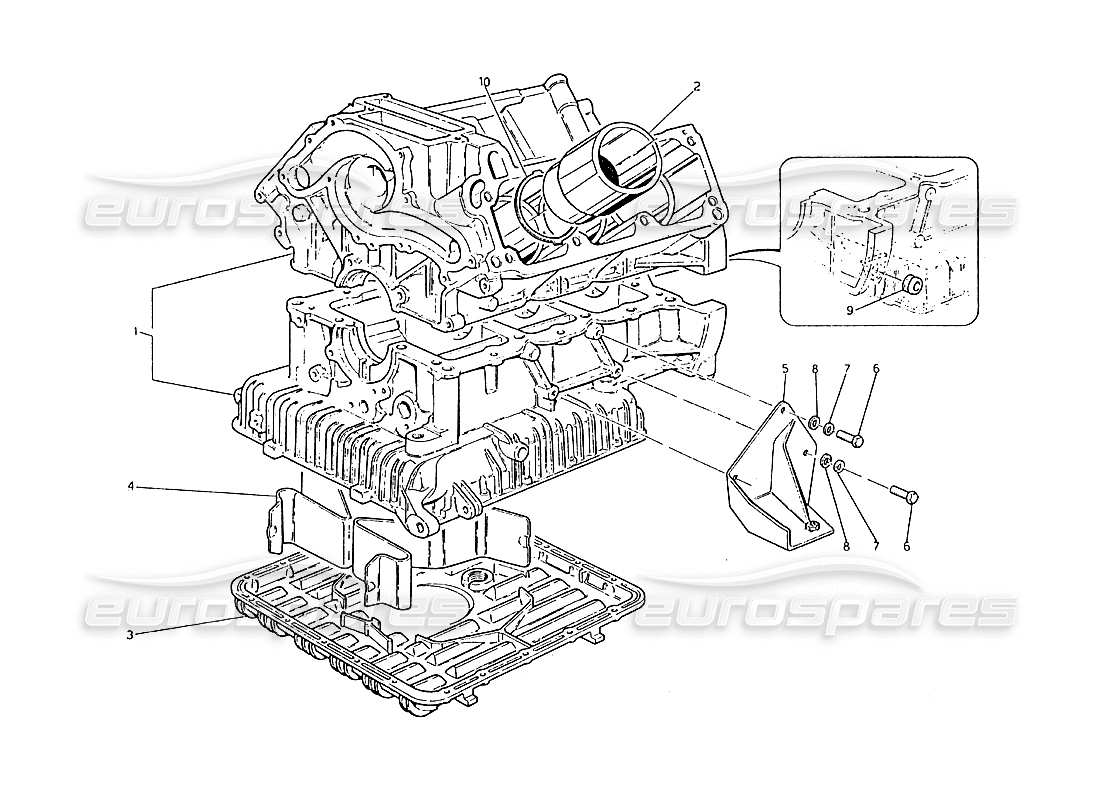

Maserati Biturbo 2.5 (1984) Cylinder Block and Oil Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 001
                      MPN: 310425011
                      LOWER AND UPPER CYLINDER BLOCK
                      # 002
                      MPN: 310625316
                      LINER FOR CYLINDERS
                      from £91.85
                      from £91.85
                      # 003
                      MPN: 470010900
                      engine oil sump
                      Supersession
                      Supersession
                      # 005
                      MPN: 331244800
                      RH ENGINE SUPPORT
                      from £15.90
                      from £15.90
                      # 005
                      MPN: 331244900
                      LH ENGINE SUPPORT
                      from £15.24
                      from £15.24
                      # 006
                      MPN: 101210025
                      BOLT FIX. SUPPORT
                      # 007
                      MPN: 14496601
                      WASHER
                      Supersession
                      Supersession
                      # 008
                      MPN: 134700105
                      WASHER
                      from £1.12
                      from £1.12
                      # 009
                      MPN: 312020368
                      WIRE INLET
                      from £0.86
                      from £0.86
                      # 010
                      MPN: 310625420
                      GASKET
                      from £1.12
                      from £1.12
