maserati biturbo 2.5 (1984) air conditioning system parts diagram

018 - air conditioning system

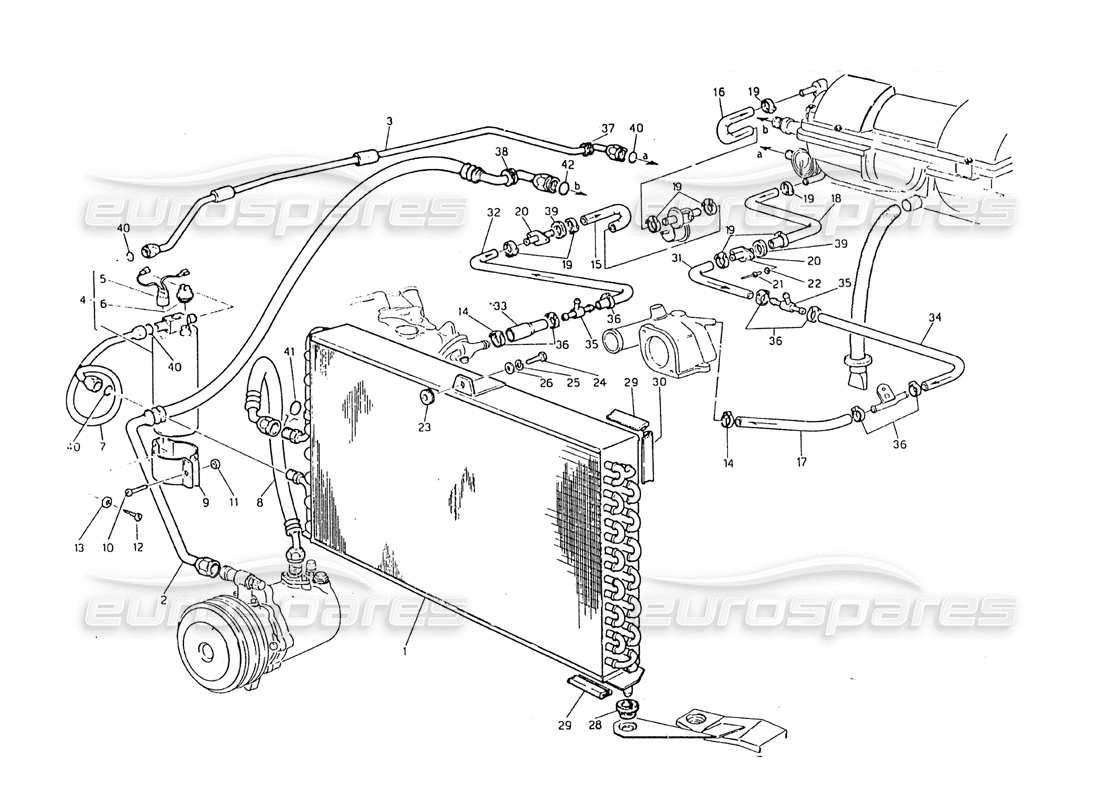

Maserati Biturbo 2.5 (1984) Air Conditioning System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Key
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 315520100
                                                                                      CONDENSER
                                                                                      CONDENSER Genuine Maserati Part - New (to order)
                                                                                      # 002
                                                                                      MPN: 315520106
                                                                                      FREON RETURN LINE
                                                                                      from £9.58
                                                                                      from £9.58
                                                                                      Maserati PART 315520106 Genuine Maserati Part - New (to order)
                                                                                      # 003
                                                                                      MPN: 315520105
                                                                                      FREON DELIVERY LINE
                                                                                      from £29.74
                                                                                      from £29.74
                                                                                      FREON DELIVERY PIPE Genuine Maserati Part - New (to order)
                                                                                      # 004
                                                                                      MPN: 315520102
                                                                                      FILTER ASSY
                                                                                      Supersession
                                                                                      Supersession
                                                                                      Genuine Maserati Part (no longer available to order)
                                                                                      # 005
                                                                                      MPN: 315520122
                                                                                      MAX. CAPACITY PRESSURE SWITCH
                                                                                      MAX. CAPACITY PRESSURE SWITCH Genuine Maserati Part - New (to order)
                                                                                      # 006
                                                                                      MPN: 315520123
                                                                                      MIN. CAPACITY PRESSURE SWITCH
                                                                                      MIN. CAPACITY PRESSURE SWITCH Genuine Maserati Part - New (to order)
                                                                                      # 007
                                                                                      MPN: 315520104
                                                                                      DELIVERY LINE
                                                                                      Supersession
                                                                                      Supersession
                                                                                      Genuine Maserati Part (no longer available to order)
                                                                                      # 008
                                                                                      MPN: 315520103
                                                                                      DELIVERY LINE
                                                                                      from £7.26
                                                                                      from £7.26
                                                                                      Maserati PART 315520103 Genuine Maserati Part - New (to order)
                                                                                      # 009
                                                                                      MPN: 315520301
                                                                                      CLAMP
                                                                                      from £17.16
                                                                                      from £17.16
                                                                                      FILTER CLAMP FREON Genuine Maserati Part - New (to order)
                                                                                      # 013
                                                                                      MPN: 169020005
                                                                                      WASHER
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                      # 014
                                                                                      MPN: 312420316
                                                                                      CLAMP
                                                                                      from £1.55
                                                                                      from £1.55
                                                                                      CLAMP Genuine Maserati Part - New (to order)
                                                                                      # 015
                                                                                      MPN: 315520363
                                                                                      WATER LINE
                                                                                      WATER LINE Genuine Maserati Part - New (to order)
                                                                                      # 016
                                                                                      MPN: 315520366
                                                                                      WATER LINE
                                                                                      from £1.76
                                                                                      from £1.76
                                                                                      TUBAZ. ACQUA Genuine Maserati Part - New (to order)
                                                                                      # 017
                                                                                      MPN: 315525359
                                                                                      WATER RETURN FROM COM. TO THERMOSTAT
                                                                                      from £12.82
                                                                                      from £12.82
                                                                                      WATER RETURN PIPE 5824495 Genuine Maserati Part - New (to order)
                                                                                      # 018
                                                                                      MPN: 315520367
                                                                                      WATER LINE
                                                                                      from £4.37
                                                                                      from £4.37
                                                                                      Maserati PART 315520367 Genuine Maserati Part - New (to order)
                                                                                      # 019
                                                                                      MPN: 186402028
                                                                                      CLAMP
                                                                                      from £1.55
                                                                                      from £1.55
                                                                                      CLAMP Genuine Maserati Part - New (to order)
                                                                                      # 020
                                                                                      MPN: 315520370
                                                                                      CONNECTION
                                                                                      from £0.70
                                                                                      from £0.70
                                                                                      CONNECTING UNION Genuine Maserati Part - New (to order)
                                                                                      # 021
                                                                                      MPN: 164323413
                                                                                      «POP» RIVET
                                                                                      RIVET Genuine Maserati Part - New (to order)
                                                                                      # 022
                                                                                      MPN: 15105001
                                                                                      WASHER
                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                      # 023
                                                                                      MPN: 315520120
                                                                                      UPPER RING
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      UPPER RING Genuine Maserati Part - New (to order)
                                                                                      # 025
                                                                                      MPN: 135600060
                                                                                      SPRING WASHER
                                                                                      from £0.77
                                                                                      from £0.77
                                                                                      WASHER 6.15X11.8 Genuine Maserati Part - New In stock
                                                                                      # 027
                                                                                      MPN: 315520017
                                                                                      EXHAUST LINE
                                                                                      from £1.76
                                                                                      from £1.76
                                                                                      EXHAUST PIPE Genuine Maserati Part - New (to order)
                                                                                      # 028
                                                                                      MPN: 189453
                                                                                      BUSH
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      This part replaces part number 374030312
                                                                                      RUBBER BUSHING SUPPORT FO Genuine Maserati Part - New In stock
                                                                                      # 029
                                                                                      MPN: 315520336
                                                                                      PADDING
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      PADDING Genuine Maserati Part - New (to order)
                                                                                      # 030
                                                                                      MPN: 315520337
                                                                                      PADDING
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      PADDING Genuine Maserati Part - New (to order)
                                                                                      # 031
                                                                                      MPN: 315520356
                                                                                      WATER RETURN LINE
                                                                                      from £15.43
                                                                                      from £15.43
                                                                                      Maserati PART 315520356 Genuine Maserati Part - New (to order)
                                                                                      # 032
                                                                                      MPN: 316520357
                                                                                      WATER DELIVERY LINE
                                                                                      WATER DELIVERY LINE Genuine Maserati Part - New (to order)
                                                                                      # 033
                                                                                      MPN: 315520358
                                                                                      WATER DELIVERY LINE
                                                                                      from £31.84
                                                                                      from £31.84
                                                                                      PIPE 5824549 Genuine Maserati Part - New (to order)
                                                                                      # 034
                                                                                      MPN: 315525358
                                                                                      WATER RETURN LINE
                                                                                      from £34.18
                                                                                      from £34.18
                                                                                      This part replaces part number 312253482
                                                                                      PIPE Genuine Maserati Part - New (to order)
                                                                                      # 035
                                                                                      MPN: 315520360
                                                                                      CONNECTION
                                                                                      from £2.25
                                                                                      from £2.25
                                                                                      3-WAY UNION Genuine Maserati Part - New (to order)
                                                                                      # 036
                                                                                      MPN: 315520350
                                                                                      CLAMP TO FIX. SLEEVE ON Y-CONN.
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      CLAMP Genuine Maserati Part - New (to order)
                                                                                      # 037
                                                                                      MPN: 31331303
                                                                                      GROMMET
                                                                                      from £1.06
                                                                                      from £1.06
                                                                                      GROMMET Genuine Maserati Part - New (to order)
                                                                                      # 038
                                                                                      MPN: 315520371
                                                                                      GROMMET
                                                                                      from £0.63
                                                                                      from £0.63
                                                                                      FAIRLEAD Genuine Maserati Part - New (to order)
                                                                                      # 039
                                                                                      MPN: 315520372
                                                                                      GASKET
                                                                                      from £0.69
                                                                                      from £0.69
                                                                                      GASKET Genuine Maserati Part - New (to order)
                                                                                      # 040
                                                                                      MPN: 315520443
                                                                                      O-Ring for Freno line
                                                                                      from £0.69
                                                                                      from £0.69
                                                                                      ANELLO TENUTA Genuine Maserati Part - New (to order)
                                                                                      # 041
                                                                                      MPN: 315520444
                                                                                      O-Ring for Freno line
                                                                                      from £0.69
                                                                                      from £0.69
                                                                                      ANELLO Genuine Maserati Part - New (to order)
                                                                                      # 042
                                                                                      MPN: 315520445
                                                                                      O-Ring for Freno line
                                                                                      from £0.69
                                                                                      from £0.69
                                                                                      ANELLO Genuine Maserati Part - New (to order)
