024 - Fuel Pipes

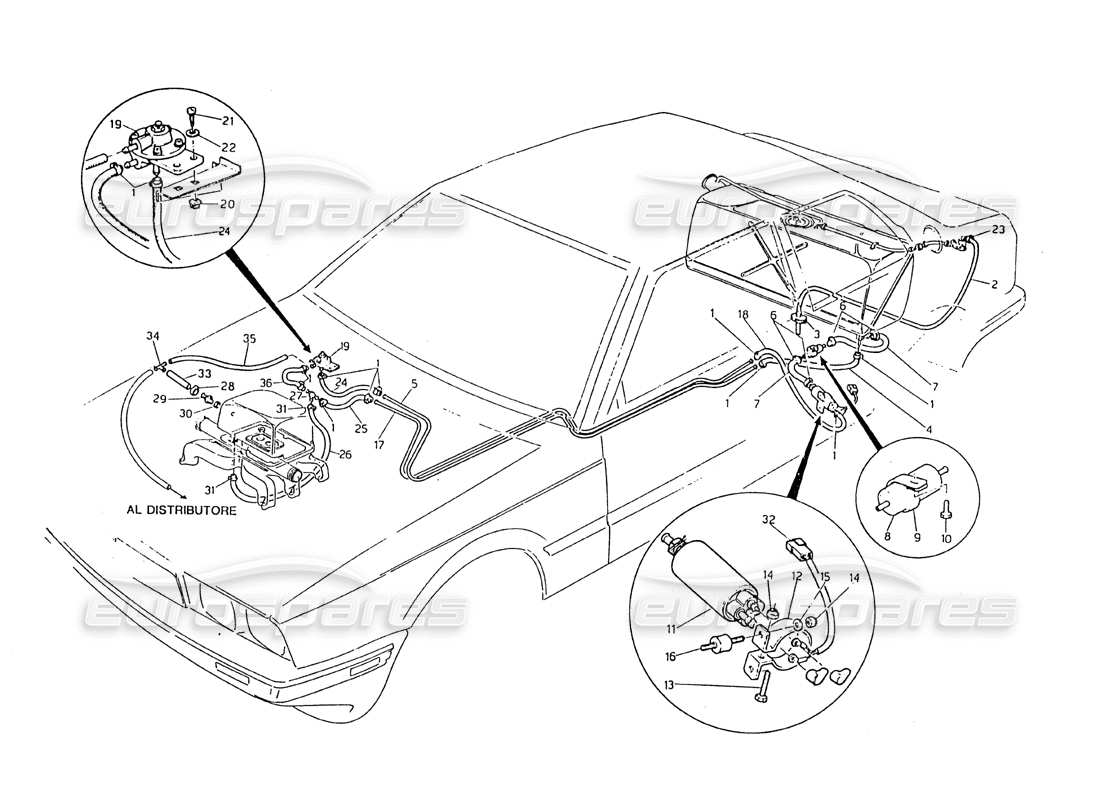

Maserati Biturbo 2.5 (1984) Fuel Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Key
                                                                          Price
                                                                          # 001
                                                                          MPN: 559221343

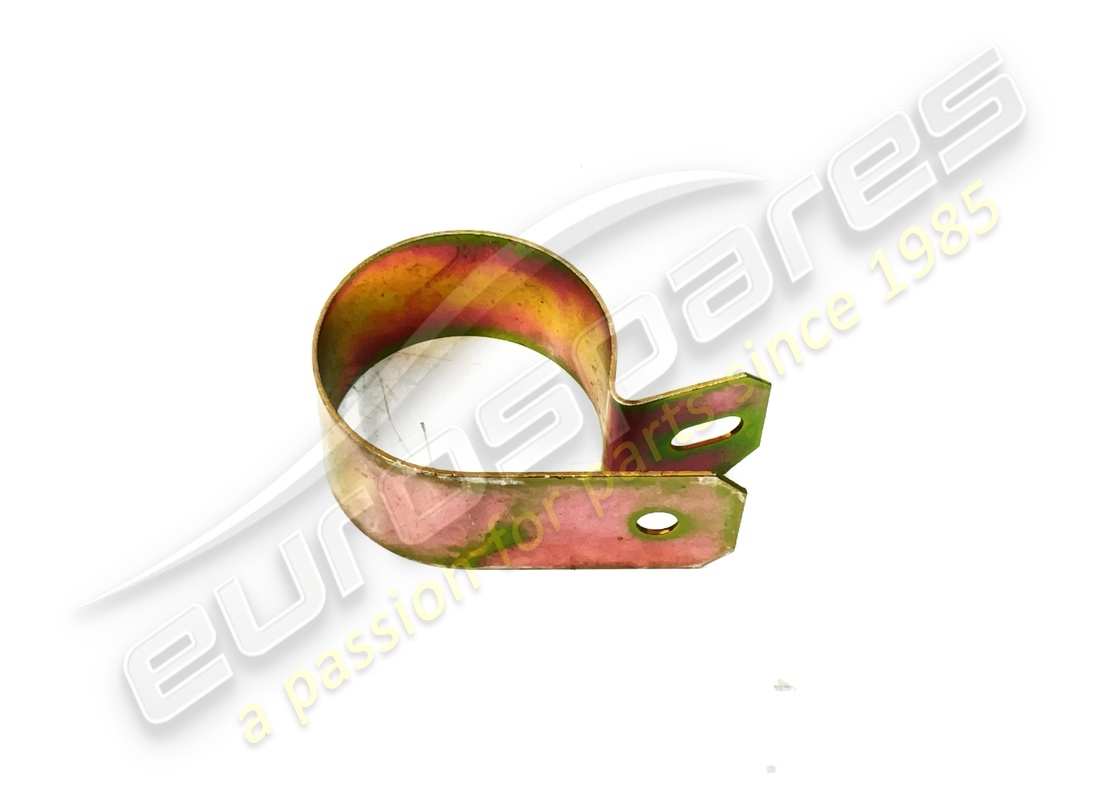

                                                                          CLAMP
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Maserati Part (no longer available to order)
                                                                          # 002
                                                                          MPN: 310220301
                                                                          VENT PIPE
                                                                          VENT PIPE Genuine Maserati Part - New (to order)
                                                                          # 004
                                                                          MPN: 319220356
                                                                          RETURN FUEL PIPE
                                                                          RETURN FUEL PIPE Genuine Maserati Part - New (to order)
                                                                          # 005
                                                                          MPN: 319220350
                                                                          STIFF RETURN FUEL PIPE
                                                                          STIFF RETURN FUEL PIPE Genuine Maserati Part - New (to order)
                                                                          # 006
                                                                          MPN: 319220113
                                                                          CLAMP
                                                                          from £1.08
                                                                          from £1.08
                                                                          CLAMP Genuine Maserati Part - New (to order)
                                                                          # 007
                                                                          MPN: 319220344
                                                                          SLEEVE CONN, PUMP TO FUEL FILTER
                                                                          from £5.57
                                                                          from £5.57
                                                                          SLEEVE CONN. PUMP TO Genuine Maserati Part - New (to order)
                                                                          # 008
                                                                          MPN: 312220100
                                                                          FUEL FILTER
                                                                          from £31.45
                                                                          from £31.45
                                                                          This part replaces part number 379200141
                                                                          Filtro benzina Genuine Maserati Part - New In stock
                                                                          # 009
                                                                          MPN: 319220369
                                                                          CLAMP
                                                                          from £2.32
                                                                          from £2.32
                                                                          FUEL FILTER FASTENING CLAMP Genuine Maserati Part - New (to order)
                                                                          # 010
                                                                          MPN: 314320345
                                                                          SCREW
                                                                          from £46.34
                                                                          from £46.34
                                                                          ENGINE COMPT. LID FASTENING SCREW Genuine Maserati Part - New (to order)
                                                                          # 011
                                                                          MPN: 313320107
                                                                          fuel pump
                                                                          Supersession
                                                                          Supersession
                                                                          Genuine Maserati Part (no longer available to order)
                                                                          # 012
                                                                          MPN: 319220367
                                                                          CLAMP
                                                                          CLAMP Genuine Maserati Part - New (to order)
                                                                          # 013
                                                                          MPN: 112806035
                                                                          SCREW
                                                                          SCREW Genuine Maserati Part - New (to order)
                                                                          # 015
                                                                          MPN: 169020406
                                                                          WASHER
                                                                          from £0.77
                                                                          from £0.77
                                                                          FLAT WASHER Genuine Maserati Part - New In stock
                                                                          # 016
                                                                          MPN: 319220112
                                                                          SPRING RETAINER
                                                                          from £1.41
                                                                          from £1.41
                                                                          SUPPORT Genuine Maserati Part - New (to order)
                                                                          # 017
                                                                          MPN: 319220346
                                                                          STIFF PIPE FOR FUEL DELIVERY
                                                                          STIFF PIPE FOR FUEL DELIVERY Genuine Maserati Part - New (to order)
                                                                          # 018
                                                                          MPN: 319220353
                                                                          SLEEVE TO CONN, FUEL DELIVERY TO PUMP
                                                                          SLEEVE TO CONN, FUEL DELIVERY TO PUMP Genuine Maserati Part - New (to order)
                                                                          # 019
                                                                          MPN: 319220124

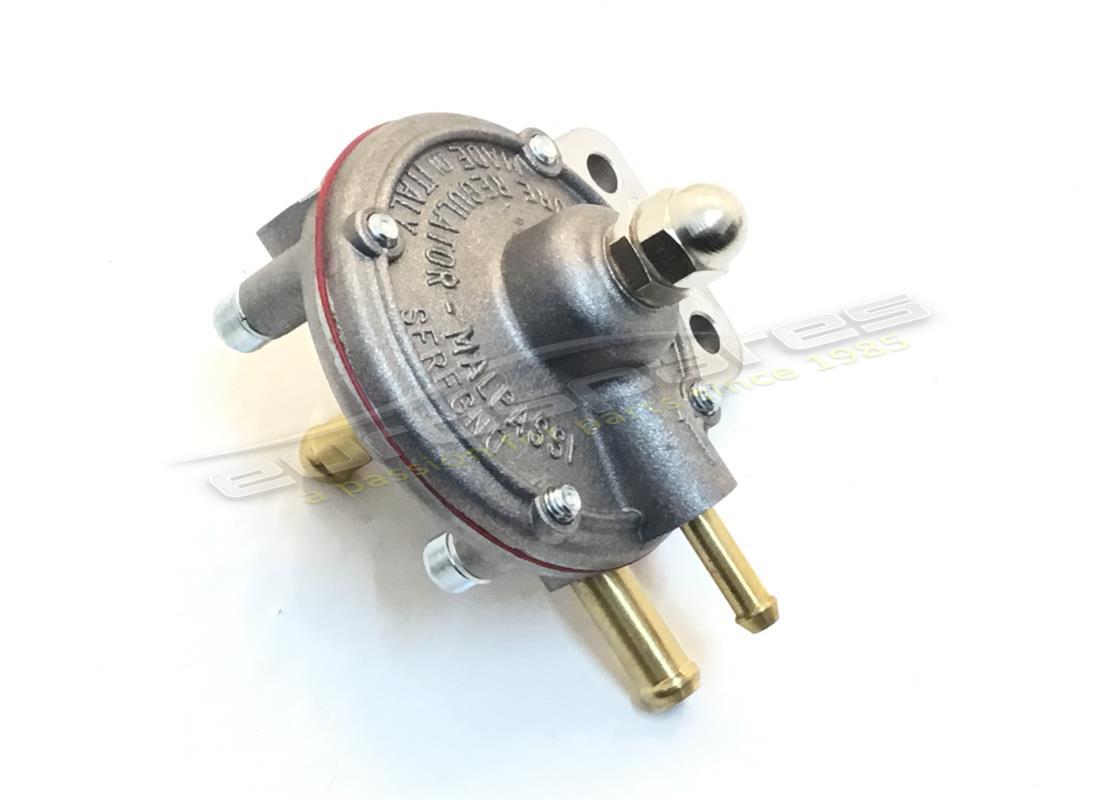

                                                                          REGULATOR
                                                                          from £94.45
                                                                          from £94.45
                                                                          REGULATOR Genuine Maserati Part - New In stock
                                                                          # 020
                                                                          MPN: 319220324
                                                                          BLOCK
                                                                          from £0.63
                                                                          from £0.63
                                                                          This part replaces part number 82457087
                                                                          Retaining Clip Genuine Maserati Part - New In stock
                                                                          # 023
                                                                          MPN: 539201335
                                                                          CLAMP
                                                                          CLAMP Genuine Maserati Part - New (to order)
                                                                          # 024
                                                                          MPN: 319220357
                                                                          SLEEVE TO CONN. MALPASSI TO FUEL RET.
                                                                          from £7.26
                                                                          from £7.26
                                                                          SLEEVE TO CONN. MALP Genuine Maserati Part - New (to order)
                                                                          # 025
                                                                          MPN: 319220343
                                                                          SLEEVE TO CONN. Y- CONN, TO DELIBERY PIPE
                                                                          from £1.13
                                                                          from £1.13
                                                                          MANIC-SFIATO TUBO Genuine Maserati Part - New (to order)
                                                                          # 026
                                                                          MPN: 312020364
                                                                          SLEEVE TO CONN. Y- CONN, TO CARBURATOR
                                                                          from £11.44
                                                                          from £11.44
                                                                          GAS PIPE Genuine Maserati Part - New (to order)
                                                                          # 027
                                                                          MPN: 319220342
                                                                          Y- CONNECTOR
                                                                          from £0.99
                                                                          from £0.99
                                                                          Y-CONNECTOR Genuine Maserati Part - New (to order)
                                                                          # 028
                                                                          MPN: 312220435
                                                                          CLAMP TO FIX. SLEEVE ON COVER CONN.
                                                                          from £0.69
                                                                          from £0.69
                                                                          CLAMP TO FIX. SLEEVE Genuine Maserati Part - New (to order)
                                                                          # 029
                                                                          MPN: 312220431
                                                                          CONNECTOR ON CARBUR. COVER
                                                                          from £2.68
                                                                          from £2.68
                                                                          CONNECTOR ON CARBUR. Genuine Maserati Part - New (to order)
                                                                          # 030
                                                                          MPN: 312220404
                                                                          GASKET
                                                                          from £0.69
                                                                          from £0.69
                                                                          COPPER GASKET Genuine Maserati Part - New (to order)
                                                                          # 032
                                                                          MPN: 313320109
                                                                          PUMP WIRING HARNESS
                                                                          from £3.08
                                                                          from £3.08
                                                                          GRUPPO CAVI Genuine Maserati Part - New (to order)
                                                                          # 033
                                                                          MPN: 312220438
                                                                          SLEEVE TO CONN. CONN, ON COVER TO Y- CONN
                                                                          from £0.49
                                                                          from £0.49
                                                                          COUPLER Genuine Maserati Part - New (to order)
                                                                          # 034
                                                                          MPN: 312020336
                                                                          Y-CONNECTOR
                                                                          from £0.85
                                                                          from £0.85
                                                                          Y-CONNECTOR Genuine Maserati Part - New (to order)
                                                                          # 035
                                                                          MPN: 312220437
                                                                          SLEEVE TO CONN. Y- CONN, TO MALPASSI
                                                                          SLEEVE TO CONN. Y- CONN, TO MALPASSI Genuine Maserati Part - New (to order)
                                                                          # 036
                                                                          MPN: 319220348
                                                                          SLEEVE TO CONN, DELIVERY Y- CONN, TO MALPA
                                                                          from £10.14
                                                                          from £10.14
                                                                          SLEEV TO CONN.DELIVE Genuine Maserati Part - New (to order)
