007 - timing

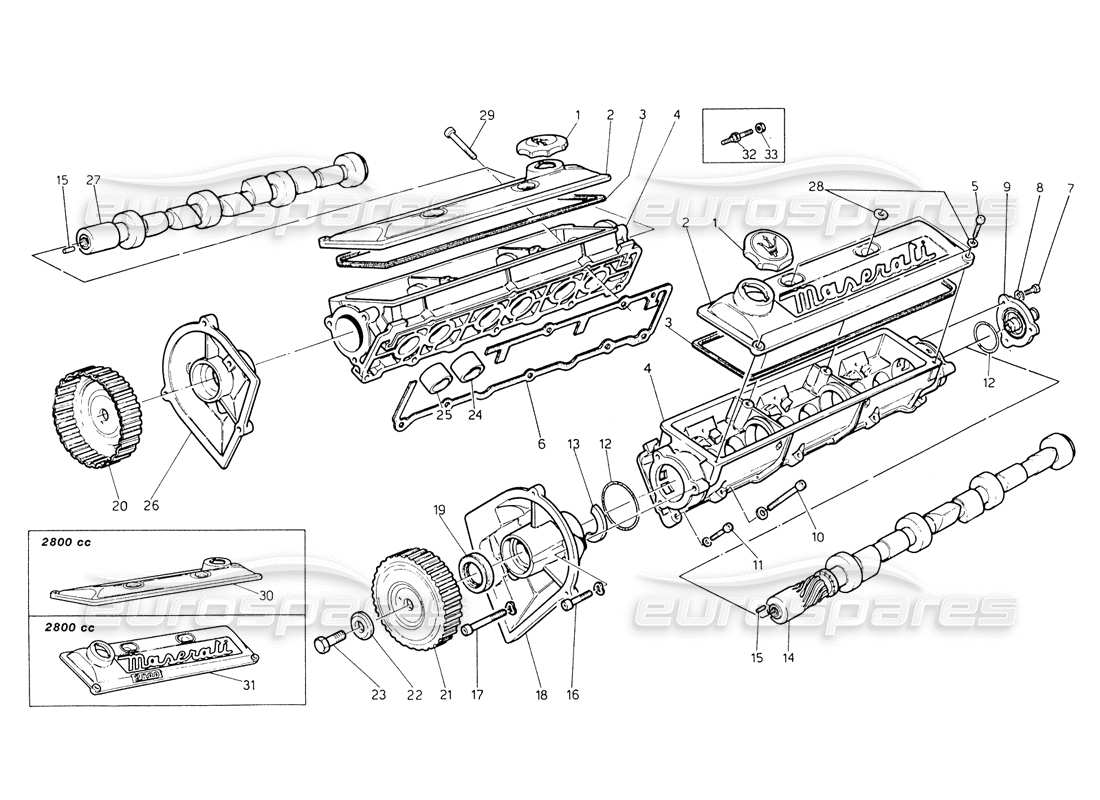

Maserati Biturbo Spider Timing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 311020007
CAMSHAFT HOUSING
from £456.58
from £456.58
# 000
MPN: 341000006
CAMSHAFT HOUSING
from £482.48
from £482.48
# 001
MPN: 311020105
OIL PLUG
# 002
MPN: 311022328
COVER
Valid for 00
Supersession
Supersession
This part replaces part number 311020328
# 003
MPN: 311020321
RUBBER GASKET
from £13.60
from £13.60
# 004
MPN: 311020319
CAMSHAFT HOUSING
# 005
MPN: 108006022
SCREW
# 006
MPN: 310650421
FLAT GASKET
from £10.45
from £10.45
# 007
MPN: 108008016
SCREW
# 008
MPN: 138410080
SPRING WASHER
# 009
MPN: 311025329
OIL BLOWER COVER
from £1.76
from £1.76
This part replaces part number 311020329
# 010
MPN: 311020320
SCREW
from £1.31
from £1.31
# 011
MPN: 108008035
SCREW
# 012
MPN: 14459880
RUBBER
from £0.69
from £0.69
# 013
MPN: 311020313
STOP PLATE FOR CAMSHAFT
# 014
MPN: 311020317
LH CAMSHAFT
from £142.54
from £142.54
# 015
MPN: 311020312
DOWEL
from £0.69
from £0.69
# 016
MPN: 14306424
SCREW
from £0.51
from £0.51
This part replaces part number 14306421
# 017
MPN: 108008060
SCREW
# 018
MPN: 311020305
LH CYLINDER HEAD COVER
from £222.59
from £222.59
# 019
MPN: 311020368
SEAL RING
from £9.72
from £9.72
This part replaces part number 190400351
# 020
MPN: 311020300
RH CAMSHAFT PULLEY
# 021
MPN: 311020301
LH CAMSHAFT PUILEY
# 022
MPN: 311020314
WASHER
# 023
MPN: 311420300
BOLT
Supersession
Supersession
# 024
MPN: 311020325
INLET VALVE COLLAR TOP
from £12.21
from £12.21
# 025
MPN: 311020326
EXHAUST VALVE COLALR TOP
from £11.44
from £11.44
# 026
MPN: 311020327
RH CYLINDER HEAD COVER
from £68.38
from £68.38
This part replaces part number 311020306
# 027
MPN: 311020316
RH CAMSHAFT
from £134.23
from £134.23
# 028
MPN: 311020323
SNAP RING
from £4.53
from £4.53
# 029
MPN: 311020320
OUTSIDE SCREW
from £1.31
from £1.31
# 030
MPN: 311022328
RH COVER
Valid for 02, 03, 10, 11, 40, 41, 44, 45
Supersession
Supersession
This part replaces part number 311020328
# 031
MPN: 341000329
LH COVER
Valid for 02, 03, 10, 11, 40, 41, 44, 45
from £136.45
from £136.45
This part replaces part number 311022328
# 032
MPN: 312032446
COLUMN
Valid for 03, 11, 41, 45
# 033
MPN: 125100080
NUT
Valid for 03, 11, 41, 45
from £0.86
from £0.86
