maserati biturbo spider alternator and bracket parts diagram

016 - Alternator and Bracket

Maserati Biturbo Spider Alternator and Bracket Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 470948301
                                                      ALTERNATOR Ø17 (1 6-1 7-1 8 PARTS COMP.)
                                                      from £483.91
                                                      from £483.91
                                                      This part replaces part number 313050214
                                                      # 003
                                                      MPN: 135500080
                                                      WASHER
                                                      from £0.77
                                                      from £0.77
                                                      # 005
                                                      MPN: 313020414
                                                      WASHER
                                                      from £11.28
                                                      from £11.28
                                                      # 007
                                                      MPN: 100710035
                                                      BOLT
                                                      # 008
                                                      MPN: 313020416
                                                      BOLT
                                                      from £1.93
                                                      from £1.93
                                                      # 011
                                                      MPN: 313020411
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      # 012
                                                      MPN: 125300120
                                                      NUT
                                                      from £1.08
                                                      from £1.08
                                                      # 013
                                                      MPN: 313020415
                                                      WASHER
                                                      from £9.66
                                                      from £9.66
                                                      # 015
                                                      MPN: 313020421

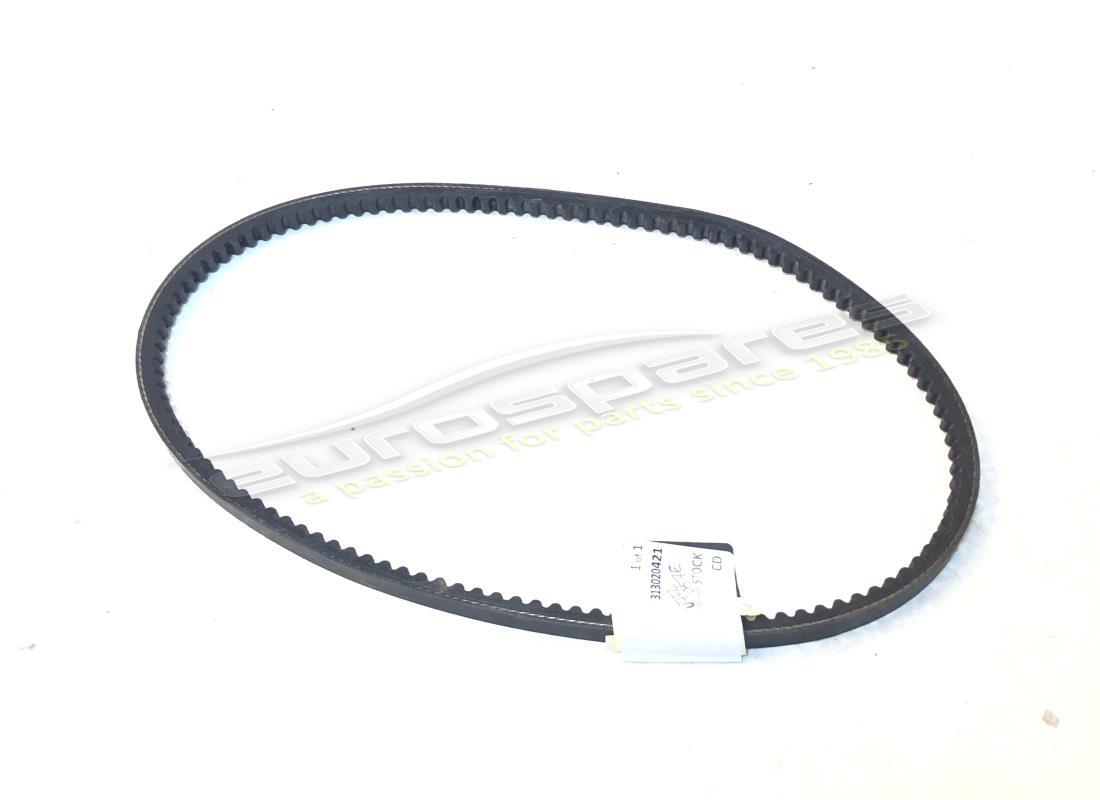

                                                      ALTERNATOR BELT
                                                      from £9.95
                                                      from £9.95
                                                      # 016
                                                      MPN: 313050215
                                                      ALTERNATOR PULLEY
                                                      from £8.20
                                                      from £8.20
                                                      # 017
                                                      MPN: 313050418
                                                      ALTERNATOR FAN
                                                      from £10.97
                                                      from £10.97
                                                      # 018
                                                      MPN: 313050419
                                                      SPACER
                                                      from £10.51
                                                      from £10.51
                                                      # 019
                                                      MPN: 313020403
                                                      SCREW
                                                      # 020
                                                      MPN: 313050217
                                                      BRACKET
                                                      from £50.24
                                                      from £50.24
                                                      # 021
                                                      MPN: 313050216
                                                      ROTOR (SHAFT Ø 17MM)
                                                      from £129.84
                                                      from £129.84
                                                      # 022
                                                      MPN: 313050205
                                                      STATOR
                                                      from £96.61
                                                      from £96.61
                                                      # 025
                                                      MPN: 313050208
                                                      VOLTAGE REGULATOR
                                                      from £9.73
                                                      from £9.73
                                                      # 026
                                                      MPN: 313050209
                                                      RECTIFIER
                                                      from £53.26
                                                      from £53.26
                                                      # 030
                                                      MPN: 313050220
                                                      SUPPORT
                                                      # 031
                                                      MPN: 313050221
                                                      OVERHAULING SET
                                                      from £8.20
                                                      from £8.20
