maserati biturbo spider transmission - outside controls parts diagram

026 - Transmission - Outside Controls

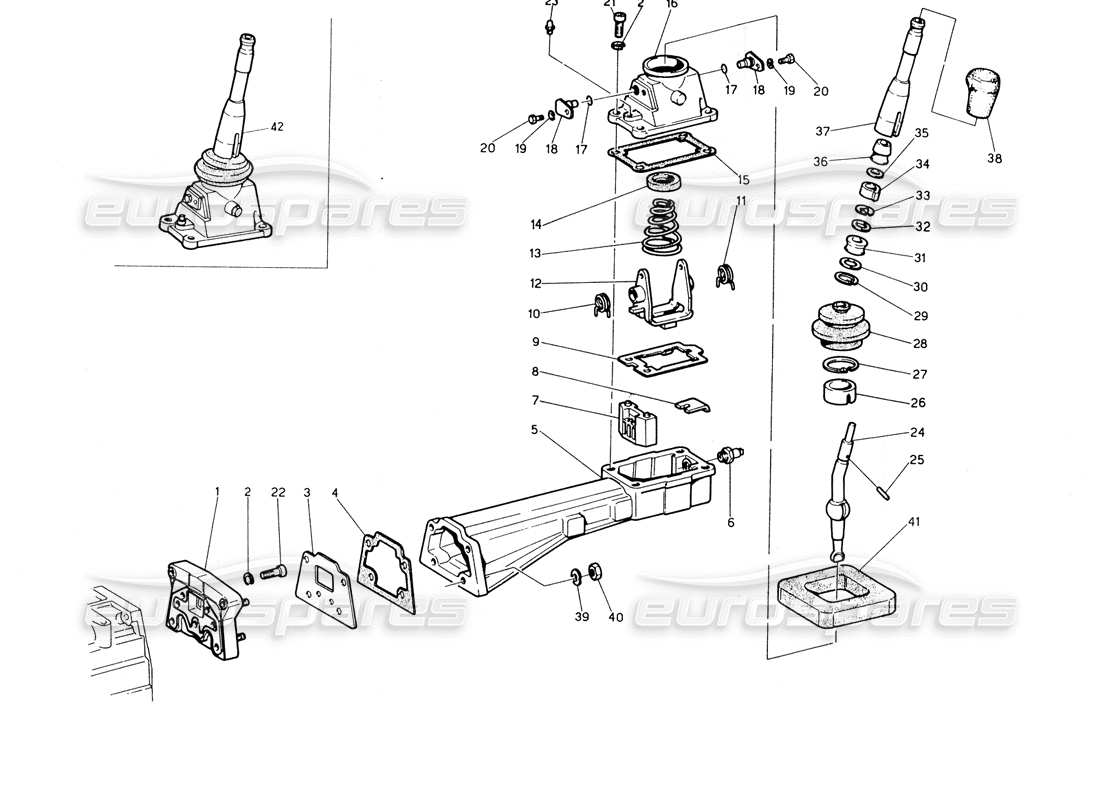

Maserati Biturbo Spider Transmission - Outside Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 315220104
DAMPER
Valid for 00, 02, 10, 40, 44
from £179.76
from £179.76
Maserati PART 315220104 Genuine Maserati Part - New (to order)
# 002
MPN: 315220376
SPRING WASHER
Valid for 00, 02, 10, 40, 44
SPRING WASHER Genuine Maserati Part - New (to order)
# 003
MPN: 315220317
SPACER
Valid for 00, 02, 10, 40, 44
from £2.63
from £2.63
DISTANZIALE Genuine Maserati Part - New (to order)
# 004
MPN: 315220318
GASKET
Valid for 00, 02, 10, 40, 44
from £2.32
from £2.32
GASKET Genuine Maserati Part - New (to order)
# 005
MPN: 315220316
CANTILEVER
Valid for 00, 02, 10, 40, 44
from £96.68
from £96.68
ARM Genuine Maserati Part - New (to order)
# 006
MPN: 313320131
SWITCH
Valid for 00, 02, 10, 40, 44
from £84.93
from £84.93
REVERSE GEAR BUTTON Genuine Maserati Part - New (to order)
# 007
MPN: 315220319
GUIDE
Valid for 00, 02, 10, 40, 44
from £5.96
from £5.96
GUIDE Genuine Maserati Part - New (to order)
# 008
MPN: 315220320
PLATE
Valid for 00, 02, 10, 40, 44
from £2.32
from £2.32
Piastrina Genuine Maserati Part - New (to order)
# 009
MPN: 315220322
PLATE
Valid for 00, 02, 10, 40, 44
from £19.01
from £19.01
PLATE Genuine Maserati Part - New (to order)
# 010
MPN: 315220324
SPRING
Valid for 00, 02, 10, 40, 44
from £5.08
from £5.08
SPRING Genuine Maserati Part - New (to order)
# 011
MPN: 315220323
SPRING
Valid for 00, 02, 10, 40, 44
from £4.30
from £4.30
SPRING Genuine Maserati Part - New (to order)
# 012
MPN: 315220375
SUPPORT
Valid for 00, 02, 10, 40, 44
SUPPORT Genuine Maserati Part - New (to order)
# 013
MPN: 315220326
SPRING
Valid for 00, 02, 10, 40, 44
from £0.99
from £0.99
SPRING Genuine Maserati Part - New (to order)
# 014
MPN: 315220327
RING
Valid for 00, 02, 10, 40, 44
from £4.17
from £4.17
SUPPORT RING Genuine Maserati Part - New (to order)
# 015
MPN: 315220328
GASKET
Valid for 00, 02, 10, 40, 44
from £0.69
from £0.69
GASKET Genuine Maserati Part - New (to order)
# 016
MPN: 315220016
CONTROL TURRET
Valid for 00, 02, 10, 40, 44
from £166.39
from £166.39
CONTROL TURRET Genuine Maserati Part - New (to order)
# 017
MPN: 315220332
GASKET
Valid for 00, 02, 10, 40, 44
from £0.69
from £0.69
RING,ZF 0634.313.050 Genuine Maserati Part - New (to order)
# 018
MPN: 315220335
GUIDE PIN
Valid for 00, 02, 10, 40, 44
from £35.48
from £35.48
GUIDE PIN Genuine Maserati Part - New (to order)
# 019
MPN: 315220330
SPRING WASHER
Valid for 00, 02, 10, 40, 44
from £1.31
from £1.31
RONDELLA ELASTICA ZF.0630.30 Genuine Maserati Part - New (to order)
# 020
MPN: 315220374
SCREW
Valid for 00, 02, 10, 40, 44
from £2.47
from £2.47
VITE ZF.0636.015.294 Genuine Maserati Part - New (to order)
# 021
MPN: 315220377
SCREW
Valid for 00, 02, 10, 40, 44
from £2.47
from £2.47
SCREW Genuine Maserati Part - New (to order)
# 022
MPN: 314820367
SCREW
Valid for 00, 02, 10, 40, 44
from £6.04
from £6.04
VITE ZF.0770.000.024 Genuine Maserati Part - New (to order)
# 023
MPN: 315220333
BREATHER
Valid for 00, 02, 10, 40, 44
from £1.93
from £1.93
SCREW Genuine Maserati Part - New (to order)
# 024
MPN: 315220338
CONTROL LEVER
Valid for 00, 02, 10, 40, 44
from £184.71
from £184.71
CONTROL LEVER Genuine Maserati Part - New (to order)
# 025
MPN: 315220339
PIN
Valid for 00, 02, 10, 40, 44
from £0.69
from £0.69
PIN Genuine Maserati Part - New (to order)
# 026
MPN: 315220343
BUSH
Valid for 00, 02, 10, 40, 44
from £2.85
from £2.85
BUSHING 1255.306.244 Genuine Maserati Part - New (to order)
# 027
MPN: 315220344
RING
Valid for 00, 02, 10, 40, 44
from £1.55
from £1.55
ANELLO Genuine Maserati Part - New (to order)
# 028
MPN: 315220345
RUBBER CASING
Valid for 00, 02, 10, 40, 44
from £24.35
from £24.35
GAITER ZF.1255306258 Genuine Maserati Part - New (to order)
# 029
MPN: 315220383
RETAINING WASHER
Valid for 00, 02, 10, 40, 44
from £1.63
from £1.63
WASHER Genuine Maserati Part - New (to order)
# 030
MPN: 315220382
SPACER
Valid for 00, 02, 10, 40, 44
from £4.09
from £4.09
SPACER Genuine Maserati Part - New (to order)
# 031
MPN: 315220348
RUBBER
Valid for 00, 02, 10, 40, 44
from £7.19
from £7.19
RUBBER BUSHING ZF.1255306600 Genuine Maserati Part - New (to order)
# 032
MPN: 315220349
WASHER
Valid for 00, 02, 10, 40, 44
from £10.05
from £10.05
SPACER Genuine Maserati Part - New (to order)
# 033
MPN: 315220378
RETAINING RING
Valid for 00, 02, 10, 40, 44
from £0.69
from £0.69
RETAINING RING Genuine Maserati Part - New (to order)
# 034
MPN: 315220351
COUPLING
Valid for 00, 02, 10, 40, 44
from £1.08
from £1.08
BUSHING 1255306598 Genuine Maserati Part - New (to order)
# 035
MPN: 315220380
SPACER
Valid for 00, 02, 10, 40, 44
from £5.72
from £5.72
SPACER Genuine Maserati Part - New (to order)
# 036
MPN: 315220353
RUBBER
Valid for 00, 02, 10, 40, 44
from £17.70
from £17.70
RUBBER WASHER 1255.306.599 Genuine Maserati Part - New (to order)
# 037
MPN: 315220354
LEVER EXTENSION
Valid for 00, 02, 10, 40, 44
from £60.28
from £60.28
LEVER EXTENSION Genuine Maserati Part - New (to order)
# 038
MPN: 315222102
KNOB
Valid for 00, 02, 10, 40, 44
from £58.14
from £58.14
GEARSHIFT LEVER KNOB Genuine Maserati Part - New (to order)
# 039
MPN: 314820371
SPRING WASHER
Valid for 00, 02, 10, 40, 44
SPRING WASHER Genuine Maserati Part - New (to order)
# 040
MPN: 314820370
NUT
Valid for 00, 02, 10, 40, 44
NUT Genuine Maserati Part - New (to order)
# 041
MPN: 315220302
GASKET BETWEEN TRANS. AND BODY SHELL
Valid for 00, 02, 10, 40, 44
from £1.93
from £1.93
Guarnizione Genuine Maserati Part - New (to order)
# 042
MPN: 315220003
CONTROL LEVER ASSY
Valid for 00, 02, 10, 40, 44
from £831.89
from £831.89
LEVER ASSY Genuine Maserati Part - New (to order)
