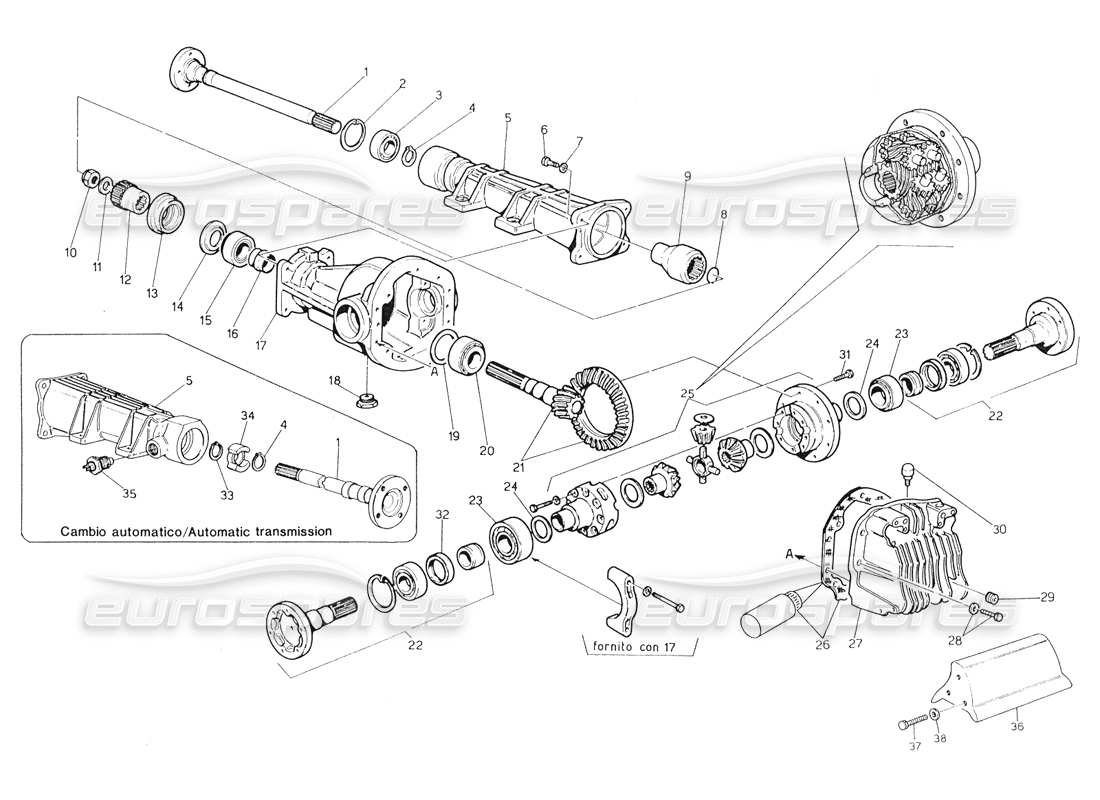

031 - DIFFERENTIAL

Maserati Biturbo Spider Differential Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Key
                                                              Price
                                                              # 001
                                                              MPN: 316220316
                                                              SHAFT EXTENSION
                                                              Valid for 00, 02, 10, 40, 44
                                                              from £100.96
                                                              from £100.96
                                                              Maserati PART 316220316 Genuine Maserati Part - New (to order)
                                                              # 001
                                                              MPN: 316255316
                                                              SHAFT EXTENSION (FOR AUT. TRANS.4 HP)
                                                              Valid for 00, 03, 11, 41, 45
                                                              from £100.96
                                                              from £100.96
                                                              SHAFT EXTENSION Genuine Maserati Part - New (to order)
                                                              # 001
                                                              MPN: 326250009
                                                              DFFERENTIAL UNIT QULFE RAPP. 3,73:1
                                                              Valid for 00, 03, 11, 41, 45
                                                              DIFFERENTIAL ASSEMBLY R=3,73 Genuine Maserati Part - New (to order)
                                                              # 001
                                                              MPN: 376200001
                                                              DFFERENTLAL UNIT QULFE RAPP. 3,31
                                                              from £1,608.37
                                                              from £1,608.37
                                                              This part replaces part number 396250004
                                                              DIFFERENZIALE R=3,31 Genuine Maserati Part - New (to order)
                                                              # 003
                                                              MPN: 178402030
                                                              SHAFT EXTENSION BEARING
                                                              from £15.71
                                                              from £15.71
                                                              BEARING EU6206-2RS Genuine Maserati Part - New (to order)
                                                              # 004
                                                              MPN: 316220314
                                                              CIRCLIP
                                                              from £0.69
                                                              from £0.69
                                                              RING Genuine Maserati Part - New (to order)
                                                              # 005
                                                              MPN: 316250305
                                                              SHAFT EXTENSION SUPPORT (FOR MAN. TRANS. AND AUT. TRANS. 3HP)
                                                              Valid for 00, 02, 10, 40, 44
                                                              Supersession
                                                              Supersession
                                                              Genuine Maserati Part (no longer available to order)
                                                              # 005
                                                              MPN: 316255306
                                                              SUPPORT (FOR AUTOMATIC TRANSMISSION 4 HP)
                                                              Valid for 03, 11, 41, 45
                                                              from £26.98
                                                              from £26.98
                                                              SUPPORT Genuine Maserati Part - New (to order)
                                                              # 006
                                                              MPN: 101212035
                                                              SCREW
                                                              SCREW Genuine Maserati Part - New (to order)
                                                              # 007
                                                              MPN: 138420120
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              Genuine Maserati Part (no longer available to order)
                                                              # 009
                                                              MPN: 316220319
                                                              COUPLING
                                                              from £96.68
                                                              from £96.68
                                                              This part replaces part number 316220317
                                                              GROOVED SLEEVE Genuine Maserati Part - New (to order)
                                                              # 010
                                                              MPN: 316220340
                                                              SELF LOCKING NUT
                                                              from £25.27
                                                              from £25.27
                                                              SELF-LOCKING NUT Genuine Maserati Part - New (to order)
                                                              # 011
                                                              MPN: 316220341
                                                              WASHER
                                                              from £1.31
                                                              from £1.31
                                                              WASHER Genuine Maserati Part - New (to order)
                                                              # 012
                                                              MPN: 316220347
                                                              UNION
                                                              from £118.37
                                                              from £118.37
                                                              This part replaces part number 316220342
                                                              PINION UNION 12HU102004 Genuine Maserati Part - New (to order)
                                                              # 013
                                                              MPN: 316220121
                                                              CLAMPING WASHER
                                                              from £53.64
                                                              from £53.64
                                                              SEALING RING 12HU 019-002 Genuine Maserati Part - New (to order)
                                                              # 014
                                                              MPN: 316220351
                                                              WASHER
                                                              from £15.85
                                                              from £15.85
                                                              SEALING RING Genuine Maserati Part - New (to order)
                                                              # 015
                                                              MPN: 316220122
                                                              FRONT BEARING
                                                              from £86.10
                                                              from £86.10
                                                              BEARING SB7HA-022-2 Genuine Maserati Part - New (to order)
                                                              # 016
                                                              MPN: 316220345
                                                              SPACER
                                                              from £2.47
                                                              from £2.47
                                                              SPACER Genuine Maserati Part - New (to order)
                                                              # 017
                                                              -
                                                              DIFFERENTIAL GEAR ASSY (NOT SUPPLIED)
                                                              # 018
                                                              MPN: 316220346
                                                              OIL FILLING PLUG
                                                              from £12.21
                                                              from £12.21
                                                              This part replaces part number 316220362
                                                              OIL DRAINING PLUG 05HA059003 Genuine Maserati Part - New In stock
                                                              # 018
                                                              MPN: 316220349
                                                              SPACER WASHER 005
                                                              (As request)
                                                              from £4.57
                                                              from £4.57
                                                              SHIMMING WASHER 005 Genuine Maserati Part - New (to order)
                                                              # 019
                                                              MPN: 316220348
                                                              SPACER WASHER 003
                                                              (As request)
                                                              from £4.09
                                                              from £4.09
                                                              Maserati PART 316220348 Genuine Maserati Part - New (to order)
                                                              # 019
                                                              MPN: 316220350
                                                              SPACER WASHER 010
                                                              (As request)
                                                              from £14.21
                                                              from £14.21
                                                              SHIMMING WASHER 010 Genuine Maserati Part - New (to order)
                                                              # 020
                                                              MPN: 316220123
                                                              REAR BEARING
                                                              from £121.27
                                                              from £121.27
                                                              BEARING SB7HA-023-1 Genuine Maserati Part - New (to order)
                                                              # 021
                                                              MPN: 316220025
                                                              PINION AND GEAR (13X43) (INCLUDED PART N. 10-11-16-31) R-3,73
                                                              Valid for 00, 03, 11, 41, 45
                                                              from £939.23
                                                              from £939.23
                                                              Maserati PART 316220025 Genuine Maserati Part - New (to order)
                                                              # 021
                                                              MPN: 316225025
                                                              PINION AND GEAR R=3,31
                                                              Valid for 02, 10, 40, 44
                                                              from £769.59
                                                              from £769.59
                                                              COPPIA CONICA RIC 12HA 10500 Genuine Maserati Part - New (to order)
                                                              # 022
                                                              MPN: 316220013
                                                              propeller shaft
                                                              from £338.35
                                                              from £338.35
                                                              ALBERO TRASMISSIONE Genuine Maserati Part - New (to order)
                                                              # 023
                                                              MPN: 316220126
                                                              INSIDE BEARING
                                                              from £129.65
                                                              from £129.65
                                                              CUSCINETTO SB 7HA-024 Genuine Maserati Part - New (to order)
                                                              # 024
                                                              MPN: 316220353
                                                              SPACER WASHER 003
                                                              (As request)
                                                              from £1.63
                                                              from £1.63
                                                              SHIMMING WASHER 003 Genuine Maserati Part - New (to order)
                                                              # 024
                                                              MPN: 316220354
                                                              SPACER WASHER 005
                                                              (As request)
                                                              from £105.11
                                                              from £105.11
                                                              SHIMMING WASHER 005 2HA-047 Genuine Maserati Part - New (to order)
                                                              # 024
                                                              MPN: 316220355
                                                              SPACER WASHER 010
                                                              (As request)
                                                              from £1.63
                                                              from £1.63
                                                              SHIMMING WASHER 010 02HA-048 Genuine Maserati Part - New (to order)
                                                              # 024
                                                              MPN: 316220356
                                                              SPACER WASHER 030
                                                              (As request)
                                                              from £2.16
                                                              from £2.16
                                                              SHIMMING WASHER 030 2HA-049 Genuine Maserati Part - New In stock
                                                              # 025
                                                              MPN: 326256010
                                                              QUAIFE DIFFERENTIAL GEAR
                                                              from £1,383.34
                                                              from £1,383.34
                                                              SCATOLA DIFFERENZIALE RANGER Genuine Maserati Part - New (to order)
                                                              # 026
                                                              MPN: 316220365
                                                              GASKET
                                                              from £3.63
                                                              from £3.63
                                                              GASKET Genuine Maserati Part - New (to order)
                                                              # 026
                                                              MPN: 9441
                                                              SILICONE HYLOSIL (ALTERNATIVE)
                                                              from £15.85
                                                              from £15.85
                                                              SILICONE HYLOSIL Genuine Maserati Part - New (to order)
                                                              # 027
                                                              MPN: 316220363
                                                              COVER
                                                              from £226.79
                                                              from £226.79
                                                              COVER Genuine Maserati Part - New (to order)
                                                              # 028
                                                              MPN: 316220364
                                                              SCREW WITH WASHER
                                                              from £1.31
                                                              from £1.31
                                                              VITE Genuine Maserati Part - New (to order)
                                                              # 029
                                                              MPN: 316220362
                                                              LEVEL PLUG
                                                              Supersession
                                                              Supersession
                                                              Genuine Maserati Part (no longer available to order)
                                                              # 030
                                                              MPN: 316220107
                                                              DRAIN VALVE
                                                              from £17.69
                                                              from £17.69
                                                              BLEEDER VALVE Genuine Maserati Part - New (to order)
                                                              # 031
                                                              MPN: 316220357
                                                              SCREW
                                                              from £1.93
                                                              from £1.93
                                                              BULLONE Genuine Maserati Part - New (to order)
                                                              # 032
                                                              MPN: 316220125
                                                              OIL SEAL
                                                              from £8.66
                                                              from £8.66
                                                              ANELLO TENUTA Genuine Maserati Part - New (to order)
                                                              # 033
                                                              MPN: 316255315
                                                              SPRING RING
                                                              Valid for 03, 11, 41, 45
                                                              from £0.69
                                                              from £0.69
                                                              SPRING RING Genuine Maserati Part - New (to order)
                                                              # 034
                                                              MPN: 316255317
                                                              PHONIC WHEEL
                                                              Valid for 03, 11, 41, 45
                                                              from £5.09
                                                              from £5.09
                                                              PHONIC WHEEL Genuine Maserati Part - New (to order)
                                                              # 035
                                                              MPN: 313620106
                                                              SWITCH
                                                              from £38.49
                                                              from £38.49
                                                              PULSE GENERATOR Genuine Maserati Part - New (to order)
                                                              PULSE GENERATOR Eurospares Approved Part - New (to order)
                                                              # 036
                                                              MPN: 316220327
                                                              AIR CONVEYOR
                                                              from £0.56
                                                              from £0.56
                                                              AIR DUCT Genuine Maserati Part - New (to order)
