maserati biturbo spider power steering system (lh steering) parts diagram

034 - Power Steering System (LH Steering)

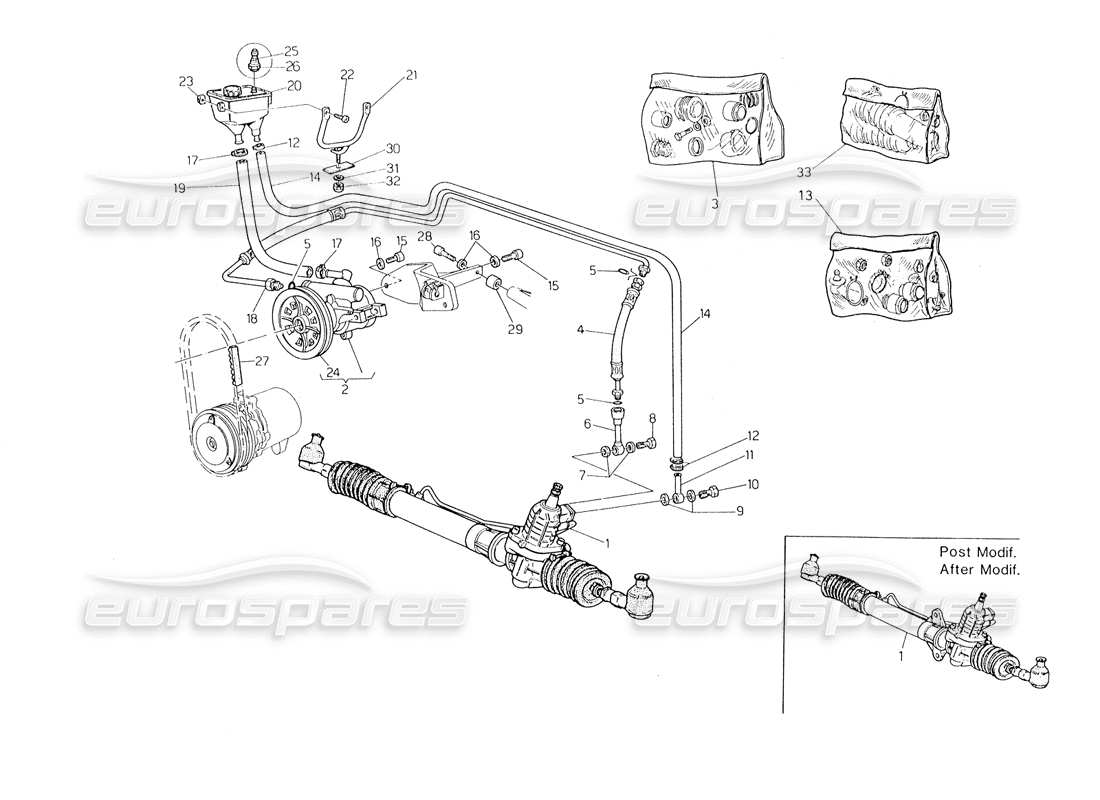

Maserati Biturbo Spider Power Steering System (L.H. Steering) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 327856125
POWER STEERING (PRE MODIF.)
Valid for 00, 02, 03, 10, 11
POWER STEERING PRE MODIF. Genuine Maserati Part - New (to order)
# 001
MPN: 397850225
LHD POWER STEERING BOX (POST. MOD.)
Replaces 397850125
from £485.48
from £485.48
This part replaces part number 397850125
POWER STEERING Genuine Maserati Part - New (to order)
# 002
MPN: 317832104
PUMP WITH PULLEY
Valid for 00, 02, 03, 10, 11
from £177.42
from £177.42
hydraulic steering pump Genuine Maserati Part - New (to order)
# 003
MPN: 310232040
PIPES AND RACCORDS OVERHAUL KIT
Valid for 00, 02, 03, 10, 11
from £31.84
from £31.84
PIPES AND UNION KIT 15RK0136 S Genuine Maserati Part - New (to order)
# 004
MPN: 317832139
PIPE
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
This part replaces part number 317832138
Genuine Maserati Part (no longer available to order)
# 005
MPN: 192415108
RUBBER
Valid for 00, 02, 03, 10, 11
from £1.61
from £1.61
O-RING RIF.OR 2031 Genuine Maserati Part - New In stock
# 006
MPN: 317832127
PIPE
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 007
MPN: 317832381
GASKET
Valid for 00, 02, 03, 10, 11
GASKET Genuine Maserati Part - New (to order)
# 008
MPN: 317832380
SCREW
Valid for 00, 02, 03, 10, 11
from £9.04
from £9.04
UNION SCREW D.14X1.5X26 CH19 Genuine Maserati Part - New (to order)
# 009
MPN: 317832378
GASKET (PRE MODIF.)
Valid for 00, 02, 03, 10, 11
from £0.69
from £0.69
GASKET Genuine Maserati Part - New (to order)
# 009
MPN: 317851388
GASKET (AFTER MODIF.)
Valid for 00, 02, 03, 10, 11
from £1.08
from £1.08
COPPER WASHER 12.5X17.5X1.5 Genuine Maserati Part - New In stock
# 010
MPN: 317832377
SCREW (PRE MODIF.)
Valid for 00, 02, 03, 10, 11
from £3.63
from £3.63
VITE RACC.(VRN 96023)GUIDA I Genuine Maserati Part - New (to order)
# 010
MPN: 317851387
SCREW (AFTER MODIF.)
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 011
MPN: 317832135
UNION (PRE MODIF.)
Valid for 00, 02, 03, 10, 11
from £18.88
from £18.88
UNION Genuine Maserati Part - New (to order)
# 011
MPN: 317851386
UNION (AFTER MODIF.)
Valid for 00, 02, 03, 10, 11
from £5.78
from £5.78
UNION 12.3X12X8 Genuine Maserati Part - New (to order)
# 012
MPN: 317832389
CLAMP
Valid for 00, 02, 03, 10, 11
from £1.93
from £1.93
CLAMP S 16/9 ZY Genuine Maserati Part - New (to order)
# 013
MPN: 320250034
Track Rod Ends
Track rod ends only
from £309.32
from £309.32
INNER TIE ROD Genuine Maserati Part - New (to order)
MALE INNER TIE ROD Eurospares Approved Part - New In stock
# 014
MPN: 317832385
COUPLING
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 015
MPN: 138411080
SCREW
Valid for 00, 02, 03, 10, 11
SCREW Genuine Maserati Part - New (to order)
# 016
MPN: 138410080
WASHER
Valid for 00, 02, 03, 10, 11
Maserati PART 138410080 Genuine Maserati Part - New (to order)
# 017
MPN: 168403022
CLAMP
Valid for 00, 02, 03, 10, 11
CLAMP Genuine Maserati Part - New (to order)
# 018
MPN: 317832138
PIPE
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
This part replaces part number 317853138
Genuine Maserati Part (no longer available to order)
# 019
MPN: 317832370
COUPLING
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 020
MPN: 317832130
OIL TANK (PRE MODIF.)
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 020
MPN: 397850130
OIL TANK
from £20.92
from £20.92
This part replaces part number 317853130
OIL TANK Genuine Maserati Part - New (to order)
# 021
MPN: 317832131
BRACKET (PRE MODIF.)
Valid for 00, 02, 03, 10, 11
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 021
MPN: 317853131
BRACKET (AFTER MODIF.)
Valid for 00, 02, 03, 10, 11
from £7.73
from £7.73
This part replaces part number 317832131
COMPLETE BRACKET, HYDRAULIC STEERING OIL Genuine Maserati Part - New (to order)
# 022
MPN: 119148130
SCREW
Valid for 00, 02, 03, 10, 11
from £0.85
from £0.85
SCREW Genuine Maserati Part - New In stock
# 023
MPN: 163610050
CLIP
Valid for 00, 02, 03, 10, 11
from £0.47
from £0.47
PLATE Genuine Maserati Part - New (to order)
# 024
MPN: 317832368
BELT PULLEY (NON SUPPLIED)
Valid for 00, 02, 03, 10, 11
Maserati PART 317832368 Genuine Maserati Part - New (to order)
# 025
MPN: 316220107
VALVE
Valid for 00, 02, 03, 10, 11
from £17.69
from £17.69
BLEEDER VALVE Genuine Maserati Part - New (to order)
# 026
MPN: 317853371
NUT
Valid for 00, 02, 03, 10, 11
from £2.16
from £2.16
NUT Genuine Maserati Part - New (to order)
# 027
MPN: 317837372
POWER STEERING BELT
Valid for 00, 02, 03, 10, 11
from £12.50
from £12.50
POWER STEERING BELT Genuine Maserati Part - New In stock
POWER STEERING BELT Original Equipment - New In stock
# 028
MPN: 108008040
SCREW
Valid for 00, 02, 03, 10, 11
Maserati PART 108008040 Genuine Maserati Part - New (to order)
# 029
MPN: 311032370
SPACER
Valid for 00, 02, 03, 10, 11
Maserati PART 311032370 Genuine Maserati Part - New (to order)
# 030
MPN: 317832366
PLATE (PRE MODIF.)
Valid for 00, 02, 03, 10, 11
Plate pre modif. Genuine Maserati Part - New (to order)
# 030
MPN: 317853366
Plate (after modif.)
Valid for 00, 02, 03, 10, 11
Plate after modif. Genuine Maserati Part - New (to order)
# 031
MPN: 138410080
WASHER
Valid for 00, 02, 03, 10, 11
Maserati PART 138410080 Genuine Maserati Part - New (to order)
# 032
MPN: 125100080
NUT
Valid for 00, 02, 03, 10, 11
from £0.86
from £0.86
DADO Genuine Maserati Part - New (to order)
# 033
MPN: 390250080
CUPS AND CLAMPS OVERHAUL KIT
Valid for 00, 02, 03, 10, 11
from £126.92
from £126.92
This part replaces part number 320250033
KIT CUFFIE E FASCETTE 15RK02 Genuine Maserati Part - New In stock
