056.1 - Windshield Wiper - Washer (RH Steering)

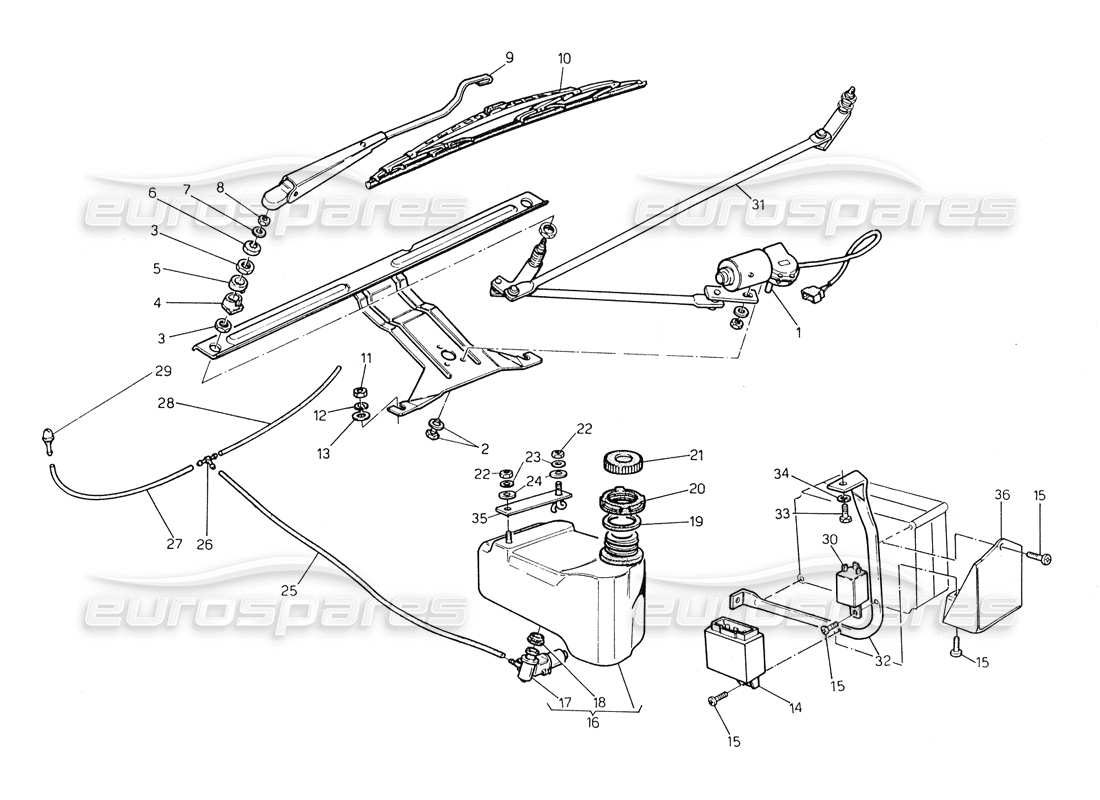

Maserati Biturbo Spider Windshield Wiper - Washer (R.H. Steering) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 313327201
wiper motor
Valid for 40, 41, 44, 45
Supersession
Supersession
# 002
MPN: 313320401
SCREW AND WASHER
Valid for 40, 41, 44, 45
# 003
MPN: 313320402
NUT
Valid for 40, 41, 44, 45
from £1.63
from £1.63
# 004
MPN: 313327328
INSIDE SPACER
Valid for 40, 41, 44, 45
from £1.00
from £1.00
# 005
MPN: 313327329
OUTSIDE SPACER
Valid for 40, 41, 44, 45
from £1.00
from £1.00
# 006
MPN: 313320405
PLUG
Valid for 40, 41, 44, 45
from £0.69
from £0.69
# 007
MPN: 138410080
WASHER
Valid for 40, 41, 44, 45
# 008
MPN: 125300080
NUT
Valid for 40, 41, 44, 45
# 009
MPN: 313327118

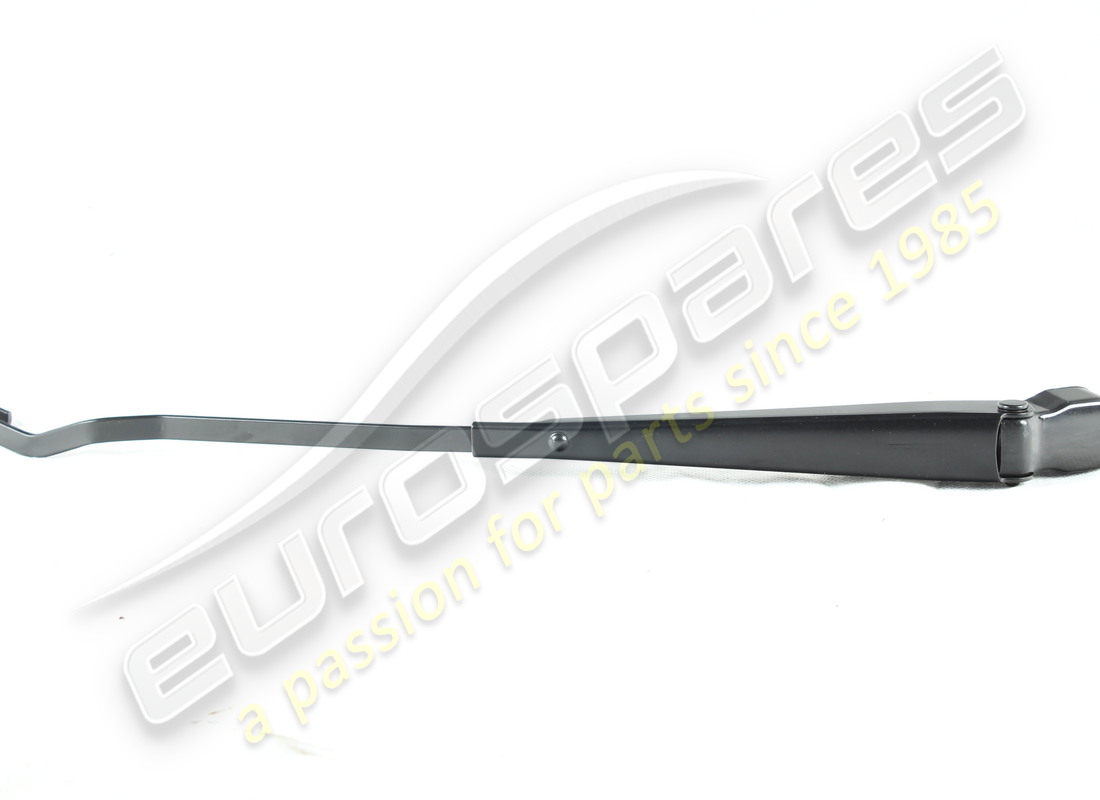

WIPER ARM
Valid for 40, 41, 44, 45
from £35.12
from £35.12
# 010
MPN: 313327119
WIPER BLADE
Valid for 40, 41, 44, 45
# 011
MPN: 125100080
NUT
Valid for 40, 41, 44, 45
from £0.86
from £0.86
# 012
MPN: 135300084
SPRING WASHER
Valid for 40, 41, 44, 45
# 013
MPN: 169020508
WASHER
Valid for 40, 41, 44, 45
# 014
MPN: 313320116
INTERVAL SWITCH
Valid for 40, 41, 44, 45
from £26.04
from £26.04
# 015
MPN: 119148130
SCREW
Valid for 40, 41, 44, 45
from £0.85
from £0.85
# 016
MPN: 318120024
RESERVOIR
Valid for 40, 41, 44, 45
Supersession
Supersession
# 017
MPN: 373300183
ELECTRIC WIPER PUMP
Valid for 40, 41, 44, 45
from £15.08
from £15.08
This part replaces part number 330907620
# 018
MPN: 30331302
SEAL
Valid for 40, 41, 44, 45
from £0.69
from £0.69
# 019
MPN: 318120328
SEAL
Valid for 40, 41, 44, 45
from £2.80
from £2.80
# 020
MPN: 318120329
GROOVED NUT
Valid for 40, 41, 44, 45
from £0.69
from £0.69
# 021
MPN: 30811327
CAP
Valid for 40, 41, 44, 45
# 022
MPN: 125100060
NUT TO FIX. TANK
Valid for 40, 41, 44, 45
# 023
MPN: 135300064
WASHER
Valid for 40, 41, 44, 45
# 024
MPN: 169020406
WASHER
Valid for 40, 41, 44, 45
from £0.77
from £0.77
# 025
MPN: 318120313
CONNECTOR-PUMP LINE
Valid for 40, 41, 44, 45
from £0.78
from £0.78
# 026
MPN: 30811310
CONNECTOR
Valid for 40, 41, 44, 45
from £0.78
from £0.78
# 027
MPN: 318120311
LH NOZZLE-CONNECTOR LINE
Valid for 40, 41, 44, 45
from £0.49
from £0.49
# 028
MPN: 318120312
RH NOZZLE-CONNECTOR LINE
Valid for 40, 41, 44, 45
from £0.49
from £0.49
# 029
MPN: 53811109
NOZZLE
Valid for 40, 41, 44, 45
# 030
MPN: 313320115
LIGHTS FLASHING
Valid for 40, 41, 44, 45
Supersession
Supersession
# 031
MPN: 313327202
LEVENSM
Valid for 40, 41, 44, 45
from £295.00
from £295.00
# 032
MPN: 313627108
SUPORT
Valid for 40, 41, 44, 45
from £24.02
from £24.02
# 033
MPN: 30151340
FIXING SCREW SUPPORT
Valid for 40, 41, 44, 45
from £0.47
from £0.47
# 034
MPN: 135000053
WASHER
Valid for 40, 41, 44, 45
# 035
MPN: 318120130
BRACKET
Valid for 40, 41, 44, 45
from £1.55
from £1.55
# 036
MPN: 313627313
GUARD
Valid for 40, 41, 44, 45
