058 - TAIL LIGHT

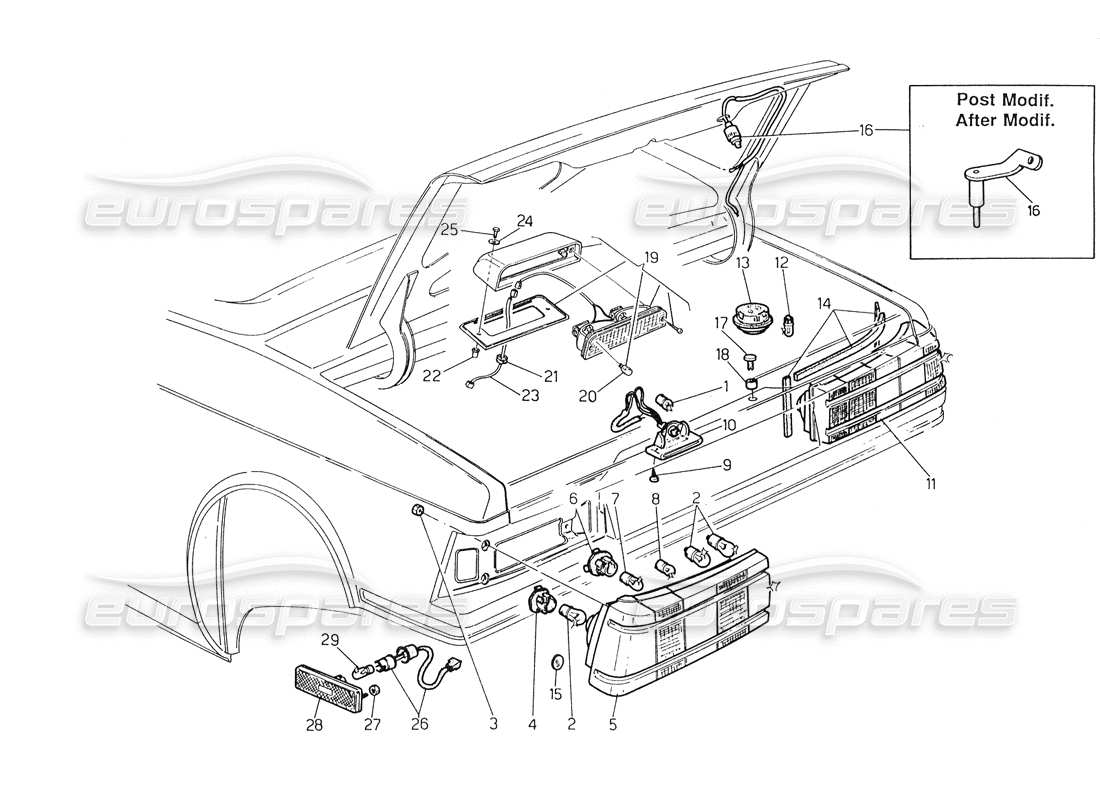

Maserati Biturbo Spider Tail Light Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 87540500
BULB12V5W
from £0.53
from £0.53
# 002
MPN: 87720021
BULB 12V 21 W
from £1.00
from £1.00
# 003
MPN: 122600060
NUT
# 004
MPN: 313120404
BULB HOLDER
from £4.01
from £4.01
# 005
MPN: 313120138
LH REAR LAMP
Valid for 00, 02, 03, 40, 41, 44, 45
Supersession
Supersession
This part replaces part number 313120210
# 005
MPN: 313130108
LH REAR LAMP
Valid for 10, 11
from £4.77
from £4.77
# 006
MPN: 313120405
BULBHOLDER.
from £0.85
from £0.85
# 007
MPN: 87720521
BULB 12V 5/21 W
from £3.06
from £3.06
# 008
MPN: 87541000
BULB12V10W
# 009
MPN: 119142190
SCREW
# 010
MPN: 30311111
NUMBER - PLATE LAMP
# 011
MPN: 313120137
RH REAR LAMP
Valid for 00, 02, 03, 40, 41, 44, 45
Supersession
Supersession
This part replaces part number 313120211 which we have in stock
# 011
MPN: 313130107
RH REAR LAMP
Valid for 10, 11
from £7.38
from £7.38
# 012
MPN: 87760005
BULB 12V 5 W
from £0.64
from £0.64
# 013
MPN: 313120118
GLASS CEILING BROWN COLOR
from £1.37
from £1.37
This part replaces part number 323156116
# 014
MPN: 313120407
GASKET FOR TAIL LIGHT
minimum order quantity = 4
from £1.55
from £1.55
# 016
MPN: 30331111
SWITCH (AFTER MODIF.)
# 016
MPN: 323356104
SWITCH (PRE MODIF.)
Supersession
Supersession
# 017
MPN: 318320499
PLUG (PRE MODIF.)
from £0.77
from £0.77
# 018
MPN: 323356304
SPACER (PRE MODIF.)
from £0.69
from £0.69
# 019
MPN: 333110219
LAMP (COLOR BLACK)
Valid for 10, 11, 44, 45
from £46.33
from £46.33
# 019
MPN: 333110220
LAMP (COLOR DARK BLUE)
Valid for 10, 11, 44, 45
Supersession
Supersession
# 019
MPN: 333110221
LAMP (COLOR SWAM WHITE)
Valid for 10, 11, 44, 45
Supersession
Supersession
# 019
MPN: 333132217
LAMP (COLOR SILVER BLUE)
Valid for 10, 11, 44, 45
Supersession
Supersession
# 019
MPN: 333132218
LAMP (COLOR Maserati RED)
Valid for 10, 11, 44, 45
Supersession
Supersession
# 020
MPN: 323132325
BULB
Valid for 10, 11, 44, 45
from £0.47
from £0.47
# 021
MPN: 53241312
GROMMET
Valid for 10, 11, 44, 45
from £1.09
from £1.09
# 022
MPN: 315220303
NUT
Valid for 10, 11, 44, 45
from £0.69
from £0.69
# 023
MPN: 323132102
KIT CABLE
Valid for 10, 11, 44, 45
from £5.57
from £5.57
# 024
MPN: 53471344
WASHER
Valid for 10, 11, 44, 45
# 025
MPN: 101206025
SCREW
Valid for 10, 11, 44, 45
# 026
MPN: 30311128
LAMP HOLDER
Valid for 10, 11
from £3.91
from £3.91
# 027
MPN: 122600050
NUT
Valid for 10, 11
# 028
MPN: 30311122
REAR SIDE MARKER (RED)
Valid for 10, 11
from £13.03
from £13.03
# 029
MPN: 87760003
BULB, 12V/3W
Valid for 10, 11
from £0.47
from £0.47
