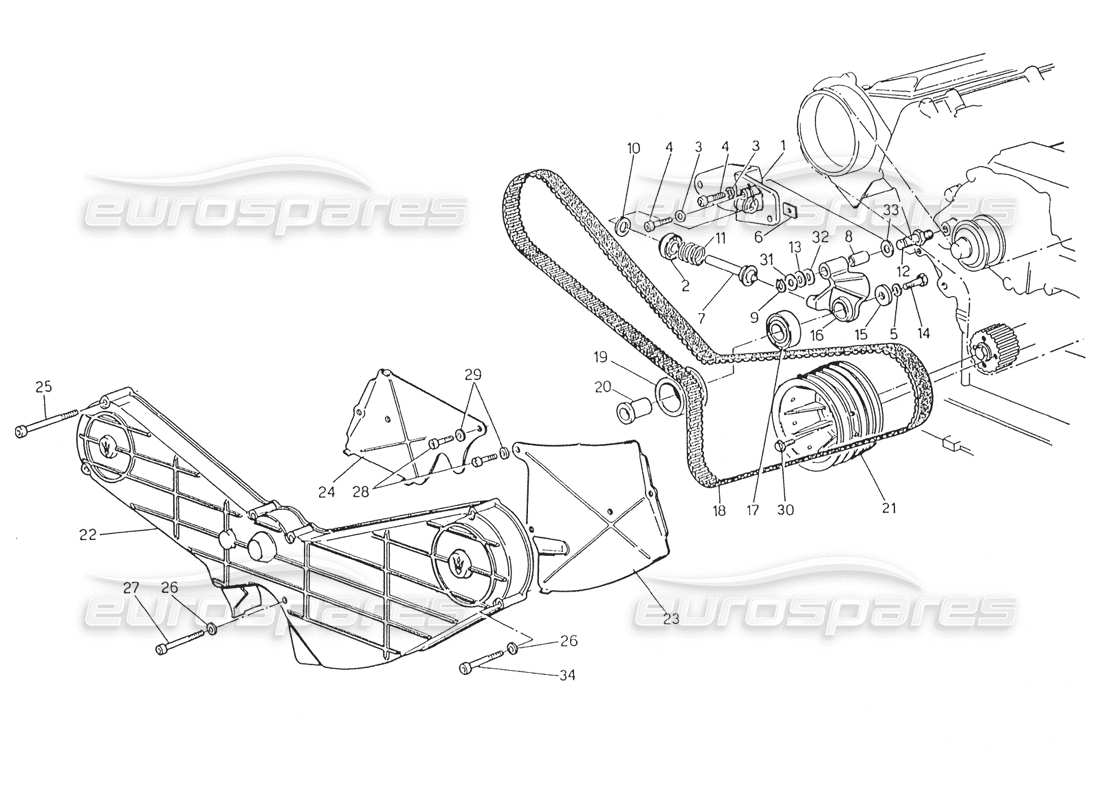

Maserati Karif 2.8 Timing Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 311020005
KIT GUIDE PULLEY (COMPOSED FROM POS. 2-3-4-6-7-8 -11-13- 16-31-32-33)
from £9.52
from £9.52
This part replaces part number 311020110
# 001
MPN: 317832369
SUPPORT
# 002
MPN: 311020367
SPRING ADJUSTMENT (NOT SUPPLIED IN SINGLE PART)
# 003
MPN: 138410080
WASHER
# 004
MPN: 14306424
SCREW
from £0.47
from £0.47
# 005
MPN: 135600080
WASHER
# 006
MPN: 311037365
SPACER (NOT SUPPLIED IN SINGLE PART)
# 007
MPN: 311020363
SPRING CAP (NOT SUPPLIED IN SINGLE PART)
# 008
MPN: 470037700
BUSH (NOT SUPPLIED IN SINGLE PART)
from £4.77
from £4.77
This part replaces part number 311020336
# 009
MPN: 151100120
RETAINING RING (NOT SUPPLIED IN SINGLE PART)
# 010
MPN: 311020342
WASHER
from £1.13
from £1.13
# 011
MPN: 310620356
SPRING
# 012
MPN: 470037600
GUIDE PULLEY PIN
from £43.10
from £43.10
This part replaces part number 311020343
# 013
MPN: 311020334
WASHER
from £1.13
from £1.13
# 014
MPN: 101208020
BOLT
# 015
MPN: 311020347
WASHER
# 016
MPN: 311020110
SUPPORT WITH BUSH (NOT SUPPLIED IN SINGLE PART)
Supersession
Supersession
# 017
MPN: 311020107
TIMING BEARING
from £99.75
from £99.75
# 018
MPN: 311020349
TIMING BELT
from £23.03
from £23.03
# 019
MPN: 311020350
BEARING COVER
from £77.04
from £77.04
# 020
MPN: 311020353
PIN
from £136.94
from £136.94
# 021
MPN: 311020113
PULLEY
# 022
MPN: 311620300
FRONT CASE
from £266.67
from £266.67
# 023
MPN: 311620301
LH REAR PLATE
# 024
MPN: 311620302
RH REAR PLATE
# 025
MPN: 14305924
SCREW
from £0.51
from £0.51
This part replaces part number 14305921 - and 1 more. Click to view details
# 026
MPN: 135000064
WASHER
# 027
MPN: 14304821
SCREW
from £0.53
from £0.53
# 028
MPN: 108006014
SCREW
# 029
MPN: 311620303
WASHER
from £1.13
from £1.13
# 030
MPN: 311030360
BOLT.
from £0.72
from £0.72
# 031
MPN: 311020352
WASHER
from £1.13
from £1.13
# 032
MPN: 311020354
WASHER
from £1.13
from £1.13
# 033
MPN: 311020362
WASHER
from £1.36
from £1.36
# 034
MPN: 108006050
SCREW
