009 - water pump - oil pump

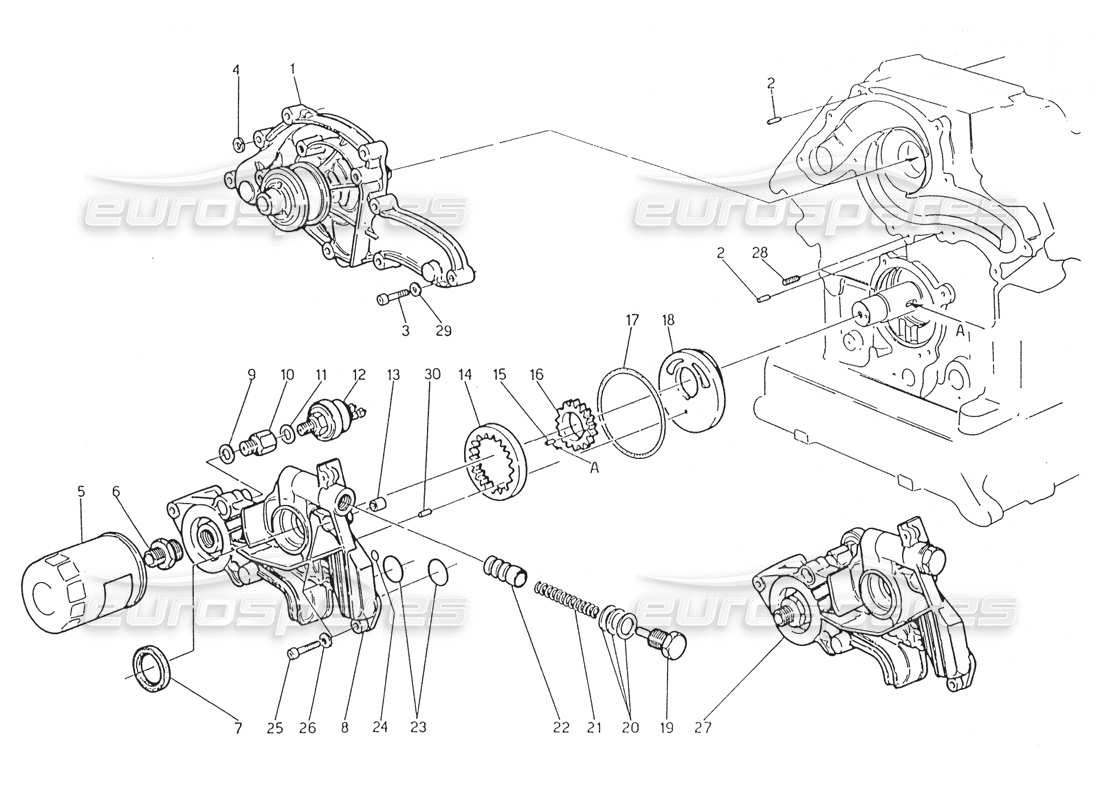

Maserati Karif 2.8 Water Pump - Oil Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 470045900
WATER PUMP + GASKET
from £309.75
from £309.75
This part replaces part number 314020012
# 002
MPN: 314020329
ROLLER
from £2.00
from £2.00
# 003
MPN: 108006030
SCREW
# 004
MPN: 138410060
SPRING WASHER
# 005
MPN: 470040900
OIL FILTER
from £42.50
from £42.50
# 006
MPN: 311820301
UNION
# 007
MPN: 311020368
OIL SEAL
from £8.25
from £8.25
This part replaces part number 190400351
# 008
MPN: 311820326
HOUSING
Supersession
Supersession
# 009
MPN: 311820302
SEAL PRE MODIF.
from £2.35
from £2.35
# 010
MPN: 311820303
ADAPTER
from £23.28
from £23.28
# 011
MPN: 311820304
SEAL PRE MODIF.
from £1.60
from £1.60
# 012
MPN: 313620105
OIL PRESSURE SWITCH PRE MODIF.
USE 470043300
# 012
MPN: 313650105
Oil pressure switch after modif.
USE 313620105
# 012
MPN: 452043301
OIL PRESSURE SWICH
from £31.76
from £31.76
This part replaces part number 470043300
# 012
MPN: 470043300
OIL PRESSURE SWITCH
USE 452043301
Supersession
Supersession
# 013
MPN: 311820309
BUSH
from £17.28
from £17.28
# 014
MPN: 311820324
DRIVEN GEAR
from £4.65
from £4.65
# 015
MPN: 311820311
ROLLER
from £1.08
from £1.08
# 016
MPN: 311820323
DRIVING GEAR
from £6.23
from £6.23
# 017
MPN: 14465881
RUBBER RING
from £4.80
from £4.80
# 018
MPN: 311820321
OIL PUMP COVER O 94.24 MM
Supersession
Supersession
# 019
MPN: 311820101
PLUG
# 020
MPN: 311820317
SEAL
from £0.72
from £0.72
# 021
MPN: 311820318
SPRING
# 022
MPN: 311820319
VALVE
from £12.62
from £12.62
# 023
MPN: 14454181
RUBBER RING
from £1.21
from £1.21
# 024
MPN: 14452981
RUBBER RING
from £0.71
from £0.71
# 025
MPN: 108008030
SCREW
# 026
MPN: 138410080
SPRING WASHER (NOT SUPPLIED)
# 027
MPN: 311820006
OIL PUMP, ASSY (INCLUDES PARTS N. 6-8-9-10-11-12-13-14-19-20-21-22)
from £339.85
from £339.85
# 028
MPN: 311820340
DOWEL
# 029
MPN: 314020337
GASKET
# 030
MPN: 311820315
ROLLER
from £1.21
from £1.21
