010 - intake manifold throttle valve body

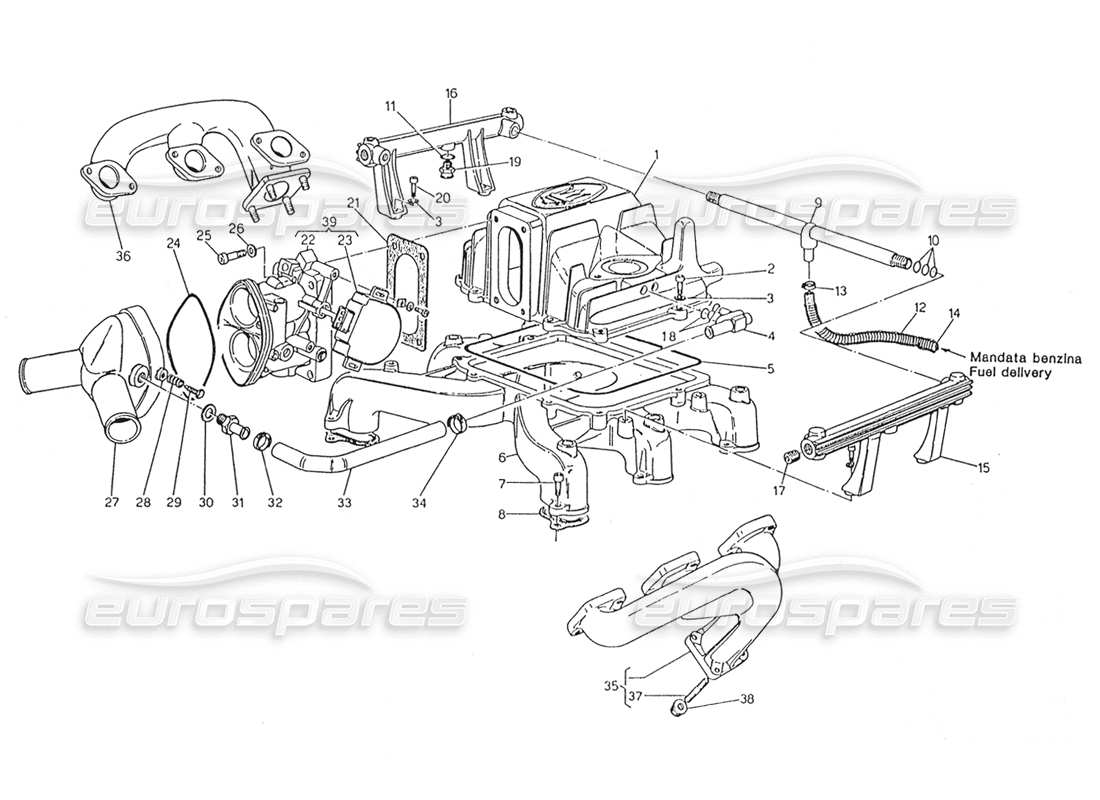

Maserati Karif 2.8 Intake Manifold Throttle Valve Body Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 312220368
THROTTLE BODY COVER FOR SENSOR
from £157.50
from £157.50
# 002
MPN: 108006022
SCREW
# 003
MPN: 138410060
WASHER
# 004
MPN: 312220304
Y-CONNECTOR
# 005
MPN: 312220309
COVER RUBBER RING
# 006
MPN: 312020027
INTAKE MANIFOLD
from £262.50
from £262.50
# 007
MPN: 14306424
SCREW
from £0.47
from £0.47
# 008
MPN: 312020329
GASKET
from £11.10
from £11.10
# 009
MPN: 312020135
PIPE TO CONN. FUEL MANIFOLDS
from £17.43
from £17.43
# 010
MPN: 312020491
SEAL RING
# 011
MPN: 14453381
RUBBER RING
from £0.64
from £0.64
# 012
MPN: 319237524
PIPE 1=500 MM
from £3.13
from £3.13
# 013
MPN: 312237118
CLAMP
from £2.00
from £2.00
# 014
MPN: 312237485
SLEEVE L=650 MM
from £23.92
from £23.92
# 015
MPN: 312020493
LH FUEL MANIFOLD
from £67.01
from £67.01
# 016
MPN: 312020494
RH FUEL MANIFOLD
from £72.86
from £72.86
# 017
MPN: 312020495
PLUG
from £1.60
from £1.60
# 018
MPN: 14456880
RUBBER
from £0.80
from £0.80
# 019
MPN: 312020488
CONNECTOR
# 020
MPN: 1080106020
SCREW
# 021
MPN: 470063601
GASKET
from £1.13
from £1.13
# 022
MPN: 342200101
Throttle valve body
Sinchronizing throttle valve body
from £729.75
from £729.75
# 023
MPN: 470079901
THROTTLE VALVE POTENTIOMETER
from £194.55
from £194.55
This part replaces part number 313720114
# 024
MPN: 470062500
SEAL RING
from £3.00
from £3.00
# 025
MPN: 311020320
SCREW
from £1.36
from £1.36
# 026
MPN: 138410080
WASHER
# 027
MPN: 312220477
AIR CONVEYOR
from £156.52
from £156.52
# 028
MPN: 312220478
SPRING
# 029
MPN: 312220479
STOP RING
from £1.91
from £1.91
# 030
MPN: 312220480
GASKET
# 031
MPN: 312220481
CONNECTOR
Supersession
Supersession
# 032
MPN: 30551117
CLAMP
# 033
MPN: 312220482
SLEEVE
# 034
MPN: 312420317
CLAMP
from £1.60
from £1.60
# 035
MPN: 571362000
L.H, EXHAUST MANIFOLD
from £1,078.39
from £1,078.39
This part replaces part number 342000325
# 036
MPN: 342000326
RH EXHAUST MANIFOLD
# 037
MPN: 312020327
BOLT
from £5.77
from £5.77
# 038
MPN: 312020309
NUT
# 039
MPN: 312222001
COMPLEX THROTTLE VALVE AND POTENTIOMETER
Sinchronizing throttle valve body
from £241.40
from £241.40
This part replaces part number 312222101
