Maserati Karif 2.8 Alternator and Bracket Parts Diagram

016 - Alternator and Bracket

Maserati Karif 2.8 Alternator and Bracket Parts Diagram

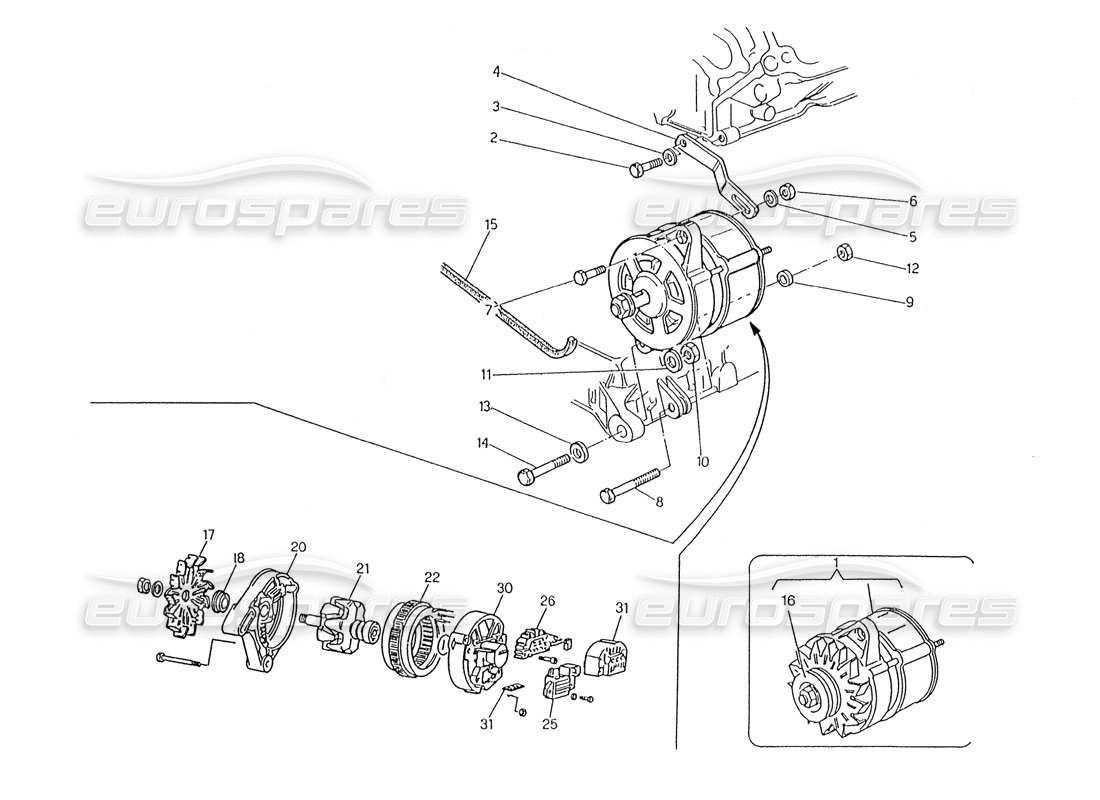

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Key
                                                                Price
                                                                # 001
                                                                MPN: 470948301
                                                                ALTERNATOR Ø17 (1 6-1 7-1 8 PARTS COMP.)
                                                                from £751.28
                                                                from £751.28
                                                                This part replaces part number 313050214
                                                                ALTERNATOR (FOR MODIFICATION) Genuine Maserati Part - New (to order)
                                                                # 003
                                                                MPN: 135500080
                                                                WASHER
                                                                from £0.80
                                                                from £0.80
                                                                WASHER Genuine Maserati Part - New (to order)
                                                                # 005
                                                                MPN: 313020414
                                                                WASHER
                                                                from £11.68
                                                                from £11.68
                                                                RONDELLA Genuine Maserati Part - New (to order)
                                                                # 007
                                                                MPN: 100710035
                                                                BOLT
                                                                PART Genuine Maserati Part - New (to order)
                                                                # 008
                                                                MPN: 313020416
                                                                BOLT
                                                                from £2.00
                                                                from £2.00
                                                                BULLONE D.12X1,75X55 Genuine Maserati Part - New (to order)
                                                                # 011
                                                                MPN: 313020411
                                                                WASHER
                                                                from £0.47
                                                                from £0.47
                                                                RONDELLA Genuine Maserati Part - New (to order)
                                                                # 012
                                                                MPN: 125300120
                                                                NUT
                                                                from £1.13
                                                                from £1.13
                                                                NUT Genuine Maserati Part - New (to order)
                                                                # 013
                                                                MPN: 313020415
                                                                WASHER
                                                                from £10.00
                                                                from £10.00
                                                                WASHER Genuine Maserati Part - New (to order)
                                                                # 015
                                                                MPN: 313020421
                                                                ALTERNATOR BELT
                                                                from £9.95
                                                                from £9.95
                                                                ALT. BELT 9.5X800 Genuine Maserati Part - New In stock
                                                                # 016
                                                                MPN: 313050215
                                                                ALTERNATOR PULLEY
                                                                from £8.48
                                                                from £8.48
                                                                PULLEY Genuine Maserati Part - New (to order)
                                                                # 017
                                                                MPN: 313050418
                                                                ALTERNATOR FAN
                                                                from £11.36
                                                                from £11.36
                                                                ALTERNATOR FAN M.74987100 Genuine Maserati Part - New (to order)
                                                                # 018
                                                                MPN: 313050419
                                                                SPACER
                                                                from £10.87
                                                                from £10.87
                                                                SPACER Genuine Maserati Part - New (to order)
                                                                # 019
                                                                MPN: 313020403
                                                                SCREW
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 020
                                                                MPN: 313050217
                                                                BRACKET
                                                                from £52.00
                                                                from £52.00
                                                                SUPPORT Genuine Maserati Part - New (to order)
                                                                # 021
                                                                MPN: 313050216
                                                                ROTOR (SHAFT Ø 17 MM)
                                                                from £134.37
                                                                from £134.37
                                                                ROTOR Genuine Maserati Part - New (to order)
                                                                # 022
                                                                MPN: 313050205
                                                                STATOR
                                                                from £99.99
                                                                from £99.99
                                                                STATOR Genuine Maserati Part - New (to order)
                                                                # 023
                                                                MPN: 313020206
                                                                SCREW WITH WASHER
                                                                SCREW WITH WASHER Genuine Maserati Part - New (to order)
                                                                # 024
                                                                MPN: 313020207
                                                                BRUSH HOLDER
                                                                from £2.40
                                                                from £2.40
                                                                BLADE HOLDER Genuine Maserati Part - New (to order)
                                                                # 025
                                                                MPN: 313050208
                                                                VOLTAGE REGULATOR
                                                                from £10.07
                                                                from £10.07
                                                                VOLTAGE REGULATOR Genuine Maserati Part - New (to order)
                                                                # 026
                                                                MPN: 313050209
                                                                RECTIFIER
                                                                from £55.11
                                                                from £55.11
                                                                RECTIFIER BRIDGE Genuine Maserati Part - New (to order)
                                                                # 027
                                                                MPN: 313020404
                                                                SCREW
                                                                from £1.60
                                                                from £1.60
                                                                SCREW Genuine Maserati Part - New (to order)
                                                                # 028
                                                                MPN: 313020405
                                                                INSULATOR
                                                                from £0.71
                                                                from £0.71
                                                                INSULATOR Genuine Maserati Part - New (to order)
                                                                # 029
                                                                MPN: 313020406
                                                                GASKET
                                                                GASKET Genuine Maserati Part - New (to order)
                                                                # 030
                                                                MPN: 313050220
                                                                SUPPORT
                                                                SUPPORT Genuine Maserati Part - New (to order)
                                                                # 031
                                                                MPN: 313050221
                                                                OVERHAULING SET
                                                                from £8.48
                                                                from £8.48
                                                                OVERHAULING SET Genuine Maserati Part - New (to order)
