Maserati Karif 2.8 Air Conditioning System RH Steering (Pro Modif.) Parts Diagram

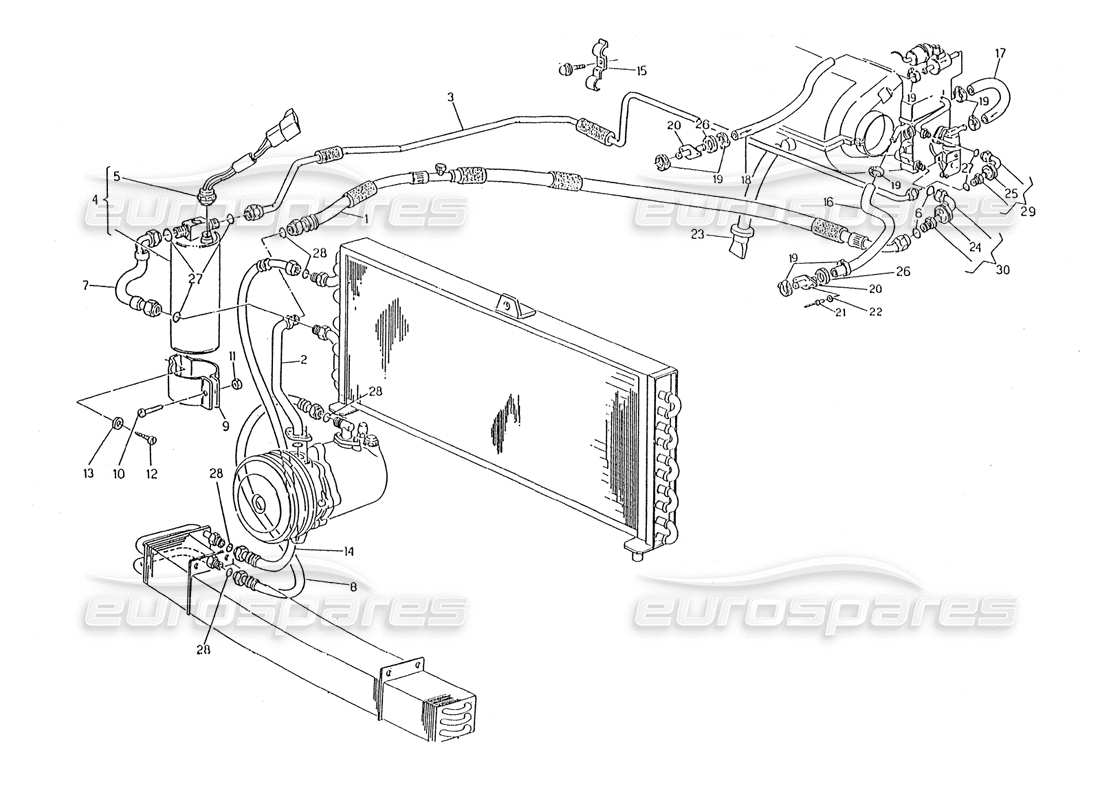

018.2 - Air Conditioning System RH Steering (Pro Modif.)

Maserati Karif 2.8 Air Conditioning System R.H. Steering (Pro Modif.) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 315547106
    PIPE
    Valid for Version 20 and 24
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 002
    MPN: 345500185
    PIPE
    Valid for Version 20 and 24
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 003
    MPN: 315547105
    PIPE
    Valid for Version 20 and 24
    from £104.06
    from £104.06
    FREON PIPELINE Genuine Maserati Part - New (to order)
    # 004
    MPN: 365502174
    FREON FILTER
    from £107.64
    from £107.64
    This part replaces part number 315520174
    FILTRO FREON COMPLETO R12/R1 Genuine Maserati Part - New (to order)
    # 005
    MPN: 315520175
    SWITCH
    Valid for Version 20 and 24
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 006
    MPN: 315520445
    OR
    Valid for Version 20 and 24
    from £0.72
    from £0.72
    ANELLO Genuine Maserati Part - New (to order)
    # 007
    MPN: 315521181
    PIPE
    Valid for Version 20 and 24
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 008
    MPN: 315521179
    PIPE
    Valid for Version 20 and 24
    from £26.40
    from £26.40
    Maserati PART 315521179 Genuine Maserati Part - New (to order)
    # 009
    MPN: 315520301
    CLAMP
    Valid for Version 20 and 24
    from £17.75
    from £17.75
    FILTER CLAMP FREON Genuine Maserati Part - New (to order)
    # 010
    MPN: 101206025
    SCREW
    Valid for Version 20 and 24
    Maserati PART 101206025 Genuine Maserati Part - New (to order)
    # 011
    MPN: 128300060
    NUT
    Valid for Version 20 and 24
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 012
    MPN: 119148160
    SCREW
    Valid for Version 20 and 24
    Maserati PART 119148160 Genuine Maserati Part - New (to order)
    # 013
    MPN: 169020005
    SCREW
    Valid for Version 20 and 24
    from £1.13
    from £1.13
    WASHER Genuine Maserati Part - New (to order)
    # 014
    MPN: 315521180
    PIPE
    Valid for Version 20 and 24
    from £7.81
    from £7.81
    Maserati PART 315521180 Genuine Maserati Part - New (to order)
    # 015
    MPN: 315527302
    CLAMP
    Valid for Version 20 and 24
    CLAMP Genuine Maserati Part - New (to order)
    # 016
    MPN: 315527367
    PIPE
    Valid for Version 20 and 24
    Water line pre mod. Genuine Maserati Part - New (to order)
    # 017
    MPN: 315520366
    PIPE
    Valid for Version 20 and 24
    from £1.82
    from £1.82
    TUBAZ. ACQUA Genuine Maserati Part - New (to order)
    # 018
    MPN: 315527363
    PIPE
    Valid for Version 20 and 24
    Water line after modif. Genuine Maserati Part - New (to order)
    # 019
    MPN: 186402028
    CLAMP
    Valid for Version 20 and 24
    from £1.60
    from £1.60
    CLAMP Genuine Maserati Part - New (to order)
    # 020
    MPN: 315520370
    UNION
    Valid for Version 20 and 24
    from £0.73
    from £0.73
    CONNECTING UNION Genuine Maserati Part - New (to order)
    # 021
    MPN: 164323413
    POP RIVET
    Valid for Version 20 and 24
    RIVET Genuine Maserati Part - New (to order)
    # 022
    MPN: 169020005
    WASHER
    Valid for Version 20 and 24
    from £1.13
    from £1.13
    WASHER Genuine Maserati Part - New (to order)
    # 023
    MPN: 315520017
    PIPE
    Valid for Version 20 and 24
    from £1.82
    from £1.82
    EXHAUST PIPE Genuine Maserati Part - New (to order)
    # 024
    MPN: 31331303
    CHOCK
    Valid for Version 20 and 24
    from £1.09
    from £1.09
    GROMMET Genuine Maserati Part - New (to order)
    # 025
    MPN: 315520371
    CHOCK
    Valid for Version 20 and 24
    from £0.66
    from £0.66
    FAIRLEAD Genuine Maserati Part - New (to order)
    # 026
    MPN: 315520372
    GASKET
    Valid for Version 20 and 24
    from £0.72
    from £0.72
    GASKET Genuine Maserati Part - New (to order)
    # 027
    MPN: 315520443
    OR 3/8
    Valid for Version 20 and 24
    from £1.08
    from £1.08
    ANELLO TENUTA Genuine Maserati Part - New (to order)
    # 028
    MPN: 315520444
    OR 5/8
    Valid for Version 20 and 24
    from £0.72
    from £0.72
    ANELLO Genuine Maserati Part - New (to order)
    # 029
    MPN: 315527112
    PIPE
    Valid for Version 20 and 24
    from £16.19
    from £16.19
    PIPE FOR FREON Genuine Maserati Part - New (to order)
    # 030
    MPN: 315527111
    PIPE
    Valid for Version 20 and 24
    from £12.83
    from £12.83
    PIPE FOR FREON Genuine Maserati Part - New (to order)
