Maserati Karif 2.8 Fuel Pipes Parts Diagram

022 - Fuel Pipes

Maserati Karif 2.8 Fuel Pipes Parts Diagram

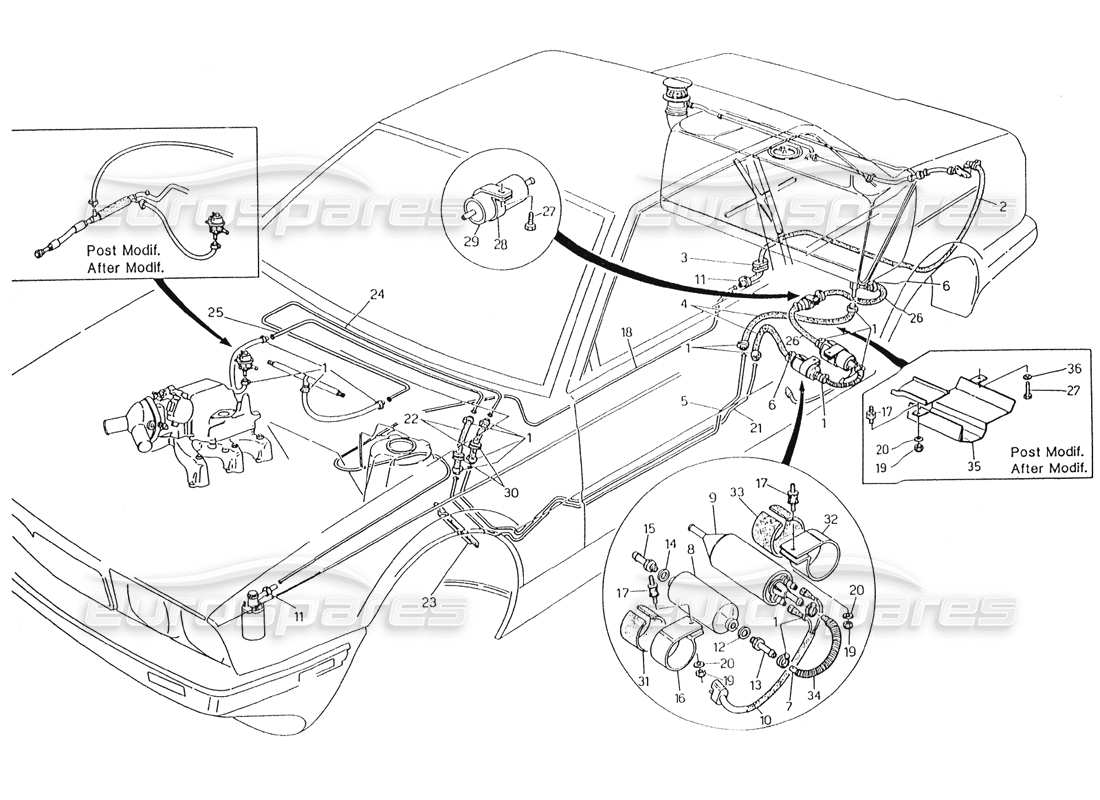

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 001
                                                            MPN: 559221343
                                                            CLAMP
                                                            Supersession
                                                            Supersession
                                                            Genuine Maserati Part (no longer available to order)
                                                            # 002
                                                            MPN: 319220391
                                                            VENT PIPE
                                                            Supersession
                                                            Supersession
                                                            Genuine Maserati Part (no longer available to order)
                                                            # 003
                                                            MPN: 319220396
                                                            GROMMET
                                                            from £1.60
                                                            from £1.60
                                                            GROMMET Genuine Maserati Part - New (to order)
                                                            # 004
                                                            MPN: 319220357
                                                            SLEEVE TO CONN. RETURN PIPE TO FUEL TANK
                                                            Valid for Version 00 and 20
                                                            from £7.52
                                                            from £7.52
                                                            SLEEVE TO CONN. MALP Genuine Maserati Part - New (to order)
                                                            # 004
                                                            MPN: 319237357
                                                            SLEEVE TO CONN. FUEL FILTER TO DELIVERY PIPE
                                                            Valid for Version 02 and 24
                                                            SLEEVE TO CONN. RETURN AND DELIVERY PIPE Genuine Maserati Part - New (to order)
                                                            # 005
                                                            MPN: 339232350
                                                            STILE RETURN FUEL PIPE
                                                            from £6.48
                                                            from £6.48
                                                            PIPE Genuine Maserati Part - New (to order)
                                                            # 006
                                                            MPN: 319220113
                                                            CLAMP
                                                            from £1.13
                                                            from £1.13
                                                            CLAMP Genuine Maserati Part - New (to order)
                                                            # 007
                                                            MPN: 319230506
                                                            SLEEVE TO CONN, PUMP TO FILTER
                                                            Valid for Version 00 and 20
                                                            SLEEVE TO CONN. PUMP TO FILTER Genuine Maserati Part - New (to order)
                                                            # 007
                                                            MPN: 319237506
                                                            SLEEVE
                                                            Valid for Version 02 and 24
                                                            from £7.44
                                                            from £7.44
                                                            HOSE Genuine Maserati Part - New (to order)
                                                            # 008
                                                            MPN: 319220141
                                                            FUEL FILTER
                                                            Supersession
                                                            Supersession
                                                            Genuine Maserati Part (no longer available to order)
                                                            # 009
                                                            MPN: 313720126
                                                            fuel pump
                                                            121727
                                                            from £414.75
                                                            from £414.75
                                                            fuel pump Genuine Maserati Part - New In stock
                                                            # 010
                                                            MPN: 313720112
                                                            FUEL PUMP WIRING HARNESS
                                                            from £8.86
                                                            from £8.86
                                                            FUEL PUMP WIRING HARNESS Genuine Maserati Part - New In stock
                                                            # 012
                                                            MPN: 319220424
                                                            GASKET
                                                            from £0.72
                                                            from £0.72
                                                            GASKET D.12.5X20X1 Genuine Maserati Part - New (to order)
                                                            # 013
                                                            MPN: 470072900
                                                            CONNECTOR
                                                            from £2.98
                                                            from £2.98
                                                            SLEEVE UNION (RMN 9629 Genuine Maserati Part - New In stock
                                                            # 014
                                                            MPN: 319220424
                                                            GASKET
                                                            from £0.72
                                                            from £0.72
                                                            GASKET D.12.5X20X1 Genuine Maserati Part - New (to order)
                                                            # 015
                                                            MPN: 470072800
                                                            OUTLET CONNECTOR
                                                            from £0.66
                                                            from £0.66
                                                            SLEEVE UNION (RMN 9630 Genuine Maserati Part - New In stock
                                                            # 016
                                                            MPN: 339220409
                                                            CLAMP TO FIX. FILTER
                                                            from £5.28
                                                            from £5.28
                                                            FUEL FILTER FASTENING CLAMP Genuine Maserati Part - New (to order)
                                                            # 017
                                                            MPN: 319220139
                                                            SPRING RETAINER
                                                            from £3.06
                                                            from £3.06
                                                            ANTI-VIBRATION MOUNT Genuine Maserati Part - New In stock
                                                            # 018
                                                            MPN: 339237350
                                                            VENT PIPE
                                                            Valid for Version 02 and 24
                                                            Maserati PART 339237350 Genuine Maserati Part - New (to order)
                                                            # 020
                                                            MPN: 169020406
                                                            WASHER
                                                            from £0.80
                                                            from £0.80
                                                            FLAT WASHER Genuine Maserati Part - New In stock
                                                            # 021
                                                            MPN: 339232346
                                                            DELIVERY FUEL PIPE
                                                            from £6.35
                                                            from £6.35
                                                            PIPE Genuine Maserati Part - New (to order)
                                                            # 022
                                                            MPN: 319237404
                                                            SLEEVE
                                                            Valid for Version 02 and 24
                                                            SLEEVE Genuine Maserati Part - New (to order)
                                                            # 022
                                                            MPN: 329210404
                                                            SLEEVE
                                                            Valid for Version 00 and 20
                                                            from £1.17
                                                            from £1.17
                                                            PIPE Genuine Maserati Part - New (to order)
                                                            # 023
                                                            MPN: 329232414
                                                            GUARD
                                                            GUARD Genuine Maserati Part - New (to order)
                                                            # 024
                                                            MPN: 329220131
                                                            COOLED AND DELIVERY FUEL
                                                            from £5.68
                                                            from £5.68
                                                            Maserati PART 329220131 Genuine Maserati Part - New (to order)
                                                            # 026
                                                            MPN: 319220344
                                                            SLEEVE TO CONN TANK TO PUMP
                                                            from £5.77
                                                            from £5.77
                                                            SLEEVE CONN. PUMP TO Genuine Maserati Part - New (to order)
                                                            # 027
                                                            MPN: 314320345
                                                            SCREW
                                                            from £43.12
                                                            from £43.12
                                                            ENGINE COMPT. LID FASTENING SCREW Genuine Maserati Part - New (to order)
                                                            # 028
                                                            MPN: 319220369
                                                            CLAMP
                                                            from £2.40
                                                            from £2.40
                                                            FUEL FILTER FASTENING CLAMP Genuine Maserati Part - New (to order)
                                                            # 029
                                                            MPN: 319220125
                                                            FUEL FILTER
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 319220126
                                                            Genuine Maserati Part (no longer available to order)
                                                            # 030
                                                            MPN: 349200428
                                                            GROMMET
                                                            PASSATUB0 Genuine Maserati Part - New (to order)
                                                            # 033
                                                            MPN: 319220429
                                                            Gasket, clamp
                                                            Gasket, clamp Genuine Maserati Part - New (to order)
                                                            # 034
                                                            MPN: 319220521
                                                            SLEEVE
                                                            Valid for Version 00 and 20
                                                            from £2.62
                                                            from £2.62
                                                            TUBE Genuine Maserati Part - New (to order)
                                                            # 034
                                                            MPN: 319237522
                                                            SLEEVE
                                                            Valid for Version 02 and 24
                                                            from £2.12
                                                            from £2.12
                                                            HOSE Genuine Maserati Part - New (to order)
                                                            # 035
                                                            MPN: 339200412
                                                            GUARD SUPPORT AFTER MOD.
                                                            from £24.63
                                                            from £24.63
                                                            PART Genuine Maserati Part - New (to order)
                                                            # 036
                                                            MPN: 136110066
                                                            WASHER AFTER MOD.
                                                            Maserati PART 136110066 Genuine Maserati Part - New (to order)
