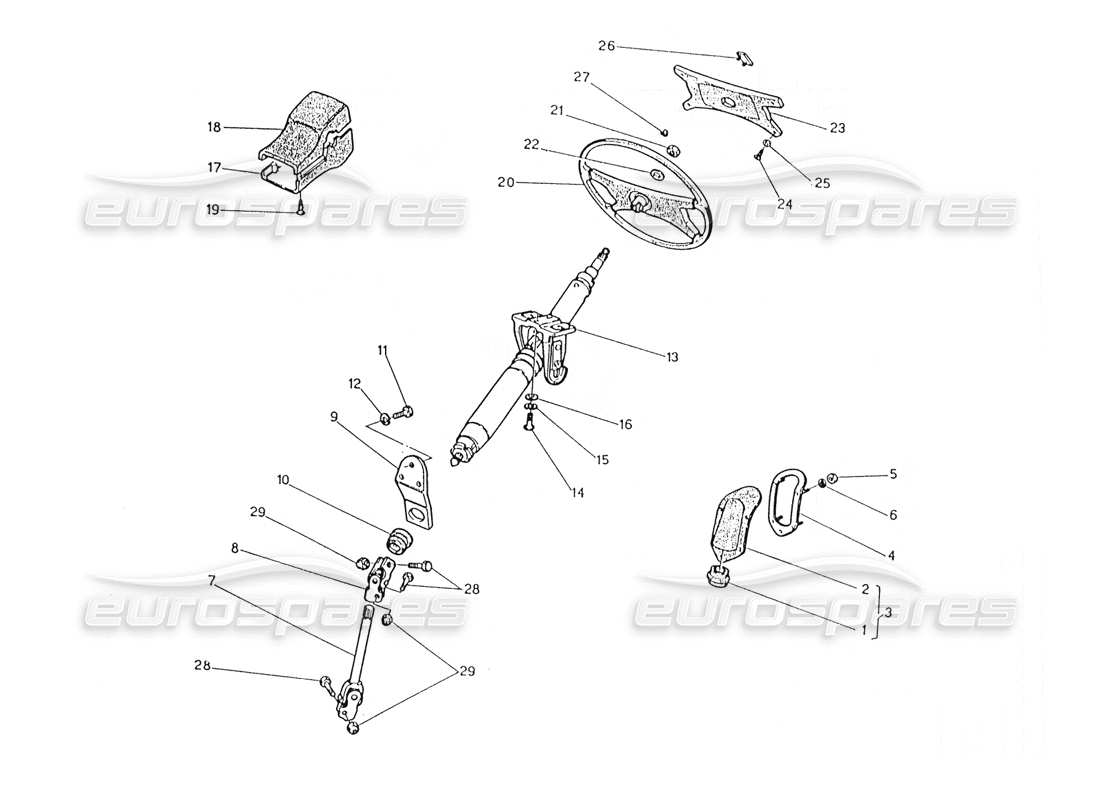

Maserati Karif 2.8 Steering Shaft and Wheel Parts Diagram

032 - Steering Shaft and Wheel

Maserati Karif 2.8 Steering Shaft and Wheel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 001
                                                MPN: 317820337
                                                DUST SHIELD BUSH
                                                from £0.72
                                                from £0.72
                                                DUST PROTECTION BUSHING Genuine Maserati Part - New (to order)
                                                # 002
                                                MPN: 317820336
                                                DUST SHIELD
                                                Valid for Version 00 and 02
                                                from £4.80
                                                from £4.80
                                                GAITER Genuine Maserati Part - New (to order)
                                                # 002
                                                MPN: 317827336
                                                DUST SHIELD
                                                Valid for Version 20 and 24
                                                from £6.16
                                                from £6.16
                                                STEERING COLUMN HOUSING,RHD Genuine Maserati Part - New (to order)
                                                # 003
                                                MPN: 317820116
                                                DUST SHIELD WITH BUSH ASSY
                                                Valid for Version 00 and 02
                                                from £12.00
                                                from £12.00
                                                SOFFIETTO COMPLETO 317820336 Genuine Maserati Part - New (to order)
                                                # 003
                                                MPN: 317827116
                                                DUST SHIELD WITH BUSH ASSY
                                                Valid for Version 20 and 24
                                                from £19.68
                                                from £19.68
                                                CPL.SOFFIETTO 317827336+3178 Genuine Maserati Part - New (to order)
                                                # 004
                                                MPN: 317820107
                                                DUST SHIELD SUPPORT
                                                Valid for Version 00 and 02
                                                from £4.72
                                                from £4.72
                                                PLATE Genuine Maserati Part - New (to order)
                                                # 004
                                                MPN: 317827107
                                                DUST SHIELD SUPPORT
                                                Valid for Version 20 and 24
                                                from £4.07
                                                from £4.07
                                                PIASTRA FISSAGGIO SOFFIETTO Genuine Maserati Part - New (to order)
                                                # 005
                                                MPN: 125100050
                                                NUT
                                                from £0.69
                                                from £0.69
                                                DADO Genuine Maserati Part - New (to order)
                                                # 007
                                                MPN: 327870117
                                                INTERMEDIATE SHAFT
                                                Valid for Version 20 and 24
                                                from £215.20
                                                from £215.20
                                                UNIVERSAL JOINT WITH STEERIN Genuine Maserati Part - New In stock
                                                # 007
                                                MPN: 367801117
                                                INTERMEDIATE SHAFT
                                                Valid for Version 00 and 02
                                                from £176.61
                                                from £176.61
                                                UNIVERSAL JOINT FOR STEERING BOX Genuine Maserati Part - New (to order)
                                                # 008
                                                MPN: 317820117
                                                UNIVERSAL JOINT
                                                from £326.10
                                                from £326.10
                                                UNIVERSAL JOINT 1130.01NACAM Genuine Maserati Part - New In stock
                                                # 009
                                                MPN: 327856320
                                                LOWER SUPPORT
                                                Valid for Version 00 and 02
                                                from £19.75
                                                from £19.75
                                                This part replaces part number 9562
                                                LHD STEERING COLUMN MOUNT Genuine Maserati Part - New In stock
                                                # 009
                                                MPN: 327870320
                                                LOWER SUPPORT
                                                Valid for Version 20 and 24
                                                from £2.26
                                                from £2.26
                                                This part replaces part number 9564
                                                Maserati PART 327870320 Genuine Maserati Part - New (to order)
                                                # 010
                                                MPN: 367800321
                                                BUSH FOR LOWER SUPPORT
                                                from £28.50
                                                from £28.50
                                                This part replaces part number 317820321
                                                BUSHING FOR MODIF.STEER.COLUMN MO Genuine Maserati Part - New (to order)
                                                # 013
                                                MPN: 317820114
                                                STEERING SHAFT ASSY
                                                Valid for Version 00 and 02
                                                from £418.91
                                                from £418.91
                                                Steering Column Genuine Maserati Part - New (to order)
                                                # 013
                                                MPN: 317827114
                                                STEERING SHAFT ASSY
                                                Valid for Version 20 and 24
                                                from £125.42
                                                from £125.42
                                                Maserati PART 317827114 Genuine Maserati Part - New (to order)
                                                # 014
                                                MPN: 167131030
                                                BOLT
                                                from £1.91
                                                from £1.91
                                                SCREW Genuine Maserati Part - New (to order)
                                                # 016
                                                MPN: 14496601
                                                WASHER
                                                Supersession
                                                Supersession
                                                Genuine Ferrari Part (no longer available to order)
                                                Genuine Maserati Part (no longer available to order)
                                                # 017
                                                MPN: 317820110
                                                LOWER STEERING COLUMN COVER
                                                Lower steering column cover colour brown Genuine Maserati Part - New (to order)
                                                # 018
                                                MPN: 317820109
                                                UPPER STEERING COLUMN COVER
                                                from £16.40
                                                from £16.40
                                                UPPER STEERING COLOUMN Genuine Maserati Part - New (to order)
                                                # 020
                                                MPN: 327856104
                                                STEERING WHEEL
                                                from £228.17
                                                from £228.17
                                                STEER.WHEEL ,MAHOGANY W. Genuine Maserati Part - New (to order)
                                                # 021
                                                MPN: 125400140
                                                STEERING WHEEL NUT
                                                Maserati PART 125400140 Genuine Maserati Part - New (to order)
                                                # 022
                                                MPN: 135600140
                                                SPRING WASHER
                                                from £1.13
                                                from £1.13
                                                WASHER Genuine Maserati Part - New (to order)
                                                # 023
                                                MPN: 327856105
                                                STEERING WHEEL COVER
                                                from £48.26
                                                from £48.26
                                                STEERING WHEEL HUB COVER,LEATHER-CO Genuine Maserati Part - New (to order)
                                                # 025
                                                MPN: 135900043
                                                WASHER
                                                from £1.13
                                                from £1.13
                                                This part replaces part number 14496207
                                                FLAT WASHER Genuine Maserati Part - New In stock
                                                # 026
                                                MPN: 317820300
                                                MARQUE FOR STEERING WHEEL COVER
                                                from £5.77
                                                from £5.77
                                                MARQUE FOR STEERING Genuine Maserati Part - New (to order)
                                                # 027
                                                MPN: 163510030
                                                MARQUE SPRING
                                                MARQUE SPRING Genuine Maserati Part - New (to order)
                                                # 028
                                                MPN: 317820382
                                                BOLT
                                                from £1.36
                                                from £1.36
                                                SCREW FAST. STEERING COLUMN JOINT Genuine Maserati Part - New (to order)
                                                # 029
                                                MPN: 128350080
                                                SELF LOCKING NUT
                                                Supersession
                                                Supersession
                                                Genuine Maserati Part (no longer available to order)
