Maserati Karif 2.8 Pedal Assy - Brake Booster clutch Pump (RH Steering Cars) Parts Diagram

042.1 - Pedal Assy - Brake Booster Clutch Pump (RH Steering Cars)

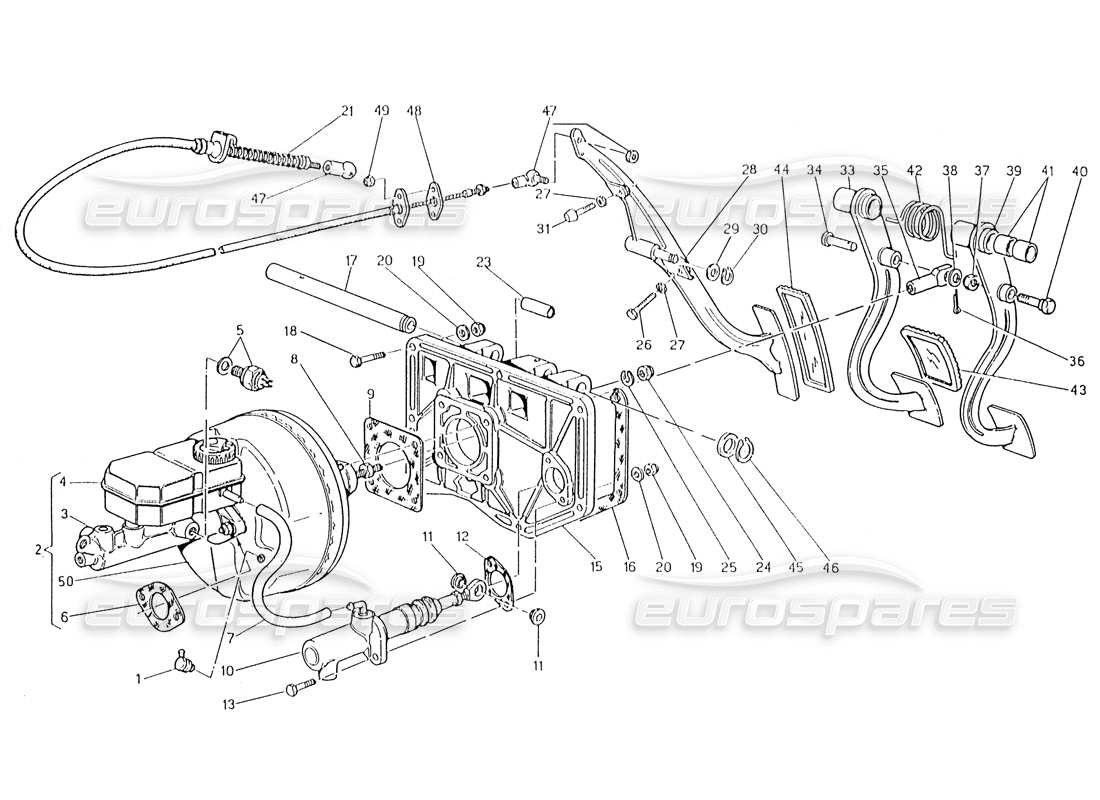

Maserati Karif 2.8 Pedal Assy - Brake Booster Clutch Pump (R.H. Steering Cars) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 317420108
    NOT BACKFLOW VALVE, ASSY
    Valid for Version 20 and 24
    from £16.99
    from £16.99
    NOT BACKFLOW VALVE Genuine Maserati Part - New (to order)
    # 003
    MPN: 317420101
    BRAKE PUMP
    from £375.65
    from £375.65
    BRAKE PUMP Genuine Maserati Part - New (to order)
    BRAKE PUMP (317420101) Original Equipment - New In stock
    # 004
    MPN: 317420104
    TANK FOR BRAKES OIL
    Valid for Version 20 and 24
    from £19.19
    from £19.19
    PUMP TANK Genuine Maserati Part - New (to order)
    # 005
    MPN: 313320187
    STOP SWITCH WITH WASHER
    Valid for Version 20 and 24
    from £46.45
    from £46.45
    HYDRAULIC STOP SWITCH Genuine Maserati Part - New (to order)
    # 006
    MPN: 317420304
    GASKET
    Valid for Version 20 and 24
    from £1.60
    from £1.60
    BRAKE MASTER CYLINDER GASKET Genuine Maserati Part - New (to order)
    # 007
    MPN: 318220329
    CONNECTING PIPE
    Valid for Version 20 and 24
    from £1.09
    from £1.09
    LINE Genuine Maserati Part - New (to order)
    # 008
    MPN: 125300100
    ADJUSTING NUT
    Valid for Version 20 and 24
    NUT Genuine Maserati Part - New (to order)
    # 009
    MPN: 317420303
    GASKET
    Valid for Version 20 and 24
    from £1.60
    from £1.60
    BRAKE SERVO FASTENING GASKET Genuine Maserati Part - New (to order)
    # 010
    MPN: 318220101
    PUMP
    Valid for Version 20 and 24
    from £225.00
    from £225.00
    PUMP (318220101) Eurospares Approved Part - New In stock
    PUMP Genuine Maserati Part - New (to order)
    # 011
    MPN: 318420325
    BUSH
    Valid for Version 20 and 24
    from £1.13
    from £1.13
    CLUTCH PEDAL CTRL ROD BUSHIN Genuine Maserati Part - New (to order)
    # 012
    MPN: 318220307
    GASKET
    Valid for Version 20 and 24
    from £1.13
    from £1.13
    Guarnizione Genuine Maserati Part - New (to order)
    # 013
    MPN: 100708040
    SCREW
    Valid for Version 20 and 24
    Maserati PART 100708040 Genuine Maserati Part - New (to order)
    # 015
    MPN: 318427304
    SUPORT FOR PEDAL ASSY
    Valid for Version 20 and 24
    from £7.11
    from £7.11
    Maserati PART 318427304 Genuine Maserati Part - New (to order)
    # 016
    MPN: 318427348
    GASKET
    Valid for Version 20 and 24
    GASKET Genuine Maserati Part - New (to order)
    # 017
    MPN: 318427328
    PEDAL PIN
    Valid for Version 20 and 24
    from £48.87
    from £48.87
    PIN Genuine Maserati Part - New (to order)
    # 018
    MPN: 100708030
    SCREW
    Valid for Version 20 and 24
    Maserati PART 100708030 Genuine Maserati Part - New (to order)
    # 019
    MPN: 128350080
    SELF LOCKING NUT
    Valid for Version 20 and 24
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 020
    MPN: 135900084
    WASHER
    Valid for Version 20 and 24
    Maserati PART 135900084 Genuine Maserati Part - New (to order)
    # 021
    MPN: 328270010
    SPEED CONTROL CABLE
    Valid for Version 20 and 24
    from £23.88
    from £23.88
    SPEED CABLE Genuine Maserati Part - New (to order)
    # 023
    MPN: 470037700
    BUSH
    Valid for Version 20 and 24
    from £4.77
    from £4.77
    This part replaces part number 311020336
    BOCCOLA FULCRO GALOP.MB 1225 Genuine Maserati Part - New (to order)
    # 024
    MPN: 125100080
    NUT
    Valid for Version 20 and 24
    from £0.86
    from £0.86
    DADO Genuine Maserati Part - New (to order)
    # 025
    MPN: 138410080
    SPRING WASHER
    Valid for Version 20 and 24
    Maserati PART 138410080 Genuine Maserati Part - New (to order)
    # 026
    MPN: 101206040
    ADJUSTING SCREW
    Valid for Version 20 and 24
    from £0.47
    from £0.47
    VITE FINE CORSA Genuine Maserati Part - New (to order)
    # 027
    MPN: 125100060
    NUT
    Valid for Version 20 and 24
    Maserati PART 125100060 Genuine Maserati Part - New (to order)
    # 028
    MPN: 328470113
    SPEED PEDAL
    Valid for Version 20 and 24
    from £41.86
    from £41.86
    SPEED PEDAL Genuine Maserati Part - New (to order)
    SPEED PEDAL Genuine Maserati Part - Used In stock
    # 029
    MPN: 311020352
    WASHER (SP. 0,25 MM)
    Valid for Version 20 and 24
    from £1.13
    from £1.13
    WASHER 12.7X20X0.5 Genuine Maserati Part - New (to order)
    # 029
    MPN: 311020362
    WASHER (SP. 1 MM)
    Valid for Version 20 and 24
    from £1.36
    from £1.36
    RONDELLA D 12,5X20X1 Genuine Maserati Part - New (to order)
    # 030
    MPN: 151100120
    CIRCLIP
    Valid for Version 20 and 24
    Maserati PART 151100120 Genuine Maserati Part - New (to order)
    # 031
    MPN: 318420114
    BUFFER
    Valid for Version 20 and 24
    from £1.97
    from £1.97
    END-OF-TRAVEL RUBBER BUSHING Genuine Maserati Part - New (to order)
    # 033
    MPN: 328470104
    BRAKE PEDAL
    Valid for Version 20 and 24
    from £48.26
    from £48.26
    BRAKE PEDAL Genuine Maserati Part - New (to order)
    # 034
    MPN: 318427312
    BRAKE PEDAL PIN
    Valid for Version 20 and 24
    from £43.84
    from £43.84
    PIN Genuine Maserati Part - New (to order)
    # 035
    MPN: 317420300
    THRUST PAD
    Valid for Version 20 and 24
    from £0.72
    from £0.72
    THRUST PAD Genuine Maserati Part - New (to order)
    # 036
    MPN: 146503220
    SPLIT PIN
    Valid for Version 20 and 24
    Maserati PART 146503220 Genuine Maserati Part - New (to order)
    # 037
    MPN: 128300100
    SELF LOCKING NUT
    Valid for Version 20 and 24
    Maserati PART 128300100 Genuine Maserati Part - New (to order)
    # 038
    MPN: 135910105
    WASHER
    Valid for Version 20 and 24
    Maserati PART 135910105 Genuine Maserati Part - New (to order)
    # 039
    MPN: 328470108
    CLUTCH PEDAL
    Valid for Version 20 and 24
    from £23.62
    from £23.62
    Maserati PART 328470108 Genuine Maserati Part - New (to order)
    # 040
    MPN: 318420326
    THRUST PAD PIN
    Valid for Version 20 and 24
    from £8.56
    from £8.56
    THRUST PAD PIN Genuine Maserati Part - New (to order)
    # 041
    MPN: 318427320
    BUSH
    Valid for Version 20 and 24
    from £4.80
    from £4.80
    BUSH Genuine Maserati Part - New (to order)
    # 042
    MPN: 318420308
    CLUTCH PEDAL SPRING
    Valid for Version 20 and 24
    from £2.19
    from £2.19
    BRAKE AND CLUTCH PEDAL RETURN SPR Genuine Maserati Part - New (to order)
    # 042
    MPN: 318427308
    BRAKE PEDAL SPRING
    Valid for Version 20 and 24
    from £0.66
    from £0.66
    SPRING Genuine Maserati Part - New (to order)
    # 043
    MPN: 318420300
    BRAKE AND CLUTCH PEDAL COVER
    Valid for Version 20 and 24
    from £3.36
    from £3.36
    BRAKE AND CLUTCH PEDAL COVER 1 Genuine Maserati Part - New (to order)
    # 044
    MPN: 318420301
    SPEED PEDAL COVER
    Valid for Version 20 and 24
    from £1.57
    from £1.57
    COPRIPEDALE ACCELERATORE M13 Genuine Maserati Part - New (to order)
    COPRIPEDALE ACCELERATORE M13 Genuine Maserati Part - Used In stock
    # 045
    MPN: 318420321
    SPACER WASHER
    Valid for Version 20 and 24
    WASHER Genuine Maserati Part - New (to order)
    # 046
    MPN: 151100180
    CIRCLIP
    Valid for Version 20 and 24
    from £0.72
    from £0.72
    CIRCLIP Genuine Maserati Part - New In stock
    # 047
    MPN: 318420116
    BALL-END PIN
    Valid for Version 20 and 24
    from £3.76
    from £3.76
    ACCELERATOR JOINT Genuine Maserati Part - New (to order)
    # 048
    MPN: 318220300
    GASKET
    Valid for Version 20 and 24
    from £0.72
    from £0.72
    GASKET Genuine Maserati Part - New (to order)
    # 049
    MPN: 128350060
    SOLL-LOCKING NUT
    Valid for Version 20 and 24
    Maserati PART 128350060 Genuine Maserati Part - New (to order)
