Maserati Karif 2.8 Boot Lid: Hinges, Boot Lid Release Parts Diagram

048 - Boot Lid: Hinges, Boot Lid Release

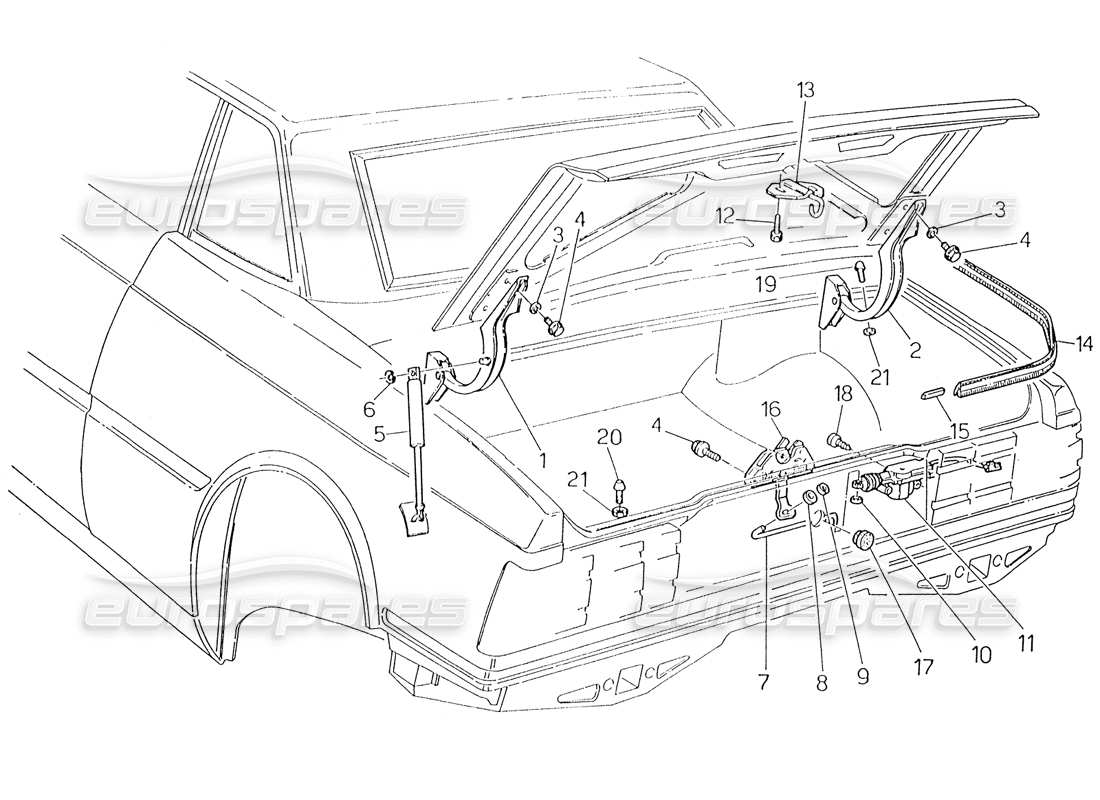

Maserati Karif 2.8 Boot Lid: Hinges, Boot Lid Release Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 001
                                            MPN: 334720005
                                            LH HINGE
                                            from £31.20
                                            from £31.20
                                            BOOT LID HINGE Genuine Maserati Part - New (to order)
                                            # 002
                                            MPN: 334720006
                                            RH HINGE
                                            from £31.20
                                            from £31.20
                                            RH HINGE Genuine Maserati Part - New (to order)
                                            # 003
                                            MPN: 136110090
                                            WASHER
                                            from £1.13
                                            from £1.13
                                            WASHER Genuine Maserati Part - New (to order)
                                            # 004
                                            MPN: 324520704
                                            BOLT
                                            from £1.18
                                            from £1.18
                                            This part replaces part number 314320325
                                            SCREW Genuine Maserati Part - New In stock
                                            # 005
                                            MPN: 334720118
                                            TRUNK GAS HOIST
                                            from £18.44
                                            from £18.44
                                            GAS STRUT Genuine Maserati Part - New (to order)
                                            # 006
                                            MPN: 334720117
                                            SPRING RETAINER (NOT SUPPLIED)
                                            SPRING RETAINER (NOT SUPPLIED) Genuine Maserati Part - New (to order)
                                            # 007
                                            MPN: 324720337
                                            TIE ROD
                                            from £0.51
                                            from £0.51
                                            TIE-ROD FOR LUGG.COMP.LID OPENING Genuine Maserati Part - New (to order)
                                            # 008
                                            MPN: 30471338
                                            WASHER
                                            from £1.13
                                            from £1.13
                                            WASHER Genuine Maserati Part - New In stock
                                            # 010
                                            MPN: 53451389
                                            WASHER
                                            from £1.13
                                            from £1.13
                                            DOOR TIE-ROD RETAINING WASHE Genuine Maserati Part - New (to order)
                                            # 011
                                            MPN: 323320195
                                            MOTOR ACTUATOR
                                            from £28.56
                                            from £28.56
                                            This part replaces part number 313320195
                                            REAR DOOR ACTUATOR 90951.** Genuine Maserati Part - New (to order)
                                            # 012
                                            MPN: 324520704
                                            KEY LOCK BOLT
                                            from £1.18
                                            from £1.18
                                            This part replaces part number 314320325
                                            SCREW Genuine Maserati Part - New In stock
                                            # 013
                                            MPN: 314720110
                                            STRIKER
                                            from £12.64
                                            from £12.64
                                            LUGG. COMP. DOOR STRIKER PLA Genuine Maserati Part - New (to order)
                                            # 014
                                            MPN: 334720350
                                            LUGGAGE HOOD MOULDING
                                            from £10.00
                                            from £10.00
                                            This part replaces part number 314720350 - and 1 more. Click to view details
                                            GASKET Genuine Maserati Part - New (to order)
                                            # 015
                                            MPN: 314520445
                                            INSERT
                                            from £0.47
                                            from £0.47
                                            INSERT Genuine Maserati Part - New (to order)
                                            # 016
                                            MPN: 30471104
                                            LUGGAGE HOOD KEY LOCK
                                            from £15.51
                                            from £15.51
                                            LUGGAGE COMPARTMENT LOCK Genuine Maserati Part - New (to order)
                                            # 019
                                            MPN: 314720331
                                            SILENTBLOC
                                            from £0.72
                                            from £0.72
                                            RUBBER PAD Genuine Maserati Part - New (to order)
                                            # 020
                                            MPN: 314320124
                                            SILENTBLOC
                                            from £1.59
                                            from £1.59
                                            ENGINE COMPT.LID BUFFER Genuine Maserati Part - New (to order)
