067 - Seat Belts, Mirrors and Sun Visor

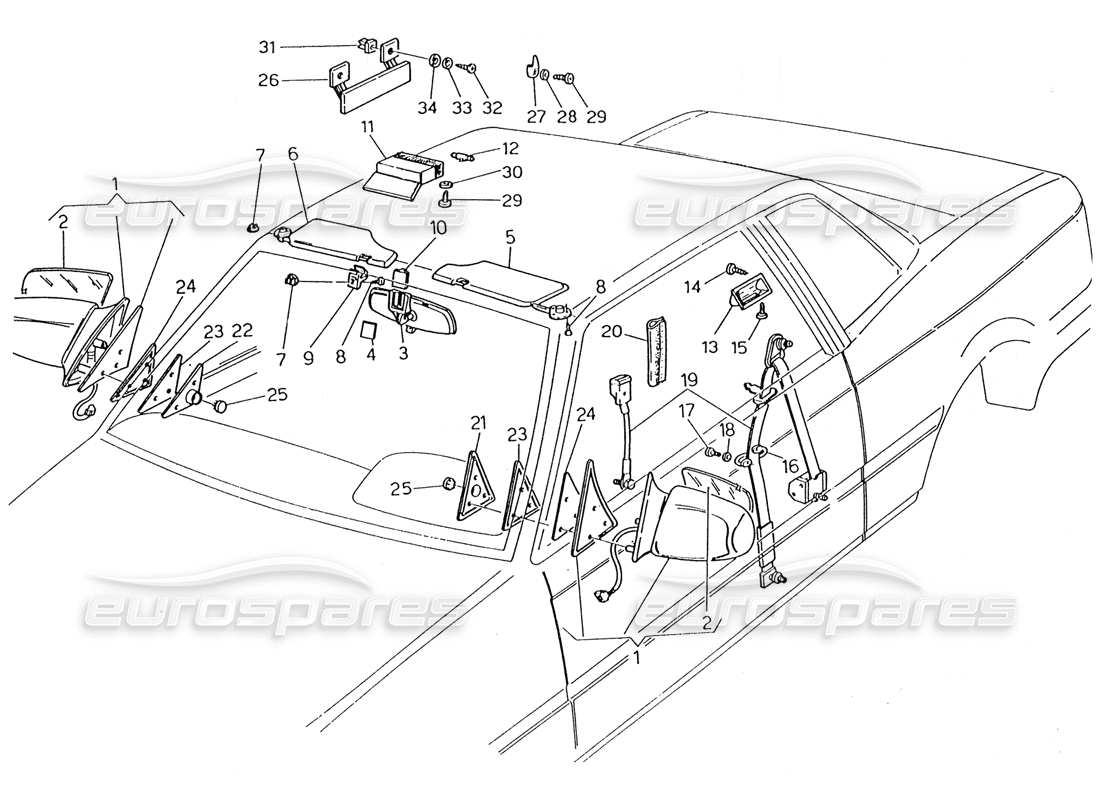

Maserati Karif 2.8 Seat Belts, Mirrors and Sun Visor Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 318150107
LH EXTERIOR MIRROR, ASSY (PLANE)
Valid for Version 00 and 02
Supersession
Supersession
# 001
MPN: 318152032
RH EXTERNAL REARVIEW MIRROR
(curved type)
from £233.66
from £233.66
This part replaces part number 318150108
# 001
MPN: 318170107
LH EXTERNAL REARVIEW MIRROR
(curved type)
from £414.75
from £414.75
This part replaces part number 318169033 - and 1 more. Click to view details
# 001
MPN: 318170108
RH EXTERIOR MIRROR, ASSY (PLANE)
Valid for Version 20 and 24
from £232.95
from £232.95
# 002
MPN: 348100317
LH MIRROR GLASS (PLANE)
Valid for Version 00 and 02
from £27.38
from £27.38
# 002
MPN: 348100318
RH MIRROR GLASS (CURVE)
Valid for Version 00 and 02
Supersession
Supersession
# 002
MPN: 348120317
LH MIRROR GLASS (CURVE)
Valid for Version 20 and 24
from £9.88
from £9.88
# 002
MPN: 348120318
RH MIRROR GLASS (PLANE)
Valid for Version 20 and 24
from £7.70
from £7.70
# 003
MPN: 318120004
INTERIOR MIRROR ASSY
from £37.65
from £37.65
# 004
MPN: 318120345
MARKING PLATE
from £0.72
from £0.72
# 005
MPN: 318150163
LH sun visor (without orary disk) ivory pelt
# 005
MPN: 318150167
LH sun visor (without orary disk) black pelt
# 005
MPN: 318153157
LH sun visor (without orary disk) light grey pert
# 005
MPN: 318153161
LH sun visor (without orary disk) avio pelt
# 005
MPN: 319120131
LH SUN VISOR (WITHOUT ORARY DISK) BEIGE PELT
from £40.83
from £40.83
# 006
MPN: 318150164
RH sun visor (with mirror glass) (ivory pert)
# 006
MPN: 318150168
RH sun visor (with mirror glass) (Black pelt)
# 006
MPN: 318153158
RH sun visor (with mirror glass) (light grey pelt)
# 006
MPN: 318153162
RH sun visor (with mirror glass) (avio pert)
# 006
MPN: 319120132
RH SUN VISOR (WITH MIRROR GLASS) (BEIGE PELT)
from £57.34
from £57.34
# 007
MPN: 318320341
NUT
from £0.72
from £0.72
This part replaces part number 14229280
# 008
MPN: 119942250
SCREW
# 009
MPN: 318120301
RETAINER
Valid for Version 00 and 02
from £2.00
from £2.00
# 009
MPN: 318127300
RETAINER
Valid for Version 20 and 24
# 010
MPN: 318120346
BASE
from £1.04
from £1.04
# 011
MPN: 318120003
Mirror glass (brown color)
Supersession
Supersession
# 012
MPN: 87560500
LAMP FOR MIRROR
from £0.90
from £0.90
# 013
MPN: 318320406
SEAT BELTS PASSAGE (BROWN COLOR)
from £0.64
from £0.64
# 014
MPN: 119542250
SCREW
# 015
MPN: 119542450
SCREW
# 016
MPN: 318120349
LH BELT GUIDE
from £2.12
from £2.12
This part replaces part number 368100365
# 016
MPN: 318120350
RH BELT GUIDE
from £2.12
from £2.12
This part replaces part number 368100366
# 017
MPN: 112805012
SCREW
# 018
MPN: 135600050
SPRING WASHER
from £0.80
from £0.80
# 019
MPN: 9446
FRONT SAFETY BELT KIT
Valid for Version 00 and 02 and 20
Supersession
Supersession
# 019
MPN: 9448
FRONT SAFETY BELT KIT
Valid for Version 24
from £140.35
from £140.35
# 020
MPN: 319122128
COVERING ROD (BEIGE PELT)
from £4.80
from £4.80
# 020
MPN: 328156145
COVERING ROD (LIGHT GREY PELT)
from £4.80
from £4.80
# 020
MPN: 328156146
COVERING ROD (BLACK PELT)
from £2.00
from £2.00
# 020
MPN: 328156147
COVERING ROD (AVIO PELL)
from £9.52
from £9.52
# 020
MPN: 328156148
COVERING ROD (IVORY PELT)
from £4.80
from £4.80
# 021
MPN: 318320373
LH COVERING
from £2.60
from £2.60
# 022
MPN: 318330374
RH COVERING
Supersession
Supersession
# 023
MPN: 318120424
GASKET
from £0.72
from £0.72
# 024
MPN: 318150425
GASKET
from £1.13
from £1.13
This part replaces part number 318120425 - and 1 more. Click to view details
# 025
MPN: 568300349
PLUG
from £1.13
from £1.13
# 026
MPN: 328156136
HANDLE (LIGHT GREY PELT)
# 026
MPN: 328156138
HANDLE (BLACK PELT)
from £6.31
from £6.31
# 026
MPN: 328156140
HANDLE (AVIO PELT)
from £20.30
from £20.30
# 026
MPN: 328912121
HANDLE (IVORY PELT)
from £19.82
from £19.82
# 026
MPN: 398100135
HANDLE (BEIGE PELT)
from £2.29
from £2.29
# 027
MPN: 398120314
Hook (brown color)
# 028
MPN: 163000050
WASHER
# 029
MPN: 119142130
SCREW (MIRROR AND HOOK)
# 030
MPN: 135900043
WASHER
from £1.13
from £1.13
This part replaces part number 14496207
# 031
MPN: 318120111
BLOCK
from £0.72
from £0.72
# 032
MPN: 112806014
SCREW
# 033
MPN: 135600060
SPRING WASHER
from £0.80
from £0.80
# 034
MPN: 135900064
WASHER
from £0.47
from £0.47
