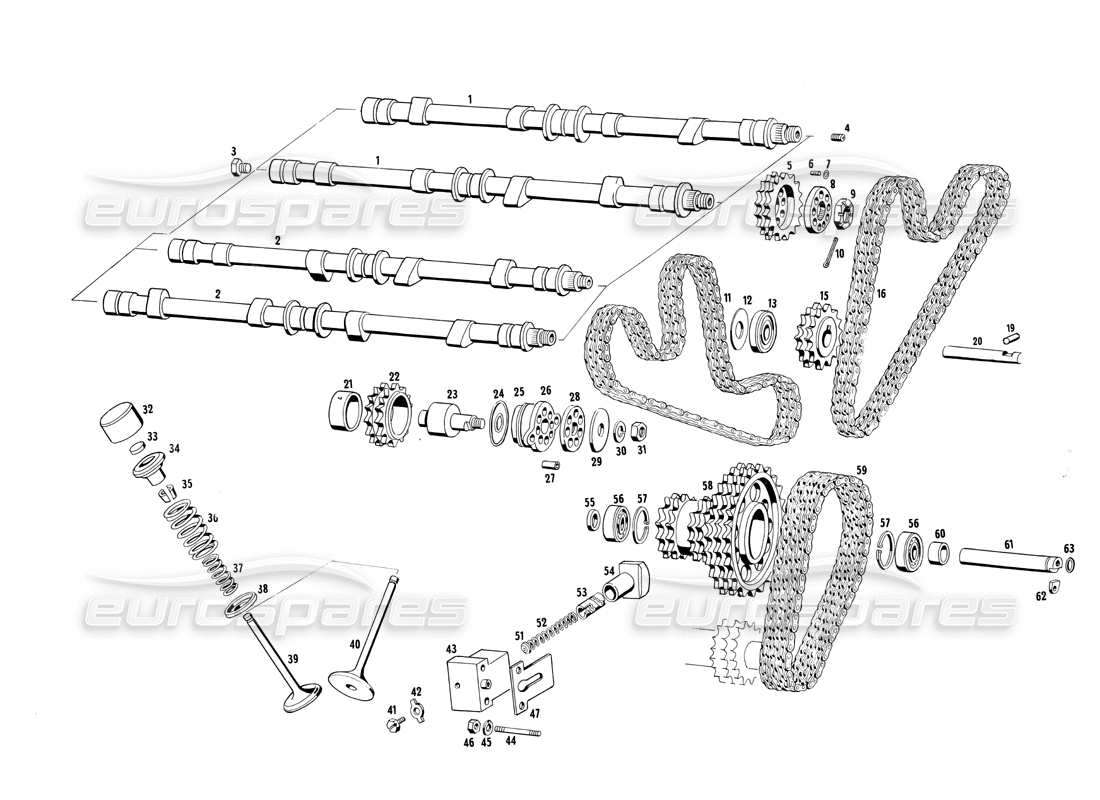

Maserati Ghibli 4.7 / 4.9 Timing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Key
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 103 3003 50767
                                                                                                                    Left head distribution shaft
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                                                    # 002
                                                                                                                    MPN: 103 3002 50766
                                                                                                                    RIGHT HEAD TIMING SHAFT
                                                                                                                    from £1,697.90
                                                                                                                    from £1,697.90
                                                                                                                    RIGHT HEAD TIMING SHAFT Genuine Maserati Part - New (to order)
                                                                                                                    # 003
                                                                                                                    MPN: TN51754
                                                                                                                    CAP 16X 1,5 FOR CAMSHAFT.
                                                                                                                    CAP 16xl,5 FOR TIMING SHAFT Genuine Maserati Part - New (to order)
                                                                                                                    # 004
                                                                                                                    MPN: TN 47332
                                                                                                                    CAP 16 X 1,5 LEFT FOR CAMSHAFT
                                                                                                                    Left cap for camshaft 16 x 1,5 x 21 Genuine Maserati Part - New (to order)
                                                                                                                    # 005
                                                                                                                    MPN: 103360249794
                                                                                                                    GEAR FOR TIMING SHAFT
                                                                                                                    GEAR FOR TIMING SHAFT Genuine Maserati Part - New (to order)
                                                                                                                    # 006
                                                                                                                    MPN: GRN 31105
                                                                                                                    SCREW Ø 6 FOR ENGAGEMENT WITH TIMING CONTROL GEAR FLANGE
                                                                                                                    Grub screw with flange for distribution control gear Ø 6 x 10 Genuine Maserati Part - New (to order)
                                                                                                                    # 007
                                                                                                                    MPN: ART 49642
                                                                                                                    RING
                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                    # 008
                                                                                                                    MPN: 103 3022 49795
                                                                                                                    FLANGE FOR GEAR ON THE TIMING SHAFT
                                                                                                                    CLUTCH WITH FLANGE FOR TIMING CONTROL GEAR Genuine Maserati Part - New (to order)
                                                                                                                    # 009
                                                                                                                    MPN: DCN 55165
                                                                                                                    NUT
                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 011
                                                                                                                    MPN: 103355350527

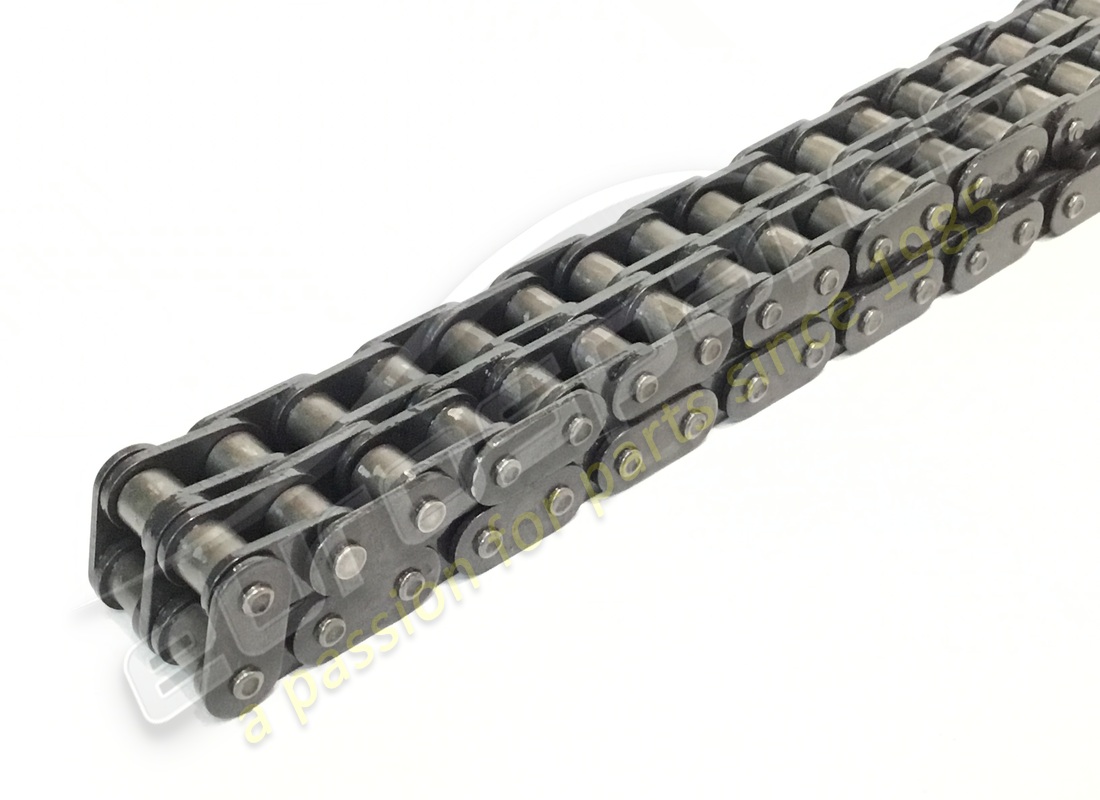

                                                                                                                    RIGHT DOUBLE CHAIN ​​TIMING CONTROL
                                                                                                                    from £320.35
                                                                                                                    from £320.35
                                                                                                                    RIGHT DOUBLE CHAIN ​​TIMING CONTROL Genuine Maserati Part - New In stock
                                                                                                                    CATENA DOPPLA DESTRA COMANDO DISTRIBUZIONE Eurospares Approved Part - New In stock
                                                                                                                    # 012
                                                                                                                    MPN: ART. 43191
                                                                                                                    RING
                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                    # 013
                                                                                                                    MPN: CSC 45315
                                                                                                                    BEARING FOR CRANKCASE IDLER
                                                                                                                    Cuscinetto soils puleggia tendicinghia Genuine Maserati Part - New (to order)
                                                                                                                    # 015
                                                                                                                    MPN: 107/2 MD 59601
                                                                                                                    RIGHT CHAIN ​​GEAR ON THE BASE
                                                                                                                    LEFT CHAIN ​​GEAR ON THE CRANKCASE. Genuine Maserati Part - New (to order)
                                                                                                                    # 016
                                                                                                                    MPN: 103355450526
                                                                                                                    LEFT DOUBLE CHAIN ​​TIMING CONTROL.
                                                                                                                    from £295.00
                                                                                                                    from £295.00
                                                                                                                    LEFT DOUBLE CHAIN ​​TIMING CONTROL Genuine Maserati Part - New (to order)
                                                                                                                    CATENA DOPPLA SINISTRA COMANDO DISTRIBUZIONE Eurospares Approved Part - New In stock
                                                                                                                    # 020
                                                                                                                    MPN: 107/2 MD 59602
                                                                                                                    GEAR SHAFT FOR RIGHT CHAIN.
                                                                                                                    PORTS GEAR SHAFT FOR LEFT CHAIN Genuine Maserati Part - New (to order)
                                                                                                                    # 021
                                                                                                                    MPN: 107 MD 54742
                                                                                                                    BUSH FOR CHAIN ​​TENSIONER SPROCKET
                                                                                                                    BUSH FOR CHAIN ​​TENSIONER SPROCKET Genuine Maserati Part - New (to order)
                                                                                                                    # 022
                                                                                                                    MPN: MD 64410
                                                                                                                    PINION FOR CHAIN ​​TENSIONER
                                                                                                                    PINION FOR CHAIN ​​TENSIONER Genuine Maserati Part - New (to order)
                                                                                                                    # 023
                                                                                                                    MPN: 107/2 MD 64411
                                                                                                                    PIVOT
                                                                                                                    PIVOT Genuine Maserati Part - New (to order)
                                                                                                                    # 024
                                                                                                                    MPN: GOMM 49497
                                                                                                                    GOMMINO Ø 39 X 46 X 3 PER SUPPORTO TENDICATENA .
                                                                                                                    Gommino Ø 39x46x3 per supporto tendicatena Genuine Maserati Part - New (to order)
                                                                                                                    # 025
                                                                                                                    MPN: GOMM 45791
                                                                                                                    GOMMINO Ø 18X 24 X3 PER SUPPORTO TENDICATENA .
                                                                                                                    Gommino Ø 18x24x3 per supporto tendicatena Genuine Maserati Part - New (to order)
                                                                                                                    # 026
                                                                                                                    MPN: 101 /2 3742 49285
                                                                                                                    SUPPORT
                                                                                                                    SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                    # 028
                                                                                                                    MPN: 101/2 3743 49286
                                                                                                                    WASHER
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 029
                                                                                                                    MPN: 101/2 - 3741 49287
                                                                                                                    WASHER
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 030
                                                                                                                    MPN: RSN/33114
                                                                                                                    WASHER
                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                    # 031
                                                                                                                    MPN: DN 33533
                                                                                                                    NUT
                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 031
                                                                                                                    MPN: DN 64309
                                                                                                                    NUT
                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                    # 032
                                                                                                                    MPN: 114 MD 63235
                                                                                                                    Valve control cup
                                                                                                                    Valve control cup Genuine Maserati Part - New (to order)
                                                                                                                    # 033
                                                                                                                    MPN: 101 3322 48003
                                                                                                                    Valve clearance adjustment pad
                                                                                                                    Valve clearance adjustment pad Genuine Maserati Part - New (to order)
                                                                                                                    # 034
                                                                                                                    MPN: 101 - 3412 48008
                                                                                                                    UPPER CAP FOR VALVE SPRINGS.
                                                                                                                    from £48.54
                                                                                                                    from £48.54
                                                                                                                    UPPER VALVE SPRING CAP Genuine Maserati Part - New (to order)
                                                                                                                    # 035
                                                                                                                    MPN: 101 - 3414 48005
                                                                                                                    UPPER VALVE SPRING CAP RETAINING HALF
                                                                                                                    SEMICONI RITEGNO SCOCLELLINO SUPERIORE MOLLE VALVOLE Genuine Maserati Part - New (to order)
                                                                                                                    # 036
                                                                                                                    MPN: 101 3402 47982
                                                                                                                    SPRING
                                                                                                                    from £63.60
                                                                                                                    from £63.60
                                                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                                                    # 037
                                                                                                                    MPN: 101 3496 47983
                                                                                                                    SPRING
                                                                                                                    SPRING Genuine Maserati Part - New (to order)
                                                                                                                    # 038
                                                                                                                    MPN: 103 1034 50531
                                                                                                                    Scodellino inferiore per molle valvole
                                                                                                                    Scodellino inferiore per molle valvole Genuine Maserati Part - New (to order)
                                                                                                                    # 039
                                                                                                                    MPN: 107 3304 53972

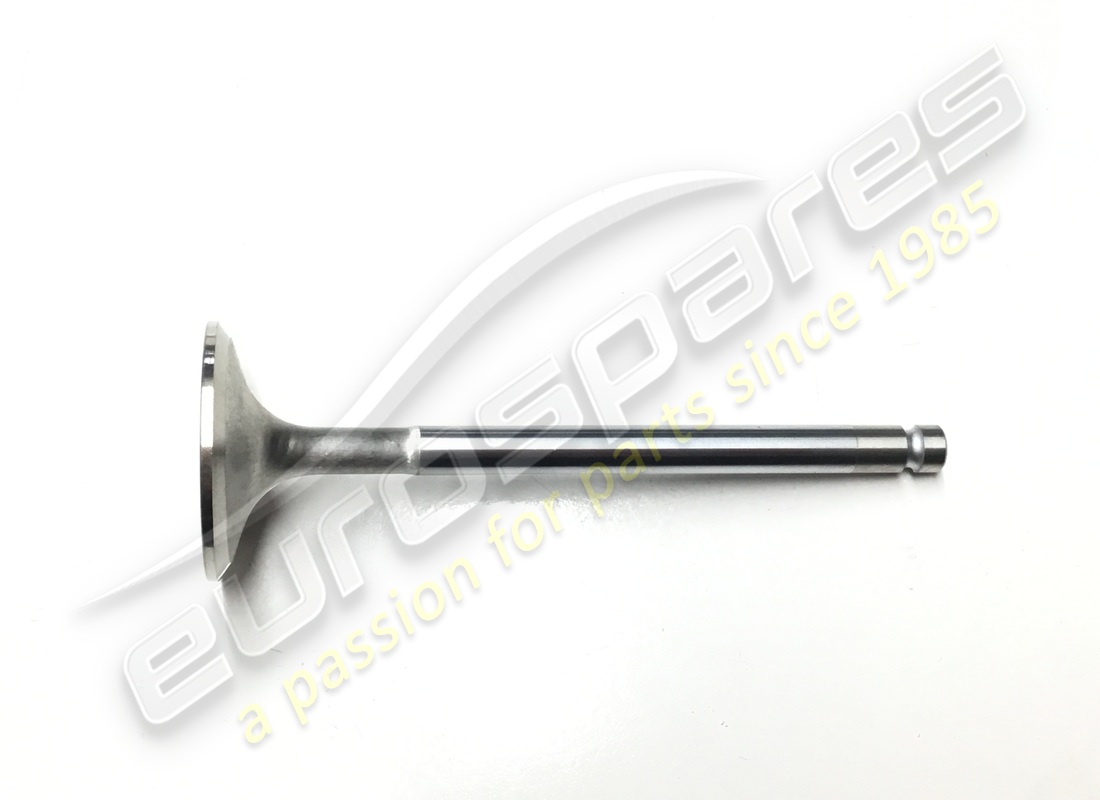

                                                                                                                    Exhaust valve.
                                                                                                                    from £51.98
                                                                                                                    from £51.98
                                                                                                                    Exhaust valve. Genuine Maserati Part - New (to order)
                                                                                                                    Eurospares Part 107 3304 53972 Eurospares Approved Part - New In stock
                                                                                                                    # 040
                                                                                                                    MPN: 107330253904

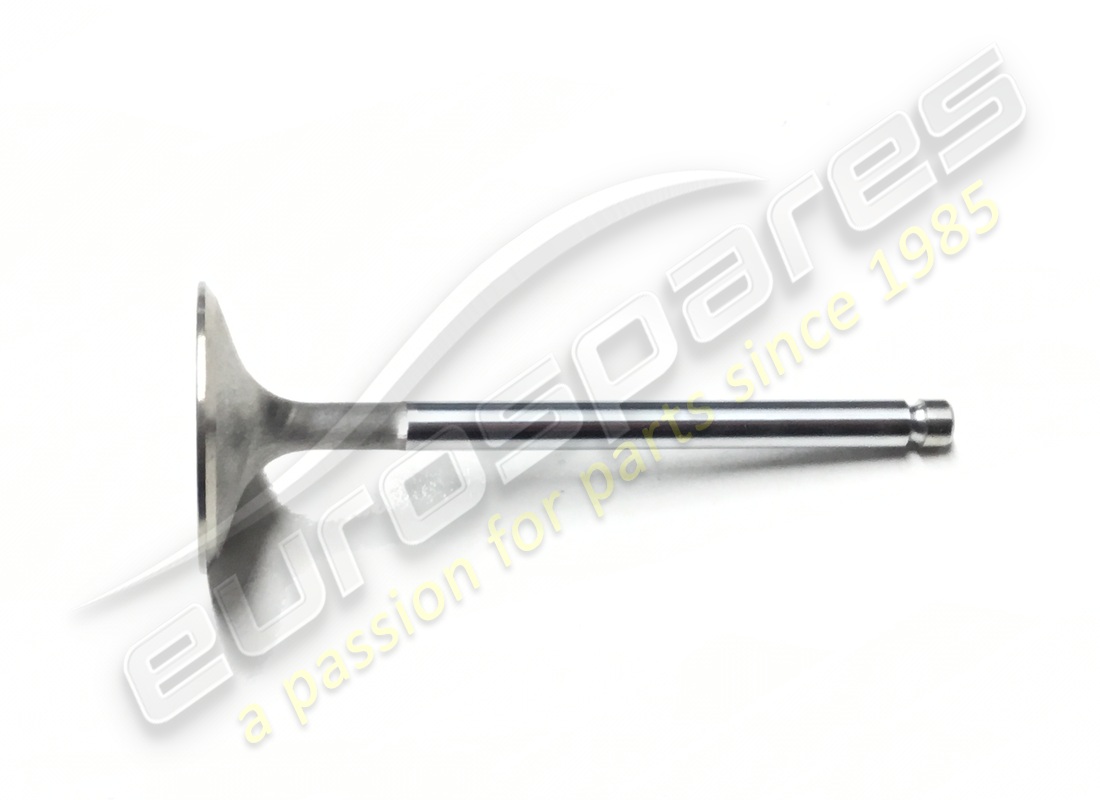

                                                                                                                    SUCTION VALVE .
                                                                                                                    from £46.73
                                                                                                                    from £46.73
                                                                                                                    VALVOLA ASPIRAZIONE Genuine Maserati Part - New (to order)
                                                                                                                    VALVE Eurospares Approved Part - New In stock
                                                                                                                    VALVE Eurospares Approved Part - New (to order)
                                                                                                                    # 041
                                                                                                                    MPN: 107 MD 58376
                                                                                                                    Automatic tensioner rear cap.
                                                                                                                    Automatic tensioner rear cap. Genuine Maserati Part - New (to order)
                                                                                                                    # 043
                                                                                                                    MPN: 107 MD 58378
                                                                                                                    AUTOMATIC TENSIONER SHOE HOLDER BODY.
                                                                                                                    Pad holder Genuine Maserati Part - New (to order)
                                                                                                                    # 044
                                                                                                                    MPN: PN 64825
                                                                                                                    THREADED STUD
                                                                                                                    THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                    # 047
                                                                                                                    MPN: 107 MD 58379
                                                                                                                    REAR PLATE AUTOMATIC TENSIONER
                                                                                                                    Automatic tensioner rear plates Genuine Maserati Part - New (to order)
                                                                                                                    # 051
                                                                                                                    MPN: 107 MD 58380
                                                                                                                    TENSIONER SPRING RETAINING CAPS
                                                                                                                    SPRING RETAINER Genuine Maserati Part - New (to order)
                                                                                                                    # 052
                                                                                                                    MPN: 107 MD 58381
                                                                                                                    SPRING
                                                                                                                    from £5.86
                                                                                                                    from £5.86
                                                                                                                    Stretcher spring Genuine Maserati Part - New (to order)
                                                                                                                    # 053
                                                                                                                    MPN: 107 MD 58382
                                                                                                                    AUTOMATIC TENSIONER SPRING RETAINER PISTON
                                                                                                                    Automatic tensioner spring retainer plunger Genuine Maserati Part - New (to order)
                                                                                                                    # 054
                                                                                                                    MPN: 107 MD 58383
                                                                                                                    SLIDE WITH RUBBER FOR AUTOMATIC TENSIONER
                                                                                                                    Pad with rubber for automatic tensioner Genuine Maserati Part - New (to order)
                                                                                                                    # 055
                                                                                                                    MPN: 103350950521
                                                                                                                    REAR SPACER FOR TRIPLE GEAR
                                                                                                                    REAR SPACER FOR TRIPLE GEAR Genuine Maserati Part - New (to order)
                                                                                                                    # 056
                                                                                                                    MPN: CSC43806
                                                                                                                    Triple gear bearing
                                                                                                                    from £58.58
                                                                                                                    from £58.58
                                                                                                                    Triple gear bearing Genuine Maserati Part - New (to order)
                                                                                                                    # 057
                                                                                                                    MPN: ART/47948
                                                                                                                    RING
                                                                                                                    from £45.18
                                                                                                                    from £45.18
                                                                                                                    SEEGER RING Genuine Maserati Part - New (to order)
                                                                                                                    # 058
                                                                                                                    MPN: 103350849782
                                                                                                                    CENTRAL TRIPLE GEAR BASE.
                                                                                                                    from £1,460.26
                                                                                                                    from £1,460.26
                                                                                                                    CENTRAL TRIPLE GEAR BASE Genuine Maserati Part - New (to order)
                                                                                                                    # 059
                                                                                                                    MPN: 103355250525

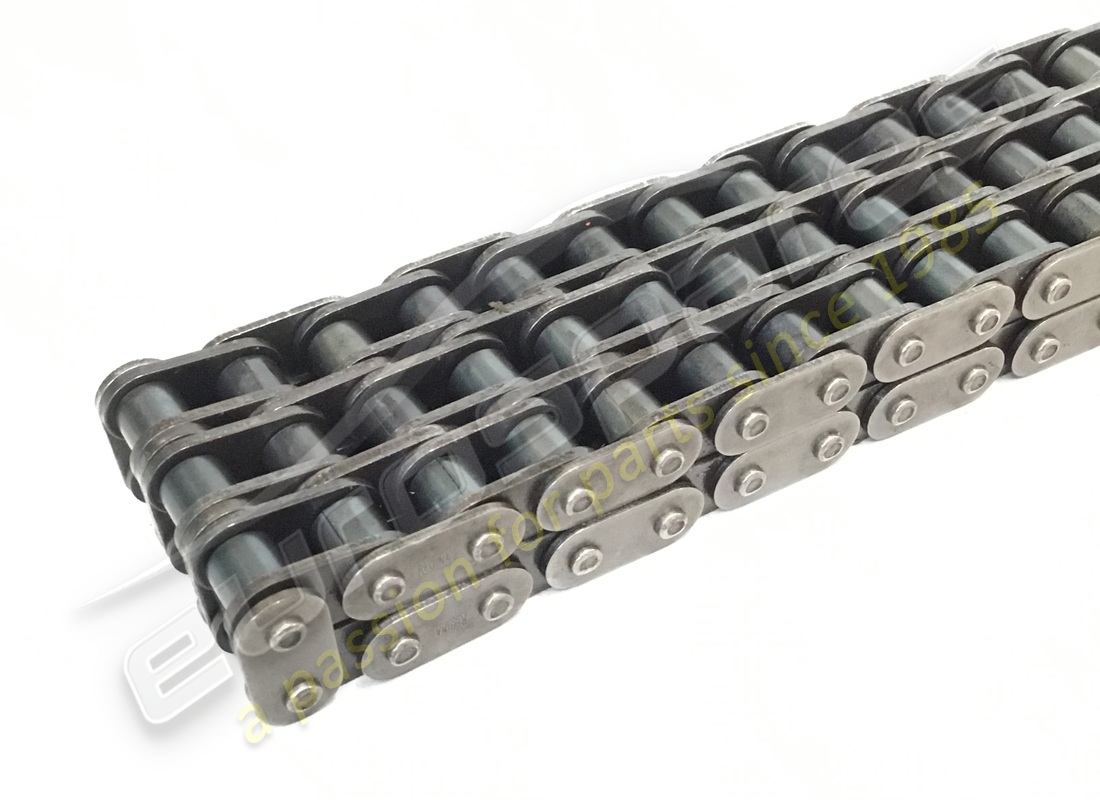

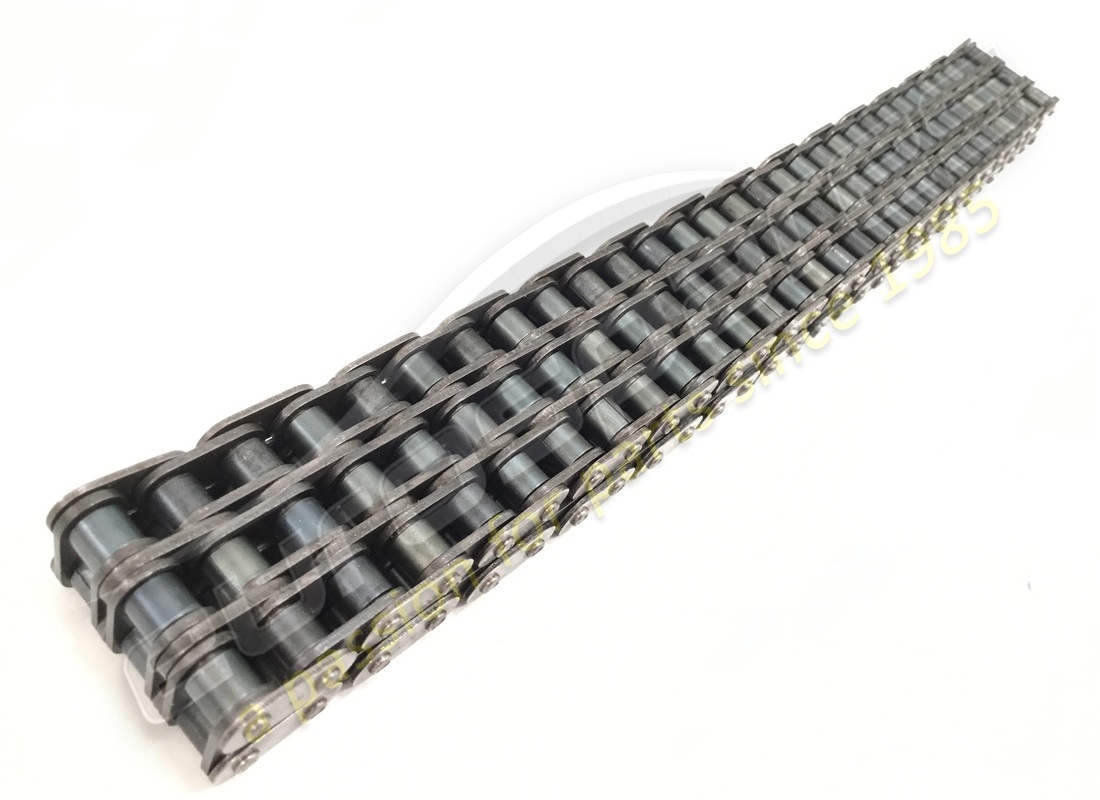

                                                                                                                    TRIPLE TIMING CONTROL CHAIN
                                                                                                                    from £293.72
                                                                                                                    from £293.72
                                                                                                                    TRIPLE TIMING CONTROL CHAIN Genuine Maserati Part - New (to order)
                                                                                                                    CATENA TRIPLE COMANDO DISTRIBUTORS Eurospares Approved Part - New In stock
                                                                                                                    # 060
                                                                                                                    MPN: 103350750522
                                                                                                                    FRONT SPACER FOR TRIPLE CENTRAL GEAR
                                                                                                                    FRONT SPACER FOR TRIPLE CENTRAL GEAR Genuine Maserati Part - New (to order)
                                                                                                                    # 061
                                                                                                                    MPN: 107 MD 55974
                                                                                                                    SHAFT FOR CENTRAL TRIPLE GEAR BASE
                                                                                                                    Shaft for central crankcase gear wheel Genuine Maserati Part - New (to order)
                                                                                                                    # 062
                                                                                                                    MPN: 107 MD 55975
                                                                                                                    LOCKING PLATE FOR TRIPLE GEAR SHAFT.
                                                                                                                    Stopper for triple gear shaft Genuine Maserati Part - New (to order)
                                                                                                                    # 063
                                                                                                                    MPN: GOMM57307
                                                                                                                    RUBBER Ø 14,2 X 2,2 FOR TRIPLE GEAR SHAFT
                                                                                                                    Rubber Ø 14,2x2,2 for triple gear shaft Genuine Maserati Part - New (to order)
