013 - Transmission Housing

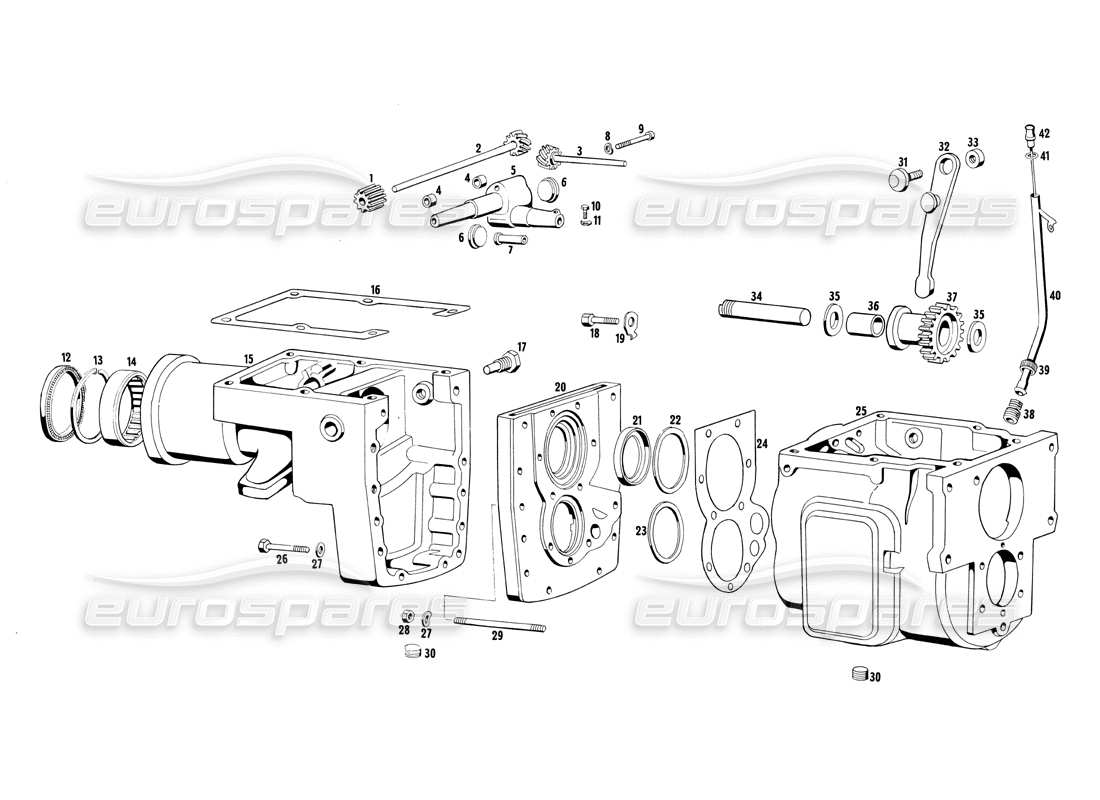

Maserati Ghibli 4.7 / 4.9 Transmission Housing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Key
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 107TC58887
                                                                                      SECONDARY GEAR KM COUNTER Z 10 FOR GEARBOX S-5-325/22
                                                                                      Secondary drive gear counts km Genuine Maserati Part - New (to order)
                                                                                      # 001
                                                                                      MPN: 115 TC 64782
                                                                                      SECONDARY GEAR KM COUNTER CONTROL Z9 FOR GEARBOX S-5-325/27
                                                                                      SECONDARY GEAR KM COUNTER CONTROL Z9 FOR GEARBOX S-5-325/27 Genuine Maserati Part - New (to order)
                                                                                      # 002
                                                                                      MPN: 107 TC 58888
                                                                                      PRIMARY GEAR ON THE TRANSFER COUNTS KM
                                                                                      PRIMARY GEAR ON THE TRANSFER COUNTS KM Genuine Maserati Part - New (to order)
                                                                                      # 003
                                                                                      MPN: 107 TC 58889
                                                                                      SECONDARY GEAR ON THE TRANSFER COUNTS KM
                                                                                      SECONDARY GEAR ON THE TRANSFER COUNTS KM Genuine Maserati Part - New (to order)
                                                                                      # 006
                                                                                      MPN: 107 TC 58892
                                                                                      CAP ON THE KM COUNTER TRANSFER GEAR SUPPORT
                                                                                      CAP ON THE KM COUNTER TRANSFER GEAR SUPPORT Genuine Maserati Part - New (to order)
                                                                                      # 007
                                                                                      MPN: 107 TC 58893
                                                                                      BUSH
                                                                                      BUSH Genuine Maserati Part - New (to order)
                                                                                      # 008
                                                                                      MPN: RN 45679
                                                                                      WASHER
                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                      # 009
                                                                                      MPN: BNT 47351
                                                                                      BOLT
                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                      # 010
                                                                                      MPN: BNT47021
                                                                                      BOLT
                                                                                      from £1.74
                                                                                      from £1.74
                                                                                      This part replaces part number 47021
                                                                                      Bullone 6x1x18 per detto Genuine Maserati Part - New (to order)
                                                                                      # 011
                                                                                      MPN: RSN/32690
                                                                                      WASHER
                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                      # 012
                                                                                      MPN: ANT 58894
                                                                                      SEALING RING
                                                                                      SEALING RING Genuine Maserati Part - New (to order)
                                                                                      # 013
                                                                                      MPN: ART 58896
                                                                                      RING
                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                      # 014
                                                                                      MPN: 107TC58897
                                                                                      SPECIAL ROLLER BEARING FOR SLEEVE WITH FLANGE
                                                                                      SPECIAL ROLLER BEARING FOR SLEEVE WITH FLANGE Genuine Maserati Part - New (to order)
                                                                                      # 018
                                                                                      MPN: BNT 54080
                                                                                      BOLT
                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                      # 020
                                                                                      MPN: 107 TC 58901
                                                                                      FLANGIA INTERMEDIA
                                                                                      Intermediate fringe Genuine Maserati Part - New (to order)
                                                                                      # 021
                                                                                      MPN: 107 TC 58902
                                                                                      RING
                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                      # 022
                                                                                      MPN: 107 TC 58903
                                                                                      RING
                                                                                      RING Genuine Maserati Part - New (to order)
                                                                                      # 024
                                                                                      MPN: 107TC58905
                                                                                      GASKET OR SEAL
                                                                                      Gearbox gasket Genuine Maserati Part - New (to order)
                                                                                      # 025
                                                                                      MPN: 107TC58906
                                                                                      SCATOLA CAMBIO
                                                                                      SCATOLA CAMBIO Genuine Maserati Part - New (to order)
                                                                                      # 026
                                                                                      MPN: BN 33132
                                                                                      BOLT
                                                                                      BOLT Genuine Maserati Part - New (to order)
                                                                                      # 027
                                                                                      MPN: RN 45680
                                                                                      WASHER
                                                                                      WASHER Genuine Maserati Part - New (to order)
                                                                                      # 028
                                                                                      MPN: DNT. 47031
                                                                                      NUT
                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                      # 029
                                                                                      MPN: PN 54455
                                                                                      THREADED STUD
                                                                                      THREADED STUD Genuine Maserati Part - New (to order)
                                                                                      # 030
                                                                                      MPN: 107TC58907
                                                                                      TAPPO SCARICO OLIO
                                                                                      TAPPO SCARICO OLIO Genuine Maserati Part - New (to order)
                                                                                      # 032
                                                                                      MPN: 107 TC 58909
                                                                                      LEVER
                                                                                      LEVER Genuine Maserati Part - New (to order)
                                                                                      # 033
                                                                                      MPN: 107 TC 58910
                                                                                      NUT
                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                      # 034
                                                                                      MPN: 107 TC 58911
                                                                                      SHAFT FOR REVERSE GEAR
                                                                                      SHAFT FOR REVERSE GEAR Genuine Maserati Part - New (to order)
                                                                                      # 037
                                                                                      MPN: 107 TC 58914
                                                                                      REVERSE GEAR
                                                                                      REVERSE GEAR Genuine Maserati Part - New (to order)
                                                                                      # 039
                                                                                      MPN: DR 38849
                                                                                      NUT
                                                                                      NUT Genuine Maserati Part - New (to order)
                                                                                      # 040
                                                                                      MPN: 107TC56468
                                                                                      TUBO PER ASTA LIVELLO OLIO
                                                                                      TUBO PER ASTA LIVELLO OLIO Genuine Maserati Part - New (to order)
                                                                                      # 041
                                                                                      MPN: GOM 57918
                                                                                      SEAL RUBBER FOR OIL LEVEL DIPSTICK
                                                                                      SEAL RUBBER FOR OIL LEVEL DIPSTICK Genuine Maserati Part - New (to order)
                                                                                      # 042
                                                                                      MPN: 107TC56466
                                                                                      OIL LEVEL CONTROL DIPSTICK
                                                                                      OIL LEVEL CONTROL DIPSTICK Genuine Maserati Part - New (to order)
