019 - Rear Suspension

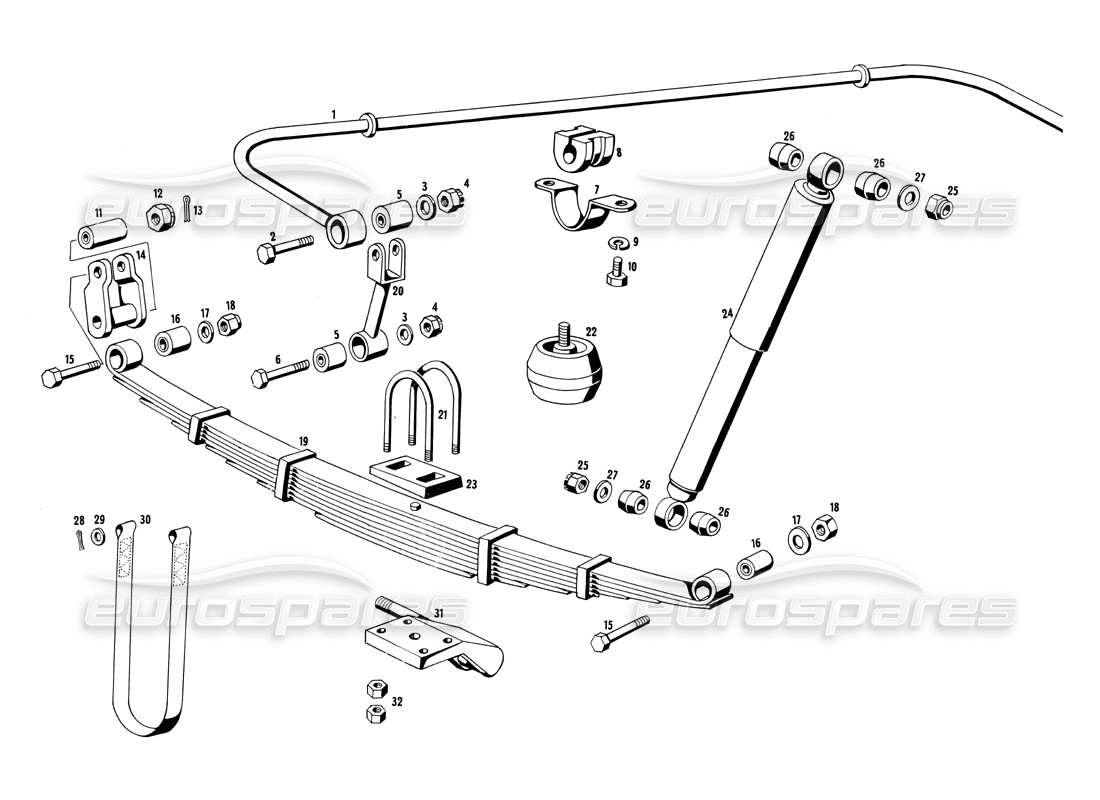

Maserati Ghibli 4.7 / 4.9 Rear Suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 115 SP 63307
STABILIZER BAR; REAR.
from £446.86
from £446.86
# 002
MPN: BNT 47451
BOLT
# 002
MPN: BNT 65439
BOLT
# 003
MPN: CN32502
(CON I FRENI VENTILATI DETTA RONDELLA A SOSTITUITA DALLA COPIGLIA CN 32502)
# 003
MPN: RNT47085
WASHER
from £3.34
from £3.34
# 004
MPN: DCN/44858
NUT
# 004
MPN: DST 65794
NUT
# 005
MPN: SLN34748
SUPPORT
from £48.28
from £48.28
# 006
MPN: BNT 65442
BOLT
# 007
MPN: A6.G 54.12572.44117
SUPPORT
# 008
MPN: 107/A SP 62830
ELASTIC PLUSH FOR STABILIZER BAR.
from £37.66
from £37.66
# 009
MPN: RSN/33112
WASHER
from £1.68
from £1.68
# 010
MPN: BN47333
BOLT
# 011
MPN: SLN 42573
SILENTBLOC Ø 18 X 34 X 76 SUL PERNO TELAIO TENUTA BALESTRA
from £97.74
from £97.74
# 012
MPN: DCNT/47106
NUT
# 013
MPN: CN 32723
COPIGLIA Ø 4 X 50 PER DETTO .
# 014
MPN: 101 11537 47976
Crossbow biscuit.
# 015
MPN: BNT 59990
BOLT
# 016
MPN: SLN/47969
SILENTBLOC Ø 14 X 32 X 50 SULLA MOLLA A BALESTRA .
from £69.62
from £69.62
# 017
MPN: RDI 54347
WASHER
# 018
MPN: DNT 43772
NUT
# 019
MPN: 115 SP 66576
SPRING
# 020
MPN: 101/10 SP 58092
BIELLETTA PER BARRA STABILIZZATRICE
# 021
MPN: 115 SP 66641
BRACKET FOR FIXING THE LOWER SPRING SUPPORT PLATE
# 022
MPN: SLN 63831
RUBBER BUFFER 90 X 90 FOR SUSPENDED LIMIT SWITCH. POSTER.
# 023
MPN: 115 TP 66639
SPACER BETWEEN SPRING SPRING AND REAR AXLE
# 024
MPN: 115 SP 64736
REAR SHOCK ABSORBERS
from £500.42
from £500.42
# 025
MPN: DST 62315
NUT
# 026
MPN: GOM 52764
Rubber for rear shock absorbers
from £6.70
from £6.70
# 027
MPN: RNT 47091
WASHER
# 028
MPN: CN. 43776
PIN FOR WASHER SEALING WASHER
from £0.84
from £0.84
# 029
MPN: RNT52733
WASHER
# 030
MPN: 101/10 SP 59618
BRACE FOR LOWER SHAKE.
# 031
MPN: 115 SP 63285
RIGHT PLATE FOR FIXING SPRING AND SHOCK ABSORBER. POSTER.
# 031
MPN: 115 SP 63286
LEFT PLATE FOR FIXING SPRING AND SHOCK ABSORBER. POSTER.
