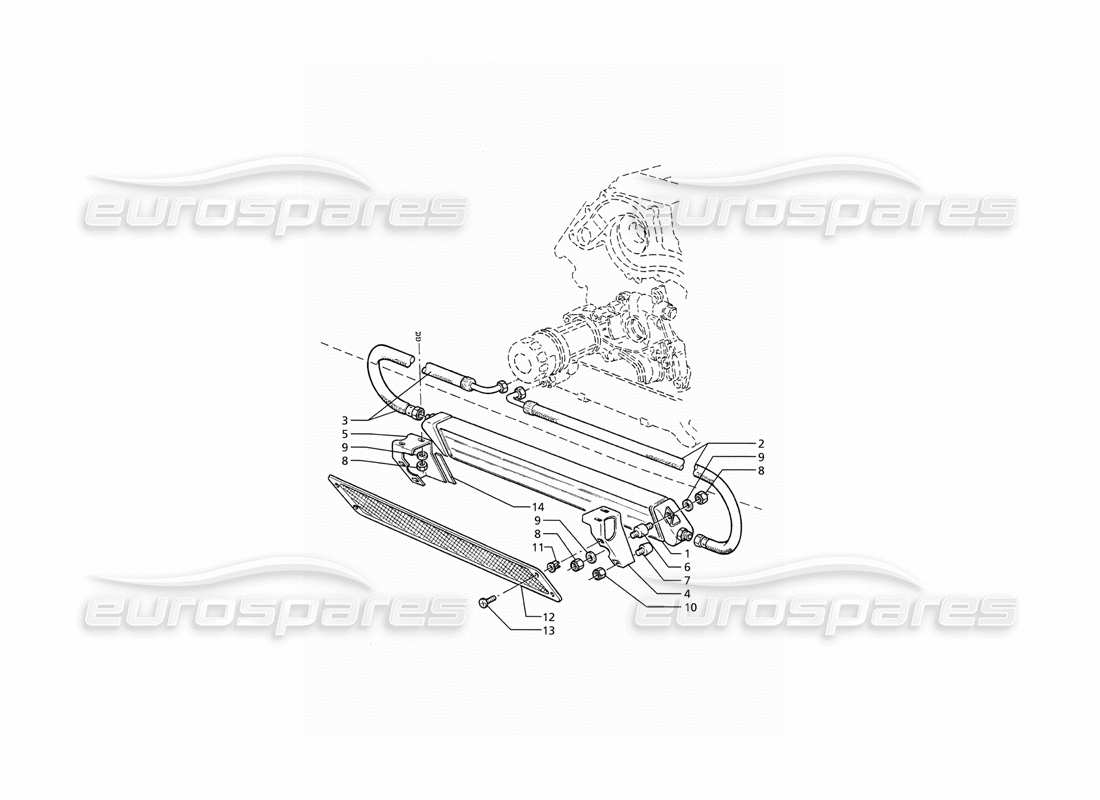

009.1 - Engine Oil Cooling
Maserati Ghibli 2.8 (ABS) Engine Oil Cooling Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 362802108
ENGINE OIL RADIATOR
from £346.31
from £346.31
# 002
MPN: 362802104
OIL DELIVERY LINE
from £134.30
from £134.30
# 003
MPN: 362802105
oil return line
from £76.88
from £76.88
# 004
MPN: 362802107
LH BRACKET
from £141.51
from £141.51
This part replaces part number 362802301
# 005
MPN: 362802302
RH BRACKET
from £18.09
from £18.09
# 006
MPN: 319220139
FLEXIBLE SUPPORT
from £2.97
from £2.97
# 007
MPN: 314320124
VIBRATION DAMPER
from £1.53
from £1.53
# 008
MPN: 128350060
SELF LOCKING NUT
# 009
MPN: 136110066
FLAT WASHER
# 010
MPN: 125100060
LOCK NUT
# 011
MPN: 318320341
NUT SCREW
from £0.69
from £0.69
This part replaces part number 14229280
# 012
MPN: 362802303
RADIATOR GRILLE
from £123.05
from £123.05
# 013
MPN: 97739
SELF TAPPING SCREW
# 014
-
GASKET
