maserati ghibli 2.8 (abs) air conditioning system (rh drive) with freon r12 parts diagram

021.2 - Air Conditioning System (RH Drive) With Freon R12

Maserati Ghibli 2.8 (ABS) Air Conditioning System (R.H.Drive) With Freon R12 Parts Diagram

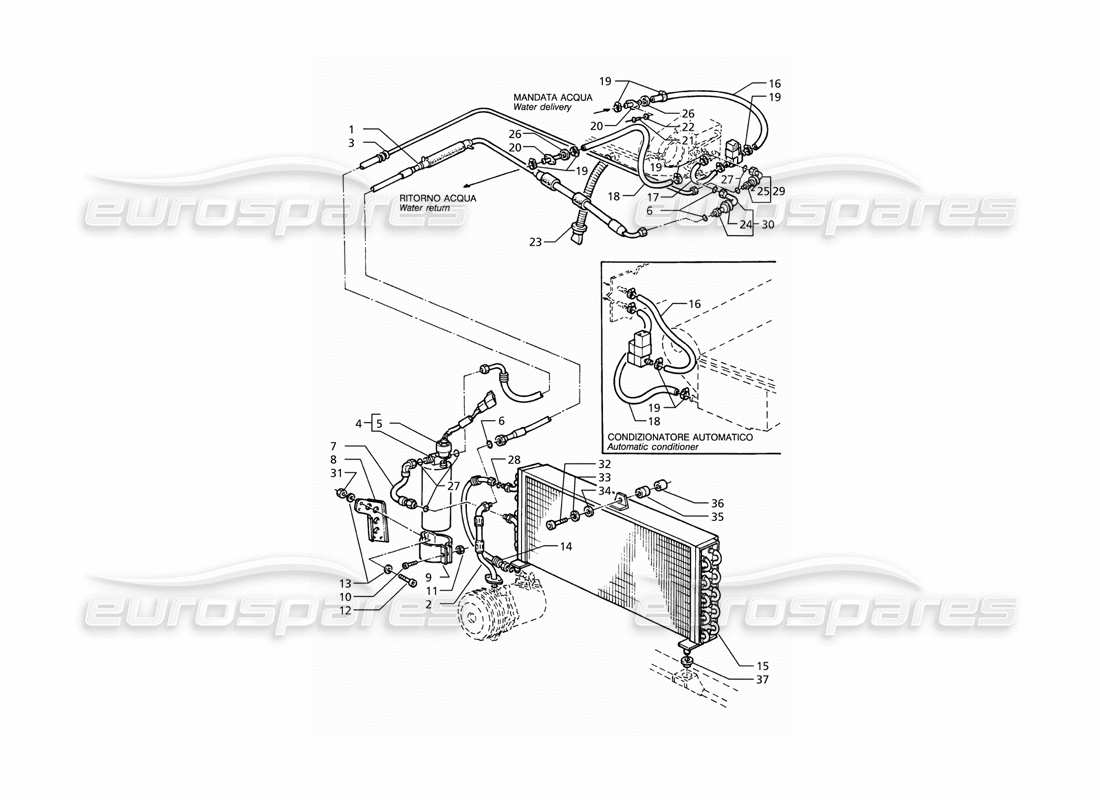

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 325554173
    FREON RETURN LINE
    Valid for 22, 21 version
    from £23.28
    from £23.28
    This part replaces part number 365517173
    FREON RETURN PIPE FROM EVAPOURATO Genuine Maserati Part - New (to order)
    # 002
    MPN: 315553185
    FREON RETURN LINE ON COMPR.
    Valid for 22, 21 version
    from £38.54
    from £38.54
    FREON INLET PIPE TO COMPRESSOR Genuine Maserati Part - New (to order)
    # 003
    MPN: 365551182
    FREON DELIVERY LINE TO EVAPOR.
    Valid for 22, 21 version
    FREON DELIVERY LINE TO EVAPOR. Genuine Maserati Part - New (to order)
    # 004
    MPN: 365502174
    FILTER ASSY
    Valid for 22, 21 version
    from £106.71
    from £106.71
    This part replaces part number 315520174
    FILTRO FREON COMPLETO R12/R1 Genuine Maserati Part - New (to order)
    # 005
    MPN: 365502175
    MAX. AND MIN. CAPACITY PRESSURE SWITCH
    Valid for 22, 21 version
    from £96.43
    from £96.43
    PRESSURE GAUGE Genuine Maserati Part - New (to order)
    # 006
    MPN: 315520445
    RING 1/2 FREON LINE
    Valid for 22, 21 version
    from £0.71
    from £0.71
    ANELLO Genuine Maserati Part - New (to order)
    # 007
    MPN: 315550181
    FREON LINE FROM COND. TO FILTER
    Valid for 22, 21 version
    from £3.25
    from £3.25
    This part replaces part number 315521181
    FREON PIPE FROM CONDENSER TO FILT Genuine Maserati Part - New (to order)
    # 008
    MPN: 395550181
    PLATE
    Valid for 22, 21 version
    from £17.21
    from £17.21
    TUBO MAND FREON COND. Genuine Maserati Part - New (to order)
    # 009
    MPN: 315520301
    CLAMP
    Valid for 22, 21 version
    from £17.60
    from £17.60
    FILTER CLAMP FREON Genuine Maserati Part - New (to order)
    # 010
    MPN: 101206025
    SCREW
    Valid for 22, 21 version
    Maserati PART 101206025 Genuine Maserati Part - New (to order)
    # 011
    MPN: 128300060
    NUT
    Valid for 22, 21 version
    Supersession
    Supersession
    Genuine Maserati Part (no longer available to order)
    # 012
    MPN: 108006012
    SCREW
    Valid for 22, 21 version
    from £0.54
    from £0.54
    VITE M6X1X12 Genuine Maserati Part - New (to order)
    # 013
    MPN: 135000064
    FLAT WASHER
    Valid for 22, 21 version
    Maserati PART 135000064 Genuine Maserati Part - New (to order)
    # 014
    MPN: 395550179
    FREON DELIVERY LINE TO COND.
    Valid for 22, 21 version
    from £5.06
    from £5.06
    FREON DELIVERY PIPE Genuine Maserati Part - New (to order)
    # 015
    MPN: 395550220
    BIRANGO CONDENSER
    Valid for 22, 21 version
    from £590.63
    from £590.63
    This part replaces part number 325555220 - and 1 more. Click to view details
    CONDENSATORE BIRANGO D53975 Genuine Maserati Part - New (to order)
    # 016
    MPN: 315520479
    WATER LINE
    Valid for 22, 21 version
    from £8.39
    from £8.39
    SLEEVE Genuine Maserati Part - New In stock
    # 017
    MPN: 315520480
    WATER LINE
    Valid for 22, 21 version
    from £2.10
    from £2.10
    SLEEVE Genuine Maserati Part - New (to order)
    # 018
    MPN: 315520481
    WATER LINE
    Valid for 22, 21 version
    from £8.03
    from £8.03
    WATER SLEEVE AUTOC 71463 Genuine Maserati Part - New (to order)
    # 019
    MPN: 186402028
    CLAMP
    Valid for 22, 21 version
    from £1.59
    from £1.59
    CLAMP Genuine Maserati Part - New (to order)
    # 020
    MPN: 315520370
    CONNECTION
    Valid for 22, 21 version
    from £0.72
    from £0.72
    CONNECTING UNION Genuine Maserati Part - New (to order)
    # 021
    MPN: 164323413
    RIVET
    Valid for 22, 21 version
    RIVET Genuine Maserati Part - New (to order)
    # 022
    MPN: 169020005
    FLAT WASHER
    Valid for 22, 21 version
    from £1.11
    from £1.11
    WASHER Genuine Maserati Part - New (to order)
    # 023
    MPN: 315520017
    CONDENSOR DRAINAGE TUBE
    Valid for 22, 21 version
    from £1.81
    from £1.81
    EXHAUST PIPE Genuine Maserati Part - New (to order)
    # 024
    MPN: 31331303
    FAIRLEAD
    Valid for 22, 21 version
    from £1.08
    from £1.08
    GROMMET Genuine Maserati Part - New (to order)
    # 025
    MPN: 315520371
    FAIRLEAD
    Valid for 22, 21 version
    from £0.65
    from £0.65
    FAIRLEAD Genuine Maserati Part - New (to order)
    # 026
    MPN: 315520372
    GASKET
    Valid for 22, 21 version
    from £0.71
    from £0.71
    GASKET Genuine Maserati Part - New (to order)
    # 027
    MPN: 315520443
    3/8 O RING FOR FREON
    Valid for 22, 21 version
    from £1.07
    from £1.07
    ANELLO TENUTA Genuine Maserati Part - New (to order)
    # 028
    MPN: 315520444
    3/8 O RING FOR FREON
    Valid for 22, 21 version
    from £0.71
    from £0.71
    ANELLO Genuine Maserati Part - New (to order)
    # 029
    MPN: 395570112
    DELIVERY UNION ASSY
    Valid for 22, 21 version
    DELIVERY UNION ASSY Genuine Maserati Part - New (to order)
    # 030
    MPN: 395570111
    DELIVERY UNION ASSY
    Valid for 22, 21 version
    from £14.82
    from £14.82
    SLEEVE Genuine Maserati Part - New (to order)
    # 031
    MPN: 128350060
    SELF LOCKING NUT
    Valid for 22, 21 version
    Maserati PART 128350060 Genuine Maserati Part - New (to order)
    # 032
    MPN: 101206020
    SCREW
    Valid for 22, 21 version
    Maserati PART 101206020 Genuine Maserati Part - New (to order)
    # 033
    MPN: 135300064
    SPRING WASHER
    Valid for 22, 21 version
    Maserati PART 135300064 Genuine Maserati Part - New (to order)
    # 034
    MPN: 135900064
    FLAT WASHER
    Valid for 22, 21 version
    from £0.47
    from £0.47
    ROSETTA PIANA Genuine Maserati Part - New (to order)
    # 035
    MPN: 315570375
    RING
    Valid for 22, 21 version
    RING Genuine Maserati Part - New (to order)
    # 036
    MPN: 315520376
    SPACER
    Valid for 22, 21 version
    from £3.74
    from £3.74
    BUSHINGS FOR VIBRATION-DAMPI Genuine Maserati Part - New (to order)
    # 037
    MPN: 189453
    BUSH
    from £1.11
    from £1.11
    This part replaces part number 374030312
    RUBBER BUSHING SUPPORT FO Genuine Maserati Part - New In stock
