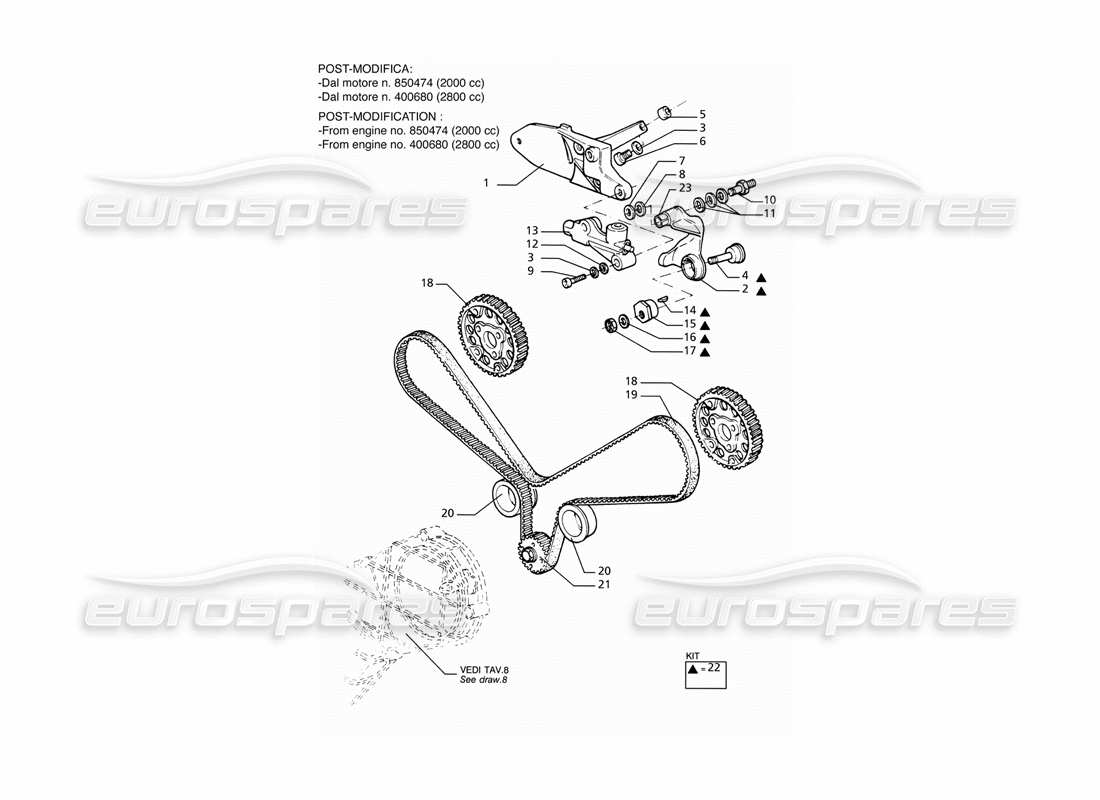

008.2 - timing with hydraulic tightener
Maserati Ghibli 2.8 GT (Variante) Timing With Hydraulic Tightener Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 495483200
TENSIONER SUPPORT
from £251.50
from £251.50
# 002
MPN: 495038100
TIGHTENING PULLEY
Supersession
Supersession
This part replaces part number 495949600
# 003
MPN: 138410080
RETAINING WASHER
from £2.25
from £2.25
# 004
MPN: 311053353
TIGHTENING PULLEY PIN
# 005
MPN: 311032370
SPACER
# 006
MPN: 108008040
SCREW
# 007
MPN: 151100120
STOP RING
# 008
MPN: 96789
WASHER (2 MM THICK)
from £1.60
from £1.60
This part replaces part number 135200120
# 009
MPN: 14306424
SCREW
from £0.53
from £0.53
This part replaces part number 14306421
# 010
MPN: 470037600
TIGHTENING PULLEY PIN
from £27.21
from £27.21
This part replaces part number 311020343
# 011
MPN: 311020352
WASHER (0.30 MM THICK)
from £1.11
from £1.11
# 012
MPN: 87234
WASHER
Supersession
Supersession
# 013
MPN: 495034800
TENSIONER
from £184.24
from £184.24
# 014
MPN: 311053460
TAB
from £0.69
from £0.69
# 015
MPN: 475033200
ECCENTRIC
from £6.70
from £6.70
# 016
MPN: 452008901
WASHER
from £2.13
from £2.13
# 017
MPN: 326656321
SELF LOCKING NUT
from £3.50
from £3.50
# 018
MPN: 580035400
PULLEY
from £55.07
from £55.07
# 019
MPN: 97776
TIMING BELT
(valid for 2.0 & 2.8 engine)
from £29.95
from £29.95
This part replaces part number 311053349
# 019
MPN: MTBK002
TIMING BELT KIT
BELT KIT CONSISTS OF x1 97776 - X2 311020107.
# 020
MPN: 311020350
BEARING COVER
from £56.75
from £56.75
# 021
MPN: 475024900
CRANKSHAFT PULLEY
from £21.23
from £21.23
This part replaces part number 465024901
# 022
MPN: 495949600
TIGHTENING PULLEY ASSY
Supersession
Supersession
# 023
MPN: 470037700
BUSH
from £9.05
from £9.05
This part replaces part number 311020336
