maserati ghibli 2.8 gt (variante) turbo cooling pipes parts diagram

012.1 - turbo cooling pipes

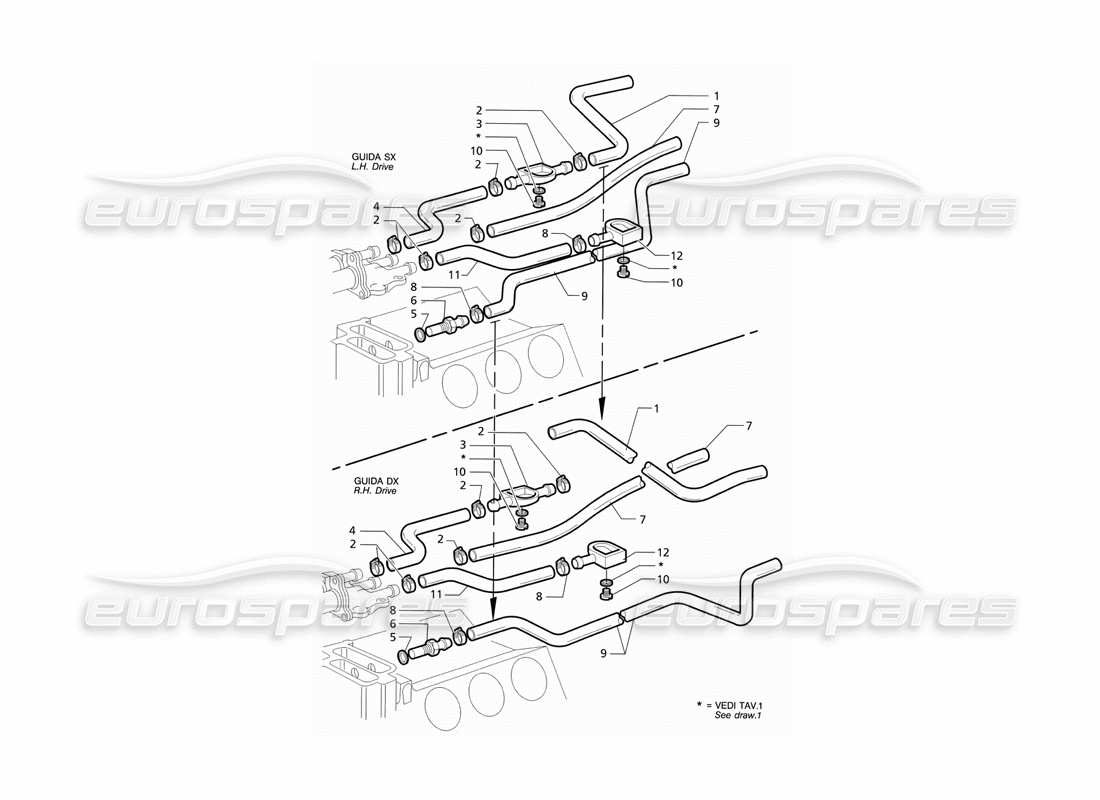

Maserati Ghibli 2.8 GT (Variante) Turbo Cooling Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 580042200
                HEATING SYSTEM DELIVERY SLEEVE
                - Valid for 14, 13 and 04 version
                from £61.95
                from £61.95
                This part replaces part number 312020464
                PIPE Genuine Maserati Part - New (to order)
                # 001
                MPN: 580042260
                WATER DELIVERY SLEEVE
                - Valid for 27, 28 version
                from £11.06
                from £11.06
                WATER DELIVERY SLEEVE FROM HEAD Genuine Maserati Part - New (to order)
                # 002
                MPN: 312420317
                CLAMP
                from £1.55
                from £1.55
                VISA CLAMP CV 300 Genuine Maserati Part - New (to order)
                # 004
                MPN: 312020517
                HEATING SYSTEM WATER RETURN SLEEVE
                - Valid for 14, 13 and 04 version
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 004
                MPN: 577042600
                WATER RETURN SLEEVE
                - Valid for 27, 28 version
                from £3.38
                from £3.38
                MANICOTTO DAL RACCORDO PRESA Genuine Maserati Part - New (to order)
                # 005
                MPN: 55138
                GASKET
                - From engine no. 400828 (2800 cc.) - From engine no. 850507 (2000 cc.)
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 006
                MPN: 571018400
                UNION
                - From engine no. 400828 (2800 cc.) - From engine no. 850507 (2000 cc.)
                from £6.76
                from £6.76
                UNION ON CRANKCASE Genuine Maserati Part - New (to order)
                # 007
                MPN: 477369660
                WATER RETURN SLEEVE
                from £26.48
                from £26.48
                WATER RETURN PIPE Genuine Maserati Part - New (to order)
                # 008
                MPN: 312020410
                CLAMP
                from £2.10
                from £2.10
                CLAMP VISA CV250 Genuine Maserati Part - New In stock
                # 009
                MPN: 577042500
                SLEEVE
                - Valid for 14, 13 and 04 version - From engine no. 400828 (2800 cc.) - From engine no. 850507 (2000 cc.)
                from £9.66
                from £9.66
                MANICOTTO RITORNO ACQUA DAL Genuine Maserati Part - New (to order)
                # 009
                MPN: 580042260
                SLEEVE
                - Valid for 27, 28 version - From engine no. 400858 (2800 cc.)
                from £11.06
                from £11.06
                WATER DELIVERY SLEEVE FROM HEAD Genuine Maserati Part - New (to order)
                # 011
                MPN: 315520352
                HEATING SYSTEM RETURN SLEEVE
                from £33.48
                from £33.48
                RUBBER SLEEVE Genuine Maserati Part - New (to order)
                # 012
                MPN: 470009900
                UNION
                from £9.66
                from £9.66
                RACC.X RICIRC.ACQUA DALLE TE Genuine Maserati Part - New (to order)
