maserati ghibli 2.8 gt (variante) fuel tank parts diagram

023 - FUEL TANK

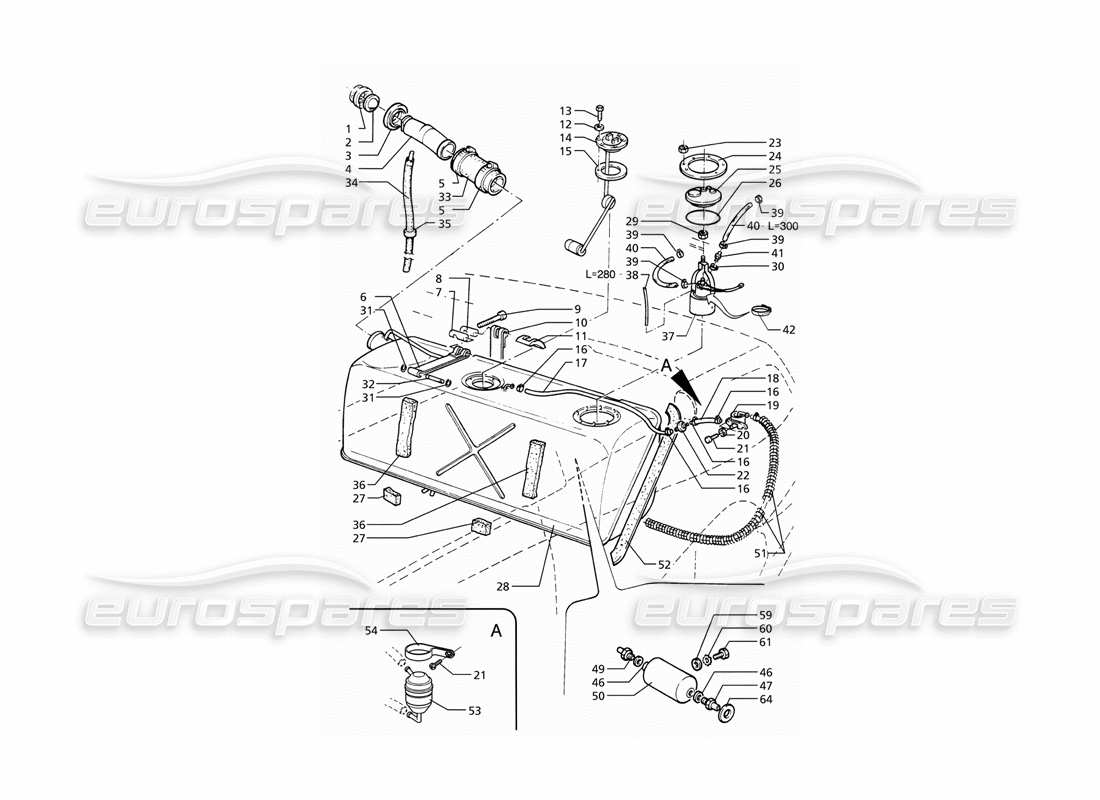

Maserati Ghibli 2.8 GT (Variante) Fuel Tank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Key
                                                                                          Price
                                                                                          # 001
                                                                                          MPN: 319220354
                                                                                          FUEL TANK CAP
                                                                                          from £6.31
                                                                                          from £6.31
                                                                                          This part replaces part number 319220007
                                                                                          FUEL TANK CAP 2330304 Genuine Maserati Part - New (to order)
                                                                                          # 002
                                                                                          MPN: 329232355
                                                                                          GASKET
                                                                                          from £6.70
                                                                                          from £6.70
                                                                                          GUARNIZIONE TAPPO SERBATOIO Genuine Maserati Part - New (to order)
                                                                                          # 003
                                                                                          MPN: 319250411
                                                                                          SEAL RING
                                                                                          from £3.89
                                                                                          from £3.89
                                                                                          This part replaces part number 329232410 - and 1 more. Click to view details
                                                                                          GASKET Genuine Maserati Part - New (to order)
                                                                                          GASKET Genuine Maserati Part - Used In stock
                                                                                          # 004
                                                                                          MPN: 369200117
                                                                                          FILLER NECK
                                                                                          from £68.78
                                                                                          from £68.78
                                                                                          BOCCHETTONE IMMIS.CARBURANTE Genuine Maserati Part - New (to order)
                                                                                          # 005
                                                                                          MPN: 186404087
                                                                                          CLAMP
                                                                                          Supersession
                                                                                          Supersession
                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                          # 006
                                                                                          MPN: 319220385
                                                                                          TANK UPPER FASTENING STRIP
                                                                                          from £6.70
                                                                                          from £6.70
                                                                                          NASTRO Genuine Maserati Part - New (to order)
                                                                                          # 007
                                                                                          MPN: 53921332
                                                                                          STRIP PIN
                                                                                          from £2.29
                                                                                          from £2.29
                                                                                          CILINDRETTO FISS SERBATOIO Genuine Maserati Part - New (to order)
                                                                                          # 008
                                                                                          MPN: 53921331
                                                                                          STRIP PIN
                                                                                          from £1.52
                                                                                          from £1.52
                                                                                          PIN FOR STRIP Genuine Maserati Part - New (to order)
                                                                                          # 009
                                                                                          MPN: 53921333
                                                                                          SCREW
                                                                                          from £1.97
                                                                                          from £1.97
                                                                                          SCREW Genuine Maserati Part - New In stock
                                                                                          # 010
                                                                                          MPN: 319220106
                                                                                          TANK LOWER FASTENING STRIP
                                                                                          from £7.61
                                                                                          from £7.61
                                                                                          LOWER STRIP TO FIX. Genuine Maserati Part - New (to order)
                                                                                          # 011
                                                                                          MPN: 319220337
                                                                                          STRIP RETAINING BLOCK
                                                                                          from £1.90
                                                                                          from £1.90
                                                                                          TASSELLO RITEGNO NASTRI Genuine Maserati Part - New (to order)
                                                                                          # 012
                                                                                          MPN: 136200043
                                                                                          WASHER
                                                                                          WASHER Genuine Maserati Part - New (to order)
                                                                                          # 013
                                                                                          MPN: 53361308
                                                                                          SCREW
                                                                                          Supersession
                                                                                          Supersession
                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                          # 014
                                                                                          MPN: 313620111
                                                                                          FUEL GAUGE
                                                                                          from £34.91
                                                                                          from £34.91
                                                                                          FUEL LEVEL GAUGE CONTROL 067.9616 Genuine Maserati Part - New (to order)
                                                                                          # 015
                                                                                          MPN: 33331300
                                                                                          GASKET
                                                                                          from £1.90
                                                                                          from £1.90
                                                                                          GUARNIZ.INDIC.LIV. Genuine Maserati Part - New (to order)
                                                                                          # 016
                                                                                          MPN: 30921110
                                                                                          CLAMP
                                                                                          CLAMP Genuine Maserati Part - New (to order)
                                                                                          # 017
                                                                                          MPN: 318720336
                                                                                          SLEEVE
                                                                                          - Pre modification
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 319220391
                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                          # 019
                                                                                          MPN: 319220102
                                                                                          CHECK VALVE FOR VEHICLE TURNOVER
                                                                                          - Pre modification
                                                                                          Supersession
                                                                                          Supersession
                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                          # 021
                                                                                          MPN: 119142160
                                                                                          SCREW
                                                                                          from £0.93
                                                                                          from £0.93
                                                                                          SCREW Genuine Maserati Part - New (to order)
                                                                                          # 022
                                                                                          MPN: 319220134
                                                                                          LIMITING VALVE
                                                                                          - Pre modification
                                                                                          Supersession
                                                                                          Supersession
                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                          # 024
                                                                                          MPN: 399250446
                                                                                          FLANGE
                                                                                          from £13.63
                                                                                          from £13.63
                                                                                          FLANGE Genuine Maserati Part - New In stock
                                                                                          FLANGE Genuine Maserati Part - Used In stock
                                                                                          # 025
                                                                                          MPN: 393750130
                                                                                          PETROL PUMP COVER
                                                                                          from £5.41
                                                                                          from £5.41
                                                                                          COPERCHIO POMPA CARB. Genuine Maserati Part - New (to order)
                                                                                          # 026
                                                                                          MPN: 393750309
                                                                                          GASKET
                                                                                          from £1.52
                                                                                          from £1.52
                                                                                          GASKET Genuine Maserati Part - New (to order)
                                                                                          # 027
                                                                                          MPN: 379200399
                                                                                          FELT PAD
                                                                                          from £1.52
                                                                                          from £1.52
                                                                                          This part replaces part number 319220399
                                                                                          GSAKET Genuine Maserati Part - New (to order)
                                                                                          # 028
                                                                                          MPN: 379200006

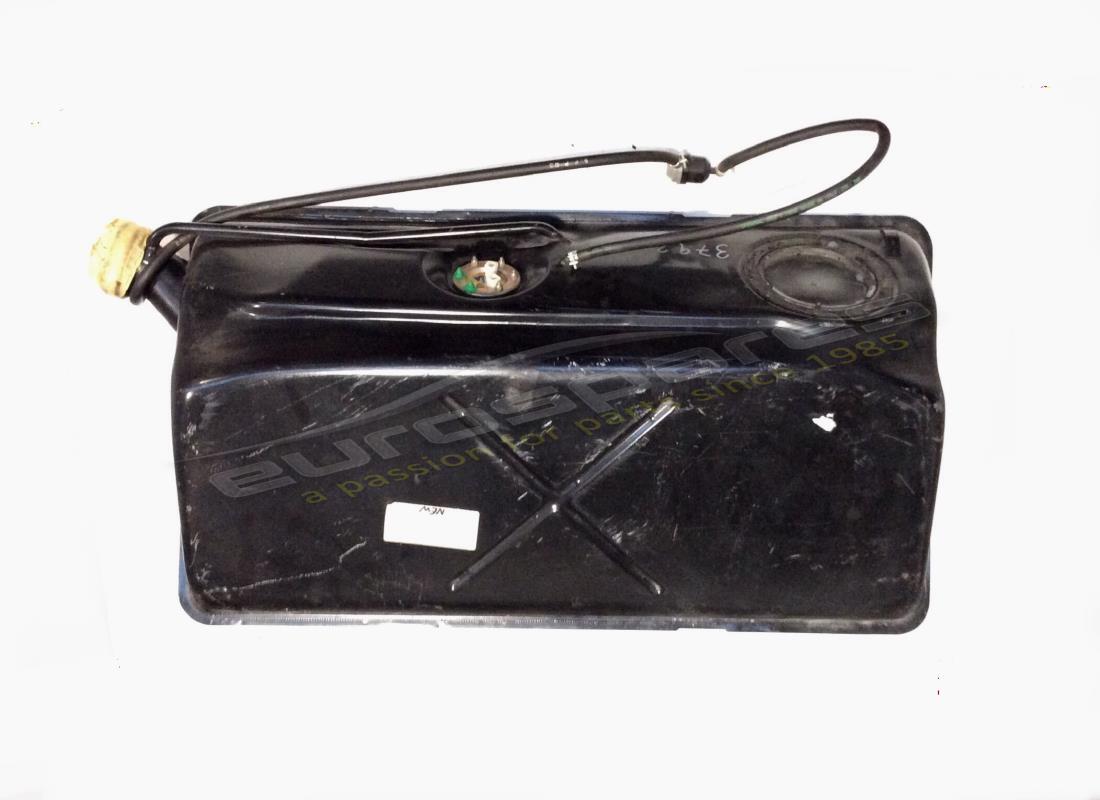

                                                                                          FUEL TANK (LOW. OUTLETS ON FILLER SIDE)
                                                                                          from £2,085.53
                                                                                          from £2,085.53
                                                                                          FUEL TANK Genuine Maserati Part - New In stock
                                                                                          # 030
                                                                                          MPN: 559221337
                                                                                          CLAMP
                                                                                          from £0.78
                                                                                          from £0.78
                                                                                          CLAMP Genuine Maserati Part - New (to order)
                                                                                          # 031
                                                                                          MPN: 150800050
                                                                                          SEEGER RING
                                                                                          SNAP RING Genuine Maserati Part - New (to order)
                                                                                          # 032
                                                                                          MPN: 30921336
                                                                                          PIN
                                                                                          from £3.58
                                                                                          from £3.58
                                                                                          SPINA PER NASTRO FISSAGGIO S Genuine Maserati Part - New (to order)
                                                                                          # 033
                                                                                          MPN: 339232382
                                                                                          SLEEVE
                                                                                          from £64.64
                                                                                          from £64.64
                                                                                          FUEL SLEEVE Genuine Maserati Part - New (to order)
                                                                                          # 034
                                                                                          MPN: 30871325
                                                                                          DRAINAGE TUBE
                                                                                          from £1.26
                                                                                          from £1.26
                                                                                          HOSE Genuine Maserati Part - New (to order)
                                                                                          HOSE Genuine Maserati Part - Used In stock
                                                                                          # 035
                                                                                          MPN: 319220361
                                                                                          FAIRLEAD
                                                                                          from £2.29
                                                                                          from £2.29
                                                                                          RUBBER WASHER Genuine Maserati Part - New In stock
                                                                                          # 036
                                                                                          MPN: 379200398
                                                                                          FELT PAD
                                                                                          from £2.29
                                                                                          from £2.29
                                                                                          This part replaces part number 319220398
                                                                                          FELTRINO Genuine Maserati Part - New (to order)
                                                                                          # 037
                                                                                          MPN: 393750135
                                                                                          IN TANK FUEL PUMP
                                                                                          from £295.00
                                                                                          from £295.00
                                                                                          This part replaces part number 393750134
                                                                                          SUBMERGED FUEL PUMP D.43 BOSCH Genuine Maserati Part - New (to order)
                                                                                          FUEL PUMP 43 mm Eurospares Approved Part - New In stock
                                                                                          # 038
                                                                                          MPN: 97470
                                                                                          RUBBER GASKET
                                                                                          from £43.68
                                                                                          from £43.68
                                                                                          This part replaces part number 311053321 - and 1 more. Click to view details
                                                                                          GOMMINO D.2,62 Genuine Maserati Part - New (to order)
                                                                                          GASKET Eurospares Approved Part - New In stock
                                                                                          EACH CAM COVER
                                                                                          # 039
                                                                                          MPN: 559221338
                                                                                          CLAMP
                                                                                          from £0.69
                                                                                          from £0.69
                                                                                          CLAMP Genuine Maserati Part - New In stock
                                                                                          # 040
                                                                                          MPN: 398750368
                                                                                          SLEEVE
                                                                                          Supersession
                                                                                          Supersession
                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                          # 041
                                                                                          MPN: 399250432
                                                                                          UNION
                                                                                          from £1.24
                                                                                          from £1.24
                                                                                          UNION Genuine Maserati Part - New (to order)
                                                                                          # 042
                                                                                          MPN: 186403060
                                                                                          CLAMP
                                                                                          from £1.07
                                                                                          from £1.07
                                                                                          CLAMP Genuine Maserati Part - New (to order)
                                                                                          # 046
                                                                                          MPN: 319220424
                                                                                          GASKET
                                                                                          from £0.69
                                                                                          from £0.69
                                                                                          GASKET D.12.5X20X1 Genuine Maserati Part - New In stock
                                                                                          # 047
                                                                                          MPN: 470072900

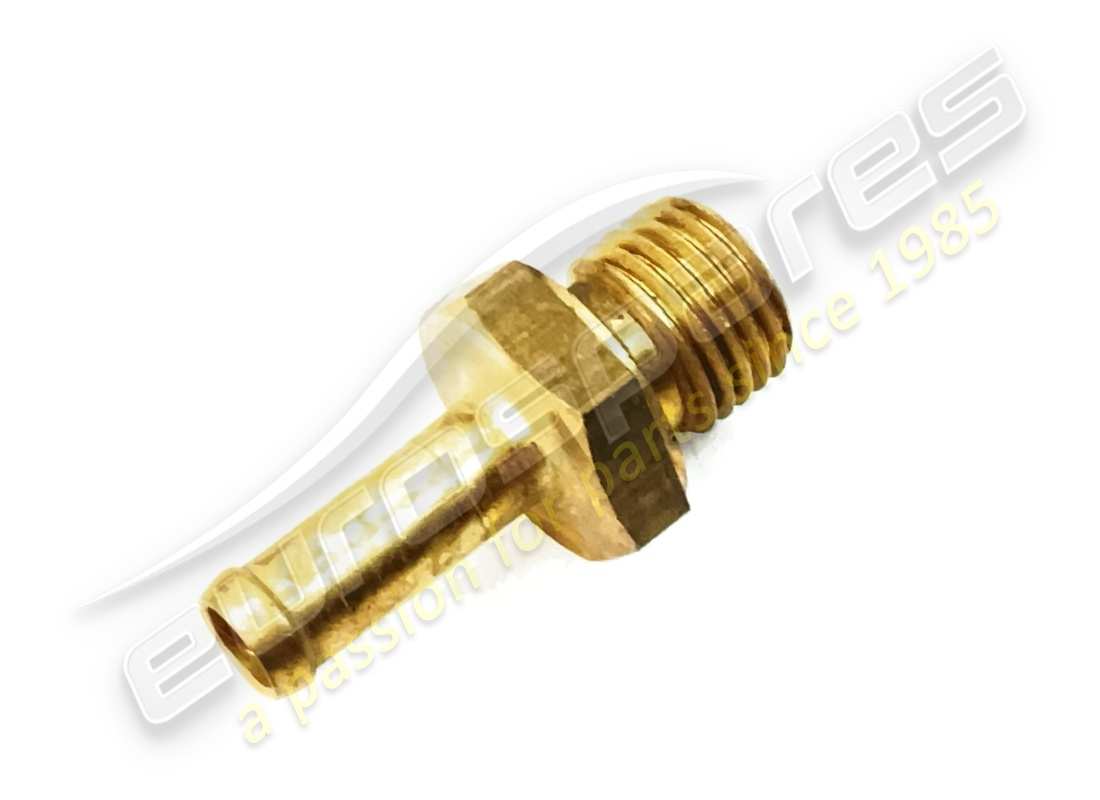

                                                                                          UNION
                                                                                          from £2.83
                                                                                          from £2.83
                                                                                          SLEEVE UNION (RMN 9629 Genuine Maserati Part - New (to order)
                                                                                          # 049
                                                                                          MPN: 470072800

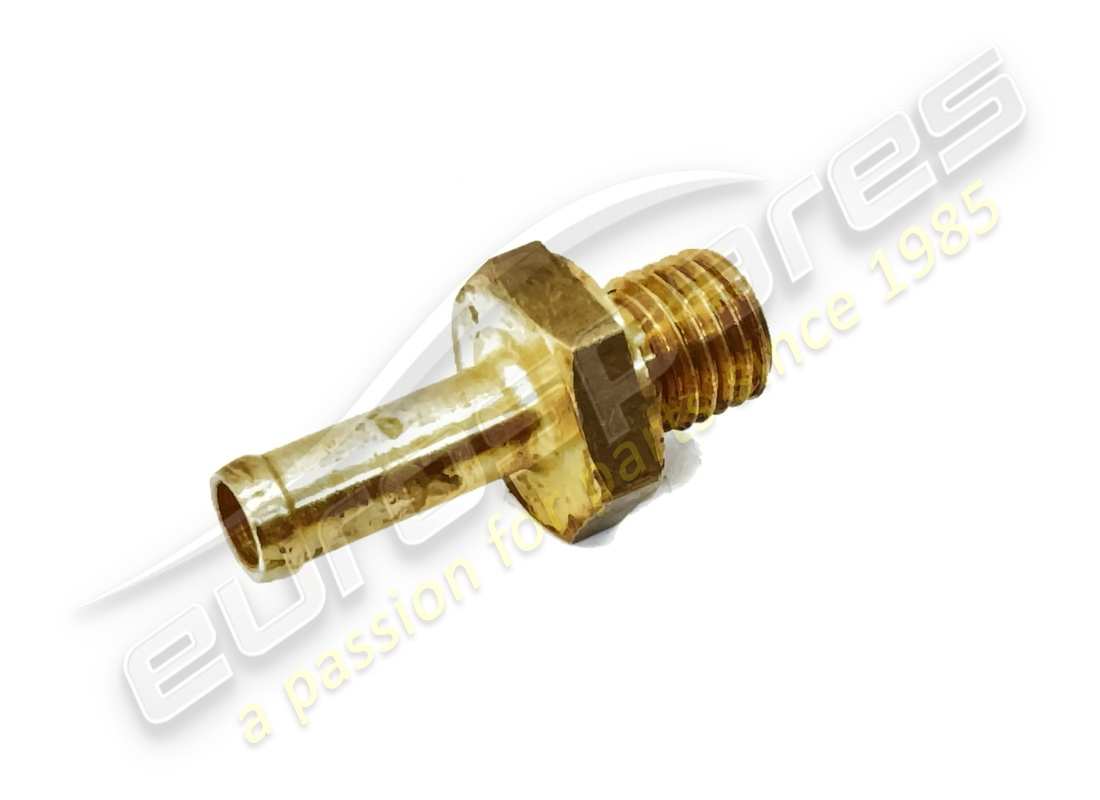

                                                                                          UNION
                                                                                          from £0.62
                                                                                          from £0.62
                                                                                          SLEEVE UNION (RMN 9630 Genuine Maserati Part - New In stock
                                                                                          # 050
                                                                                          MPN: 379200141
                                                                                          IN TANK FUEL FILTER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 319220141
                                                                                          Genuine Maserati Part (no longer available to order)
                                                                                          # 051
                                                                                          MPN: 379200450
                                                                                          FUEL LINE SHIELD SPRING
                                                                                          from £2.56
                                                                                          from £2.56
                                                                                          SPRING Genuine Maserati Part - New (to order)
                                                                                          # 052
                                                                                          MPN: 379200451
                                                                                          SHAKEPROOF SEAL
                                                                                          from £4.11
                                                                                          from £4.11
                                                                                          GASKET Genuine Maserati Part - New (to order)
                                                                                          # 053
                                                                                          MPN: 379200102
                                                                                          CHECK VALVE FOR VEHICLE TURNOVER
                                                                                          - Post modification
                                                                                          from £16.58
                                                                                          from £16.58
                                                                                          This part replaces part number 319220102 - and 1 more. Click to view details
                                                                                          VALVOLA ROLL OVER M337AB Genuine Maserati Part - New (to order)
                                                                                          # 054
                                                                                          MPN: 379200410
                                                                                          CLAMP
                                                                                          - Post modification
                                                                                          from £1.52
                                                                                          from £1.52
                                                                                          ALFMAYER-TYPE CLAMP Genuine Maserati Part - New (to order)
