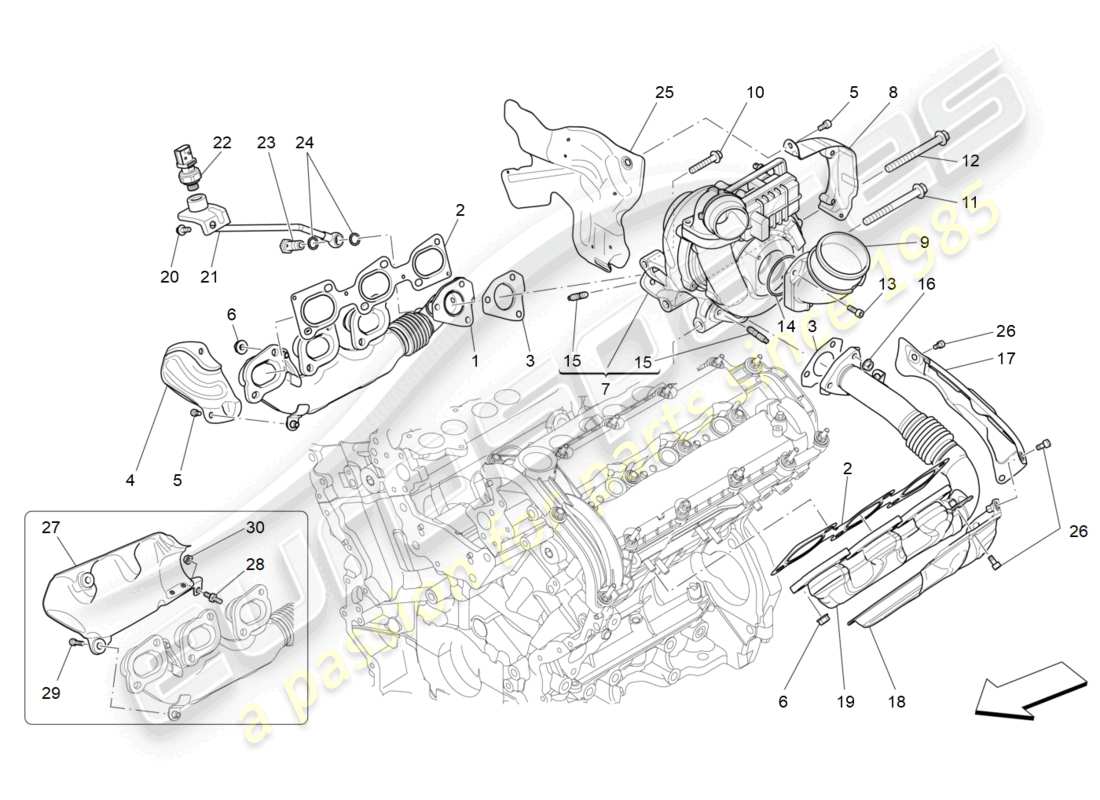

01.30.3 - turbocharging system: equipments
Maserati Ghibli (2017) TURBOCHARGING SYSTEM: EQUIPMENTS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 46328770

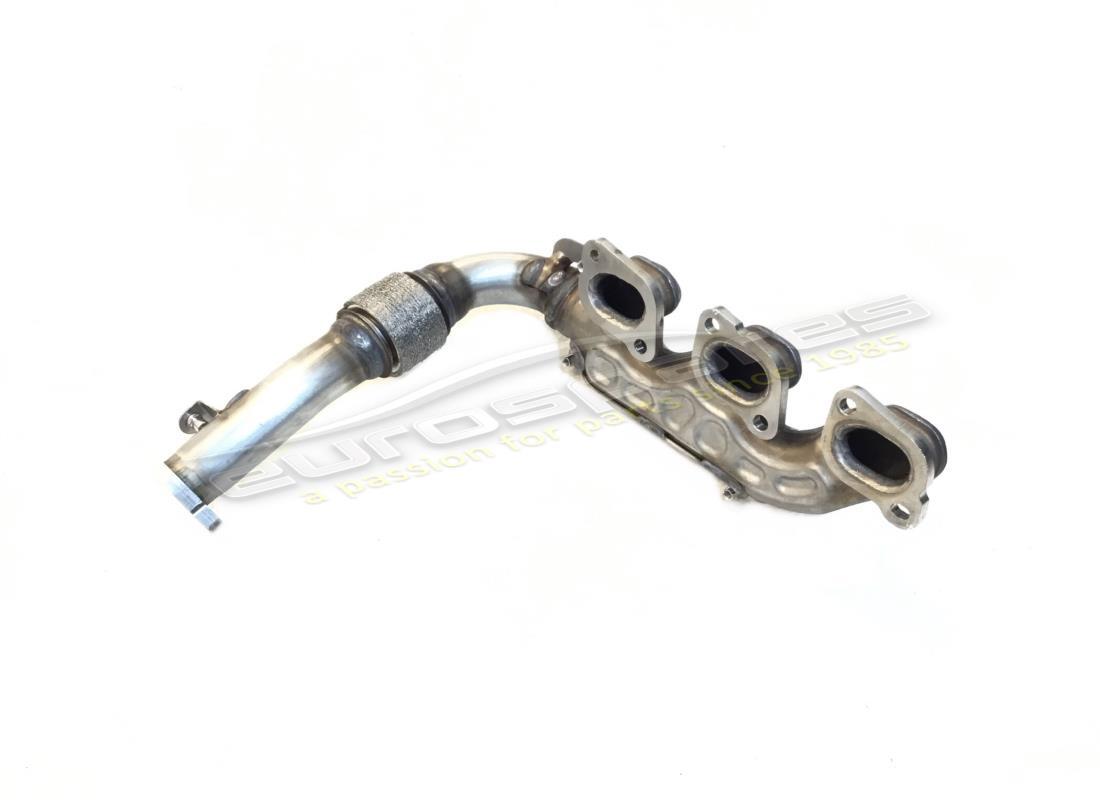

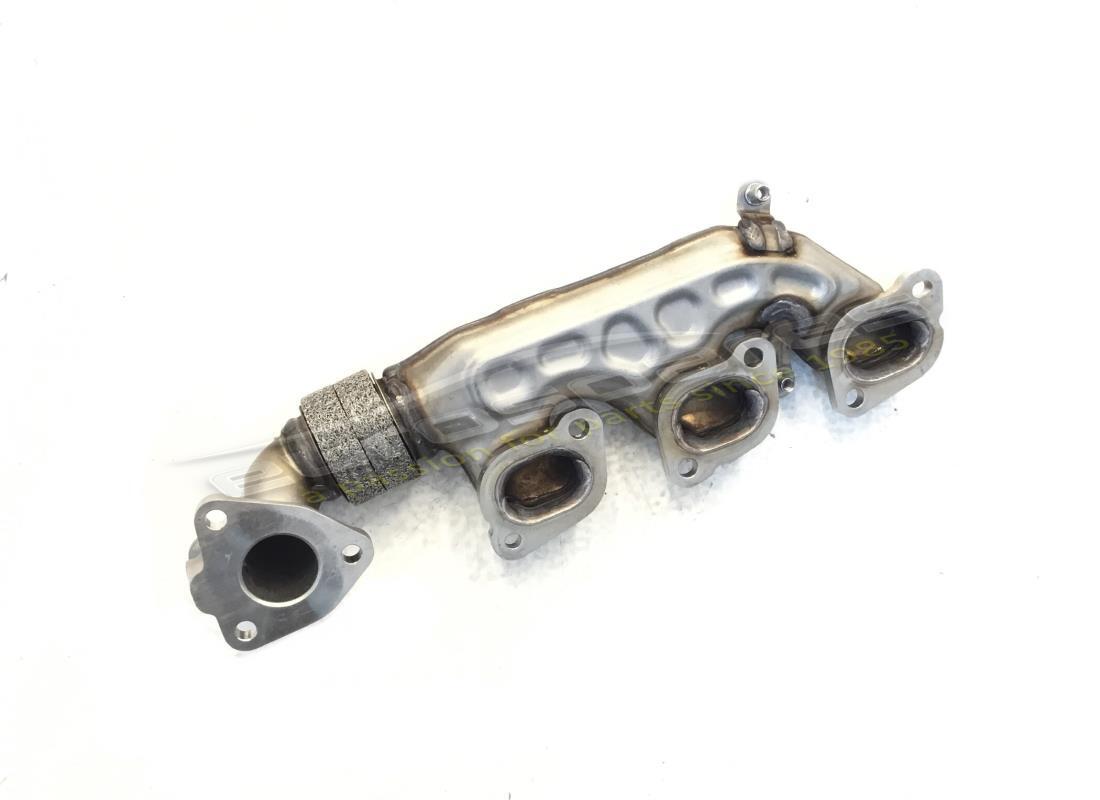

123 EXHAUST MANIFOLD
Valid from assembly: 5039254. Suitable for cars with: EURO 6. Not for cars with: EURO 5. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £499.69
from £499.69
# 002
MPN: 46328251
GASKET
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £22.43
from £22.43
This part replaces part number 673001132
# 003
MPN: 46328252
GASKET
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £8.63
from £8.63
This part replaces part number 673001133
# 004
MPN: 673001135
123 HEAT SHIELD
Valid from engine: 0 - 129999. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £208.68
from £208.68
# 004
MPN: 673003960
123 HEAT SHIELD
Valid from engine: 130000. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £208.68
from £208.68
# 005
MPN: 46328375
SCREW
Valid from assembly: 0 - 5089131. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £3.08
from £3.08
This part replaces part number 673001151
# 006
MPN: 46328378
NUT
Valid from engine: 0 - 150243. (valid for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP,3.0 TDS V6 2WD 275 HP | AUSTRALIA,CHILE,EUROPE,ITALY,JAPAN (RH DRIVE),UK)
Supersession
Supersession
This part replaces part number 673001179
# 006
MPN: 46328378
NUT
Valid from engine: 0 - 150243. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
Supersession
Supersession
This part replaces part number 673001179
# 006
MPN: 675000566
NUT
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £1.55
from £1.55
This part replaces part number 46328378
# 007
MPN: 46328211
Turbocharger
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £1,365.33
from £1,365.33
This part replaces part number 673001145 which we have in stock - and 1 more. Click to view details
# 008
MPN: 46328222
HEAT SHIELD
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £76.13
from £76.13
This part replaces part number 673001138 - and 1 more. Click to view details
# 009
MPN: 46328212
SLEEVE
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £60.04
from £60.04
This part replaces part number 673001108 - and 2 more. Click to view details
# 010
MPN: 46328733
SCREW
Valid from assembly: 0 - 5089131. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £5.46
from £5.46
This part replaces part number 673001155
# 011
MPN: 46328734
SCREW
Valid from assembly: 0 - 5089131. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £5.77
from £5.77
This part replaces part number 673001156
# 012
MPN: 46328735
SCREW
Valid from assembly: 0 - 5089131. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £21.65
from £21.65
This part replaces part number 673001157
# 013
MPN: 46328213
SCREW
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
Supersession
Supersession
This part replaces part number 673001127
# 014
MPN: 46328358
O.R. GASKET
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £7.48
from £7.48
This part replaces part number 673001183
# 015
MPN: 673001176
STUD
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £10.01
from £10.01
# 016
MPN: 46328378
NUT
Valid from engine: 0 - 150243. (valid for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP,3.0 TDS V6 2WD 275 HP | AUSTRALIA,CHILE,EUROPE,ITALY,JAPAN (RH DRIVE),UK)
Supersession
Supersession
This part replaces part number 673001179
# 016
MPN: 46328378
NUT
Valid from engine: 0 - 150243. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
Supersession
Supersession
This part replaces part number 673001179
# 016
MPN: 675000566
NUT
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £1.55
from £1.55
This part replaces part number 46328378
# 017
MPN: 46328774
456 HEAT SHIELD
Valid from assembly: 5039254. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £116.14
from £116.14
# 018
MPN: 46328773
456 HEAT SHIELD
Valid from assembly: 5039254. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £127.85
from £127.85
# 019
MPN: 46328771
456 EXHAUST MANIFOLD
Valid from assembly: 5039254. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £428.54
from £428.54
# 020
MPN: 46328685
SCREW
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £1.31
from £1.31
This part replaces part number 673001029
# 021
MPN: 46328324
AIR PRESSURE SENSOR PIPE
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £71.97
from £71.97
This part replaces part number 673001253 - and 2 more. Click to view details
# 022
MPN: 46328326
EXHAUST PRESSURE SENSOR
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £88.11
from £88.11
This part replaces part number 673001288 - and 2 more. Click to view details
# 023
MPN: 46328782
FILLER NECK
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £12.49
from £12.49
This part replaces part number 673001271
# 024
MPN: 46328325
GASKET
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £1.31
from £1.31
This part replaces part number 673001260
# 025
MPN: 46328220
HEAT SHIELD
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £90.94
from £90.94
This part replaces part number 673001262 which we have in stock - and 1 more. Click to view details
# 026
MPN: 46328375
SCREW
Valid from assembly: 0 - 5089131. Valid from engine: 0 - 101466. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £3.08
from £3.08
This part replaces part number 673001151
# 026
MPN: 46328732
SCREW
Valid from engine: 101467. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £1.85
from £1.85
This part replaces part number 673001436
# 027
MPN: 46328264
123 HEAT SHIELD
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £15.18
from £15.18
This part replaces part number 673003142 - and 2 more. Click to view details
# 028
MPN: 46328262
STUD
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £1.92
from £1.92
This part replaces part number 673003143
# 029
MPN: 46328730
SCREW
Valid from assembly: 0 - 5100587. Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
Supersession
Supersession
This part replaces part number 673003144
# 030
MPN: 673001753
NUT
Suitable for: AUTOMATIC | 3.0 TDS V6 2WD 250 HP, 3.0 TDS V6 2WD 275 HP | AUSTRALIA, CHILE, EUROPE, ITALY, JAPAN (RH DRIVE), UK
from £1.08
from £1.08
-part-diagram-01.31.2.webp "MASERATI GHIBLI (2017) TURBOCHARGING SYSTEM: LUBRICATION AND COOLING PARTS DIAGRAM")
-part-diagram-01.31.3.webp "MASERATI GHIBLI (2017) TURBOCHARGING SYSTEM: LUBRICATION AND COOLING PARTS DIAGRAM")
-part-diagram-01.32.2.webp "MASERATI GHIBLI (2017) INTERCOOLER SYSTEM PARTS DIAGRAM")
-part-diagram-01.32.3.webp "MASERATI GHIBLI (2017) INTERCOOLER SYSTEM PARTS DIAGRAM")
-part-diagram-01.40.2.webp "MASERATI GHIBLI (2017) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.40.3.webp "MASERATI GHIBLI (2017) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-01.41.1.webp "MASERATI GHIBLI (2017) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.41.3.webp "MASERATI GHIBLI (2017) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-01.42.1.webp "MASERATI GHIBLI (2017) FUEL TANK PARTS DIAGRAM")
-part-diagram-01.43.3.webp "MASERATI GHIBLI (2017) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.43.4.webp "MASERATI GHIBLI (2017) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.43.6.webp "MASERATI GHIBLI (2017) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.43.7.webp "MASERATI GHIBLI (2017) FUEL PUMPS AND CONNECTION LINES PARTS DIAGRAM")
-part-diagram-01.44.5.webp "MASERATI GHIBLI (2017) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.44.6.webp "MASERATI GHIBLI (2017) FUEL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.3.webp "MASERATI GHIBLI (2017) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.4.webp "MASERATI GHIBLI (2017) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.5.webp "MASERATI GHIBLI (2017) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.50.6.webp "MASERATI GHIBLI (2017) ADDITIONAL AIR SYSTEM PARTS DIAGRAM")
-part-diagram-01.60.2.webp "MASERATI GHIBLI (2017) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.60.3.webp "MASERATI GHIBLI (2017) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.60.4.webp "MASERATI GHIBLI (2017) LUBRICATION SYSTEM: CIRCUIT AND COLLECTION PARTS DIAGRAM")
-part-diagram-01.61.2.webp "MASERATI GHIBLI (2017) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.61.3.webp "MASERATI GHIBLI (2017) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.61.4.webp "MASERATI GHIBLI (2017) LUBRICATION SYSTEM: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-01.62.2.webp "MASERATI GHIBLI (2017) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-01.63.2.webp "MASERATI GHIBLI (2017) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.63.4.webp "MASERATI GHIBLI (2017) OIL VAPOUR RECIRCULATION SYSTEM PARTS DIAGRAM")
-part-diagram-01.70.1.webp "MASERATI GHIBLI (2017) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.70.3.webp "MASERATI GHIBLI (2017) COOLING: AIR RADIATORS AND DUCTS PARTS DIAGRAM")
-part-diagram-01.71.4.webp "MASERATI GHIBLI (2017) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.6.webp "MASERATI GHIBLI (2017) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.71.8.webp "MASERATI GHIBLI (2017) COOLING SYSTEM: NOURICE AND LINES PARTS DIAGRAM")
-part-diagram-01.72.2.webp "MASERATI GHIBLI (2017) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.72.3.webp "MASERATI GHIBLI (2017) COOLING SYSTEM: WATER PUMP PARTS DIAGRAM")
-part-diagram-01.80.2.webp "MASERATI GHIBLI (2017) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.80.5.webp "MASERATI GHIBLI (2017) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-01.81.1.webp "MASERATI GHIBLI (2017) SILENCERS PARTS DIAGRAM")
-part-diagram-01.81.2.webp "MASERATI GHIBLI (2017) SILENCERS PARTS DIAGRAM")
-part-diagram-01.81.4.webp "MASERATI GHIBLI (2017) SILENCERS PARTS DIAGRAM")
-part-diagram-01.82.1.webp "MASERATI GHIBLI (2017) ADBLUE SYSTEM PARTS DIAGRAM")
-part-diagram-01.90.2.webp "MASERATI GHIBLI (2017) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.90.3.webp "MASERATI GHIBLI (2017) ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL PARTS DIAGRAM")
-part-diagram-01.91.2.webp "MASERATI GHIBLI (2017) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-01.91.3.webp "MASERATI GHIBLI (2017) ELECTRONIC CONTROL: ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-03.02.1.webp "MASERATI GHIBLI (2017) DRIVER CONTROLS FOR AUTOMATIC GEARBOX PARTS DIAGRAM")
-part-diagram-03.10.2.webp "MASERATI GHIBLI (2017) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.3.webp "MASERATI GHIBLI (2017) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.4.webp "MASERATI GHIBLI (2017) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.10.6.webp "MASERATI GHIBLI (2017) GEARBOX HOUSINGS PARTS DIAGRAM")
-part-diagram-03.21.1.webp "MASERATI GHIBLI (2017) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-03.22.1.webp "MASERATI GHIBLI (2017) FRONT WHEELS TRANSMISSION PARTS DIAGRAM")
-part-diagram-03.30.1.webp "MASERATI GHIBLI (2017) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.30.2.webp "MASERATI GHIBLI (2017) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.30.3.webp "MASERATI GHIBLI (2017) TRANSMISSION SHAFT PARTS DIAGRAM")
-part-diagram-03.50.2.webp "MASERATI GHIBLI (2017) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-03.50.3.webp "MASERATI GHIBLI (2017) LUBRICATION AND GEARBOX OIL COOLING PARTS DIAGRAM")
-part-diagram-04.00.3.webp "MASERATI GHIBLI (2017) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.00.4.webp "MASERATI GHIBLI (2017) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.00.5.webp "MASERATI GHIBLI (2017) BRAKE SERVO SYSTEM PARTS DIAGRAM")
-part-diagram-04.10.2.webp "MASERATI GHIBLI (2017) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.10.4.webp "MASERATI GHIBLI (2017) BRAKING DEVICES ON FRONT WHEELS PARTS DIAGRAM")
-part-diagram-04.11.5.webp "MASERATI GHIBLI (2017) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.11.7.webp "MASERATI GHIBLI (2017) BRAKING DEVICES ON REAR WHEELS PARTS DIAGRAM")
-part-diagram-04.20.3.webp "MASERATI GHIBLI (2017) LINES PARTS DIAGRAM")
-part-diagram-04.20.4.webp "MASERATI GHIBLI (2017) LINES PARTS DIAGRAM")
-part-diagram-04.30.2.webp "MASERATI GHIBLI (2017) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-04.30.3.webp "MASERATI GHIBLI (2017) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-04.90.2.webp "MASERATI GHIBLI (2017) BRAKING CONTROL SYSTEMS PARTS DIAGRAM")
-part-diagram-05.00.1.webp "MASERATI GHIBLI (2017) STEERING COLUMN AND STEERING WHEEL UNIT PARTS DIAGRAM")
-part-diagram-05.10.2.webp "MASERATI GHIBLI (2017) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.10.4.webp "MASERATI GHIBLI (2017) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.10.6.webp "MASERATI GHIBLI (2017) COMPLETE STEERING RACK UNIT PARTS DIAGRAM")
-part-diagram-05.20.1.webp "MASERATI GHIBLI (2017) COMPLETE PEDAL BOARD UNIT PARTS DIAGRAM")
-part-diagram-06.00.1.webp "MASERATI GHIBLI (2017) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-06.00.2.webp "MASERATI GHIBLI (2017) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-06.10.1.webp "MASERATI GHIBLI (2017) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-06.11.1.webp "MASERATI GHIBLI (2017) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.11.5.webp "MASERATI GHIBLI (2017) FRONT SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.12.1.webp "MASERATI GHIBLI (2017) FRONT UNDERCHASSIS PARTS DIAGRAM")
-part-diagram-06.12.2.webp "MASERATI GHIBLI (2017) FRONT UNDERCHASSIS PARTS DIAGRAM")
-part-diagram-06.20.1.webp "MASERATI GHIBLI (2017) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-06.20.3.webp "MASERATI GHIBLI (2017) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-06.21.1.webp "MASERATI GHIBLI (2017) REAR SHOCK ABSORBER DEVICES PARTS DIAGRAM")
-part-diagram-06.22.2.webp "MASERATI GHIBLI (2017) REAR CHASSIS PARTS DIAGRAM")
-part-diagram-06.90.1.webp "MASERATI GHIBLI (2017) ELECTRONIC CONTROL (SUSPENSION) PARTS DIAGRAM")
-part-diagram-06.95.0.webp "MASERATI GHIBLI (2017) CPL. WHEELS PARTS DIAGRAM")
-part-diagram-07.00.2.webp "MASERATI GHIBLI (2017) FRONT AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.02.1.webp "MASERATI GHIBLI (2017) FRONT SIDE BAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.04.1.webp "MASERATI GHIBLI (2017) WINDOW BAG SYSTEM PARTS DIAGRAM")
-part-diagram-07.05.1.webp "MASERATI GHIBLI (2017) CRASH SENSORS PARTS DIAGRAM")
-part-diagram-07.10.1.webp "MASERATI GHIBLI (2017) FRONT SEATBELTS PARTS DIAGRAM")
-part-diagram-07.11.1.webp "MASERATI GHIBLI (2017) REAR SEAT BELTS PARTS DIAGRAM")
-part-diagram-07.20.1.webp "MASERATI GHIBLI (2017) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-07.30.3.webp "MASERATI GHIBLI (2017) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.30.4.webp "MASERATI GHIBLI (2017) STANDARD PROVIDED PARTS DIAGRAM")
-part-diagram-07.32.2.webp "MASERATI GHIBLI (2017) ON BOARD DOCUMENTATION PARTS DIAGRAM")
-part-diagram-08.00.3.webp "MASERATI GHIBLI (2017) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.00.4.webp "MASERATI GHIBLI (2017) EXTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.10.1.webp "MASERATI GHIBLI (2017) INTERNAL VEHICLE DEVICES PARTS DIAGRAM")
-part-diagram-08.20.2.webp "MASERATI GHIBLI (2017) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.20.3.webp "MASERATI GHIBLI (2017) ENERGY GENERATION AND ACCUMULATION PARTS DIAGRAM")
-part-diagram-08.30.1.webp "MASERATI GHIBLI (2017) HEADLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.31.1.webp "MASERATI GHIBLI (2017) TAILLIGHT CLUSTERS PARTS DIAGRAM")
-part-diagram-08.39.2.webp "MASERATI GHIBLI (2017) LIGHTING SYSTEM CONTROL PARTS DIAGRAM")
-part-diagram-08.40.3.webp "MASERATI GHIBLI (2017) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.40.5.webp "MASERATI GHIBLI (2017) A/C UNIT: ENGINE COMPARTMENT DEVICES PARTS DIAGRAM")
-part-diagram-08.41.1.webp "MASERATI GHIBLI (2017) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.41.2.webp "MASERATI GHIBLI (2017) A/C UNIT: DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.42.1.webp "MASERATI GHIBLI (2017) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.42.2.webp "MASERATI GHIBLI (2017) A/C UNIT: DIFFUSION PARTS DIAGRAM")
-part-diagram-08.49.2.webp "MASERATI GHIBLI (2017) A/C UNIT: ELECTRONIC CONTROL PARTS DIAGRAM")
-part-diagram-08.50.2.webp "MASERATI GHIBLI (2017) DASHBOARD DEVICES PARTS DIAGRAM")
-part-diagram-08.51.2.webp "MASERATI GHIBLI (2017) CENTRE CONSOLE DEVICES PARTS DIAGRAM")
-part-diagram-08.52.2.webp "MASERATI GHIBLI (2017) DOOR DEVICES PARTS DIAGRAM")
-part-diagram-08.52.4.webp "MASERATI GHIBLI (2017) DOOR DEVICES PARTS DIAGRAM")
-part-diagram-08.53.2.webp "MASERATI GHIBLI (2017) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.53.5.webp "MASERATI GHIBLI (2017) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.53.7.webp "MASERATI GHIBLI (2017) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-08.60.10.webp "MASERATI GHIBLI (2017) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.11.webp "MASERATI GHIBLI (2017) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.3.webp "MASERATI GHIBLI (2017) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.7.webp "MASERATI GHIBLI (2017) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.60.9.webp "MASERATI GHIBLI (2017) MAIN WIRING PARTS DIAGRAM")
-part-diagram-08.61.2.webp "MASERATI GHIBLI (2017) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.61.3.webp "MASERATI GHIBLI (2017) RELAYS, FUSES AND BOXES PARTS DIAGRAM")
-part-diagram-08.62.1.webp "MASERATI GHIBLI (2017) CONNECTORS PARTS DIAGRAM")
-part-diagram-08.63.1.webp "MASERATI GHIBLI (2017) EXTRACTORS PARTS DIAGRAM")
-part-diagram-08.70.1.webp "MASERATI GHIBLI (2017) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.70.2.webp "MASERATI GHIBLI (2017) SOUND DIFFUSION SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.2.webp "MASERATI GHIBLI (2017) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.4.webp "MASERATI GHIBLI (2017) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.71.7.webp "MASERATI GHIBLI (2017) IT SYSTEM PARTS DIAGRAM")
-part-diagram-08.72.1.webp "MASERATI GHIBLI (2017) RECEPTION AND CONNECTION SYSTEM PARTS DIAGRAM")
-part-diagram-08.73.1.webp "MASERATI GHIBLI (2017) DRIVE ASSISTANCE SYSTEM PARTS DIAGRAM")
-part-diagram-09.00.1.webp "MASERATI GHIBLI (2017) BODYWORK AND FRONT OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.01.1.webp "MASERATI GHIBLI (2017) BODYWORK AND CENTRAL OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.02.1.webp "MASERATI GHIBLI (2017) BODYWORK AND REAR OUTER TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.03.1.webp "MASERATI GHIBLI (2017) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.03.2.webp "MASERATI GHIBLI (2017) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.03.3.webp "MASERATI GHIBLI (2017) FRONT STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.04.1.webp "MASERATI GHIBLI (2017) CENTRAL STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.04.2.webp "MASERATI GHIBLI (2017) CENTRAL STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.1.webp "MASERATI GHIBLI (2017) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.2.webp "MASERATI GHIBLI (2017) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.05.4.webp "MASERATI GHIBLI (2017) REAR STRUCTURAL FRAMES AND SHEET PANELS PARTS DIAGRAM")
-part-diagram-09.10.2.webp "MASERATI GHIBLI (2017) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-09.10.3.webp "MASERATI GHIBLI (2017) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-09.11.1.webp "MASERATI GHIBLI (2017) REAR BUMPER PARTS DIAGRAM")
-part-diagram-09.12.1.webp "MASERATI GHIBLI (2017) PARKING SENSORS PARTS DIAGRAM")
-part-diagram-09.13.1.webp "MASERATI GHIBLI (2017) WHEELHOUSE AND LIDS PARTS DIAGRAM")
-part-diagram-09.14.3.webp "MASERATI GHIBLI (2017) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.14.4.webp "MASERATI GHIBLI (2017) UNDERBODY AND UNDERFLOOR GUARDS PARTS DIAGRAM")
-part-diagram-09.15.1.webp "MASERATI GHIBLI (2017) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.15.2.webp "MASERATI GHIBLI (2017) SHIELDS, TRIMS AND COVERING PANELS PARTS DIAGRAM")
-part-diagram-09.16.2.webp "MASERATI GHIBLI (2017) TRIMS, BRANDS AND SYMBOLS PARTS DIAGRAM")
-part-diagram-09.17.1.webp "MASERATI GHIBLI (2017) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.17.2.webp "MASERATI GHIBLI (2017) STICKERS AND LABELS PARTS DIAGRAM")
-part-diagram-09.20.1.webp "MASERATI GHIBLI (2017) FRONT LID PARTS DIAGRAM")
-part-diagram-09.21.1.webp "MASERATI GHIBLI (2017) REAR LID PARTS DIAGRAM")
-part-diagram-09.21.2.webp "MASERATI GHIBLI (2017) REAR LID PARTS DIAGRAM")
-part-diagram-09.22.1.webp "MASERATI GHIBLI (2017) FUEL TANK DOOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-09.23.1.webp "MASERATI GHIBLI (2017) FRONT LID OPENING BUTTON PARTS DIAGRAM")
-part-diagram-09.24.1.webp "MASERATI GHIBLI (2017) REAR LID OPENING CONTROL PARTS DIAGRAM")
-part-diagram-09.24.2.webp "MASERATI GHIBLI (2017) REAR LID OPENING CONTROL PARTS DIAGRAM")
-part-diagram-09.30.1.webp "MASERATI GHIBLI (2017) FRONT DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.30.2.webp "MASERATI GHIBLI (2017) FRONT DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.30.5.webp "MASERATI GHIBLI (2017) FRONT DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.31.1.webp "MASERATI GHIBLI (2017) FRONT DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.31.2.webp "MASERATI GHIBLI (2017) FRONT DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.32.1.webp "MASERATI GHIBLI (2017) REAR DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.32.2.webp "MASERATI GHIBLI (2017) REAR DOORS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.33.1.webp "MASERATI GHIBLI (2017) REAR DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.33.3.webp "MASERATI GHIBLI (2017) REAR DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-09.34.1.webp "MASERATI GHIBLI (2017) WINDOWS AND WINDOW STRIPS PARTS DIAGRAM")
-part-diagram-09.34.2.webp "MASERATI GHIBLI (2017) WINDOWS AND WINDOW STRIPS PARTS DIAGRAM")
-part-diagram-09.35.2.webp "MASERATI GHIBLI (2017) INTERNAL AND EXTERNAL REAR-VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-09.40.2.webp "MASERATI GHIBLI (2017) FRONT SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.40.4.webp "MASERATI GHIBLI (2017) FRONT SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.41.1.webp "MASERATI GHIBLI (2017) FRONT SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.41.2.webp "MASERATI GHIBLI (2017) FRONT SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.42.2.webp "MASERATI GHIBLI (2017) REAR SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.42.3.webp "MASERATI GHIBLI (2017) REAR SEATS: TRIM PANELS PARTS DIAGRAM")
-part-diagram-09.43.1.webp "MASERATI GHIBLI (2017) REAR SEATS: MECHANICS AND ELECTRONICS PARTS DIAGRAM")
-part-diagram-09.44.1.webp "MASERATI GHIBLI (2017) PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS PARTS DIAGRAM")
-part-diagram-09.45.1.webp "MASERATI GHIBLI (2017) ROOF AND SUN VISORS PARTS DIAGRAM")
-part-diagram-09.46.1.webp "MASERATI GHIBLI (2017) REAR PARCEL SHELF PARTS DIAGRAM")
-part-diagram-09.46.2.webp "MASERATI GHIBLI (2017) REAR PARCEL SHELF PARTS DIAGRAM")
-part-diagram-09.50.7.webp "MASERATI GHIBLI (2017) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.50.8.webp "MASERATI GHIBLI (2017) DASHBOARD UNIT PARTS DIAGRAM")
-part-diagram-09.51.2.webp "MASERATI GHIBLI (2017) ACCESSORY CONSOLE AND CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-09.52.2.webp "MASERATI GHIBLI (2017) GLOVE COMPARTMENTS PARTS DIAGRAM")
-part-diagram-09.60.1.webp "MASERATI GHIBLI (2017) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.61.1.webp "MASERATI GHIBLI (2017) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-09.62.1.webp "MASERATI GHIBLI (2017) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.62.2.webp "MASERATI GHIBLI (2017) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.62.3.webp "MASERATI GHIBLI (2017) SOUND-PROOFING PANELS INSIDE THE VEHICLE PARTS DIAGRAM")
-part-diagram-09.63.2.webp "MASERATI GHIBLI (2017) THERMAL INSULATING PANELS PARTS DIAGRAM")
-part-diagram-09.71.1.webp "MASERATI GHIBLI (2017) SUNROOF PARTS DIAGRAM")
-part-diagram-01.00.2.webp "MASERATI GHIBLI (2017) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.00.3.webp "MASERATI GHIBLI (2017) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.00.4.webp "MASERATI GHIBLI (2017) CRANKCASE PARTS DIAGRAM")
-part-diagram-01.10.2.webp "MASERATI GHIBLI (2017) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.10.3.webp "MASERATI GHIBLI (2017) CRANK MECHANISM PARTS DIAGRAM")
-part-diagram-01.11.1.webp "MASERATI GHIBLI (2017) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.11.4.webp "MASERATI GHIBLI (2017) AUXILIARY DEVICE BELTS PARTS DIAGRAM")
-part-diagram-01.20.2.webp "MASERATI GHIBLI (2017) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.20.3.webp "MASERATI GHIBLI (2017) RH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.2.webp "MASERATI GHIBLI (2017) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.21.3.webp "MASERATI GHIBLI (2017) LH CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-01.22.2.webp "MASERATI GHIBLI (2017) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.22.3.webp "MASERATI GHIBLI (2017) RH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.2.webp "MASERATI GHIBLI (2017) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.23.3.webp "MASERATI GHIBLI (2017) LH CYLINDER HEAD CAMSHAFTS PARTS DIAGRAM")
-part-diagram-01.24.2.webp "MASERATI GHIBLI (2017) TIMING PARTS DIAGRAM")
-part-diagram-01.24.3.webp "MASERATI GHIBLI (2017) TIMING PARTS DIAGRAM")
-part-diagram-01.25.2.webp "MASERATI GHIBLI (2017) VALVES PARTS DIAGRAM")
-part-diagram-01.25.3.webp "MASERATI GHIBLI (2017) VALVES PARTS DIAGRAM")
-part-diagram-01.30.2.webp "MASERATI GHIBLI (2017) TURBOCHARGING SYSTEM: EQUIPMENTS PARTS DIAGRAM")
