005 - Water Pump and Fan

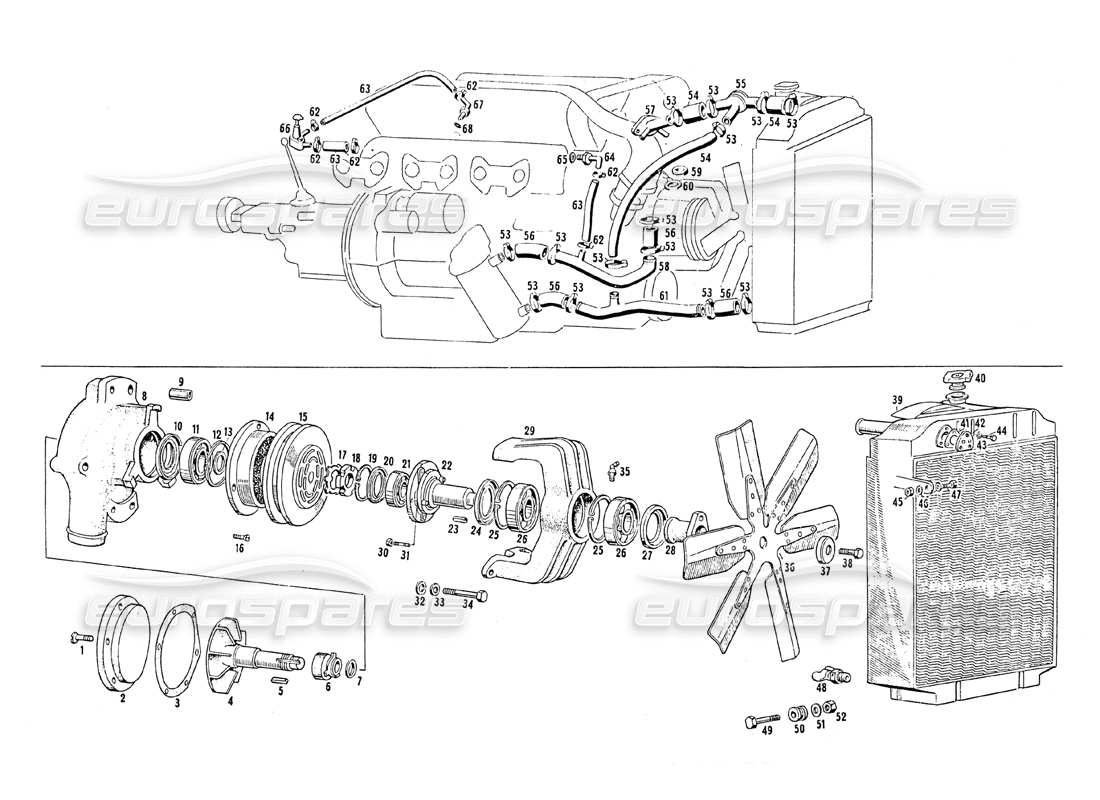

Maserati Mistral 3.7 Water Pump and Fan Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
VNT 47051
SCREW
#
002
MPN:
101 - 4522 47990
COVER
#
003
MPN:
101 - 4523 471 1 1
GASKET OR SEAL
#
004
MPN:
101/9 - MA 54614
Water pump control shaft
#
005
MPN:
IN 33791
Linguntta 23 X 6 X 5 sull'albcrino pompa acqua
#
006
MPN:
ANT 47973
SEALING RING
from
£423.72
from
£423.72
#
007
MPN:
101/9 - MA 54616
Spacer on the pump shaft
#
008
MPN:
101/9 - 4502 53351
CORPO POMPA ACQUA
#
009
MPN:
CRN 43991
Grub screw 10X15 pump body centering with support. fan
#
010
MPN:
101/9 - 4560 53762
RING
#
011
MPN:
CSC 53747
Cuscinetto RIV BLN 25 sull'albero pompa
#
012
MPN:
ART 46754
RING
#
013
MPN:
101/9 - 4554 53748
Spacer on the pump shaft
#
014
MPN:
101/7 - 5024 52395
MAGNET WITH COIL
#
015
MPN:
101/7 - 5026 52396
Pulley with rotor
#
016
MPN:
VN/52294
SCREW
#
017
MPN:
RL/52535
WASHER
#
018
MPN:
GH-52430
RING 22 X 1 X 5 FIXING THE ELECTROMAGNET ON THE SHAFT
#
019
MPN:
ART/47948
RING
from
£45.75
from
£45.75
#
020
MPN:
ANT/52433
SEALING RING
#
021
MPN:
CSC47947
FRONT BEARING ON THE PUMP SHAFT
#
022
MPN:
101/7 - 5005 52274
Fan drive sleeve
#
023
MPN:
LN/52151
TAB 4 X 4 X 6 ON THE FAN DRIVE SLEEVE
#
024
MPN:
ANT/52279
SEALING RING
#
025
MPN:
ART 46754
RING
#
026
MPN:
CSC 45702
Bearing on fan support
#
027
MPN:
ANT/52278
SEALING RING
#
028
MPN:
101/9 - 5004 53950
SLEEVE FOR FAN CONNECTION
#
029
MPN:
CD53423
SUPPORT
from
£519.75
from
£519.75
#
030
MPN:
DN 49457
NUT
#
031
MPN:
GRN 52708
Wheat 8X1X16 for said
#
032
MPN:
RSN 33171
WASHER
#
033
MPN:
RNT47210
WASHER
#
034
MPN:
BN 53049
BOLT
#
035
MPN:
IN/48089
GREASE GREASE 8X 1,25 ON THE FAN SUPPORT
#
036
MPN:
101/7 - 5002 52787
VENTOLA A 6 PALE
#
037
MPN:
101 - 5048 48087
WASHER
#
038
MPN:
BN 53954
BOLT
#
039
MPN:
CR 54656
RADIATORE ACQUA
#
040
MPN:
TN41374
RADIATOR CAP
from
£47.25
from
£47.25
#
041
MPN:
GN 54238
CRANKSET 24 X 35 X 1,5 BETWEEN RADIATOR AND SWITCH
#
042
MPN:
101/7 5022 54237
AUTOMATIC SWITCH ON THE RADIATOR
#
043
MPN:
RN33895
WASHER
#
044
MPN:
DNT 47446
NUT
#
045
MPN:
DNT 47030
NUT
#
046
MPN:
RSN 3 2 6 3 5
WASHER
#
047
MPN:
BNT 47475
BOLT
#
048
MPN:
101 - 16440 47390
DRAIN TAP ON THE RADIATOR
#
049
MPN:
BN 46747
BOLT
#
050
MPN:
SLN 35572
SUPPORT
#
051
MPN:
RN45681
WASHER
#
052
MPN:
DNT/47066
NUT
#
053
MPN:
FRN37829
FASCETTA PER MANICOTTI Ø 38 X 54
#
054
MPN:
MN 50905
SLEEVES Ø 32 X 40 X 90 FROM THE HEAD TO THE RADIATOR
#
054
MPN:
MN 50905
Sleeve Ø 32 x 40 x 600 from the thermostat to the exchanger inlet pipe
#
055
MPN:
101/7 - CR 54454
FINTO TERMOSTATO (SOST. CR-54408)
#
055
MPN:
CR54408
COMPLETE THERMOSTAT
#
056
MPN:
MN 57230
SLEEVE Ø 38 X 47 X 100 FROM WATER PUMP TO EXCHANGER INLET PIPE
#
056
MPN:
MN 57230
Manicotto Ø 38x47x135 dailo scambiatore al tubo entrata e uscita scabiatore
#
057
MPN:
106 - MA 56451
WATER OUTLET PIPE FROM THE HEAD
#
058
MPN:
106 - MA 57961
EXCHANGER INLET PIPE AND WATER PUMP
#
059
MPN:
PFN 54410
GROMMET
#
060
MPN:
106 - MA 57861
THERMOSTAT WATER PIPE SUPPORT PLATE
#
061
MPN:
106 - MA 57226
PIPE BETWEEN EXCHANGER AND RADIATOR
#
062
MPN:
FRN 37824
FASCETTA PER MANICOTTI Ø 13 X 20
#
063
MPN:
MN 54688
SLEEVE Ø 140 X 20 X 250 FROM THE MANIFOLD TO THE EXCHANGER INLET PIPE
from
£82.62
from
£82.62
#
063
MPN:
MN 54688
MANICOTTO Ø 14 X 20 X 380 DAL BASAMENTO AL RUBLNETTO ENTRATA COLLETTORE ASPIRAZIONE
from
£82.62
from
£82.62
#
063
MPN:
MN 54688
SLEEVE Ø 14 X 20 X 40 FROM THE BASE TAP TO THE INTAKE MANIFOLD
from
£82.62
from
£82.62
#
064
MPN:
RMN 54669
UNION
#
065
MPN:
GM 35701
GASKET OR SEAL
#
066
MPN:
101/2 20370 50336
AUXILIARY TAP FOR WATER PASSAGE CONTROL
#
067
MPN:
RMN 48073
UNION
#
068
MPN:
GN 44635
GASKET OR SEAL
