017 - Propeller Shaft and Rear Axle

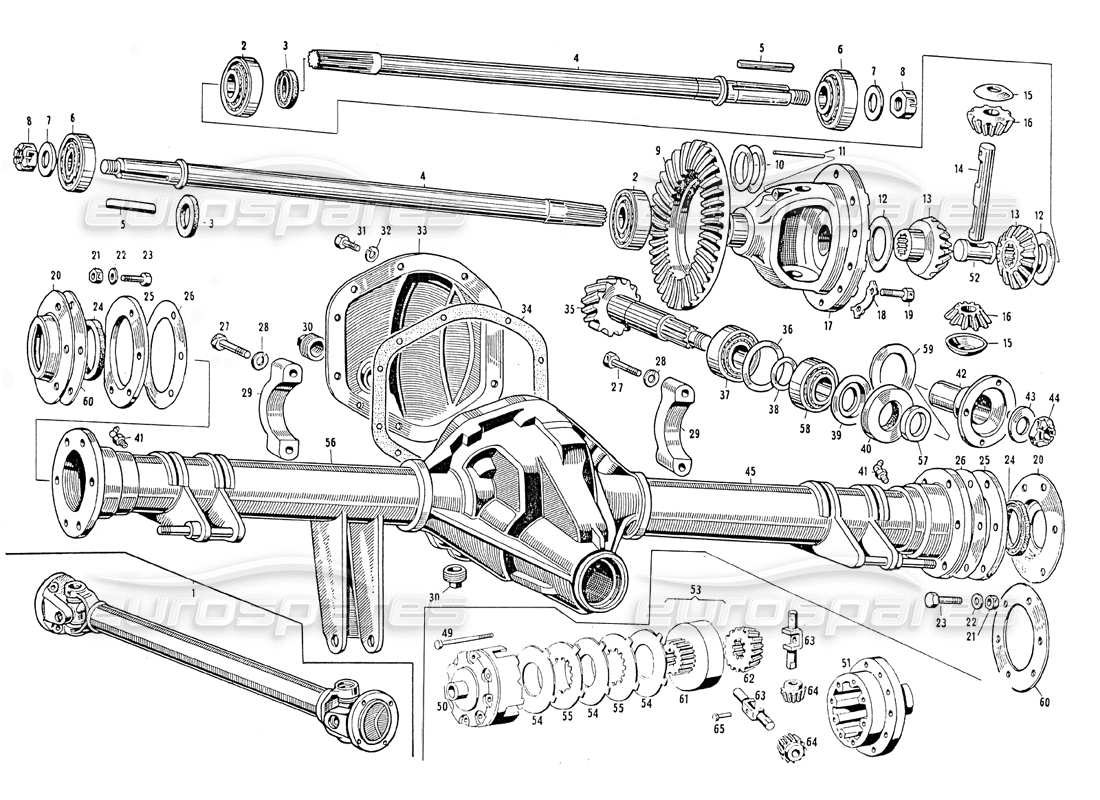

Maserati Mistral 3.7 Propeller Shaft and Rear Axle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                    #
                                                                                                                                    Part number
                                                                                                                                    Description
                                                                                                                                    Key
                                                                                                                                    Price
                                                                                                                                    # 001
                                                                                                                                    MPN: 109 - TA 55200
                                                                                                                                    Transmission shaft for gearbox S-5-17
                                                                                                                                    Transmission shaft for gearbox S-5-17 Genuine Maserati Part - New (to order)
                                                                                                                                    # 001
                                                                                                                                    MPN: 109 - TA 57859
                                                                                                                                    Transmission shaft for automatic transmission
                                                                                                                                    Transmission shaft for automatic transmission Genuine Maserati Part - New (to order)
                                                                                                                                    # 001
                                                                                                                                    MPN: 109 TA 59588
                                                                                                                                    Transmission shaft for gearbox S-5-20
                                                                                                                                    DRIVE SHAFT FOR GEARBOX 3-5-20 Genuine Maserati Part - New (to order)
                                                                                                                                    # 002
                                                                                                                                    MPN: CSC 48297
                                                                                                                                    Bearing on the differential case
                                                                                                                                    Bearing on the differential case Genuine Maserati Part - New (to order)
                                                                                                                                    # 004
                                                                                                                                    MPN: 101 - 10150 48767
                                                                                                                                    Somiasse ponte
                                                                                                                                    Somiasse ponte Genuine Maserati Part - New (to order)
                                                                                                                                    # 005
                                                                                                                                    MPN: LN 48288
                                                                                                                                    TAB ON THE HALF SHAFTS
                                                                                                                                    Linguetta sul semissi Genuine Maserati Part - New (to order)
                                                                                                                                    # 007
                                                                                                                                    MPN: RN 48283
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                    # 008
                                                                                                                                    MPN: DCN 48282
                                                                                                                                    NUT
                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                    # 009
                                                                                                                                    MPN: 101/9 - TP 55908
                                                                                                                                    Pinion and crown R. 13/49 paired
                                                                                                                                    Pinion and crown R. 13/49 paired Genuine Maserati Part - New (to order)
                                                                                                                                    # 009
                                                                                                                                    MPN: 101/9 - TP 55909
                                                                                                                                    Pinion and crown R. 13/43 paired
                                                                                                                                    Pinion and crown R. 13/43 paired Genuine Maserati Part - New (to order)
                                                                                                                                    # 009
                                                                                                                                    MPN: 101/9TP55907
                                                                                                                                    Pinion and crown R. 13/46 paired
                                                                                                                                    Pinion and crown R. 13/46 Genuine Maserati Part - New (to order)
                                                                                                                                    # 009
                                                                                                                                    MPN: 101/9TP55921
                                                                                                                                    PINION AND CROWN R.11/45 MATCHED
                                                                                                                                    Pinion and crown R. 11/45 Genuine Maserati Part - New (to order)
                                                                                                                                    # 010
                                                                                                                                    MPN: 101 - 10570 48296
                                                                                                                                    RING
                                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                                    # 012
                                                                                                                                    MPN: 101 - 10564 48295
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                    # 014
                                                                                                                                    MPN: 101 10530 48290
                                                                                                                                    PLANETARY FOR DIFFERENTIAL
                                                                                                                                    PIVOT Genuine Maserati Part - New (to order)
                                                                                                                                    # 015
                                                                                                                                    MPN: 101 - 10534 48291
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                    # 016
                                                                                                                                    MPN: 101 - 10536 48292
                                                                                                                                    Satellite per differenziale
                                                                                                                                    Satellite per differenziale Genuine Maserati Part - New (to order)
                                                                                                                                    # 017
                                                                                                                                    MPN: 101 10500 48289
                                                                                                                                    Differential box for R 13/43 and 13/46
                                                                                                                                    DIFFERENTIAL BOX FOR R. 13/43 AND 13/46 Genuine Maserati Part - New (to order)
                                                                                                                                    # 017
                                                                                                                                    MPN: 10110500 51121
                                                                                                                                    DIFFERENTIAL BOX FOR R. 13/49 AND 11/45
                                                                                                                                    Differential box for R 13/49 and 11/45 Genuine Maserati Part - New (to order)
                                                                                                                                    # 018
                                                                                                                                    MPN: RDL 48310
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                    # 020
                                                                                                                                    MPN: 101 10127 48279
                                                                                                                                    REDUCTION BUSH ANQUS SEAL ON THE HUB
                                                                                                                                    REDUCTION BUSH ANGUS SEAL ON THE HUB Genuine Maserati Part - New (to order)
                                                                                                                                    # 021
                                                                                                                                    MPN: DN 48287
                                                                                                                                    NUT
                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                    # 022
                                                                                                                                    MPN: RN 48286
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                    # 023
                                                                                                                                    MPN: BN 48285
                                                                                                                                    BOLT
                                                                                                                                    BOLT Genuine Maserati Part - New (to order)
                                                                                                                                    # 025
                                                                                                                                    MPN: 101 10128 48280
                                                                                                                                    RING
                                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                                    # 026
                                                                                                                                    MPN: 101 10096 48278
                                                                                                                                    SPACER FOR BEARING ON THE SIDE FLANGE
                                                                                                                                    SPACER FOR BEARING ON THE SIDE FLANGE Genuine Maserati Part - New (to order)
                                                                                                                                    # 028
                                                                                                                                    MPN: RSN 48273
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                    # 029
                                                                                                                                    MPN: 101 - 10011 48271
                                                                                                                                    Cappellotto tenuta scatola differenziale
                                                                                                                                    Cappellotto tenuta scatola differenziale Genuine Maserati Part - New (to order)
                                                                                                                                    # 030
                                                                                                                                    MPN: TN 48274
                                                                                                                                    PLUG FOR LEVEL INLET AND OIL DRAIN
                                                                                                                                    Oil level and drain plug Genuine Maserati Part - New (to order)
                                                                                                                                    # 032
                                                                                                                                    MPN: RSN 48276
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                    # 033
                                                                                                                                    MPN: 101-10052-48262
                                                                                                                                    COVER
                                                                                                                                    DIFF. GEAR COVER Genuine Maserati Part - New (to order)
                                                                                                                                    # 034
                                                                                                                                    MPN: 101-10054-48263
                                                                                                                                    GASKET OR SEAL
                                                                                                                                    from £65.58
                                                                                                                                    from £65.58
                                                                                                                                    GASKET, DIFF. GEAR COVER Genuine Maserati Part - New (to order)
                                                                                                                                    # 035
                                                                                                                                    MPN: 101/9 - TP 55908
                                                                                                                                    CROWN AND PINION R. 13/49 MATCHED
                                                                                                                                    Pinion and crown R. 13/49 paired Genuine Maserati Part - New (to order)
                                                                                                                                    # 035
                                                                                                                                    MPN: 101/9 - TP 55909
                                                                                                                                    CROWN AND PINION R. 13/43 MATCHED
                                                                                                                                    Pinion and crown R. 13/43 paired Genuine Maserati Part - New (to order)
                                                                                                                                    # 035
                                                                                                                                    MPN: 101/9TP55907
                                                                                                                                    CROWN AND PINION R. 13/46 MATCHED
                                                                                                                                    Pinion and crown R. 13/46 Genuine Maserati Part - New (to order)
                                                                                                                                    # 035
                                                                                                                                    MPN: 101/9TP55921
                                                                                                                                    CROWN AND PINION R. 11/45 MATCHED
                                                                                                                                    Pinion and crown R. 11/45 Genuine Maserati Part - New (to order)
                                                                                                                                    # 036
                                                                                                                                    MPN: 101 - 10571 48300
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                    # 037
                                                                                                                                    MPN: CSC 48302
                                                                                                                                    FRONT BEARING ON THE DIFFERENTIAL PINION
                                                                                                                                    Bearing on the pinion Genuine Maserati Part - New (to order)
                                                                                                                                    # 038
                                                                                                                                    MPN: 101 - 10706 48301
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                    # 039
                                                                                                                                    MPN: 101 10741 48304
                                                                                                                                    OIL SEAL DISC ON THE SPROCKET
                                                                                                                                    Oil seal disc on the pinion. Genuine Maserati Part - New (to order)
                                                                                                                                    # 040
                                                                                                                                    MPN: ANT 48270
                                                                                                                                    SEAL
                                                                                                                                    from £161.02
                                                                                                                                    from £161.02
                                                                                                                                    SEAL Genuine Maserati Part - New (to order)
                                                                                                                                    # 041
                                                                                                                                    MPN: IN 48268
                                                                                                                                    GREASE GREASE ON Tubi SIDES
                                                                                                                                    Ingrassatore sul tui laterali Genuine Maserati Part - New (to order)
                                                                                                                                    # 042
                                                                                                                                    MPN: 101 10740 48305
                                                                                                                                    FORK
                                                                                                                                    FORK Genuine Maserati Part - New (to order)
                                                                                                                                    # 043
                                                                                                                                    MPN: RN 48308
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                    # 045
                                                                                                                                    MPN: 101 - 10104 48265
                                                                                                                                    Tubo laterale sinistro
                                                                                                                                    Tubo laterale sinistro Genuine Maserati Part - New (to order)
                                                                                                                                    # 047
                                                                                                                                    MPN: D N 33540
                                                                                                                                    NUT
                                                                                                                                    NUT Genuine Maserati Part - New (to order)
                                                                                                                                    # 048
                                                                                                                                    MPN: RSN 46672
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Maserati Part - New (to order)
                                                                                                                                    # 050
                                                                                                                                    MPN: 109 - TP 55914
                                                                                                                                    Self-locking box flange for R. 13/46 - 13/49
                                                                                                                                    Self-locking box flange for R. 13/46 - 13/49 Genuine Maserati Part - New (to order)
                                                                                                                                    # 051
                                                                                                                                    MPN: 109 - TP 55913
                                                                                                                                    Self-locking box crown holder flange for R. 13/49 - 11/45
                                                                                                                                    Self-locking box crown holder flange for R. 13/49 - 11/45 Genuine Maserati Part - New (to order)
                                                                                                                                    # 051
                                                                                                                                    MPN: 109TP55912
                                                                                                                                    Self-locking box crown holder flange for R. 13/46 - 13/43
                                                                                                                                    Flangia ports corona scatola autobloccante per R. 13/46 - 13/43 Genuine Maserati Part - New (to order)
                                                                                                                                    # 052
                                                                                                                                    MPN: 101 - 10540 48293
                                                                                                                                    Spacer on satellite shaft
                                                                                                                                    Spacer on satellite shaft Genuine Maserati Part - New (to order)
                                                                                                                                    # 053
                                                                                                                                    MPN: 101 - 10000 55905
                                                                                                                                    Scatola diff. autobloccante completa di rapporti per R. 13/46
                                                                                                                                    Scatola diff. autobloccante completa di rapporti per R. 13/46 Genuine Maserati Part - New (to order)
                                                                                                                                    # 053
                                                                                                                                    MPN: 101 10000 53468
                                                                                                                                    Scatola diff. autobloccante completa di rapporti per R. 13/49
                                                                                                                                    SELF-LOCKING DIFFERENTIAL BOX COMPLETE WITH REPORTS FOR R. 13/49 Genuine Maserati Part - New (to order)
                                                                                                                                    # 053
                                                                                                                                    MPN: 109 - TP 51308
                                                                                                                                    Complete self-locking differential case, missing only crown and pinion for R. 13/49 and 11/45
                                                                                                                                    Complete self-locking differential case, missing only crown and pinion for R. 13/49 and 11/45 Genuine Maserati Part - New (to order)
                                                                                                                                    # 053
                                                                                                                                    MPN: 109 TP 51309
                                                                                                                                    Complete self-locking differential case, missing only crown and pinion for R. 13/46 and 13/43
                                                                                                                                    Complete self-locking differential box missing only crowns and pinion for R. 13/46 and 13/43 Genuine Maserati Part - New (to order)
                                                                                                                                    # 055
                                                                                                                                    MPN: 101/7 - TP 54009
                                                                                                                                    RING
                                                                                                                                    RING Genuine Maserati Part - New (to order)
                                                                                                                                    # 056
                                                                                                                                    MPN: 101 - 10102 48264
                                                                                                                                    Tubo laterale destro
                                                                                                                                    Tubo laterale destro Genuine Maserati Part - New (to order)
                                                                                                                                    # 057
                                                                                                                                    MPN: 101 - 10042 48269
                                                                                                                                    Disco arresto angus sulla flangia pignone
                                                                                                                                    Disco arresto angus sulla flangia pignone Genuine Maserati Part - New (to order)
                                                                                                                                    # 058
                                                                                                                                    MPN: CSC48303
                                                                                                                                    REAR BEARING ON THE SPROCKET
                                                                                                                                    Rear bearing on the pinion Genuine Maserati Part - New (to order)
                                                                                                                                    # 059
                                                                                                                                    MPN: GN48201
                                                                                                                                    GASKET OR SEAL
                                                                                                                                    from £4.24
                                                                                                                                    from £4.24
                                                                                                                                    Oil seal ring gasket on the pinion Genuine Maserati Part - New (to order)
                                                                                                                                    # 060
                                                                                                                                    MPN: GN 47672
                                                                                                                                    GASKET OR SEAL
                                                                                                                                    GASKET OR SEAL Genuine Maserati Part - New (to order)
                                                                                                                                    # 062
                                                                                                                                    MPN: 109TP55944
                                                                                                                                    Planetary gear for self-locking differential gear
                                                                                                                                    Planetary gear for self-locking differential gear Genuine Maserati Part - New (to order)
                                                                                                                                    # 063
                                                                                                                                    MPN: 109TP55916
                                                                                                                                    ALBERINO CROCIETA AUTOBLOCCANTE
                                                                                                                                    Self-locking cross shaft Genuine Maserati Part - New (to order)
                                                                                                                                    # 064
                                                                                                                                    MPN: 109TP55917
                                                                                                                                    Satellite for self-locking differential box
                                                                                                                                    Satellite for self-locking differential box Genuine Maserati Part - New (to order)
                                                                                                                                    # 065
                                                                                                                                    MPN: 109 TP 55918
                                                                                                                                    AXLE SHAFT SPACER ON THE SELF-LOCKING CRUISE
                                                                                                                                    PIVOT Genuine Maserati Part - New (to order)
