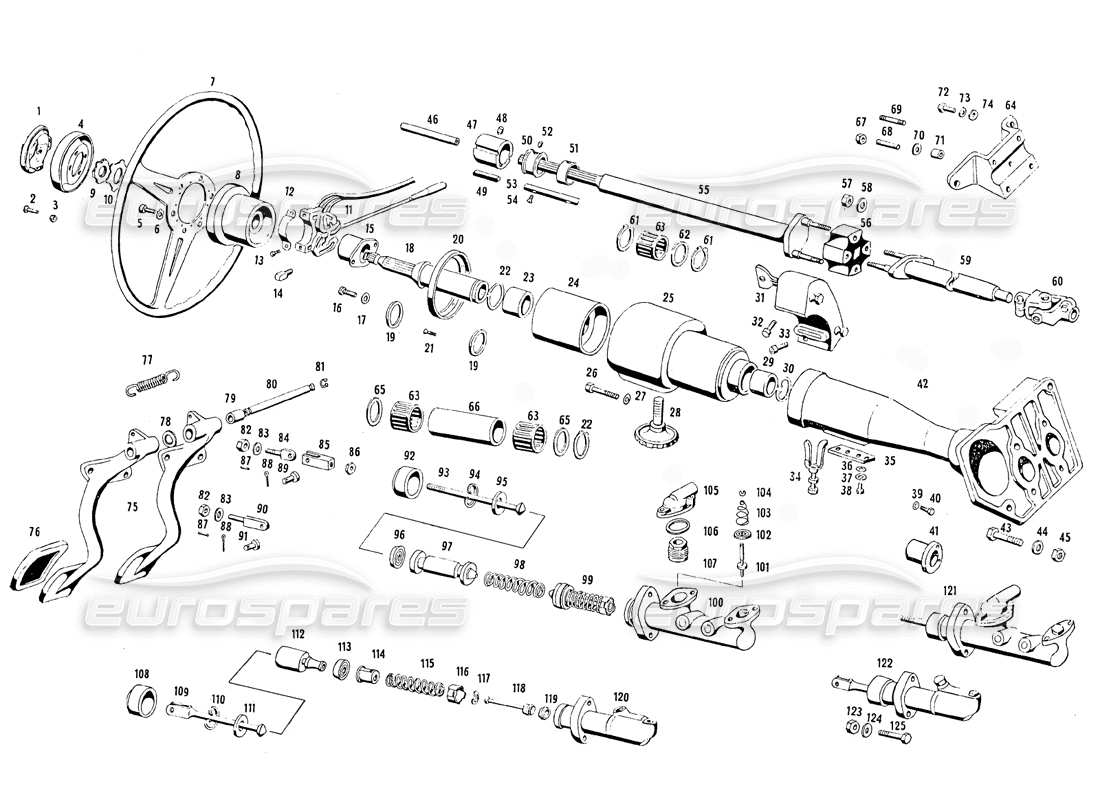

Maserati Mistral 3.7 Steering Parts and Pedals Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 107 - GS 57952
Horn control button on the steering wheel
# 003
MPN: DN/33200
NUT
# 004
MPN: 107GS57953
COMPASS FOR HORN CONTROL BUTTON
from £250.00
from £250.00
# 005
MPN: BNT 59794
BOLT
# 006
MPN: RDI53899
WASHER
# 007
MPN: 107 - GS 60388
VOLANTE GUIDA TP. HELLEBORE COMPLETE DI MOZZO
# 007
MPN: 107 GS 57929
VOLANTE GUIDA TP. MALVINO
# 008
MPN: 107 - 57930
Mozzo per volante guida Malvino
# 008
MPN: 107 GS 60389
MOZZO PER VOLANTE GUIDA HELLEBORE
from £357.00
from £357.00
# 009
MPN: GH 53874
RING Ø 16 X 1 X 7 FIXING THE STEERING WHEEL HUB TO THE COLUMN
# 010
MPN: RL53873
WASHER
# 011
MPN: 101 - GS 55030
GRUPPO COM. LUCI
# 012
MPN: 101 - GS 59104
CAVALLOTTO FISSAGGIO GRUPPO COM. LUCI
# 013
MPN: 107GS59106
SCREW
# 014
MPN: 107 GS 55318
CATCH ON THE COLUMN FOR COM. GROUP. LIGHTS
# 015
MPN: 107 GS 55027
BUSH
# 015
MPN: 107 GS 57541
BUSH
# 016
MPN: VN 33275
SCREW
# 017
MPN: RN 45678
WASHER
# 018
MPN: 107 - GS 55010
STEERING COLUMN ON THE STEERING WHEEL
# 018
MPN: 107 - GS 59163
Steering column on the steering wheel with roller solution
from £315.00
from £315.00
# 019
MPN: 107 GS 53871
WASHER
# 020
MPN: 107 GS 55464
COVER
from £52.50
from £52.50
# 021
MPN: VN 43690
SCREW
# 022
MPN: ART. 43121
RING
# 022
MPN: ART. 53117
RING
# 023
MPN: 107 - GS 52864
STEERING COLUMN BEARING
# 024
MPN: 107 - GS 55026
SLIDING SLEEVE HOLDER LIGHT CONTROL
# 024
MPN: 107 - GS 59159
Sliding sleeve for light control with rollers and right-hand drive
# 024
MPN: 107 GS 59158
SLIDING SLEEVE FOR LIGHT CONTROL WITH ROLLER COLUMN
# 024
MPN: 107GS57542
RIGHT DRIVE LIGHT CONTROL DOOR SLIDING SLEEVE
# 025
MPN: 107 - FC 57134
TOP PART OF STEERING COLUMN RIGHT-HAND DRIVE
# 025
MPN: 107 - FC 59795
Upper part of the steering column, right-hand guide roller solution
# 025
MPN: 107 - FC 59796
TOP PART OF STEERING COLUMN ROLLER SOLUTION
# 025
MPN: 107GS55463
TOP PART OF STEERING COLUMN
# 026
MPN: BNT 53866
BOLT
# 027
MPN: RN 51581
WASHER
# 028
MPN: 107 - GS 57210
Adjustable steering wheel locking knob
from £100.00
from £100.00
# 029
MPN: 107 GS 56286
BEARING FOR STEERING COLUMN
# 030
MPN: Seeger 56873
SEEGER RING
# 031
MPN: 107 GS 53919
ANTI-THEFT COMPLETE WITH KEYS
# 032
MPN: BNT 47018
BOLT
# 033
MPN: BNT53916
BOLT
# 034
MPN: 107 - 50189
Contatto strisciante per avvisatore complete
# 034
MPN: 107GS59106
CONTATTO STRISCIANTE
# 035
MPN: 107GS59107
PLATE FOR SLIDING CONTACT
# 036
MPN: RNT 52530
WASHER
# 037
MPN: RSN 3 2 4 9 7
WASHER
# 041
MPN: 13548/48920
REAR BEARING FOR STEERING COLUMN
# 042
MPN: 107 - FC 53689
SUPPORT
# 042
MPN: 107 - FC 56522
SUPPORT
from £2,094.75
from £2,094.75
# 042
MPN: 107 - FC 59728
SUPPORT
# 042
MPN: 107 FC 59727
SUPPORT
# 043
MPN: BNT 47017
BOLT
# 044
MPN: RNT 55379
WASHER
# 045
MPN: DST/48101
NUT
# 046
MPN: 107 - GS 55685
Conduit for light control cables
# 047
MPN: 107 - GS 61465
SLEEVE ON THE STEERING COLUMN FOR ANTI-THEFT ROLLER SOLUTION
# 047
MPN: 107GS53918
SLEEVE ON THE COLUMN FOR ANTI-THEFT ALARM
# 048
MPN: GRN 56554
GRIN Ø 6 X 1 X 8 SLEEVE FIXING FOR ANTI-THEFT
# 049
MPN: LN 54292
Tab 6 X 26 holding anti-theft sleeve
# 050
MPN: 107 GS 59423
RUBBER COLLECTOR FOR WARNER ON THE ROLLER SOLUTION COLUMN
# 050
MPN: 107GS54305
RUBBER COLLECTOR FOR LIGHT CONTROL WARNER
# 051
MPN: 107 GS 54304
BUSH
# 051
MPN: 107 GS 59424
BUSH
# 052
MPN: GRN54303
GRIN Ø 5 X 0,8 X 6 FIXING THE HORN MANIFOLD ON THE COLUMN
# 053
MPN: LN56547
TAB Ø 4,5 X 5,2 X 61 ON THE GUIDE COLUMN TERMINAL
# 054
MPN: VNT 56553
SCREW
# 055
MPN: 107 - GS 53917
STEERING COLUMN BETWEEN LIGHT CONTROL SUPPORT AND JOINT
# 055
MPN: 107 - GS 59161
STEERING COLUMN BETWEEN LIGHT CONTROL SUPPORT AND SOLUTION
# 056
MPN: 13531 48119
GIUNTO ELASTICO SUL PIANTONE STERZO
# 057
MPN: DN 48038
NUT
# 058
MPN: RN47078
WASHER
# 059
MPN: 109 - GS 56113
STEERING COLUMN BETWEEN JOINTS
# 060
MPN: 13652 47083
JOINT FOR GUIDE COLUMN
# 061
MPN: ART. 59169
RING
# 062
MPN: ANT 59168
SEALING RING
# 063
MPN: RUL 59167
BUSH
# 064
MPN: 107 FC 53741
COPERCHIETTO SUL SUPPORTO PIANTONE E PEDALLERA
# 065
MPN: 107 - FC 59166
WASHER
# 066
MPN: 107 GS 59718
BUSH
# 067
MPN: DNT 47047
NUT
# 068
MPN: PN35771
THREADED STUD
# 069
MPN: PN 56993
THREADED STUD
# 070
MPN: RAT/45679
WASHER
# 071
MPN: GRN 42575
Grano Ø 6,25 X 8 X 7 centraggio coperchietto al supporto
# 073
MPN: RNT 52530
WASHER
# 074
MPN: RSN 3 2 4 9 7
WASHER
# 075
MPN: 109 - FC 55691
BRAKE AND CLUTCH PEDAL
# 075
MPN: 109 - FC 56481
RIGHT HAND DRIVE BRAKE AND CLUTCH PEDAL
# 076
MPN: 109 FC 57849
BRAKE AND CLUTCH COVER RIGHT DRIVE
# 076
MPN: 15279/48084
Copripedale freno e frizione
# 077
MPN: 107 - FC 60335
SPRING
# 078
MPN: RB 50302
WASHER
# 079
MPN: 107 FC 54283
BUSH
# 080
MPN: 107FC53341
BRAKE AND CLUTCH PEDAL SHAFT
# 081
MPN: ART. 51653
RING
# 082
MPN: DST/48101
NUT
# 083
MPN: RNT 55379
WASHER
# 084
MPN: 107FC57810
PIVOT
# 085
MPN: 107 - FC 52324
EYELET FOR BRAKE PEDAL
# 086
MPN: DN/47354
NUT
# 087
MPN: RUL43321
ROLLER Ø 2,5 X 9 ON THE BRAKE AND CLUTCH PEDAL PINS
# 088
MPN: CN33539
PIN 2 X 25 ON THE PEDAL JOINT PIN
# 089
MPN: 107FC53911
PIVOT
# 090
MPN: 107FC57811
PIVOT
# 091
MPN: 15291 48081
FOR CLUTCH PEDAL JOINT
# 092
MPN: 107 - FC 59765
Brake pump protection cap
# 093
MPN: 107 FC 59776
BRAKE PUMP PISTON CONTROL SHAFT
# 094
MPN: 107 FC 59767
RING
# 095
MPN: 107 - FC 59768
WASHER
# 096
MPN: 107FC59769
RUBBER FOR FRONT BRAKE PUMP PISTON
# 097
MPN: 107 FC 59770
FRONT CIRCUIT BRAKE PUMP PISTON
# 098
MPN: 107 FC 59771
SPRING
# 099
MPN: 107FC59772
COMPLETE PISTON FOR REAR SYSTEM BRAKE PUMP
# 100
MPN: 107 - FC 59773
Brake master cylinder body
from £595.00
from £595.00
# 101
MPN: 107 - FC 59774
Brake pump valve feeding front brakes
# 102
MPN: 107 - FC 59774
RING
# 103
MPN: 107 FC 59776
SPRING
# 104
MPN: 107 FC 59777
RING
# 105
MPN: 107 FC 59778
COPERCHIETTO ENTRA OLIO ALIMENTAZIONE POMPA
# 106
MPN: 107 - FC 59779
Rubber on the brake pump oil inlet cover
# 107
MPN: 107 FC 59780
BUSH ON THE BRAKE PUMP OIL INLET VALVE
# 108
MPN: 107 FC 59781
CLUTCH PUMP PROTECTION CAP
# 109
MPN: 107FC59782
CLUTCH PUMP PISTON CONTROL SHAFT
# 110
MPN: 107FC59783
RING
# 111
MPN: 107FC59784
WASHER
# 112
MPN: 107FC59785
Clutch pump plunger
# 113
MPN: 107 - FC 59786
Rubber for clutch pump plunger
# 114
MPN: 107 FC 59787
CLUTCH SPRING GUIDE CUP
# 115
MPN: 107 FC 59788
SPRING
# 116
MPN: 107FC59789
BICCHIERINO SEDE VALVOLA POMPA FIZIONE
# 117
MPN: 107FC59790
WASHER
# 118
MPN: 107 FC 59791
PIVOT
# 119
MPN: 107 FC 59792
RUBBER FOR CLUTCH PUMP CYLINDER VALVE
# 120
MPN: 107 FC 59793
Clutch pump body
from £115.50
from £115.50
# 121
MPN: 107FC54615
1 TANDEM BRAKE PUMP
# 122
MPN: 107 - FC 54747
CLUTCH MASTER CYLINDER
from £152.25
from £152.25
# 123
MPN: DNT. 47031
NUT 8 X 1.25
# 124
MPN: RDI55990
WASHER
# 125
MPN: PN 48590
THREADED STUD
# 125
MPN: RNT 54081
BOLT
