026 - Exhaust Pipes and Compressor Bracket

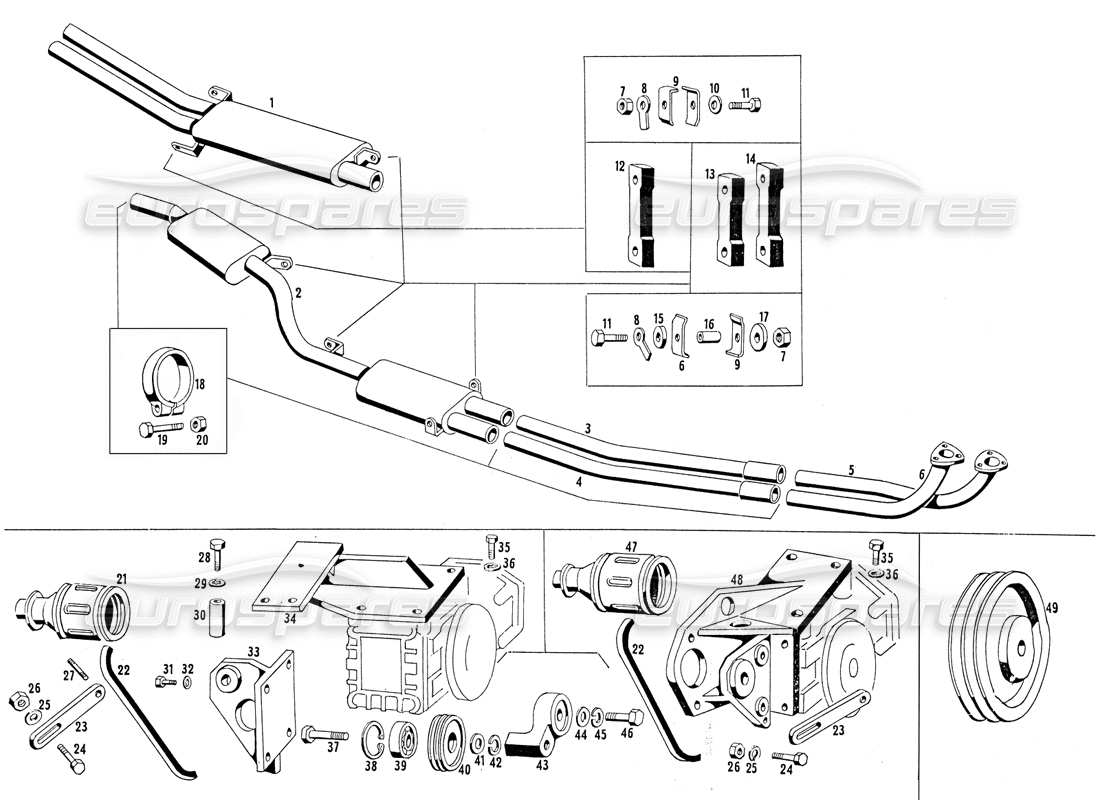

Maserati Mistral 3.7 Exhaust Pipes and Compressor Bracket Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
000
-
DALLA VETTURA CON TELAIO COUPE' N° 554 E TELAIO SPYDER N° 601
#
000
-
DALLA VETTURA CON TELAIO COUPE' N° 554 E TELAIO SPYDER N° 601
#
001
MPN:
109 - CM 56608
Tubo scarico con silenziatore posteriore. Fino al telaio coupe' N° 552 e telaio spyder N° 599
#
001
MPN:
109/A - CM 61425
Tubo scarico con silenziatore posteriore. Dal telaio coupe' N° 554 e telaio spyder N° 601
#
002
MPN:
109 - CM 56583

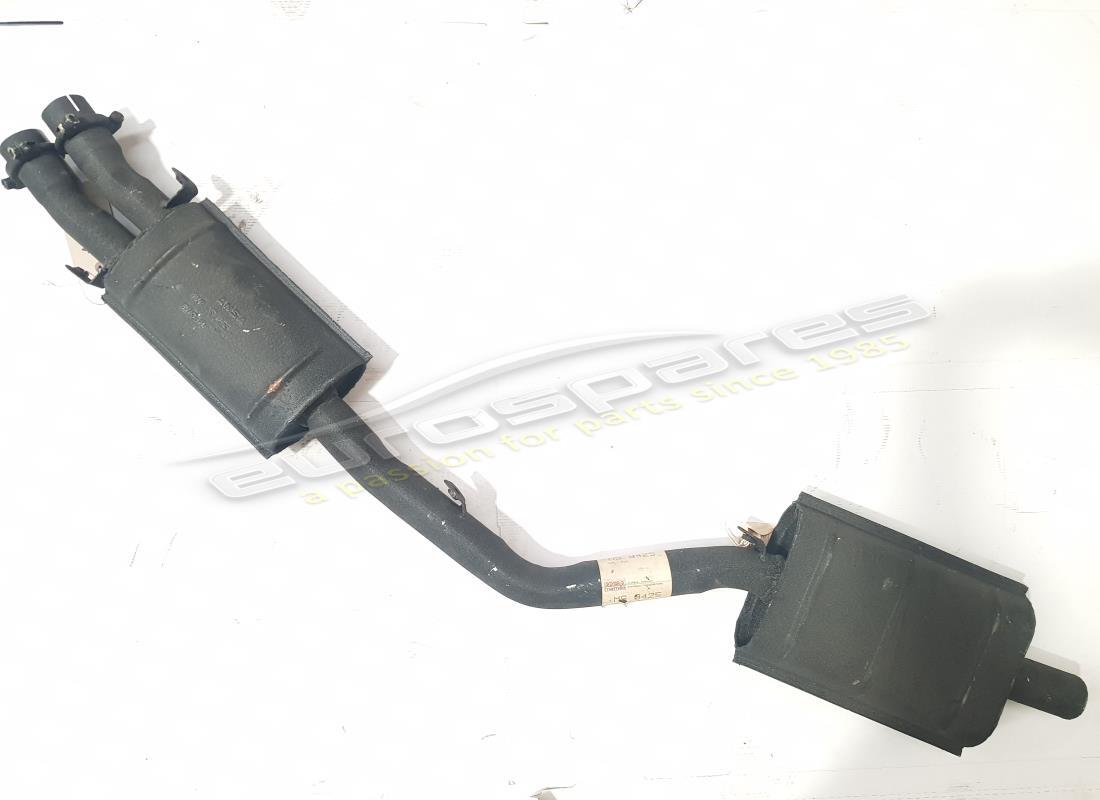

Tubo scarico con silenziatore anteriore e intermedio, Fino al telaio coupe' N° 552 e telaio spyder N° 599
from
£299.25
from
£299.25
#
002
MPN:
109/A - CM 61410
Tubo scarico con silenziatore anteriore e intermedio. Dal telaio coupe' N° 554 e telaio spyder NT 599
#
003
MPN:
109 - CM 56589
LEFT EXHAUST PIPE INTO FRONT SILENCER
#
004
MPN:
109 - CM 56590
RIGHT EXHAUST PIPE INTO FRONT SILENCER
#
005
MPN:
109 - CM 56591
Tubo scarico fra collettore anteriore e tubo sinistro. Fino al telaio coupe' N° 552 e telaio spyder N° 599
#
005
MPN:
109/A - CM 61428
Tubo scarico fra collettore anteriore e tubo sinistro. Dal telaio coupe' N° 554 telaio spyder N° 601
#
006
MPN:
109 - CM 56592
Tubo scarico fra collettore anteriore e tubo destro. Fino al telaio coupe' N° 552 e telaio spyder N° 599
#
006
MPN:
109/A - CM 61429
Tubo scarico fra collettore anteriore e tubo destro. Dal telaio coupe' N° 554 e telaio spyder N° 601
#
007
MPN:
DST/48101
NUT
#
008
MPN:
RDL54240
WASHER
#
009
MPN:
101/9 -16506 54086
PIASTRINO RITEGNO SUPPORTO ANTIVIBRATORE
#
010
MPN:
RNT 55379
WASHER
#
011
MPN:
BNT 54081
BOLT
#
012
MPN:
SLN 54855
SUPPORT
#
013
MPN:
SLN55570
SUPPORT
#
014
MPN:
SLN54085
SUPPORT
#
015
MPN:
GN54083
GASKET OR SEAL
#
016
MPN:
GN54089
GASKET OR SEAL
#
017
MPN:
GN54082
GASKET OR SEAL
#
018
MPN:
1011651648890
EXHAUST PIPE FIXING CLAMP
#
020
MPN:
DNT 47047
NUT
#
021
MPN:
106 - MM 56734
Pulley on the crankshaft for compressor control
#
022
MPN:
CTR 56775
BELT 13 X 8 X 1314 AIR CONDITIONING COMPRESSOR CONTROL
#
023
MPN:
106 - ME 56771
PUNTALINO PER ALTERNATORE
#
024
MPN:
BN 47017
BOLT
#
025
MPN:
RSN 3 2 6 3 5
WASHER
#
026
MPN:
DN 47079
NUT 8 X 1.25
#
027
MPN:
PN 35770
THREADED STUD
#
028
MPN:
BN47028
BOLT
#
029
MPN:
RDI54211
WASHER
#
030
MPN:
106 - MB 56770
HEAD AIR CONDITIONER SUPPORT SUPPORT COLUMN
#
031
MPN:
BNT 56976
BOLT
#
032
MPN:
RDI54211
WASHER
#
033
MPN:
109 - BR 56757
SUPPORT
#
034
MPN:
109 - BR 567^6
SUPPORT
#
035
MPN:
BN 53959
BOLT
#
036
MPN:
RDI54211
WASHER
#
037
MPN:
106 - MM 57643
SCREW
#
038
MPN:
ART, 461284
RING
#
039
MPN:
CSC49764
CUSCINETTO Ø 20 X 47 X 14 SULLA PULEGGIA TENDICINGHIA
#
040
MPN:
106 - MM 57641
PULEGGIA PER TENDICINGHIA
#
041
MPN:
RNT47101
WASHER
This part replaces part number 47101
#
043
MPN:
107MM55649
ECCENTRIC FOR BELT TENSIONER PULLEY
#
044
MPN:
RNT47101
WASHER
This part replaces part number 47101
#
046
MPN:
BNT 56809
BOLT
#
047
MPN:
101/10 - MM 56764
Pulley on the air conditioning compressor control crankshaft from engine No. 440 onwards
#
048
MPN:
101/10 - BR 59703
SUPPORT
#
049
MPN:
109 - BR 60489
ELECTROMAGNETIC CLUTCH FOR COMPRESSOR CONTROL
