maserati mistral 3.7 heating and cooling system parts diagram

031 - Heating and Cooling system

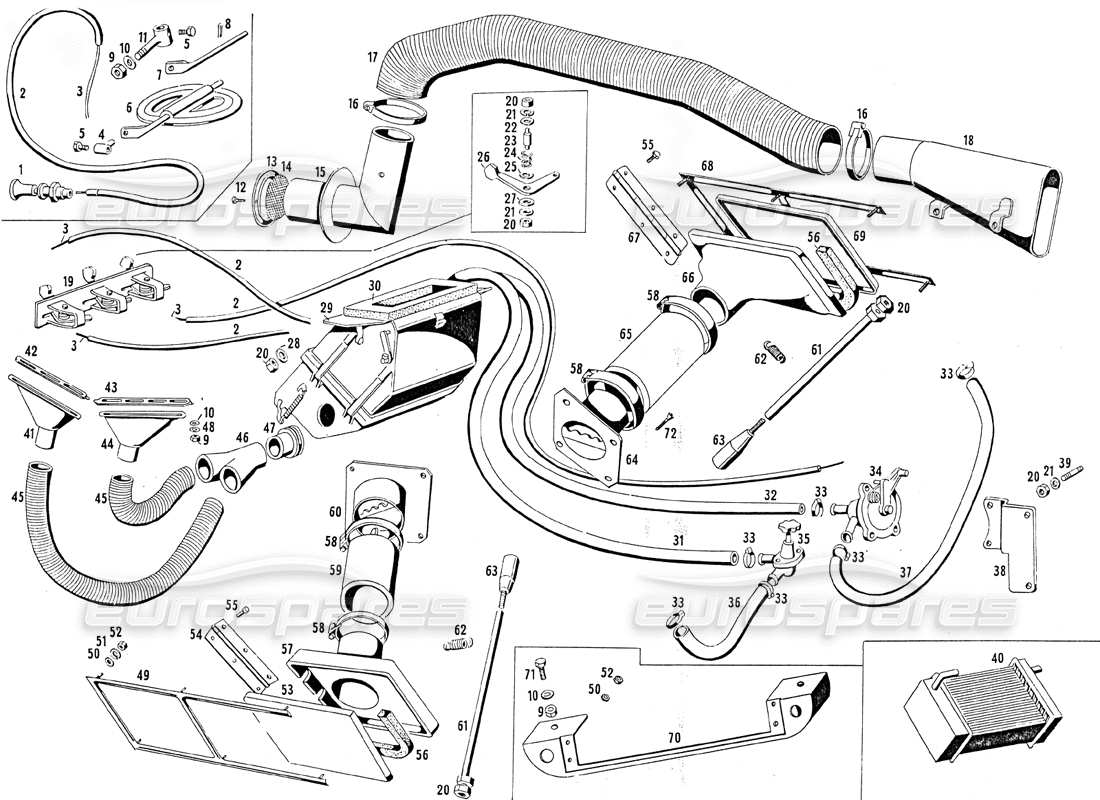

Maserati Mistral 3.7 Heating and Cooling System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                  #
                                                                                                                                                  Part number
                                                                                                                                                  Description
                                                                                                                                                  Key
                                                                                                                                                  Price
                                                                                                                                                  # 001
                                                                                                                                                  MPN: 109 - BV 57648
                                                                                                                                                  PILOT FOOT AIR INTAKE CONTROL PULL
                                                                                                                                                  PILOT FOOT AIR INTAKE CONTROL PULL Genuine Maserati Part - New (to order)
                                                                                                                                                  # 002
                                                                                                                                                  MPN: GFN 57259
                                                                                                                                                  FLEXIBLE SHEATH FOR SAID
                                                                                                                                                  Guaina per detto I = cm. 65 Genuine Maserati Part - New (to order)
                                                                                                                                                  # 002
                                                                                                                                                  MPN: GFN 57259
                                                                                                                                                  GUAINA FLESSIBILE COMANDO STARTER
                                                                                                                                                  Guaina per detto I = cm. 65 Genuine Maserati Part - New (to order)
                                                                                                                                                  # 002
                                                                                                                                                  MPN: GFN 57259
                                                                                                                                                  FLEXIBLE SHEATH FOR HEATER VALVE CONTROL
                                                                                                                                                  Guaina per detto I = cm. 65 Genuine Maserati Part - New (to order)
                                                                                                                                                  # 002
                                                                                                                                                  MPN: GFN 57259
                                                                                                                                                  HEATER AIR CONTROL FLEXIBLE SHEATH
                                                                                                                                                  Guaina per detto I = cm. 65 Genuine Maserati Part - New (to order)
                                                                                                                                                  # 003
                                                                                                                                                  MPN: FGN 57260
                                                                                                                                                  STEEL WIRE AIR INTAKE CONTROL PILOT FEET
                                                                                                                                                  Fllo Ø 1,2 comando starter Genuine Maserati Part - New (to order)
                                                                                                                                                  # 003
                                                                                                                                                  MPN: FGN 57260
                                                                                                                                                  FILO ACCIAIO COMANDO STARTER
                                                                                                                                                  Fllo Ø 1,2 comando starter Genuine Maserati Part - New (to order)
                                                                                                                                                  # 003
                                                                                                                                                  MPN: FGN 57260
                                                                                                                                                  STEEL WIRE HEATER AIR CONTROL
                                                                                                                                                  Fllo Ø 1,2 comando starter Genuine Maserati Part - New (to order)
                                                                                                                                                  # 003
                                                                                                                                                  MPN: FGN 57260
                                                                                                                                                  STEEL WIRE HEATER WATER VALVE CONTROL
                                                                                                                                                  Fllo Ø 1,2 comando starter Genuine Maserati Part - New (to order)
                                                                                                                                                  # 004
                                                                                                                                                  MPN: 101/7 20373 52315
                                                                                                                                                  RIDER FEET AIR INTAKE SHEATH FIXING NIPPLES
                                                                                                                                                  RIDER FEET AIR INTAKE SHEATH FIXING NIPPLES Genuine Maserati Part - New (to order)
                                                                                                                                                  # 006
                                                                                                                                                  MPN: 109 BV 57245
                                                                                                                                                  PILOT FEET AIR INTAKE THROTTLE ASSEMBLY
                                                                                                                                                  Air conveyor butterfly assembly on the dashboard Genuine Maserati Part - New (to order)
                                                                                                                                                  # 007
                                                                                                                                                  MPN: 109 - BV 57198
                                                                                                                                                  THROTTLE SHAFT AIR INTAKE PILOT FEET
                                                                                                                                                  THROTTLE SHAFT AIR INTAKE PILOT FEET Genuine Maserati Part - New (to order)
                                                                                                                                                  # 008
                                                                                                                                                  MPN: CN. 43776
                                                                                                                                                  COPIGLIA PER DETTO
                                                                                                                                                  from £0.84
                                                                                                                                                  from £0.84
                                                                                                                                                  Copiglia Ø 2 x 15 Genuine Maserati Part - New (to order)
                                                                                                                                                  # 009
                                                                                                                                                  MPN: DNT 47046
                                                                                                                                                  NUT
                                                                                                                                                  from £0.84
                                                                                                                                                  from £0.84
                                                                                                                                                  This part replaces part number 47046
                                                                                                                                                  Screw nut Genuine Maserati Part - New (to order)
                                                                                                                                                  # 009
                                                                                                                                                  MPN: DNT 47046
                                                                                                                                                  NUT
                                                                                                                                                  from £0.84
                                                                                                                                                  from £0.84
                                                                                                                                                  This part replaces part number 47046
                                                                                                                                                  Screw nut Genuine Maserati Part - New (to order)
                                                                                                                                                  # 009
                                                                                                                                                  MPN: DNT 47046
                                                                                                                                                  NUT
                                                                                                                                                  from £0.84
                                                                                                                                                  from £0.84
                                                                                                                                                  This part replaces part number 47046
                                                                                                                                                  Screw nut Genuine Maserati Part - New (to order)
                                                                                                                                                  # 012
                                                                                                                                                  MPN: VNT 57863
                                                                                                                                                  SCREW
                                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
                                                                                                                                                  # 013
                                                                                                                                                  MPN: 109 - BV 58095
                                                                                                                                                  FRAME FOR PILOT FOOT AIR INTAKE GRILLE
                                                                                                                                                  FRAME FOR PILOT FOOT AIR INTAKE GRILLE Genuine Maserati Part - New (to order)
                                                                                                                                                  # 014
                                                                                                                                                  MPN: 109 - BV 58094
                                                                                                                                                  GRILLE ON THE PILOT FOOT AIR INTAKE
                                                                                                                                                  GRILLE ON THE PILOT FOOT AIR INTAKE Genuine Maserati Part - New (to order)
                                                                                                                                                  # 015
                                                                                                                                                  MPN: 109 - BV 57197
                                                                                                                                                  RIDER FEET AIR INTAKE ELBOW PIPE
                                                                                                                                                  RIDER FEET AIR INTAKE ELBOW PIPE Genuine Maserati Part - New (to order)
                                                                                                                                                  # 016
                                                                                                                                                  MPN: FRN37835
                                                                                                                                                  PILOT AIR INTAKE DUCT FIXING CLAMP
                                                                                                                                                  Nitro air hose fixing clamp Genuine Maserati Part - New (to order)
                                                                                                                                                  # 017
                                                                                                                                                  MPN: TFC 48857
                                                                                                                                                  FLEXIBLE PIPE
                                                                                                                                                  from £97.08
                                                                                                                                                  from £97.08
                                                                                                                                                  FLEXIBLE PIPE Genuine Maserati Part - New (to order)
                                                                                                                                                  # 018
                                                                                                                                                  MPN: 109 - BV 57200
                                                                                                                                                  PILOT FOOT AIR INTAKE
                                                                                                                                                  PILOT FOOT AIR INTAKE Genuine Maserati Part - New (to order)
                                                                                                                                                  # 019
                                                                                                                                                  MPN: 109 - BV 61484
                                                                                                                                                  COMPLETE GROUP OF HEATING CONTROL LEVERS GD
                                                                                                                                                  COMPLETE GROUP OF HEATING CONTROL LEVERS GD Genuine Maserati Part - New (to order)
                                                                                                                                                  # 019
                                                                                                                                                  MPN: 109 BV 55960
                                                                                                                                                  COMPLETE ASSEMBLY OF HEATING CONTROL LEVERS GS
                                                                                                                                                  Supersession
                                                                                                                                                  Supersession
                                                                                                                                                  Genuine Maserati Part (no longer available to order)
                                                                                                                                                  # 020
                                                                                                                                                  MPN: DNT 47047
                                                                                                                                                  NUT
                                                                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 020
                                                                                                                                                  MPN: DNT 47047
                                                                                                                                                  NUT
                                                                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 020
                                                                                                                                                  MPN: DNT 47047
                                                                                                                                                  NUT
                                                                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 020
                                                                                                                                                  MPN: DNT 47047
                                                                                                                                                  NUT
                                                                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 021
                                                                                                                                                  MPN: RSN/32690
                                                                                                                                                  WASHER
                                                                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                  # 023
                                                                                                                                                  MPN: 109 - BV 55957
                                                                                                                                                  HEATING CONTROL LEVER FIXING SHAFT
                                                                                                                                                  HEATING CONTROL LEVER FIXING SHAFT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 024
                                                                                                                                                  MPN: 101 20417 48818
                                                                                                                                                  SPRING
                                                                                                                                                  SPRING Genuine Maserati Part - New (to order)
                                                                                                                                                  # 025
                                                                                                                                                  MPN: 101 - 20411 48810
                                                                                                                                                  RING
                                                                                                                                                  RING Genuine Maserati Part - New (to order)
                                                                                                                                                  # 026
                                                                                                                                                  MPN: 107 BV 56401
                                                                                                                                                  LEVER
                                                                                                                                                  from £126.00
                                                                                                                                                  from £126.00
                                                                                                                                                  LEVER Genuine Maserati Part - New (to order)
                                                                                                                                                  LEVER Genuine Maserati Part - Used In stock
                                                                                                                                                  # 027
                                                                                                                                                  MPN: 107 - BV 55687
                                                                                                                                                  RING
                                                                                                                                                  RING Genuine Maserati Part - New (to order)
                                                                                                                                                  # 028
                                                                                                                                                  MPN: RNT 47074
                                                                                                                                                  WASHER
                                                                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                  # 029
                                                                                                                                                  MPN: 109 - BV 56114
                                                                                                                                                  RISCALDATORE COMPLETO TP. IPRA
                                                                                                                                                  RISCALDATORE COMPLETO TP. IPRA Genuine Maserati Part - New (to order)
                                                                                                                                                  # 030
                                                                                                                                                  MPN: PRN 56518
                                                                                                                                                  SPONGY PROFILE TO SEAL THE HEATER
                                                                                                                                                  SPONGY PROFILE TO SEAL THE HEATER Genuine Maserati Part - New (to order)
                                                                                                                                                  # 031
                                                                                                                                                  MPN: 109 - BV 56383
                                                                                                                                                  WATER DELIVERY PIPE FROM THE HEATER TO THE PUMP
                                                                                                                                                  WATER DELIVERY PIPE FROM THE HEATER TO THE PUMP Genuine Maserati Part - New (to order)
                                                                                                                                                  # 032
                                                                                                                                                  MPN: 109 - BV 56382
                                                                                                                                                  WATER DELIVERY PIPE FROM THE TAP TO THE HEATER
                                                                                                                                                  WATER DELIVERY PIPE FROM THE TAP TO THE HEATER Genuine Maserati Part - New (to order)
                                                                                                                                                  # 033
                                                                                                                                                  MPN: FRN/37825
                                                                                                                                                  FASCETTA Ø 14-20 PER DETTI
                                                                                                                                                  Fascetta TO tubazione benzina Genuine Maserati Part - New (to order)
                                                                                                                                                  # 034
                                                                                                                                                  MPN: 101/1 - 20371 48884
                                                                                                                                                  HOT WATER REGULATOR VALVE
                                                                                                                                                  HOT WATER REGULATOR VALVE Genuine Maserati Part - New (to order)
                                                                                                                                                  # 036
                                                                                                                                                  MPN: 109 - BV 56182
                                                                                                                                                  HEATING WATER DRAIN PIPE TO THE RADIATOR
                                                                                                                                                  HEATING WATER DRAIN PIPE TO THE RADIATOR Genuine Maserati Part - New (to order)
                                                                                                                                                  # 037
                                                                                                                                                  MPN: 109 - BV 61990
                                                                                                                                                  WATER TANK PIPE FROM THE HEAD TO THE HEATING VALVE
                                                                                                                                                  WATER TANK PIPE FROM THE HEAD TO THE HEATING VALVE Genuine Maserati Part - New (to order)
                                                                                                                                                  # 038
                                                                                                                                                  MPN: 101 - 20374 48862
                                                                                                                                                  SUPPORT
                                                                                                                                                  SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 039
                                                                                                                                                  MPN: PN 49773
                                                                                                                                                  THREADED STUD
                                                                                                                                                  THREADED STUD Genuine Maserati Part - New (to order)
                                                                                                                                                  # 040
                                                                                                                                                  MPN: 109 - BV 62128
                                                                                                                                                  RADIATORE RISCALDATORE IPRA
                                                                                                                                                  RADIATORE RISCALDATORE IPRA Genuine Maserati Part - New (to order)
                                                                                                                                                  # 041
                                                                                                                                                  MPN: 109 - BV 55947
                                                                                                                                                  FFUSORE ARIA AL PARABREZZA (PICCOLO)
                                                                                                                                                  FFUSORE ARIA AL PARABREZZA (PICCOLO) Genuine Maserati Part - New (to order)
                                                                                                                                                  # 042
                                                                                                                                                  MPN: 109 - BV 56557
                                                                                                                                                  SLOT ON THE DASHBOARD FOR WINDSHIELD AIR DIFFUSER (SMALL)
                                                                                                                                                  SLOT ON THE DASHBOARD FOR WINDSHIELD AIR DIFFUSER (SMALL) Genuine Maserati Part - New (to order)
                                                                                                                                                  # 043
                                                                                                                                                  MPN: 109 - BV 56433
                                                                                                                                                  WOUND ON THE DASHBOARD FOR WINDSHIELD AIR DIFFUSER (LARGE)
                                                                                                                                                  WOUND ON THE DASHBOARD FOR WINDSHIELD AIR DIFFUSER (LARGE) Genuine Maserati Part - New (to order)
                                                                                                                                                  # 044
                                                                                                                                                  MPN: 109 - BV 55945
                                                                                                                                                  DIFFUSER
                                                                                                                                                  DIFFUSER Genuine Maserati Part - New (to order)
                                                                                                                                                  # 045
                                                                                                                                                  MPN: TFC 48873
                                                                                                                                                  Flexible cardboard tube Ø 40 X 400 for said
                                                                                                                                                  Flexible cardboard tube Ø 40 X 400 for said Genuine Maserati Part - New (to order)
                                                                                                                                                  # 046
                                                                                                                                                  MPN: 109 - BV 56245
                                                                                                                                                  UNION
                                                                                                                                                  UNION Genuine Maserati Part - New (to order)
                                                                                                                                                  # 047
                                                                                                                                                  MPN: 109 - BV 56243
                                                                                                                                                  AIR DELIVERY FITTING TO THE DEFROSTERS
                                                                                                                                                  AIR DELIVERY FITTING TO THE DEFROSTERS Genuine Maserati Part - New (to order)
                                                                                                                                                  # 048
                                                                                                                                                  MPN: RSN 3 2 4 9 7
                                                                                                                                                  WASHER
                                                                                                                                                  WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                  # 049
                                                                                                                                                  MPN: 109 - BV 57239
                                                                                                                                                  RIGHT SIDE AIR INTAKE FRAME
                                                                                                                                                  RIGHT SIDE AIR INTAKE FRAME Genuine Maserati Part - New (to order)
                                                                                                                                                  # 052
                                                                                                                                                  MPN: DNT 47446
                                                                                                                                                  NUT
                                                                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 052
                                                                                                                                                  MPN: DNT 47446
                                                                                                                                                  NUT
                                                                                                                                                  NUT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 053
                                                                                                                                                  MPN: 109 - BV 56706
                                                                                                                                                  COVER
                                                                                                                                                  COVER Genuine Maserati Part - New (to order)
                                                                                                                                                  # 054
                                                                                                                                                  MPN: 109 - BV 57041
                                                                                                                                                  RIGHT SIDE AIR INTAKE ZIPPER
                                                                                                                                                  RIGHT SIDE AIR INTAKE ZIPPER Genuine Maserati Part - New (to order)
                                                                                                                                                  # 057
                                                                                                                                                  MPN: 109 - BV 57076
                                                                                                                                                  CONDOTTO VANTILAZIONE LATERALE DESTRO
                                                                                                                                                  CONDOTTO VANTILAZIONE LATERALE DESTRO Genuine Maserati Part - New (to order)
                                                                                                                                                  # 058
                                                                                                                                                  MPN: FRN37835
                                                                                                                                                  SIDE AIR INTAKE DUCTS FIXING CLAMP
                                                                                                                                                  Nitro air hose fixing clamp Genuine Maserati Part - New (to order)
                                                                                                                                                  # 059
                                                                                                                                                  MPN: 109 - BV 58104
                                                                                                                                                  RIGHT SIDE AIR INTAKE RUBBER DUCT
                                                                                                                                                  RIGHT SIDE AIR INTAKE RUBBER DUCT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 060
                                                                                                                                                  MPN: 109 - BV 57135
                                                                                                                                                  RIGHT SIDE AIR INTAKE SLEEVE AND FLANGE ASSEMBLY
                                                                                                                                                  RIGHT SIDE AIR INTAKE SLEEVE AND FLANGE ASSEMBLY Genuine Maserati Part - New (to order)
                                                                                                                                                  # 061
                                                                                                                                                  MPN: 109 - BC 60346
                                                                                                                                                  LEFT SIDE AIR INTAKE CONTROL ROD
                                                                                                                                                  LEFT SIDE AIR INTAKE CONTROL ROD Genuine Maserati Part - New (to order)
                                                                                                                                                  # 061
                                                                                                                                                  MPN: 109 - BC 62763
                                                                                                                                                  RIGHT SIDE AIR INTAKE CONTROL ROD
                                                                                                                                                  RIGHT SIDE AIR INTAKE CONTROL ROD Genuine Maserati Part - New (to order)
                                                                                                                                                  # 062
                                                                                                                                                  MPN: 109 - BV 57113
                                                                                                                                                  SPRING
                                                                                                                                                  SPRING Genuine Maserati Part - New (to order)
                                                                                                                                                  # 063
                                                                                                                                                  MPN: 109 - BC 57049
                                                                                                                                                  KNOB FOR SIDE AIR INTAKE OPENING CONTROL ROD
                                                                                                                                                  KNOB FOR SIDE AIR INTAKE OPENING CONTROL ROD Genuine Maserati Part - New (to order)
                                                                                                                                                  # 064
                                                                                                                                                  MPN: 109 - BV 57091
                                                                                                                                                  LEFT SIDE AIR INTAKE SLEEVE AND FLANGE ASSEMBLY
                                                                                                                                                  LEFT SIDE AIR INTAKE SLEEVE AND FLANGE ASSEMBLY Genuine Maserati Part - New (to order)
                                                                                                                                                  # 065
                                                                                                                                                  MPN: 109 - BV 60019
                                                                                                                                                  LEFT SIDE AIR INTAKE RUBBER DUCT
                                                                                                                                                  LEFT SIDE AIR INTAKE RUBBER DUCT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 066
                                                                                                                                                  MPN: 109 - BV 57077
                                                                                                                                                  LEFT SIDE VENTILATION DUCT
                                                                                                                                                  LEFT SIDE VENTILATION DUCT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 067
                                                                                                                                                  MPN: 109 - BV 60336
                                                                                                                                                  LEFT SIDE AIR INTAKE ZIPPER
                                                                                                                                                  LEFT SIDE AIR INTAKE ZIPPER Genuine Maserati Part - New (to order)
                                                                                                                                                  # 068
                                                                                                                                                  MPN: 109 - BV 57312
                                                                                                                                                  MICE PRESA ARIA LATERALE SINISTRA ........
                                                                                                                                                  MICE PRESA ARIA LATERALE SINISTRA ........ Genuine Maserati Part - New (to order)
                                                                                                                                                  # 069
                                                                                                                                                  MPN: 109 - BV 56715
                                                                                                                                                  PERCHIO PRESA ARIA LATERALE SINISTRA .......
                                                                                                                                                  PERCHIO PRESA ARIA LATERALE SINISTRA ....... Genuine Maserati Part - New (to order)
                                                                                                                                                  # 070
                                                                                                                                                  MPN: 109 - BC 56579
                                                                                                                                                  SUPPORT
                                                                                                                                                  SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 070
                                                                                                                                                  MPN: 109 - BC 57735
                                                                                                                                                  SUPPORT
                                                                                                                                                  SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 070
                                                                                                                                                  MPN: 109 - BP 62126
                                                                                                                                                  SUPPORT
                                                                                                                                                  SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 070
                                                                                                                                                  MPN: 109 - BP 62127
                                                                                                                                                  SUPPORT
                                                                                                                                                  SUPPORT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 071
                                                                                                                                                  MPN: BNT/47370
                                                                                                                                                  BOLT
                                                                                                                                                  from £3.20
                                                                                                                                                  from £3.20
                                                                                                                                                  This part replaces part number 47370
                                                                                                                                                  BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                  # 072
                                                                                                                                                  MPN: VNT 49217
                                                                                                                                                  SCREW
                                                                                                                                                  SCREW Genuine Maserati Part - New (to order)
