maserati qtp.v8 4.9 (s3) 1979 front suspension parts diagram

019 - Front Suspension

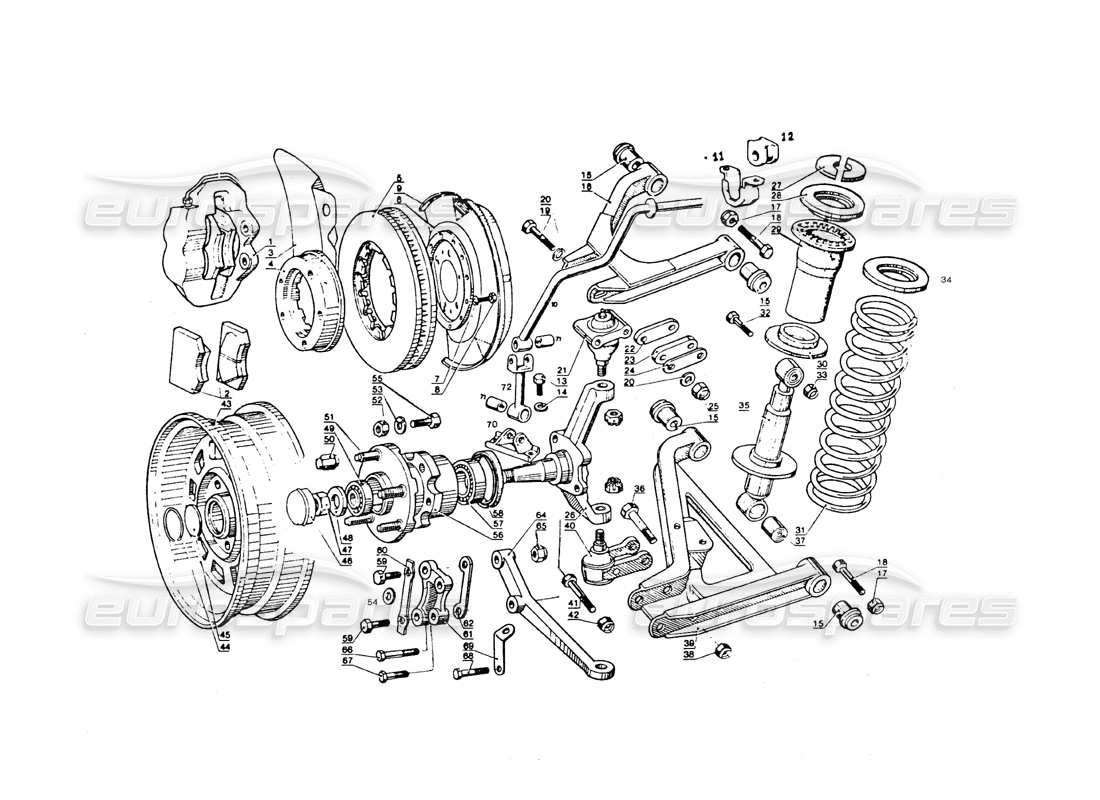

Maserati QTP.V8 4.9 (S3) 1979 Front Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                #
                                                                                                                                                Part number
                                                                                                                                                Description
                                                                                                                                                Key
                                                                                                                                                Price
                                                                                                                                                # 001
                                                                                                                                                MPN: 329-50-06-00
                                                                                                                                                FRONT CALIPER RH
                                                                                                                                                FRONT CALIPER RH Genuine Maserati Part - New (to order)
                                                                                                                                                # 001
                                                                                                                                                MPN: 329-50-07-00
                                                                                                                                                FRONT CALIPER LH
                                                                                                                                                FRONT CALIPER LH Genuine Maserati Part - New (to order)
                                                                                                                                                # 002
                                                                                                                                                MPN: 116 FA 71163

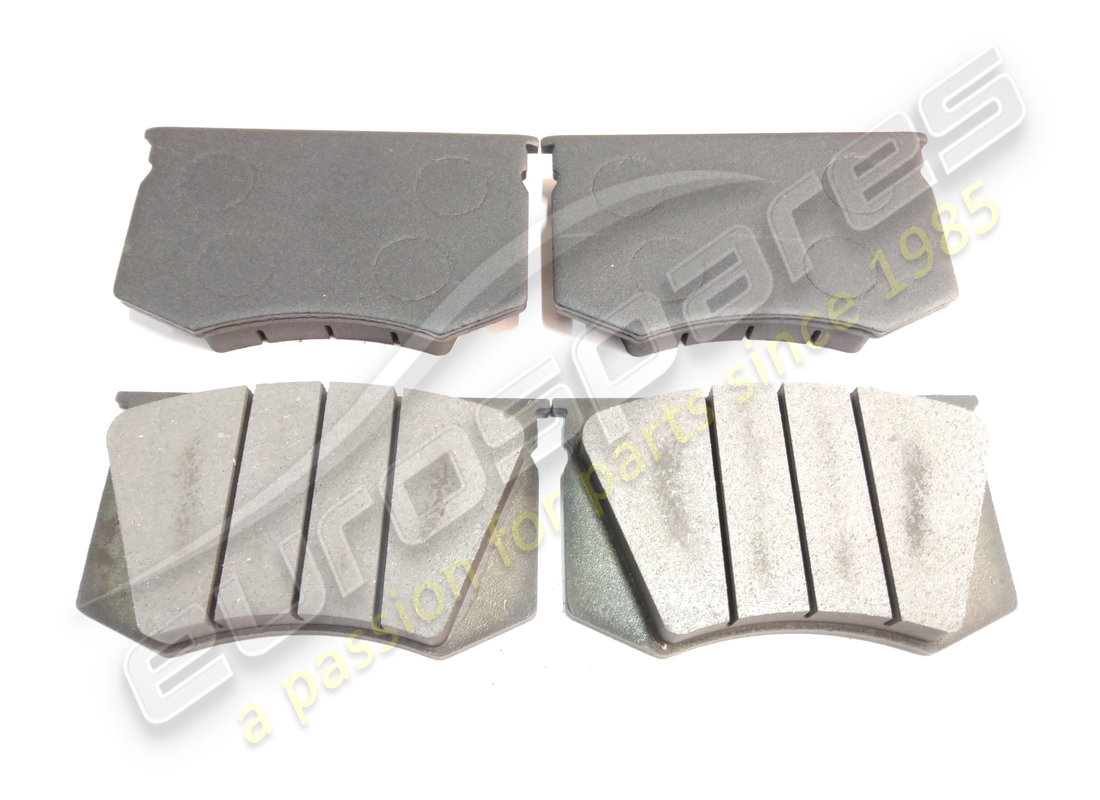

                                                                                                                                                FRONT BRAKE PADS
                                                                                                                                                from £124.48
                                                                                                                                                from £124.48
                                                                                                                                                FRONT BRAKE PADS SET Genuine Maserati Part - New (to order)
                                                                                                                                                FRONT BRAKE PADS SET Eurospares Approved Part - New In stock
                                                                                                                                                # 003
                                                                                                                                                MPN: 329-50-27-00
                                                                                                                                                AIR CONVEYOR
                                                                                                                                                AIR CONVEYOR Genuine Maserati Part - New (to order)
                                                                                                                                                # 004
                                                                                                                                                MPN: 329-50-02-00
                                                                                                                                                DISC HOUSING
                                                                                                                                                DISC HOUSING Genuine Maserati Part - New (to order)
                                                                                                                                                # 005
                                                                                                                                                MPN: 329500300
                                                                                                                                                BRAKE DISC, VENTILATED
                                                                                                                                                from £149.28
                                                                                                                                                from £149.28
                                                                                                                                                FRONT BRAKE DISC Genuine Maserati Part - New (to order)
                                                                                                                                                FRONT BRAKE DISC Genuine Ferrari Part - New (to order)
                                                                                                                                                # 006
                                                                                                                                                MPN: 329-50-04-00
                                                                                                                                                LOCK RING
                                                                                                                                                LOCK RING Genuine Maserati Part - New (to order)
                                                                                                                                                # 007
                                                                                                                                                MPN: RAT 92728
                                                                                                                                                Washer Ø 5
                                                                                                                                                Washer Ø 5 Genuine Maserati Part - New (to order)
                                                                                                                                                # 008
                                                                                                                                                MPN: BNT 78658
                                                                                                                                                Bolt Ø 5X16
                                                                                                                                                Bolt Ø 5X16 Genuine Maserati Part - New (to order)
                                                                                                                                                # 009
                                                                                                                                                MPN: 329-50-10-00
                                                                                                                                                FRONT BRAKE COVER
                                                                                                                                                FRONT BRAKE COVER Genuine Maserati Part - New (to order)
                                                                                                                                                # 010
                                                                                                                                                MPN: 330-40-55-00
                                                                                                                                                STABILIZER BAR (EUROPE)
                                                                                                                                                STABILIZER BAR (EUROPE) Genuine Maserati Part - New (to order)
                                                                                                                                                # 010
                                                                                                                                                MPN: 330-40-55-40
                                                                                                                                                STABILIZER BAR (USA)
                                                                                                                                                STABILIZER BAR (USA) Genuine Maserati Part - New (to order)
                                                                                                                                                # 011
                                                                                                                                                MPN: 329-40-56-00
                                                                                                                                                BRACKET FOR STABILIZER BAR
                                                                                                                                                BRACKET FOR STABILIZER BAR Genuine Maserati Part - New (to order)
                                                                                                                                                # 012
                                                                                                                                                MPN: 330-40-69-00
                                                                                                                                                INSULATOR (EUROPE)
                                                                                                                                                INSULATOR (EUROPE) Genuine Maserati Part - New (to order)
                                                                                                                                                # 012
                                                                                                                                                MPN: 330406940
                                                                                                                                                INSULATOR (USA)
                                                                                                                                                from £1.61
                                                                                                                                                from £1.61
                                                                                                                                                SMALL BLOCK Genuine Maserati Part - New (to order)
                                                                                                                                                SMALL BLOCK Genuine Ferrari Part - New (to order)
                                                                                                                                                # 013
                                                                                                                                                MPN: VNT 53866
                                                                                                                                                Bolt Ø 8X20
                                                                                                                                                SCREW Genuine Maserati Part - New (to order)
                                                                                                                                                # 014
                                                                                                                                                MPN: RSN 3 2 6 3 5
                                                                                                                                                Washer Ø 8
                                                                                                                                                WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                # 015
                                                                                                                                                MPN: 163038
                                                                                                                                                Suspension Bushes
                                                                                                                                                from £38.54
                                                                                                                                                from £38.54
                                                                                                                                                Suspension Bushes Genuine Maserati Part - New (to order)
                                                                                                                                                SILENT BLOCK BUSH Eurospares Approved Part - New In stock
                                                                                                                                                SILENT BLOCK BUSH Genuine Ferrari Part - New In stock
                                                                                                                                                Alternative (#105340) SUSPENSION OUTER BUSH Genuine Ferrari Part - New (to order)
                                                                                                                                                # 016
                                                                                                                                                MPN: 329-41-26-20
                                                                                                                                                SUSPENSION ARM, RH
                                                                                                                                                SUSPENSION ARM, RH Genuine Maserati Part - New (to order)
                                                                                                                                                # 016
                                                                                                                                                MPN: 329-41-27-20
                                                                                                                                                SUSPENSION ARM, LH
                                                                                                                                                SUSPENSION ARM, LH Genuine Maserati Part - New (to order)
                                                                                                                                                # 017
                                                                                                                                                MPN: DST 68161
                                                                                                                                                NUT
                                                                                                                                                NUT Genuine Maserati Part - New (to order)
                                                                                                                                                # 018
                                                                                                                                                MPN: BNT 67214
                                                                                                                                                Bolt Ø 12X75
                                                                                                                                                Bolt Ø 12X75 Genuine Maserati Part - New (to order)
                                                                                                                                                # 019
                                                                                                                                                MPN: BNT 48795
                                                                                                                                                Bolt Ø 10X100
                                                                                                                                                Bolt Ø 10X100 Genuine Maserati Part - New (to order)
                                                                                                                                                # 021
                                                                                                                                                MPN: 329400700

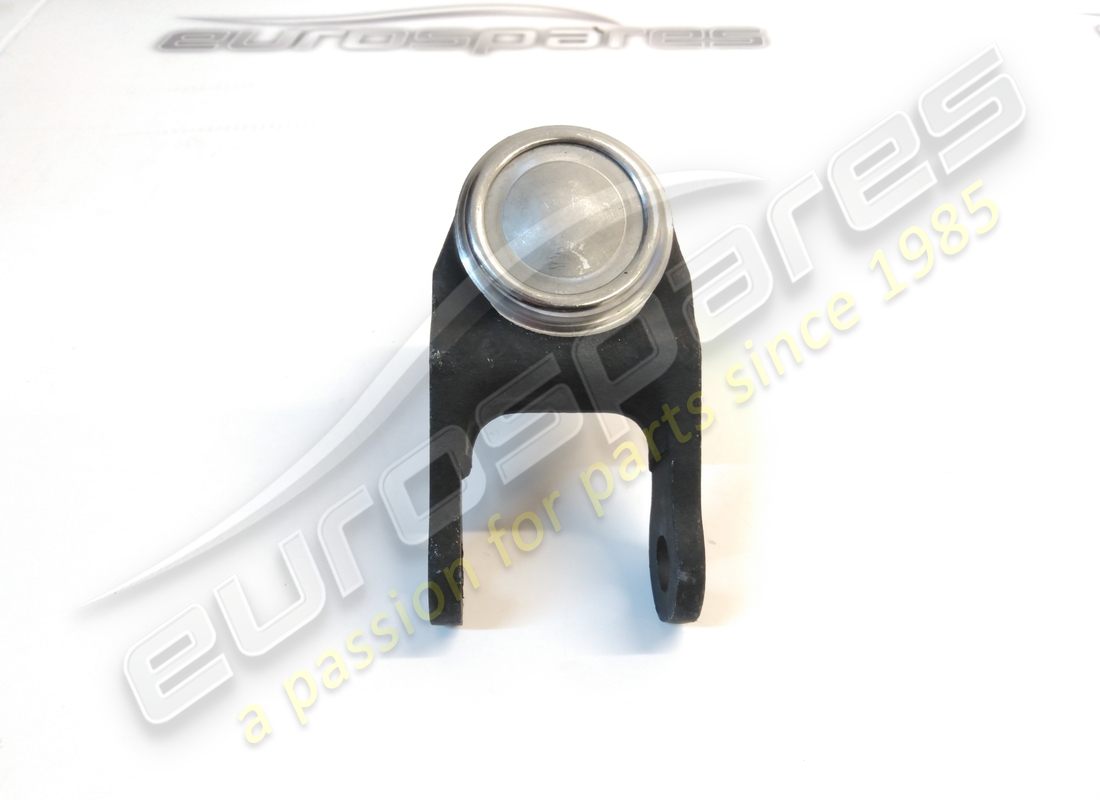

                                                                                                                                                UPPER JOINT
                                                                                                                                                from £307.32
                                                                                                                                                from £307.32
                                                                                                                                                UPPER STUB AXLE Genuine Maserati Part - New (to order)
                                                                                                                                                UPPER STUB AXLE Genuine Ferrari Part - New (to order)
                                                                                                                                                # 022
                                                                                                                                                MPN: 329-40-71-02
                                                                                                                                                SPACER
                                                                                                                                                SPACER Genuine Maserati Part - New (to order)
                                                                                                                                                # 023
                                                                                                                                                MPN: 329-40-71-00
                                                                                                                                                SPACER
                                                                                                                                                SPACER Genuine Maserati Part - New (to order)
                                                                                                                                                # 024
                                                                                                                                                MPN: 329-40-71-01
                                                                                                                                                SPACER
                                                                                                                                                SPACER Genuine Maserati Part - New (to order)
                                                                                                                                                # 025
                                                                                                                                                MPN: DST 51421
                                                                                                                                                Upper joint nut Ø 10XL.5X12.1
                                                                                                                                                Upper joint nut Ø 10XL.5X12.1 Genuine Maserati Part - New (to order)
                                                                                                                                                # 026
                                                                                                                                                MPN: 329-40-03-00
                                                                                                                                                SUSPENSION SPINDLE, LH (UP TO 99TH CAR)
                                                                                                                                                SUSPENSION SPINDLE, LH (UP TO 99th CAR) Genuine Maserati Part - New (to order)
                                                                                                                                                # 026
                                                                                                                                                MPN: 329-40-04-00
                                                                                                                                                SUSPENSION SPINDLE, RH (UP TO 99TH CAR)
                                                                                                                                                SUSPENSION SPINDLE, RH (UP TO 99th CAR) Genuine Maserati Part - New (to order)
                                                                                                                                                # 026
                                                                                                                                                MPN: 330400300
                                                                                                                                                SUSPENSION SPINDLE, LH (FROM 100TH CAR)
                                                                                                                                                from £392.80
                                                                                                                                                from £392.80
                                                                                                                                                STEERING KNUCKLE Genuine Maserati Part - New (to order)
                                                                                                                                                STEERING KNUCKLE Genuine Ferrari Part - New (to order)
                                                                                                                                                # 026
                                                                                                                                                MPN: 330400400
                                                                                                                                                SUSPENSION SPINDLE, RH (FROM 100TH CAR)
                                                                                                                                                from £392.80
                                                                                                                                                from £392.80
                                                                                                                                                RH STEERING KNUCKLE Genuine Maserati Part - New (to order)
                                                                                                                                                RH STEERING KNUCKLE Genuine Ferrari Part - New (to order)
                                                                                                                                                # 027
                                                                                                                                                MPN: 329-40-66-00
                                                                                                                                                RETAINERS
                                                                                                                                                RETAINERS Genuine Maserati Part - New (to order)
                                                                                                                                                # 028
                                                                                                                                                MPN: 330408100
                                                                                                                                                RETAINER RING
                                                                                                                                                from £3.78
                                                                                                                                                from £3.78
                                                                                                                                                RING Genuine Maserati Part - New (to order)
                                                                                                                                                RING Genuine Ferrari Part - New (to order)
                                                                                                                                                # 029
                                                                                                                                                MPN: 330408000
                                                                                                                                                ELASTIC RING
                                                                                                                                                from £2.42
                                                                                                                                                from £2.42
                                                                                                                                                RING Genuine Maserati Part - New (to order)
                                                                                                                                                RING Genuine Ferrari Part - New (to order)
                                                                                                                                                # 030
                                                                                                                                                MPN: 330407200
                                                                                                                                                ELASTIC RING
                                                                                                                                                from £5.80
                                                                                                                                                from £5.80
                                                                                                                                                RING Genuine Maserati Part - New (to order)
                                                                                                                                                # 031
                                                                                                                                                MPN: 330402620
                                                                                                                                                SPRING (EUROPE)
                                                                                                                                                from £72.70
                                                                                                                                                from £72.70
                                                                                                                                                SUSPENSION SPRING Genuine Maserati Part - New (to order)
                                                                                                                                                SUSPENSION SPRING Genuine Ferrari Part - New (to order)
                                                                                                                                                # 031
                                                                                                                                                MPN: 330-40-26-40
                                                                                                                                                SPRING (USA)
                                                                                                                                                SPRING (USA) Genuine Maserati Part - New (to order)
                                                                                                                                                # 034
                                                                                                                                                MPN: 329402100
                                                                                                                                                SPACER FOR SPRING
                                                                                                                                                from £3.47
                                                                                                                                                from £3.47
                                                                                                                                                SPACER Genuine Maserati Part - New (to order)
                                                                                                                                                SPACER Genuine Ferrari Part - New (to order)
                                                                                                                                                # 035
                                                                                                                                                MPN: 330-40-24-00
                                                                                                                                                FRONT SHOCK ABSORBER
                                                                                                                                                Supersession
                                                                                                                                                Supersession
                                                                                                                                                Genuine Maserati Part (no longer available to order)
                                                                                                                                                # 037
                                                                                                                                                MPN: SLN 74910
                                                                                                                                                RUBBER BUSHING
                                                                                                                                                RUBBER BUSHING Genuine Maserati Part - New (to order)
                                                                                                                                                # 039
                                                                                                                                                MPN: 330-41-00-00
                                                                                                                                                LOWER ARM, RH
                                                                                                                                                LOWER ARM, RH Genuine Maserati Part - New (to order)
                                                                                                                                                # 039
                                                                                                                                                MPN: 330-41-01-00
                                                                                                                                                LOWER ARM, LH
                                                                                                                                                LOWER ARM, LH Genuine Maserati Part - New (to order)
                                                                                                                                                # 040
                                                                                                                                                MPN: 329-41-12-00
                                                                                                                                                LOWER JOINT
                                                                                                                                                LOWER JOINT Genuine Maserati Part - New (to order)
                                                                                                                                                # 041
                                                                                                                                                MPN: BNT 91063
                                                                                                                                                Lower joint bolt 0 10Mx85
                                                                                                                                                Lower joint bolt 0 10Mx85 Genuine Maserati Part - New (to order)
                                                                                                                                                # 044
                                                                                                                                                MPN: 322-44-15-00
                                                                                                                                                STOP RING
                                                                                                                                                STOP RING Genuine Maserati Part - New (to order)
                                                                                                                                                # 045
                                                                                                                                                MPN: 329-44-13-00
                                                                                                                                                DUST SHIELD
                                                                                                                                                DUST SHIELD Genuine Maserati Part - New (to order)
                                                                                                                                                # 046
                                                                                                                                                MPN: 301-40-92-00
                                                                                                                                                PLUG (FROM 100TH CAR)
                                                                                                                                                PLUG (FROM 100TH CAR) Genuine Maserati Part - New (to order)
                                                                                                                                                # 046
                                                                                                                                                MPN: 329-40-92-00
                                                                                                                                                PLUG (TILL 99TH CAR)
                                                                                                                                                PLUG (TILL 99TH CAR) Genuine Maserati Part - New (to order)
                                                                                                                                                # 047
                                                                                                                                                MPN: 50320046
                                                                                                                                                SPINDLE FIXING NUT, RH
                                                                                                                                                from £2.67
                                                                                                                                                from £2.67
                                                                                                                                                DADO FISS.MOZZO DX Genuine Maserati Part - New (to order)
                                                                                                                                                # 047
                                                                                                                                                MPN: 50320047
                                                                                                                                                SPINDLE FIXING NUT, LH
                                                                                                                                                from £3.30
                                                                                                                                                from £3.30
                                                                                                                                                DADO FISS.MOZZO SX Genuine Maserati Part - New (to order)
                                                                                                                                                # 048
                                                                                                                                                MPN: 503-20-022
                                                                                                                                                WASHER
                                                                                                                                                WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                # 049
                                                                                                                                                MPN: CSC 93544
                                                                                                                                                OUTER BEARING (TILL 99TH CAR)
                                                                                                                                                OUTER BEARING (TILL 99TH CAR) Genuine Maserati Part - New (to order)
                                                                                                                                                # 049
                                                                                                                                                MPN: CSC 94294
                                                                                                                                                OUTER BEARING (FROM 100TH CAR)
                                                                                                                                                OUTER BEARING (FROM 100TH CAR) Genuine Maserati Part - New (to order)
                                                                                                                                                # 050
                                                                                                                                                MPN: 50322014
                                                                                                                                                WHEEL NUT
                                                                                                                                                from £6.97
                                                                                                                                                from £6.97
                                                                                                                                                DADO FISS.RUOTA DTM Genuine Maserati Part - New (to order)
                                                                                                                                                # 051
                                                                                                                                                MPN: 329-17-24-00
                                                                                                                                                WHEEL LUG BOLT
                                                                                                                                                WHEEL STUD Genuine Maserati Part - New (to order)
                                                                                                                                                # 053
                                                                                                                                                MPN: RAT. 45681
                                                                                                                                                WASHER
                                                                                                                                                This part replaces part number 45681
                                                                                                                                                WASHER Genuine Maserati Part - New (to order)
                                                                                                                                                # 054
                                                                                                                                                MPN: RNT 88658
                                                                                                                                                STOP WASHER
                                                                                                                                                Washer Ø 12x24x3 Genuine Maserati Part - New (to order)
                                                                                                                                                # 055
                                                                                                                                                MPN: BNT 34174
                                                                                                                                                BRAKE DISC BOLT
                                                                                                                                                BRAKE DISC BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                # 056
                                                                                                                                                MPN: 329-40-17-00
                                                                                                                                                FRONT WHEEL HUB (TO 99TH CAR)
                                                                                                                                                FRONT WHEEL HUB (TO 99TH CAR) Genuine Maserati Part - New (to order)
                                                                                                                                                # 056
                                                                                                                                                MPN: 330-90-17-00
                                                                                                                                                FRONT WHEEL HUB (FROM 100TH CAR)
                                                                                                                                                FRONT WHEEL HUB (FROM 100TH CAR) Genuine Maserati Part - New (to order)
                                                                                                                                                # 057
                                                                                                                                                MPN: CSC 93545
                                                                                                                                                INNER BEARING (TO 99TH CAR)
                                                                                                                                                INNER BEARING (TO 99TH CAR) Genuine Maserati Part - New (to order)
                                                                                                                                                # 057
                                                                                                                                                MPN: CSC/48233
                                                                                                                                                INNER BEARING (FROM 100TH CAR)
                                                                                                                                                Cuscinetto sul fuso e snodo (lato braccio porte leve) Genuine Maserati Part - New (to order)
                                                                                                                                                # 058
                                                                                                                                                MPN: ANT 93546
                                                                                                                                                SEALING RING
                                                                                                                                                SEALING RING Genuine Maserati Part - New (to order)
                                                                                                                                                # 059
                                                                                                                                                MPN: BNT 90443
                                                                                                                                                FRONT CALIPER ATCH. BOLT
                                                                                                                                                FRONT CALIPER ATCH. BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                # 060
                                                                                                                                                MPN: 329-50-24-01
                                                                                                                                                CALIPER RETAINER
                                                                                                                                                CALIPER RETAINER Genuine Maserati Part - New (to order)
                                                                                                                                                # 061
                                                                                                                                                MPN: 329-50-22-00
                                                                                                                                                CALIPER HOLDER
                                                                                                                                                CALIPER HOLDER Genuine Maserati Part - New (to order)
                                                                                                                                                # 062
                                                                                                                                                MPN: 329-50-23-00
                                                                                                                                                CALIPER SPACER
                                                                                                                                                CALIPER SPACER Genuine Maserati Part - New (to order)
                                                                                                                                                # 062
                                                                                                                                                MPN: 329-50-23-01
                                                                                                                                                CALIPER SPACER
                                                                                                                                                CALIPER SPACER Genuine Maserati Part - New (to order)
                                                                                                                                                # 064
                                                                                                                                                MPN: 329-47-28-00
                                                                                                                                                RH STEERING LEVER
                                                                                                                                                RH STEERING LEVER Genuine Maserati Part - New (to order)
                                                                                                                                                # 064
                                                                                                                                                MPN: 329-47-29-00
                                                                                                                                                LH STEERING LEVER
                                                                                                                                                LH STEERING LEVER Genuine Maserati Part - New (to order)
                                                                                                                                                # 065
                                                                                                                                                MPN: DST 65851
                                                                                                                                                CALIPER ATCH. NUT
                                                                                                                                                This part replaces part number DST 68049
                                                                                                                                                Rear suspension fixing nut Genuine Maserati Part - New (to order)
                                                                                                                                                # 066
                                                                                                                                                MPN: 329-50-29-00
                                                                                                                                                CALIPER HOLDER BOLT
                                                                                                                                                CALIPER HOLDER BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                # 067
                                                                                                                                                MPN: 329-50-28-00
                                                                                                                                                CALIPER HOLDER BOLT
                                                                                                                                                CALIPER HOLDER BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                # 068
                                                                                                                                                MPN: BNT 89915
                                                                                                                                                STEERING LEVER BOLT
                                                                                                                                                STEERING LEVER BOLT Genuine Maserati Part - New (to order)
                                                                                                                                                # 069
                                                                                                                                                MPN: 329-50-25-00
                                                                                                                                                CALIPER RETAINER RH
                                                                                                                                                FRONT LH FLEX LINE FIXING PLATE Genuine Maserati Part - New (to order)
                                                                                                                                                # 069
                                                                                                                                                MPN: 329-50-26-00
                                                                                                                                                CALIPER REATINER LH
                                                                                                                                                FRONT RH FLEX LINE FIXING PLATE Genuine Maserati Part - New (to order)
                                                                                                                                                # 070
                                                                                                                                                MPN: 329-40-87-00
                                                                                                                                                LOWER SUPPORT LH
                                                                                                                                                LOWER SUPPORT LH Genuine Maserati Part - New (to order)
                                                                                                                                                # 070
                                                                                                                                                MPN: 329-40-88-00
                                                                                                                                                LOWER SUPPORT RH
                                                                                                                                                LOWER SUPPORT RH Genuine Maserati Part - New (to order)
                                                                                                                                                # 071
                                                                                                                                                MPN: 329409100
                                                                                                                                                RUBBER BUSHING
                                                                                                                                                from £3.71
                                                                                                                                                from £3.71
                                                                                                                                                SILENTBLOCK Genuine Maserati Part - New (to order)
                                                                                                                                                SILENT BLOC Genuine Ferrari Part - New (to order)
                                                                                                                                                # 072
                                                                                                                                                MPN: 329-40-51-00
                                                                                                                                                ROD
                                                                                                                                                ROD Genuine Maserati Part - New (to order)
