027 - Lights
Maserati QTP.V8 4.9 (S3) 1979 Lights Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 330910200
HEADLAMP (EUROPE)
from £42.14
from £42.14
# 001
MPN: 330-91-06-00
EXT. TRAFFIC BEAM WITH SUPPORT RH (USA)
# 001
MPN: 330-91-07-00
EXT. TRAFFIC BEAM WITH SUPPORT LH (USA)
# 001
MPN: 330-91-08-00
INT. DRIVING BEAM WITH SUPPORT RH (USA)
# 001
MPN: 330-91-09-00
INT. DRIVING BEAM WITH SUPPORT LH (USA)
# 002
MPN: 330-91-70-00
HEADLAMP BRACKET (EUROPE)
# 003
MPN: LPN 79129
BULB 60/55 W (WHITE)
# 003
MPN: LPN 94358
BULB 60/55 W (YELLOW)
# 004
MPN: 330-91-67-00
BULB HOLDER
# 005
MPN: 330-91-71-00
HOUSING
# 006
MPN: 330-91-20-00
FRONT SIDE MARKER (UP TO CAR)
# 006
MPN: 330-91-20-20
FRONT SIDE MARKER (FROM CAR)
# 007
MPN: LPN 48151
MARKER BULB
# 008
MPN: 330911900
PARKING LIGHT ASSY (EUROPE)
from £19.16
from £19.16
# 008
MPN: 330-91-19-40
PARKING LIGHT ASSY (USA)
# 009
MPN: 330923700
LIGHT LENS (EUROPE)
from £5.57
from £5.57
# 009
MPN: 330-92-37-40
LIGHT LENS (USA)
# 010
MPN: LPN 50810
BULB 12 V 5 W
# 011
MPN: LPN 90069
BULB 12 V 21.W
# 012
MPN: 330-81-36-00
RH headlamp bezel (Europe)
# 012
MPN: 330813640
RH HEADLAMP BEZEL (USA)
from £98.74
from £98.74
# 013
MPN: 330-81-37-00
LH HEADLAMP BEZEL (EUROPE)
# 013
MPN: 330813740
LH HEADLAMP BEZEL (USA)
from £39.84
from £39.84
# 014
MPN: DNT 77777
NUT
# 015
MPN: RDI 84152
WASHER
# 016
MPN: RNT 52530
WASHER
# 017
MPN: RNT 35345
WASHER
# 018
MPN: DNT 77777
NUT 0 5X0.8 (FROM CAR )
# 018
MPN: DNT 83631
FRONT SIDE MARKER FIXING NUT (UP TO CAR )
# 019
MPN: RSN 3 2 4 9 7
WASHER 0 5 (FROM CAR)
# 019
MPN: RSN33189
WASHER (UP TO CAR )
# 020
MPN: 330912500
REAR LAMP ASSY LH (EUROPE)
from £37.58
from £37.58
# 020
MPN: 330912540
REAR LAMP ASSY LH (USA)
from £31.50
from £31.50
# 021
MPN: 330912400
REAR LAMP ASSY RH (EUROPE)
from £39.84
from £39.84
# 021
MPN: 330912440
REAR LAMP ASSY RH (USA)
from £31.50
from £31.50
# 022
MPN: PRN 94351
REAR LAMPS ADHESIVE PROFILE L = 150 MM
# 023
MPN: DNT 80338
REAR LAMPS FIXING NUT
# 024
MPN: RNT 52134
WASHER
# 025
MPN: RDI 84153
TOOTHED WASHER
# 027
MPN: 330-81-74-00
Maserati SCRIPT ON TRUNK (EUROPE)
# 027
MPN: 330-81-74-40
Maserati SCRIPT ON TRUNK (USA)
# 028
MPN: 330-81-75-00
4PORTE SCRIPT ON TRUNK (TILL CAR )
# 028
MPN: 330817501
QUATTROPORTE SCRIPT ON TRUNK (FROM CAR )
from £36.32
from £36.32
# 029
MPN: 330-92-26-00
BULB HOLDER
# 030
MPN: 330-90-13-00
BULB HOLDER
# 031
MPN: LPN 71602
PANEL BULB
# 032
MPN: 330-89-76-00
PANEL ASSY (EUROPE)
# 032
MPN: 33a 89-76-40
PANEL ASSY (USA)
# 033
MPN: LPN 75724
INSTRUMENT BULB
# 035
MPN: 330-89-00-00
ADJUSTABLE AIR OUTLET
# 036
MPN: 330-90-19-00
DOORS LOCK SWITCH
# 037
MPN: 330-90-25-00
PUSH-BUTTON THERMIC WINDSHIELD
# 038
MPN: 330-90-21-00
PUSH-BUTTON THERMIC REAR GLASS
# 039
MPN: 330904500
EMERGENCY PUSH-BUTTON
from £9.73
from £9.73
# 040
MPN: 330-92-52-00
FOG LIGHT SWITCH
# 041
MPN: 330-90-30-00
REAR FOG LIGHT SWITCH
# 042
MPN: 330918500
FUEL PUMP SWITCH
from £9.38
from £9.38
# 043
MPN: 330897800
DIGITAL WATCH
from £31.31
from £31.31
# 044
MPN: 330902600
TRUNK OPENING SWITCH
from £10.51
from £10.51
# 045
MPN: 330-90-20-00
FUEL TAP DOOR OPENING SWITCH
# 046
MPN: 330-91-35-00
COURTESY LIGHT SWITCH
# 047
MPN: 330-91-30-00
COURTESY LIGHT
# 048
MPN: 330-9134-00
BOX COURTESY LIGHT
# 049
MPN: 330-81-73-00
Maserati SCRIPT
# 050
MPN: LPN/48150
COURTESY LIGHT BULB
# 051
MPN: DNT 62556
Script fixing nut
# 052
MPN: RNT 47373
WASHER
# 053
MPN: 330912900
BOX LIGHT SWITCH
from £0.47
from £0.47
# 054
MPN: 330902800
ROCKER SWITCH (5 CONTACTS)
from £5.90
from £5.90
# 055
MPN: 330915700
ROCKER SWITCH (4 CONTACTS)
Supersession
Supersession
# 056
MPN: 330-90-29-00
WINDOW DROP SWITCH
# 057
MPN: 330835300
KEY LOCK
from £11.44
from £11.44
# 058
MPN: 330-83-66-00
ASHTRAY
# 059
MPN: 330-87-60-00
CIGAR LIGHTER
# 060
MPN: 330-90-11-01
FAN SWITCH
# 062
MPN: 330-90-27-00
4-POSITION SWITCH, AIR CONDIT.
# 063
MPN: 330-91-58-00
RADIO
# 064
MPN: 330919900
RHEOSTAT PANEL LIGHT DULLING
from £1.85
from £1.85
# 065
MPN: 330-37-10-00
AIR CONDITIONING THERMOSTAT
# 066
MPN: LPN 48151
LIGHTER BULB 12 V 4 W
# 067
MPN: 330-88-60-00
AIR CONTROL ASSY
# 068
MPN: 330-88-61-00
RHEPSTAT CONTROL ASSY
# 069
MPN: 330-83-92-00
KNOB
# 070
MPN: 330-37-12-00
THERMOSTAT CONTROL ASSY
# 071
MPN: 330-89-80-00
THERMOSTAT CONTROL COVER PLATE
# 072
MPN: 330-89-80-01
RHEOSTAT CONTROL COVER PLATE
# 073
MPN: 330-89-80-02
AIR CONTROL COVER PLATE
# 074
MPN: 330-89-80-03
KNOB COVER PLATE
# 075
MPN: 330-83-83-00
SEAT CONTROL SWITCH COVER PLATE
# 076
MPN: 330-38-00-00
AIR CONDIT. CONTROL PANEL
# 077
MPN: 330-83-84-00
COVER PLATE
# 078
MPN: DNT 77777
PANEL FIXING NUT
# 079
MPN: RAT/45678
WASHER
from £0.84
from £0.84
This part replaces part number 45678
# 080
MPN: RNT 35345
WASHER
# 081
MPN: LPN 75724
Switch bulb
# 083
MPN: 330-92-53-00
BULB HOLDER
# 084
MPN: 330-92-54-00
BULB HOLDER, REAR LAMPS
# 085
MPN: LPN 90068
REAR LAMP BULB 12V - 5/21W
# 086
MPN: LPN 90069
Rear lamp bulb 12V - 21W
# 087
MPN: 330-92-54-01
BULB HOLDER, REAR LAMPS
# 088
MPN: 330-92-64-00
PANEL PLEXIGLASS
# 089
MPN: 330-92-51-00
FUEL CONSUMPTION GAUGE
# 090
MPN: 330-89-85-00
FUEL GAUGE
# 091
MPN: 330897400
SPEEDOMETER (EUROPE)
from £230.00
from £230.00
# 091
MPN: 330-89-74-40
SPEEDOMETER (USA)
# 092
MPN: 330897700
REV COUNTER
from £198.02
from £198.02
# 093
MPN: 330-89-84-00
AMMETER
# 094
MPN: 330-89-83-00
WATER TEMPERATURE GAUGE
# 095
MPN: 330-89-82-00
OIL TEMPERAURE GAUGE
# 096
MPN: 330-89-91-00
OIL PRESSURE GAUGE
# 097
MPN: 330-83-94-00
PANEL STRIKE
# 098
MPN: 320-91-46-00
FRONT SIDE MARKER (ORANGE) (USA)
Supersession
Supersession
# 099
MPN: 320-91-45-00
REAR SIDE MARKER (RED) (USA)
-1979-part-diagram-028.webp "MASERATI QTP.V8 4.9 (S3) 1979 ELECTRICAL SYSTEM PARTS DIAGRAM")
-1979-part-diagram-029.webp "MASERATI QTP.V8 4.9 (S3) 1979 BODY SHELL PARTS DIAGRAM")

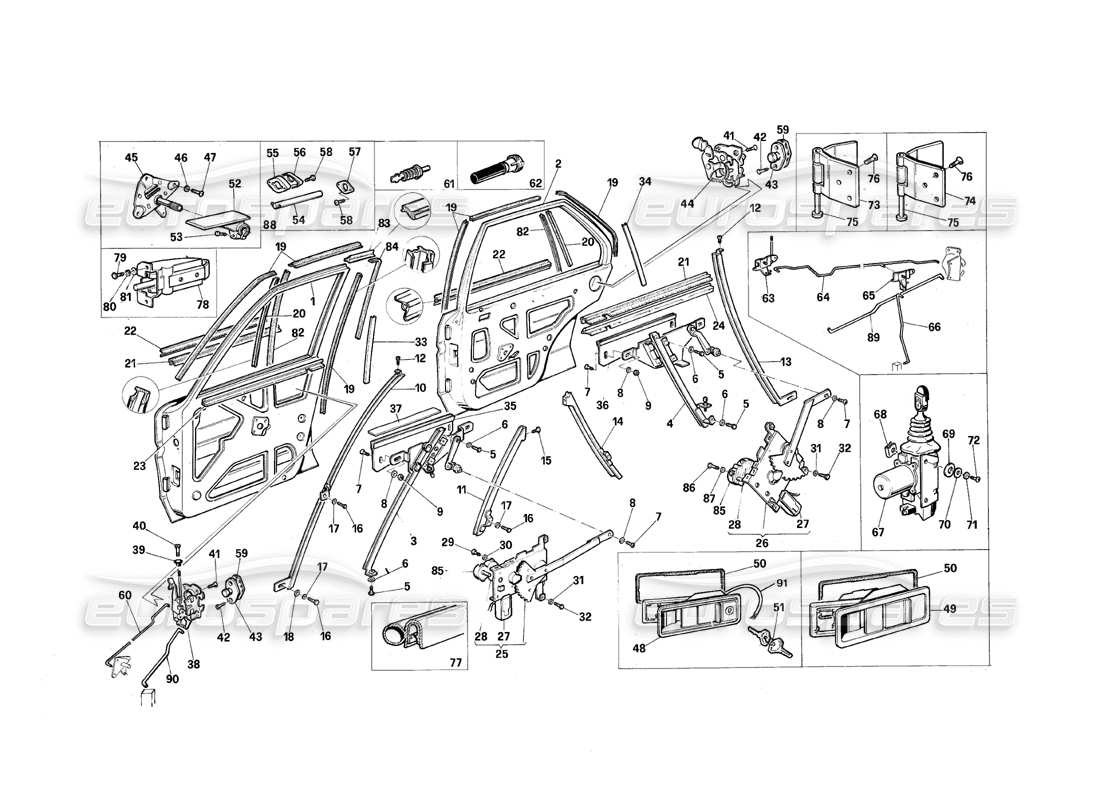

-1979-part-diagram-030.webp "MASERATI QTP.V8 4.9 (S3) 1979 DOORS PARTS DIAGRAM")
-1979-part-diagram-031.webp "MASERATI QTP.V8 4.9 (S3) 1979 BUMPERS AND GLASSES PARTS DIAGRAM")
-1979-part-diagram-032.webp "MASERATI QTP.V8 4.9 (S3) 1979 ENGINE AND TRUNK COMPARTMENT PARTS DIAGRAM")
-1979-part-diagram-033.webp "MASERATI QTP.V8 4.9 (S3) 1979 INTERNAL UPHOLSTERY PARTS DIAGRAM")

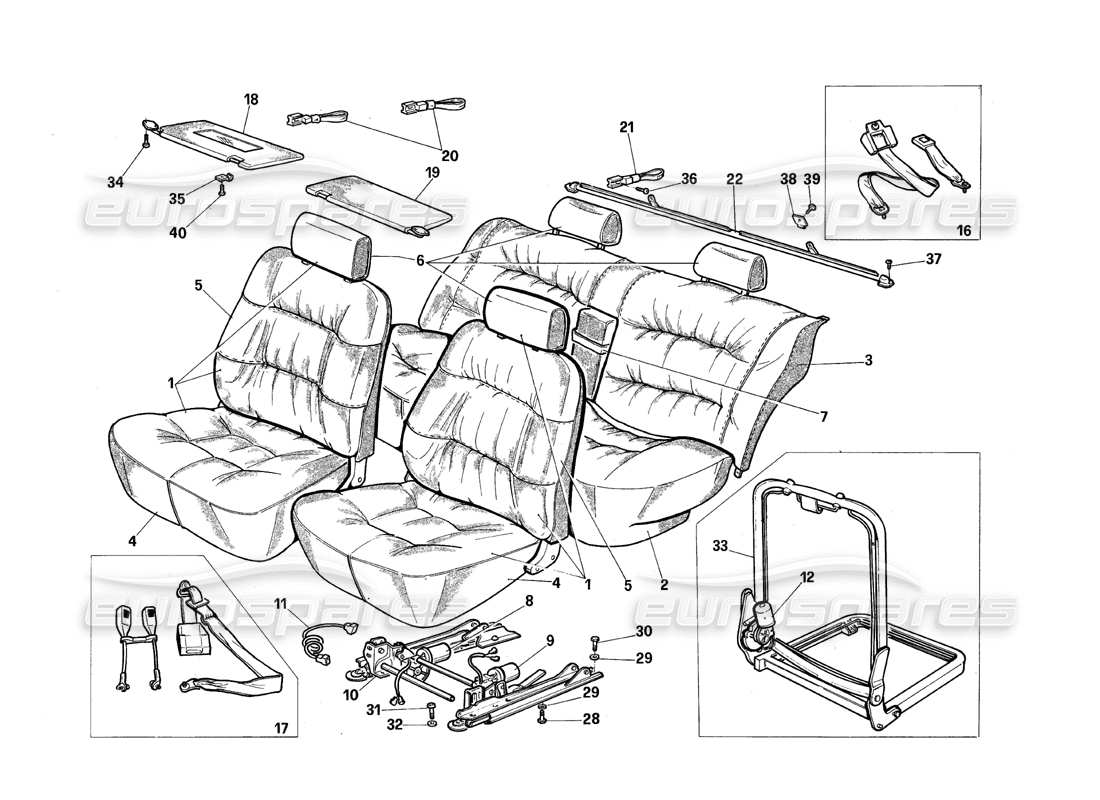

-1979-part-diagram-034.webp "MASERATI QTP.V8 4.9 (S3) 1979 SEATS PARTS DIAGRAM")
-1979-part-diagram-035.webp "MASERATI QTP.V8 4.9 (S3) 1979 CARPETS PARTS DIAGRAM")
-1979-part-diagram-036.webp "MASERATI QTP.V8 4.9 (S3) 1979 TOOLS PARTS DIAGRAM")
-1979-part-diagram-001.webp "MASERATI QTP.V8 4.9 (S3) 1979 CYLINDAR HEADS PARTS DIAGRAM")
-1979-part-diagram-002.webp "MASERATI QTP.V8 4.9 (S3) 1979 ENGINE HOUSING PARTS DIAGRAM")
-1979-part-diagram-003.webp "MASERATI QTP.V8 4.9 (S3) 1979 MOVING PARTS PARTS DIAGRAM")

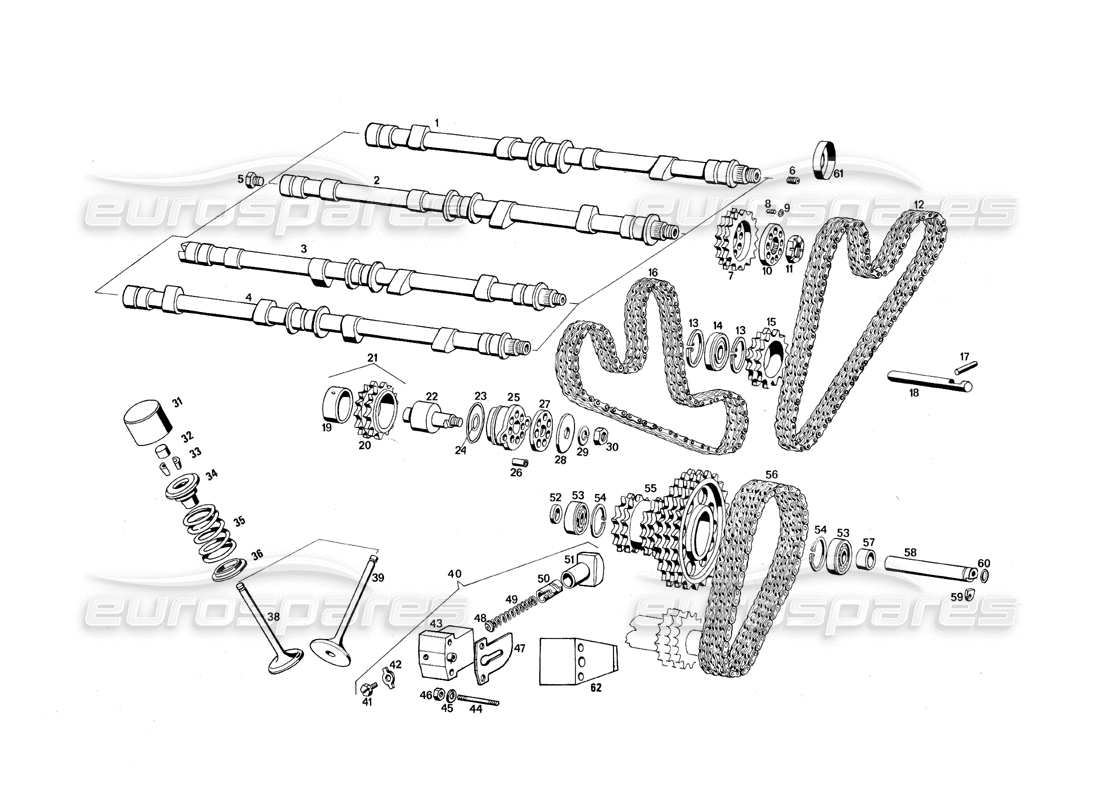

-1979-part-diagram-004.webp "MASERATI QTP.V8 4.9 (S3) 1979 TIMING PARTS DIAGRAM")
-1979-part-diagram-005.webp "MASERATI QTP.V8 4.9 (S3) 1979 OIL PUMP - WATER PUMP PARTS DIAGRAM")
-1979-part-diagram-006.webp "MASERATI QTP.V8 4.9 (S3) 1979 BELTS AND PULLEY PARTS DIAGRAM")
-1979-part-diagram-007.webp "MASERATI QTP.V8 4.9 (S3) 1979 ENGINE COOLING PARTS DIAGRAM")
-1979-part-diagram-008.webp "MASERATI QTP.V8 4.9 (S3) 1979 ELECTRICAL EQUIPMENT PARTS DIAGRAM")

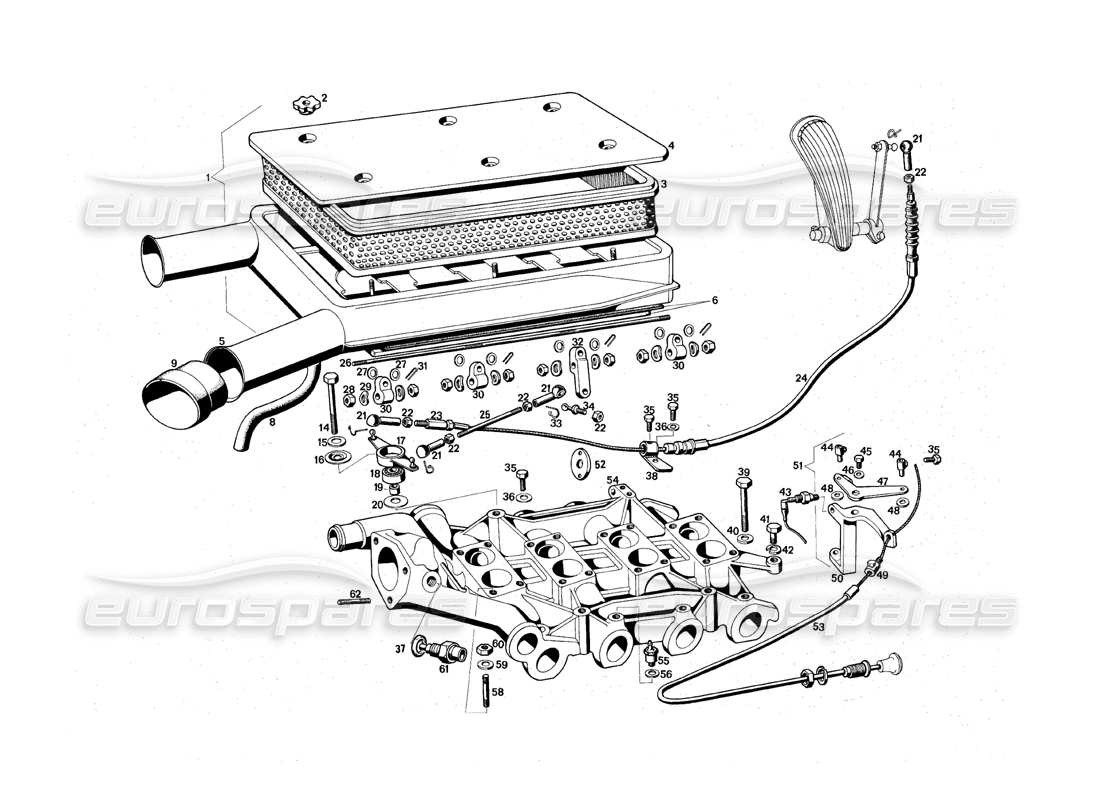

-1979-part-diagram-009.webp "MASERATI QTP.V8 4.9 (S3) 1979 AIR INTAKE MANIFOLD AND HOUSING PARTS DIAGRAM")

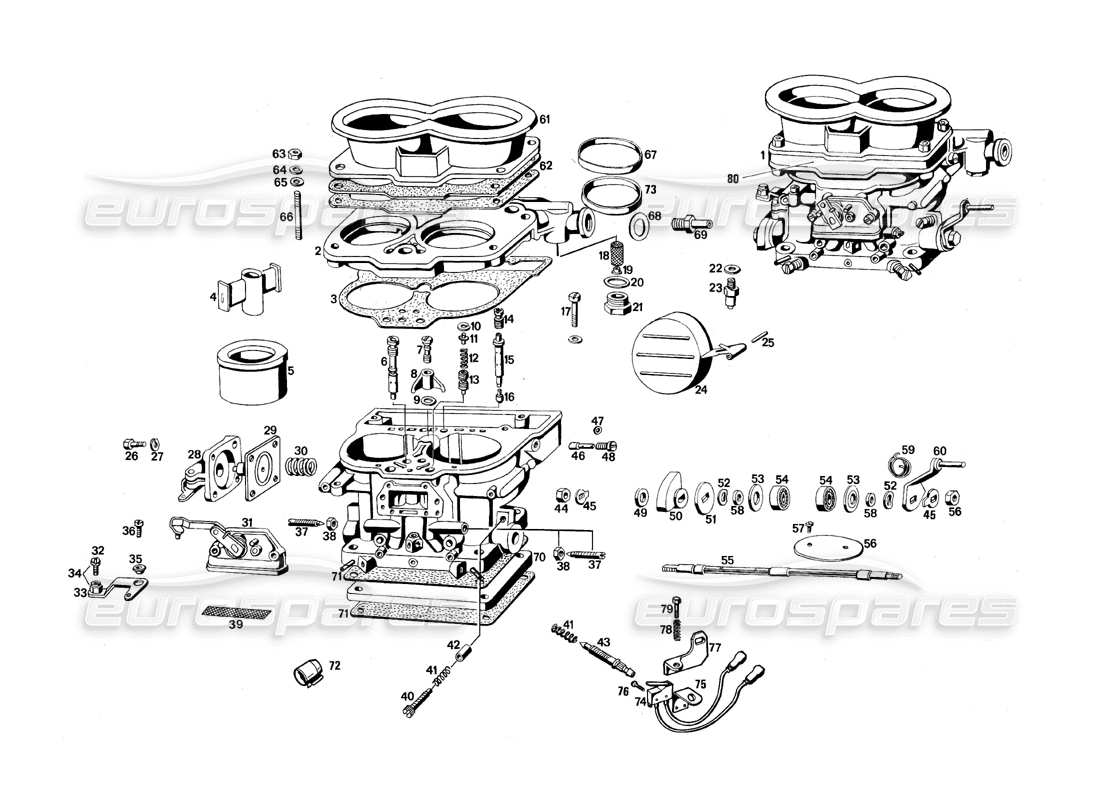

-1979-part-diagram-010.webp "MASERATI QTP.V8 4.9 (S3) 1979 CARBURETOR PARTS DIAGRAM")
-1979-part-diagram-011.webp "MASERATI QTP.V8 4.9 (S3) 1979 CLUTCH PARTS DIAGRAM")
-1979-part-diagram-012.webp "MASERATI QTP.V8 4.9 (S3) 1979 TRANSMISSION HOUSING PARTS DIAGRAM")
-1979-part-diagram-013.webp "MASERATI QTP.V8 4.9 (S3) 1979 TRANSMISSION GEAR PARTS DIAGRAM")

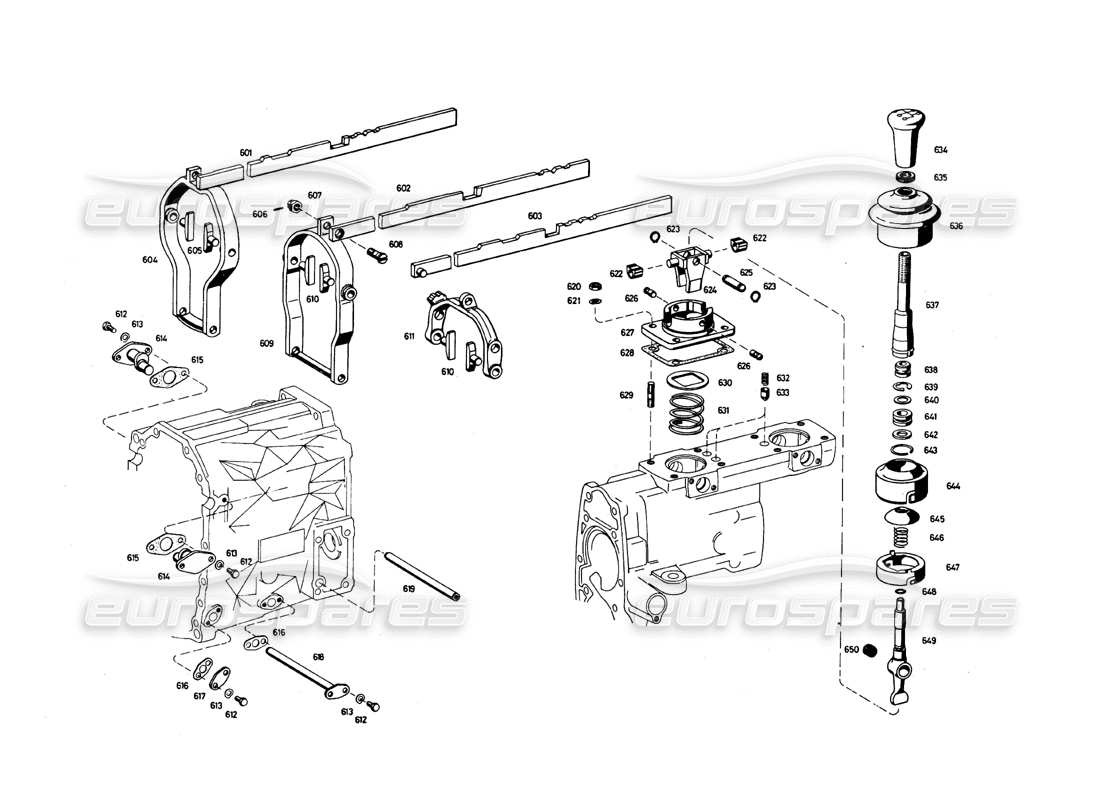

-1979-part-diagram-014.webp "MASERATI QTP.V8 4.9 (S3) 1979 TRANSMISSION CONTROL PARTS DIAGRAM")
-1979-part-diagram-015.webp "MASERATI QTP.V8 4.9 (S3) 1979 PEDALS AND CONTROLS - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-1979-part-diagram-016.webp "MASERATI QTP.V8 4.9 (S3) 1979 AUTOMATIC TRANSMISSION PARTS DIAGRAM")

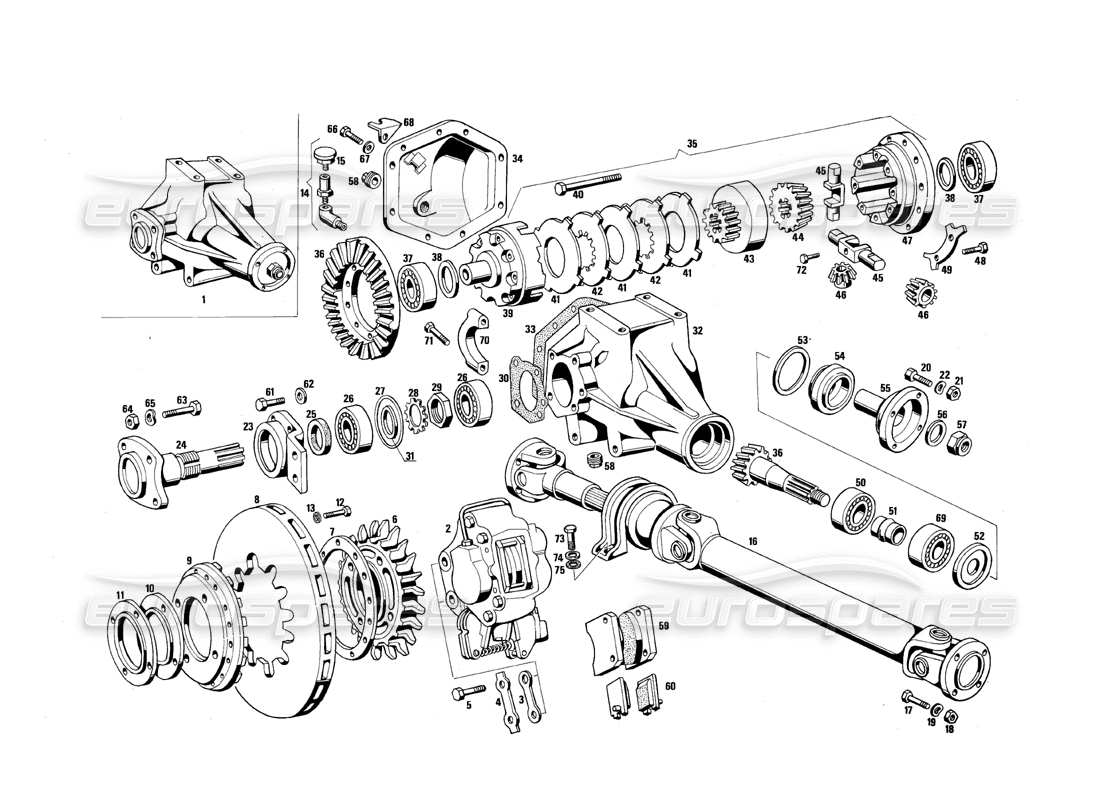

-1979-part-diagram-017.webp "MASERATI QTP.V8 4.9 (S3) 1979 DIFFERENTIAL AND PROPELLER SHAFT PARTS DIAGRAM")
-1979-part-diagram-018.webp "MASERATI QTP.V8 4.9 (S3) 1979 FRAME PARTS DIAGRAM")
-1979-part-diagram-019.webp "MASERATI QTP.V8 4.9 (S3) 1979 FRONT SUSPENSION PARTS DIAGRAM")
-1979-part-diagram-020.webp "MASERATI QTP.V8 4.9 (S3) 1979 REAR SUSPENSION PARTS DIAGRAM")
-1979-part-diagram-021.webp "MASERATI QTP.V8 4.9 (S3) 1979 STEERING PARTS AND PEDALS PARTS DIAGRAM")

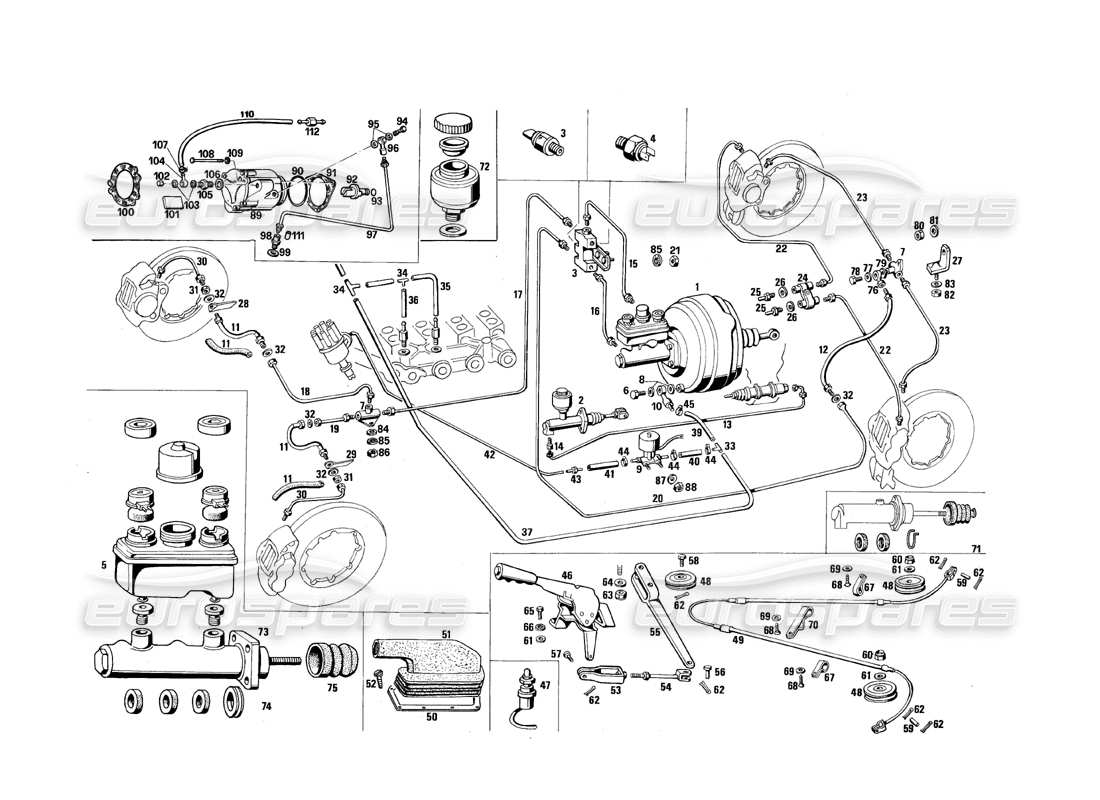

-1979-part-diagram-022.webp "MASERATI QTP.V8 4.9 (S3) 1979 BREAK CONTROL PARTS DIAGRAM")
