036 - Tools

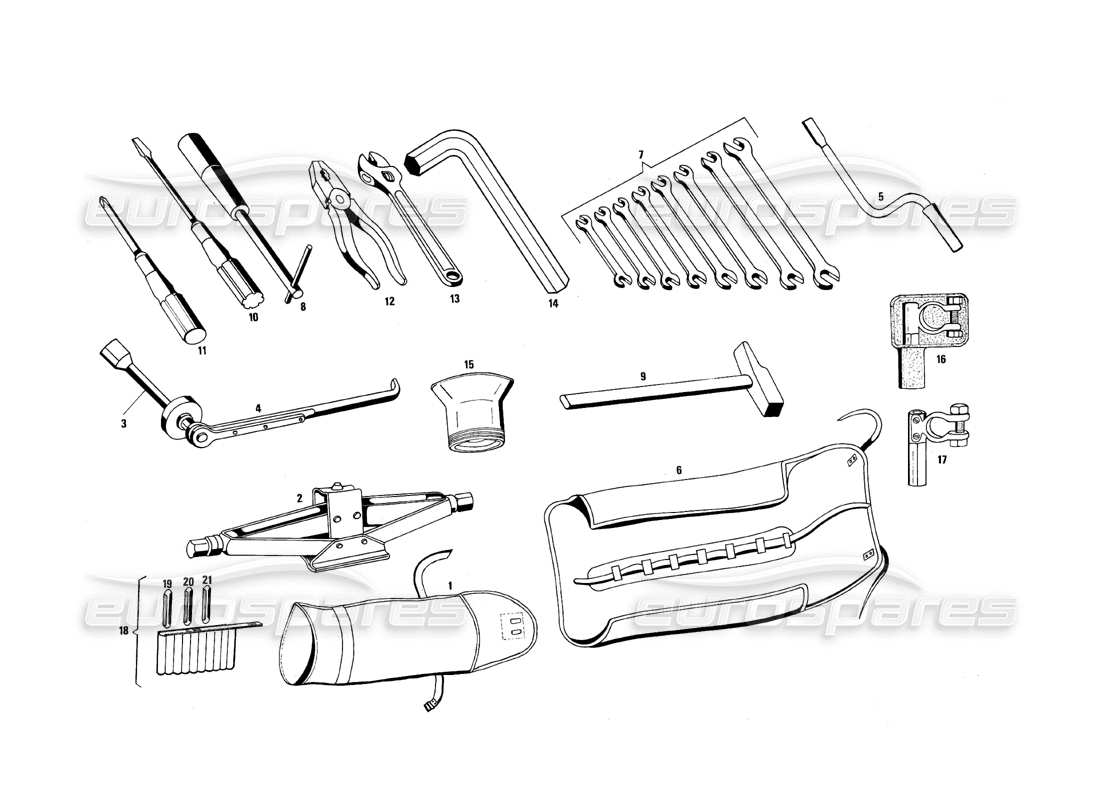

Maserati QTP.V8 4.9 (S3) 1979 Tools Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 130 VA 93680
JACK BAG
# 002
MPN: 130 VA 93672
JACK
# 003
MPN: 129 VA 93678
JACK EXTENSION
# 004
MPN: 129 VA 93679
RELEASE WRENCH FOR JACK
# 005
MPN: 503-41-009
Emergency lever for window regulator
# 006
MPN: 129 VA 82722
TOOL BAG
# 007
MPN: 122 VA 83967
WRENCH SET
# 008
MPN: 122 VA 82049
Spark plug wrench
# 009
MPN: 101 VA 34219
Steel hammer 400 gr.
# 010
MPN: 122 VA 83698
EDGE SCREWDRIVER
# 011
MPN: 130 VA 94378
Cross screwdriver
# 012
MPN: 122- VA 83699
CUTTING PLIERS
# 013
MPN: 101 VA 34917
MONKEY WRENCH
# 014
MPN: 115 VA 66913
Set screw wrench for oil drain plug
# 015
MPN: 107 VA 67310
Reduction for carburator syncronizer
# 016
MPN: 130 VA 94334
ADAPTER CLAMP FOR POSITIVE POLE
# 017
MPN: 130 VA 94335
ADAPTER CLAMP FOR NEGATIVE POLE
# 018
MPN: 130 VA 94360
Spare fuses box
# 019
MPN: 330-92-57-00
Fuse of 1.6 Amp.
# 020
MPN: 330-92-58-00
Fuse of 3.15 Amp.
# 021
MPN: VFN 90924
Fuse of 5 Amp.
