004 - fastenings and block accessories

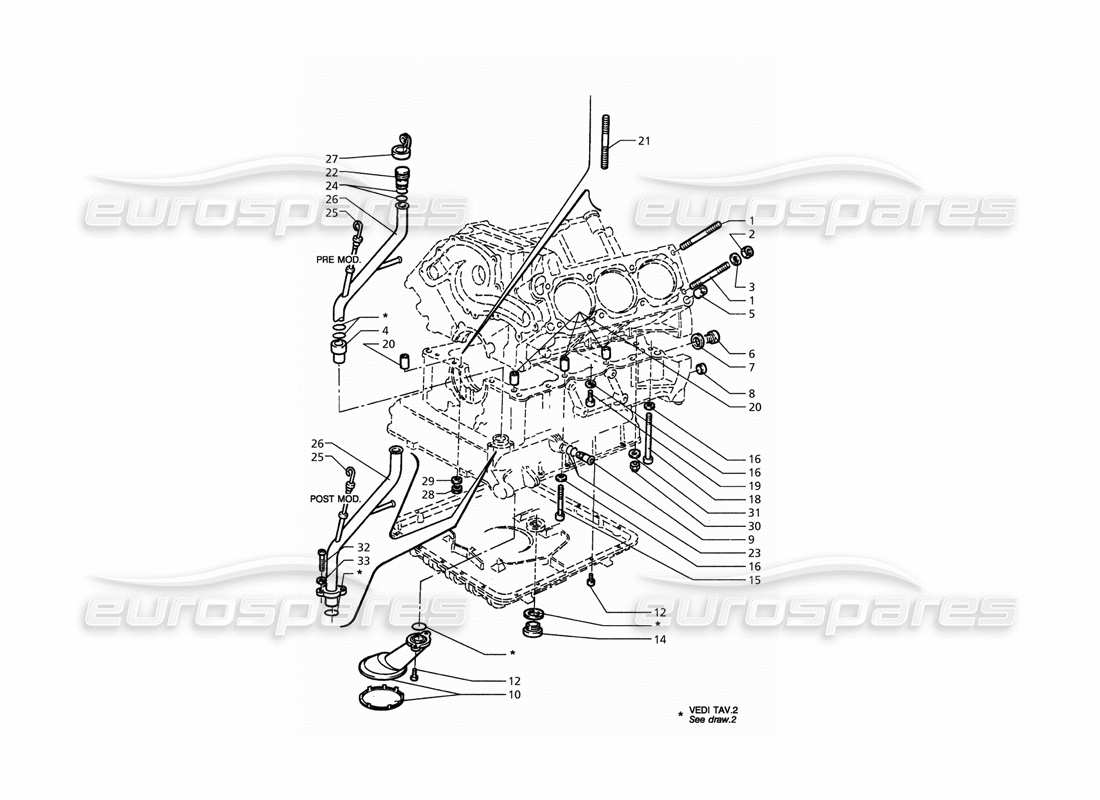

Maserati QTP. 3.2 V8 (1999) Fastenings and Block Accessories Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 475010800
STUD FIXING CYLINDER HEAD
from £5.23
from £5.23
# 002
MPN: 475005401
NUT
from £10.78
from £10.78
This part replaces part number 475005400 which we have in stock
# 003
MPN: 390450343
FLAT WASHER
# 004
MPN: 310453307
BUSH
# 005
MPN: 310420330
DOWEL
from £2.93
from £2.93
# 006
MPN: 310420333
PLUG
from £1.45
from £1.45
# 007
MPN: 319220424
GASKET
from £0.71
from £0.71
# 008
MPN: 310420339
PLUG
# 009
MPN: 310420312
UNION
# 010
MPN: 311820110
OIL PUMP PICK UP
from £38.22
from £38.22
This part replaces part number 311820307
# 012
MPN: 108006018
SCREW
# 014
MPN: 310420303
OIL SUMP DRAIN PLUG
from £2.39
from £2.39
# 015
MPN: 108008070
SCREW
# 016
MPN: 138410080
RETAINING WASHER
# 018
MPN: 14302120
SCREW FIXING BLOCK
from £1.59
from £1.59
This part replaces part number 108008110
# 019
MPN: 14306424
SCREW
from £0.47
from £0.47
# 020
MPN: 310420311
DOWEL
from £9.91
from £9.91
# 021
MPN: 310420331
STUD FOR CRANKSHAFT SUPPORT
# 022
MPN: 310453314
OIL FILLER CAP
# 023
MPN: 310420306
RUBBER GASKET
# 024
MPN: 310453342
RUBBER GASKET
# 025
MPN: 310453110
OIL DIP STICK
- Pre modification
from £2.93
from £2.93
# 025
MPN: 571044000
OIL DIP STICK
- Post modification
from £7.23
from £7.23
# 026
MPN: 310453313
OIL FILLING PIPE
- Pre modification
from £310.75
from £310.75
# 026
MPN: 571012800
OIL FILLING PIPE
- Post modification
Supersession
Supersession
# 027
MPN: 495014200
CLAMP
from £15.15
from £15.15
# 028
MPN: 310620371
NUT
# 029
MPN: 310620372
FLAT WASHER
from £1.43
from £1.43
This part replaces part number 67801
# 030
MPN: 390450346
BOX NUT
Supersession
Supersession
# 031
MPN: 479014200
FLAT WASHER
from £5.23
from £5.23
# 032
MPN: 108006014
SCREW FIXING PIPE
# 033
MPN: 84157
WASHER
- (pre mod.) - Valid for 00 version - In order, specify the class stamped on the - counterweight - Up to engine no. 200359 (2000 cc.) - Up to engine no. 400827 (2800 cc.) - (pre mod.) - Valid for 19, 05 version - In order, specify the class stamped on t
Supersession
Supersession
