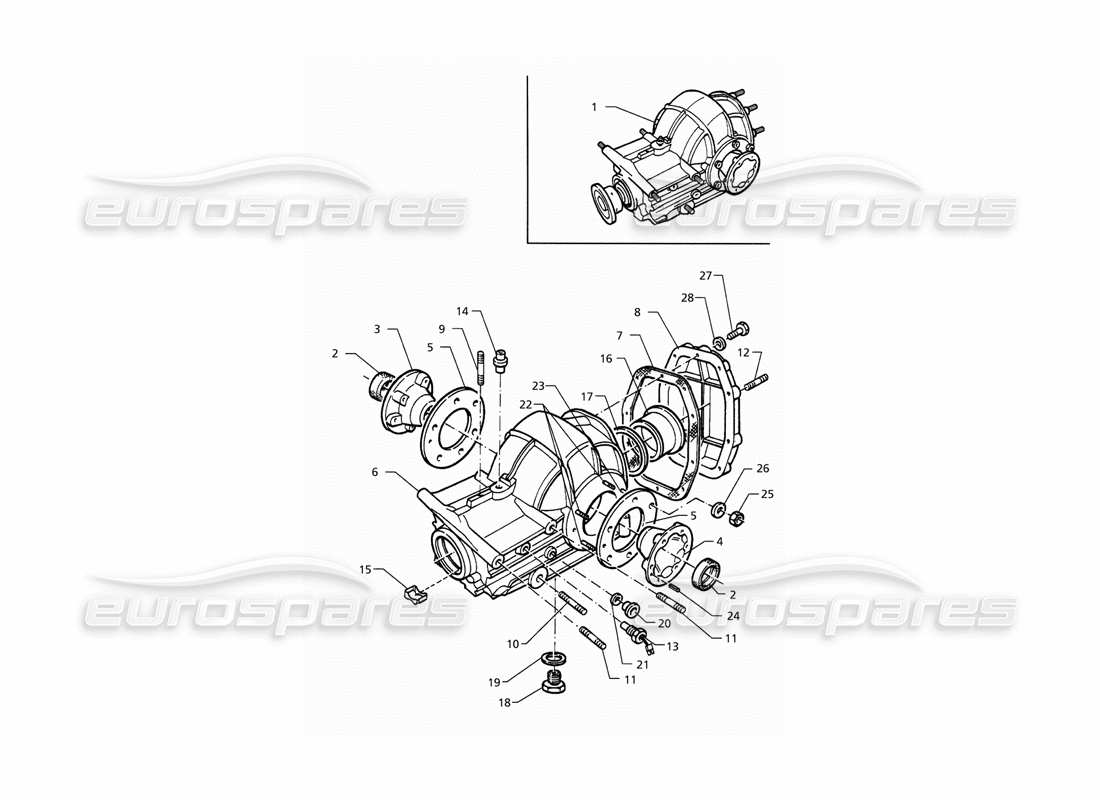

030 - Differential External Parts
Maserati QTP. 3.2 V8 (1999) Differential External Parts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 376200003
DIFFERENTIAL ASSY R=3,25
- Valid for 19, 05 version
Supersession
Supersession
# 001
MPN: 376200006
DIFFERENTIAL ASSY R=3,45
- Valid for 00 version
Supersession
Supersession
# 001
MPN: 376206005
DIFFERENTIAL ASSY R=3,91
- Valid for 20, 06 version
from £892.50
from £892.50
# 002
MPN: 376200125
OIL SEAL
from £18.17
from £18.17
# 003
MPN: 376200386
DRIVE AXLE RH ATTACHMENT HUB
- Valid for 19, 05 and 00 version
from £107.78
from £107.78
# 003
MPN: 376206386
DRIVE AXLE RH ATTACHMENT HUB
- Valid for 20, 06 version
from £181.79
from £181.79
# 004
MPN: 376200385
DRIVE AXLE LH ATTACHMENT HUB
- Valid for 19, 05 and 00 version
from £104.64
from £104.64
# 004
MPN: 376206385
DRIVE AXLE LH ATTACHMENT HUB
- Valid for 20, 06 version
from £116.30
from £116.30
# 005
MPN: 376200353
SHIM
from £11.64
from £11.64
# 006
-
EXTERNAL BOX
- Not supplied
# 007
MPN: 376200365
GASKET
from £6.44
from £6.44
# 008
MPN: 376200525
BOX COVER
from £33.03
from £33.03
# 009
MPN: 376200605
STUD, M10X50
from £7.07
from £7.07
# 010
MPN: 376200603
STUD, M12X35
from £2.82
from £2.82
# 011
MPN: 376200604
STUD, M10X30
from £1.07
from £1.07
# 012
MPN: 376200606
STUD, M8X65
from £1.90
from £1.90
# 014
MPN: 376200107
BREATHER PIPE
from £2.29
from £2.29
# 015
MPN: 376200390
OIL DEFLECTOR
from £4.36
from £4.36
# 016
MPN: 376200360
PINION BEARING SEAT
from £64.12
from £64.12
# 017
MPN: 376200347
SHIM
from £9.89
from £9.89
# 018
MPN: 376200346
OIL DRAINAGE PLUG
from £4.11
from £4.11
# 019
MPN: 376200342
GASKET
from £1.07
from £1.07
# 020
MPN: 376200548
OIL LEVEL PLUG
from £10.19
from £10.19
# 021
MPN: 376200549
GASKET
from £2.52
from £2.52
# 022
MPN: 105010022
STUD
# 023
MPN: 104810022
STUD
# 024
MPN: 144205020
SPRING PIN
from £0.69
from £0.69
# 025
MPN: 125200100
NUT
# 026
MPN: 135300105
WASHER
# 027
MPN: 100708040
SCREW
# 028
MPN: 741630
WASHER
