069.1 - Insulation

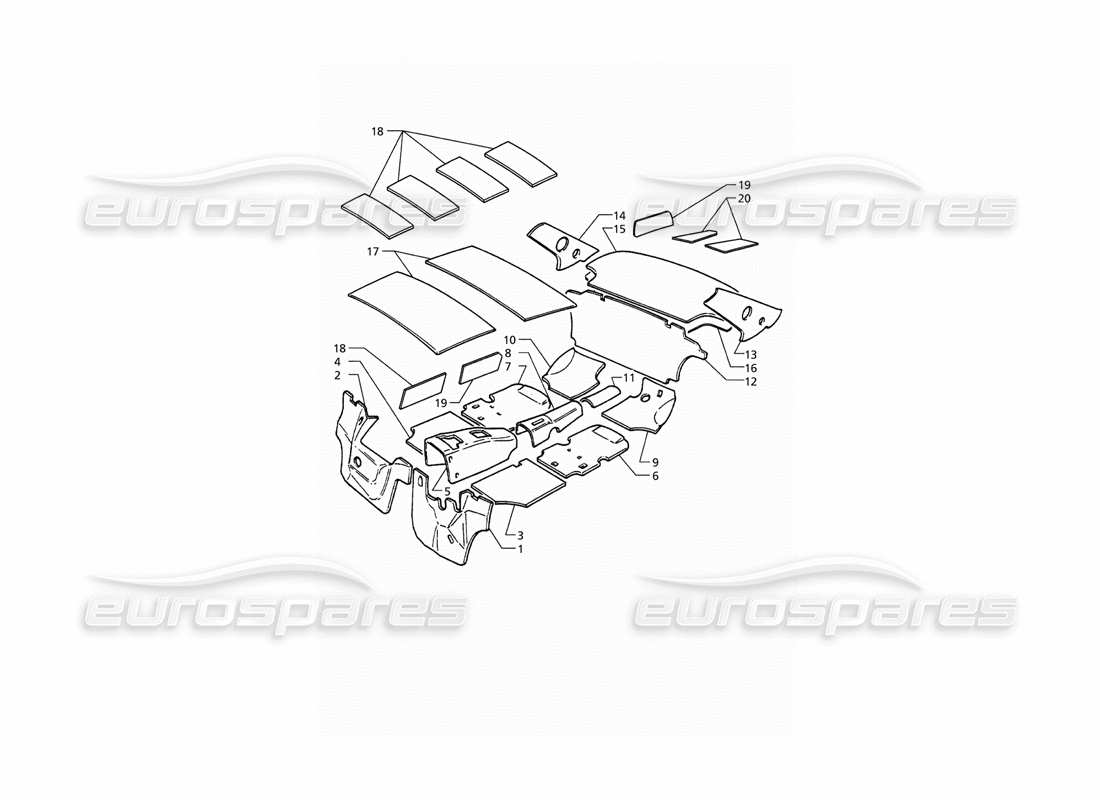

Maserati QTP. 3.2 V8 (1999) Insulation Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 371500423
LH FLAMEPROOF INSULATION
- Valid for 06, 05 and 00 version
from £61.04
from £61.04
# 001
MPN: 371515423
LH FLAMEPROOF INSULATION
- Valid for 20, 19 version
from £0.47
from £0.47
# 002
MPN: 371500424
RH FLAMEPROOF INSULATION
- Valid for 06, 05 and 00 version
from £62.69
from £62.69
# 002
MPN: 371515424
RH FLAMEPROOF INSULATION
- Valid for 20, 19 version
from £72.81
from £72.81
# 003
MPN: 371500405
FRONT LH FLOOR INSULATION
from £28.30
from £28.30
# 004
MPN: 371500406
FRONT RH FLOOR INSULATION
from £24.10
from £24.10
# 005
MPN: 371500413
FRONT TUNNEL INSULATION
- Valid for 06, 05 and 00 version
from £41.73
from £41.73
# 005
MPN: 371515413
FRONT TUNNEL INSULATION
- Valid for 20, 19 version
# 006
MPN: 371500409
REAR LH FLOOR INSULATION
from £36.04
from £36.04
# 007
MPN: 371500410
REAR RH FLOOR INSULATION
from £37.53
from £37.53
# 008
MPN: 371500414
REAR TUNNEL INSULATION
- Valid for 06, 05 and 00 version
from £22.75
from £22.75
# 008
MPN: 371515414
REAR TUNNEL INSULATION
- Valid for 20, 19 version
# 009
MPN: 371500415
LH INSULATION UNDER REAR SEAT
from £23.65
from £23.65
# 010
MPN: 371500416
RH INSULATION UNDER REAR SEAT
from £23.65
from £23.65
# 011
MPN: 371500437
CENTRE INSULATION UNDER REAR SEAT
from £8.70
from £8.70
# 012
MPN: 371500419
REAR WALL INSULATION
from £35.20
from £35.20
# 013
MPN: 371500427
REAR LH PILLAR INSULATION
from £11.86
from £11.86
# 014
MPN: 371500428
REAR RH PILLAR INSULATION
from £11.86
from £11.86
# 015
MPN: 371500418
UPPER INSULATION UNDER REAR WINDOW
from £36.18
from £36.18
This part replaces part number 371500417
# 016
MPN: 371500417
LOWER HEAT ADHESIVE INSULATION UNDER REAR WINDOW
Supersession
Supersession
# 017
MPN: 328320466
CEILING INSULATION
from £6.54
from £6.54
# 018
MPN: 371500443
HEAT ADHESIVE INSULATION ON FRONT DOORS/CEILING
from £46.10
from £46.10
# 019
MPN: 371500442
HEAT ADHESIVE INSULATION ON REAR DOORS/BOOT SIDE PANELS
from £2.03
from £2.03
# 020
MPN: 371500441
HEAT ADHESIVE INSULATION ON BOOT LID
from £1.57
from £1.57
