maserati qtp v6 (1996) engine block and oil sump parts diagram

003 - engine block and oil sump

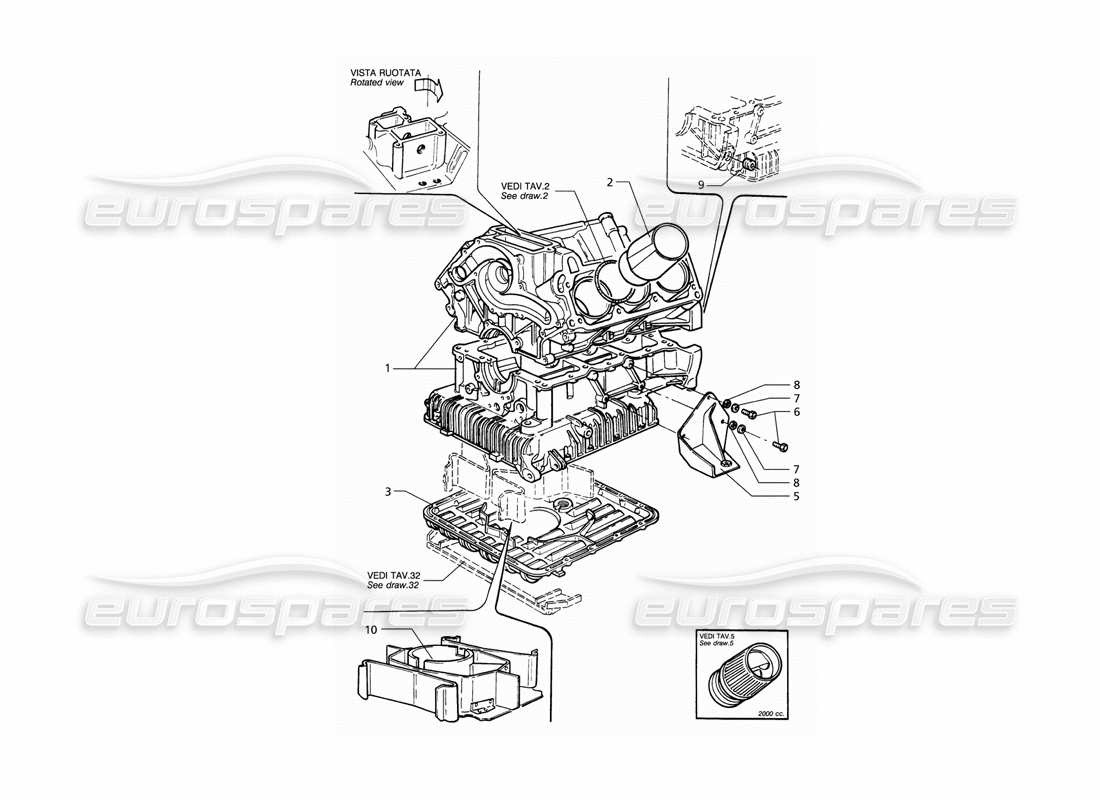

Maserati QTP V6 (1996) Engine Block and Oil Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 580942200
                BLOCK
                - Valid for 2.0 M.T. version
                from £3,492.24
                from £3,492.24

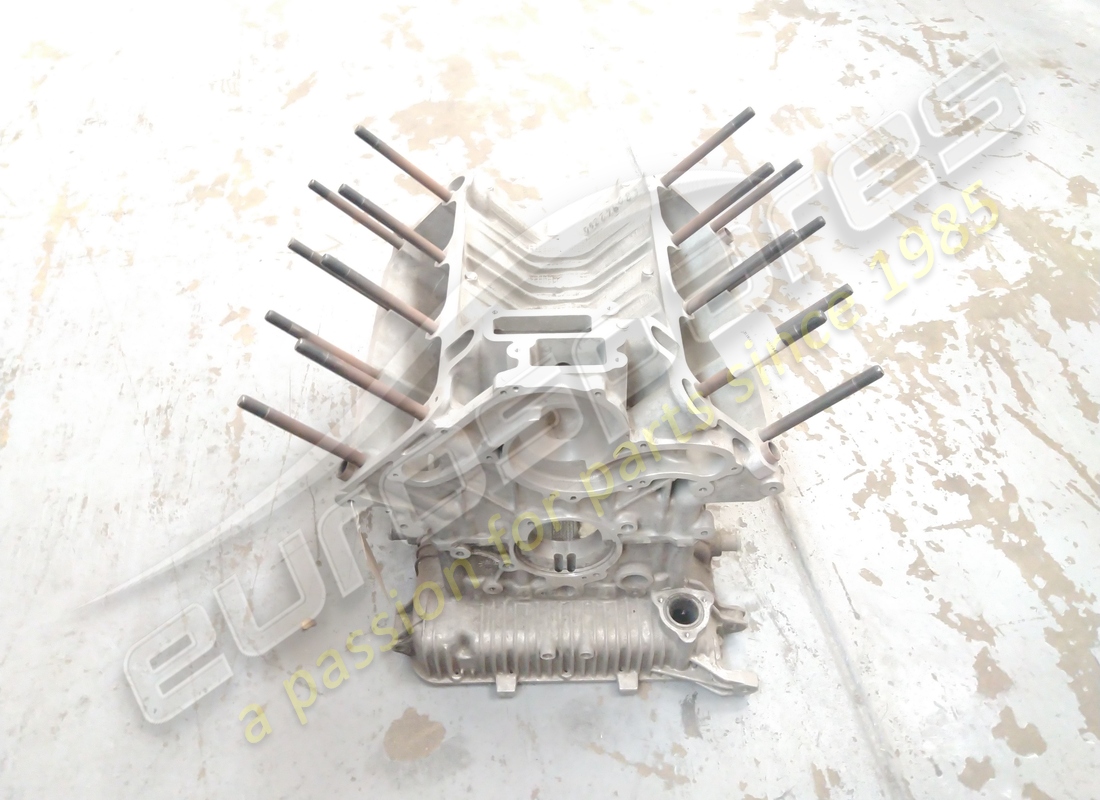

                Engine Block 2000 Genuine Maserati Part - New In stock
                # 001
                MPN: 581942200
                BLOCK
                - Valid for 2.8 M.T. and 2.8 A.T. version
                from £3,256.90
                from £3,256.90
                CYLINDER BLOCK Genuine Maserati Part - New In stock
                # 002
                MPN: 464010100
                LINER FOR CYLINDERS
                - Valid for 2.8 M.T. and 2.8 A.T. version
                from £186.48
                from £186.48
                This part replaces part number 340600316
                CANNE CILINDRO D=94 Genuine Maserati Part - New (to order)
                # 003
                MPN: 470010900
                engine oil sump
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                # 005
                MPN: 331244800
                RH ENGINE SUPPORT
                from £16.27
                from £16.27
                RH BRACKET OR ENGINE MOUNT Genuine Maserati Part - New (to order)
                # 005
                MPN: 331244900
                L. H. ENGINE SUPPORT
                from £15.57
                from £15.57
                LH BRACKET OR ENGINE MOUNT Genuine Maserati Part - New In stock
                # 007
                MPN: 14496601
                FLAT WASHER
                Supersession
                Supersession
                Genuine Maserati Part (no longer available to order)
                Genuine Ferrari Part (no longer available to order)
                # 008
                MPN: 134700105
                LOCK WASHER
                from £1.08
                from £1.08
                WASHER Genuine Maserati Part - New In stock
                # 009
                MPN: 312020368
                WIRE INLET
                from £0.56
                from £0.56
                WIRE INLET Genuine Maserati Part - New (to order)
                # 010
                MPN: 580011000
                OIL SUMP PLATE
                from £9.20
                from £9.20
                This part replaces part number 571983900
                OIL SUMP GUARD Genuine Maserati Part - New (to order)
