maserati qtp v6 (1996) vacuum system (rhd) parts diagram

011GD - Vacuum System (RHD)

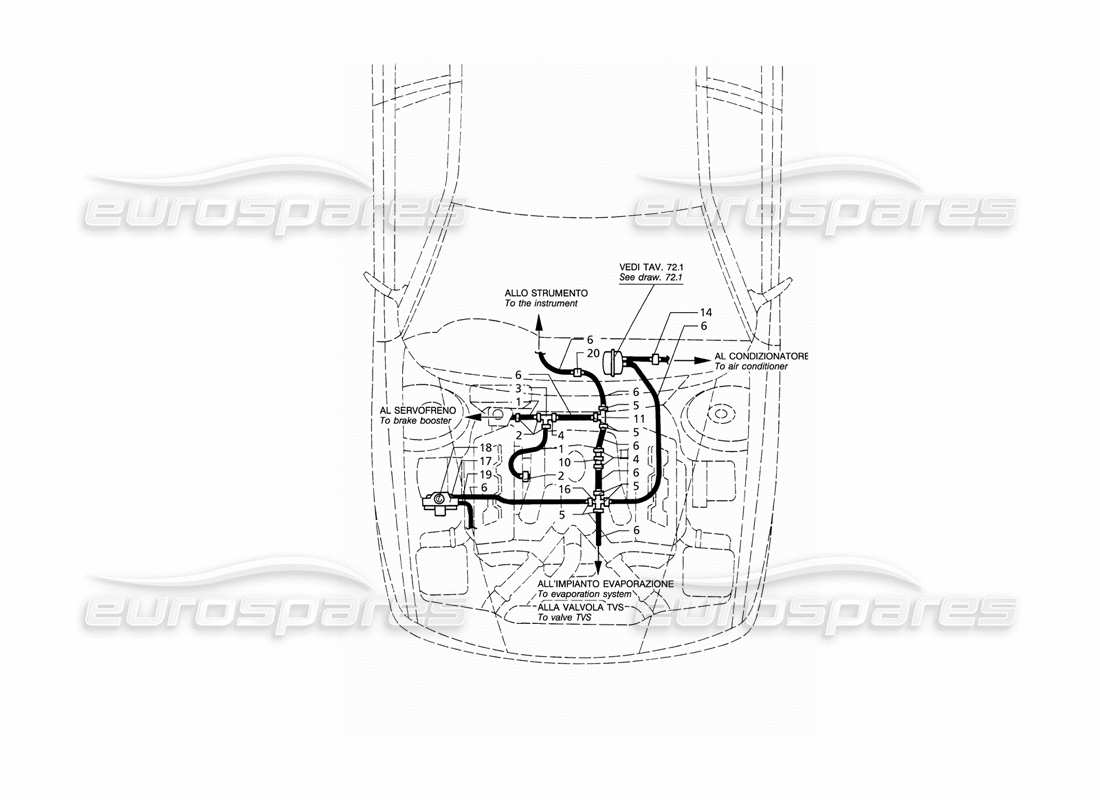

Maserati QTP V6 (1996) Vacuum System (RHD) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 001
                          MPN: 95742
                          SLEEVE
                          - Section in metres - order minimum amount of 10 m or multiples
                          from £10.43
                          from £10.43
                          This part replaces part number 312048302 - and 5 more. Click to view details
                          AEROQUIP FUEL PIPE 19.1X1X12.7 Genuine Maserati Part - New (to order)
                          # 002
                          MPN: 312020404
                          CLAMP
                          from £4.17
                          from £4.17
                          CLAMP VISA-CV220 Genuine Maserati Part - New (to order)
                          # 003
                          MPN: 312027337
                          THREE WAY UNION
                          Maserati PART 312027337 Genuine Maserati Part - New (to order)
                          # 004
                          MPN: 312050310
                          CLAMP
                          from £1.08
                          from £1.08
                          CLICK CLAMP 55080 Genuine Maserati Part - New (to order)
                          # 006
                          MPN: 300100803
                          SLEEVE
                          - Section in metres - order minimum amount of 10 m or multiples
                          from £54.96
                          from £54.96
                          This part replaces part number 318720329
                          RUBBER HOSE E 2F-10 8X3.5 9AT4 Genuine Maserati Part - New (to order)
                          # 010
                          MPN: 315520169
                          CHECK VALVE
                          from £6.98
                          from £6.98
                          CHECK VALVE Genuine Maserati Part - New (to order)
                          # 011
                          MPN: 312020336
                          THREE WAY UNION
                          from £0.85
                          from £0.85
                          Y-CONNECTOR Genuine Maserati Part - New (to order)
                          # 014
                          MPN: 165010100
                          WIRE INLET
                          from £0.99
                          from £0.99
                          CABLE GUIDE Genuine Maserati Part - New (to order)
                          # 016
                          MPN: 312030422
                          FOUR WAY UNION
                          from £0.99
                          from £0.99
                          4-WAY UNION-KS 4 Genuine Maserati Part - New (to order)
                          # 017
                          MPN: 325520172
                          VACUUM PUMP
                          from £99.75
                          from £99.75
                          VACUUM PUMP Genuine Maserati Part - New (to order)
                          VACUUM PUMP Genuine Maserati Part - Used In stock
                          - Valid for 22, 21 version
                          # 018
                          MPN: 325520345
                          GROMMET
                          from £1.08
                          from £1.08
                          VACUUM PUMP GROMMET Genuine Maserati Part - New In stock
                          # 019
                          MPN: 325520348
                          SLEEVE L = 200 MM
                          from £0.56
                          from £0.56
                          EXHAUST SLEEVE Genuine Maserati Part - New (to order)
                          # 020
                          MPN: 313620303
                          UNION
                          from £0.78
                          from £0.78
                          UNION FOR TURBO Genuine Maserati Part - New (to order)
