maserati qtp v6 (1996) fuel tank parts diagram

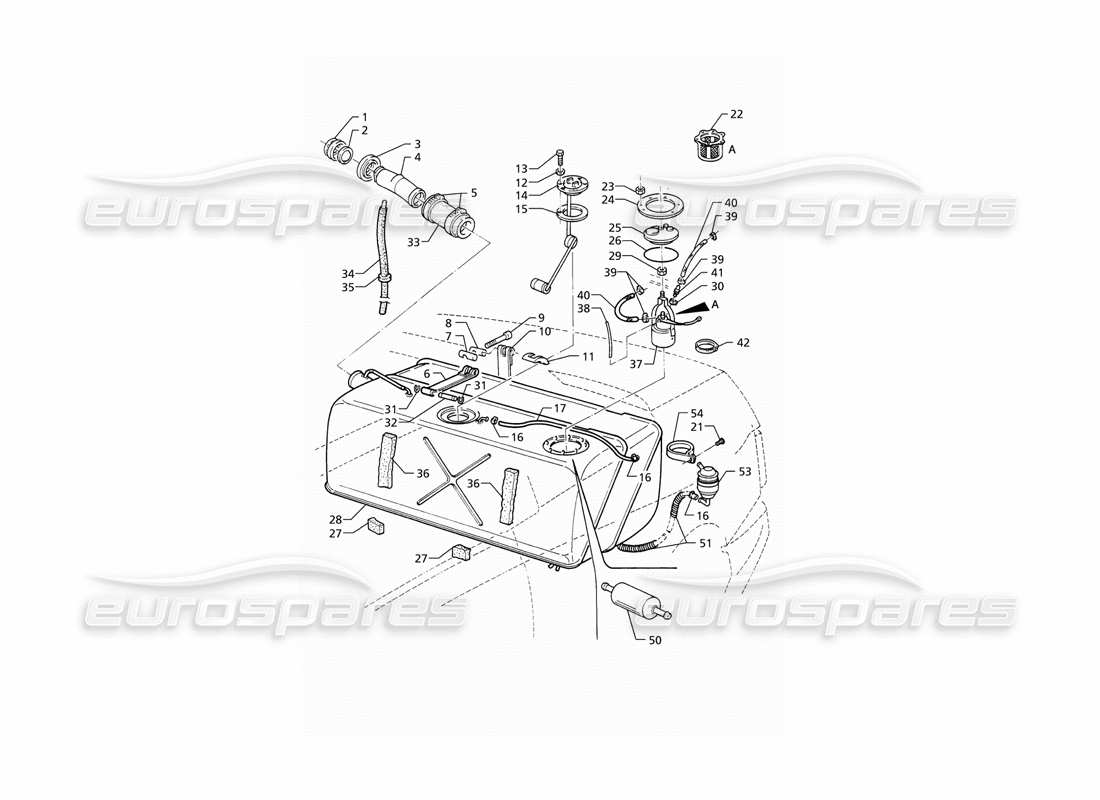

023 - FUEL TANK

Maserati QTP V6 (1996) Fuel Tank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 319220354
                                                                                    FUEL TANK CAP
                                                                                    from £6.31
                                                                                    from £6.31
                                                                                    This part replaces part number 319220007
                                                                                    # 002
                                                                                    MPN: 329232355
                                                                                    GASKET
                                                                                    from £6.70
                                                                                    from £6.70
                                                                                    # 003
                                                                                    MPN: 319250411
                                                                                    SEAL RING
                                                                                    from £3.89
                                                                                    from £3.89
                                                                                    This part replaces part number 329232410 - and 1 more. Click to view details
                                                                                    # 004
                                                                                    MPN: 379200117
                                                                                    FILLER NECK
                                                                                    from £58.34
                                                                                    from £58.34
                                                                                    # 005
                                                                                    MPN: 186404087
                                                                                    CLAMP
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 006
                                                                                    MPN: 379230384
                                                                                    TANK UPPER FASTENING STRIP
                                                                                    from £8.52
                                                                                    from £8.52
                                                                                    # 007
                                                                                    MPN: 53921332
                                                                                    STRIP PIN
                                                                                    from £2.29
                                                                                    from £2.29
                                                                                    # 008
                                                                                    MPN: 53921331
                                                                                    STRIP PIN
                                                                                    from £1.52
                                                                                    from £1.52
                                                                                    # 009
                                                                                    MPN: 53921333
                                                                                    SCREW
                                                                                    from £1.97
                                                                                    from £1.97
                                                                                    # 010
                                                                                    MPN: 379230385
                                                                                    TANK LOWER FASTENING STRIP
                                                                                    from £8.52
                                                                                    from £8.52
                                                                                    # 011
                                                                                    MPN: 319220337
                                                                                    STRIP RETAINING BLOCK
                                                                                    from £1.90
                                                                                    from £1.90
                                                                                    # 012
                                                                                    MPN: 136220043
                                                                                    WASHER
                                                                                    # 013
                                                                                    MPN: 53361308
                                                                                    SCREW
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 014
                                                                                    MPN: 313620111
                                                                                    FUEL GAUGE
                                                                                    from £52.37
                                                                                    from £52.37
                                                                                    # 015
                                                                                    MPN: 33331300
                                                                                    GASKET
                                                                                    from £1.90
                                                                                    from £1.90
                                                                                    # 016
                                                                                    MPN: 30921110
                                                                                    CLAMP
                                                                                    # 017
                                                                                    MPN: 318720336
                                                                                    SLEEVE
                                                                                    - Section in metres - order minimum amount of 1 m
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 319220391
                                                                                    # 021
                                                                                    MPN: 119142160
                                                                                    SCREW
                                                                                    from £0.93
                                                                                    from £0.93
                                                                                    # 022
                                                                                    MPN: 393750312
                                                                                    IN TANK PETROL FILTER
                                                                                    from £3.89
                                                                                    from £3.89
                                                                                    # 024
                                                                                    MPN: 399250446
                                                                                    FLANGE
                                                                                    from £13.63
                                                                                    from £13.63
                                                                                    # 025
                                                                                    MPN: 393750130
                                                                                    PETROL PUMP COVER
                                                                                    from £5.41
                                                                                    from £5.41
                                                                                    # 026
                                                                                    MPN: 393750309
                                                                                    GASKET
                                                                                    from £1.52
                                                                                    from £1.52
                                                                                    # 027
                                                                                    MPN: 379200399
                                                                                    FELT PAD
                                                                                    from £1.52
                                                                                    from £1.52
                                                                                    This part replaces part number 319220399
                                                                                    # 028
                                                                                    MPN: 379230006
                                                                                    FUEL TANK
                                                                                    from £1,598.42
                                                                                    from £1,598.42
                                                                                    # 030
                                                                                    MPN: 559221337
                                                                                    CLAMP
                                                                                    from £0.78
                                                                                    from £0.78
                                                                                    # 031
                                                                                    MPN: 150800050
                                                                                    SEEGER RING
                                                                                    # 032
                                                                                    MPN: 30921336
                                                                                    PIN
                                                                                    from £3.58
                                                                                    from £3.58
                                                                                    # 033
                                                                                    MPN: 339232382
                                                                                    SLEEVE
                                                                                    from £64.64
                                                                                    from £64.64
                                                                                    # 034
                                                                                    MPN: 30871325
                                                                                    DRAINAGE TUBE
                                                                                    from £1.26
                                                                                    from £1.26
                                                                                    # 035
                                                                                    MPN: 319220361
                                                                                    FAIRLEAD
                                                                                    from £2.29
                                                                                    from £2.29
                                                                                    # 036
                                                                                    MPN: 379200398
                                                                                    FELT PAD
                                                                                    from £2.29
                                                                                    from £2.29
                                                                                    This part replaces part number 319220398
                                                                                    # 037
                                                                                    MPN: 393750135
                                                                                    IN TANK FUEL PUMP
                                                                                    from £295.00
                                                                                    from £295.00
                                                                                    This part replaces part number 393750134
                                                                                    # 038
                                                                                    MPN: 97470
                                                                                    RUBBER GASKET
                                                                                    from £43.68
                                                                                    from £43.68
                                                                                    This part replaces part number 311053321 - and 1 more. Click to view details
                                                                                    # 039
                                                                                    MPN: 559221338
                                                                                    CLAMP
                                                                                    from £0.69
                                                                                    from £0.69
                                                                                    # 040
                                                                                    MPN: 398750368
                                                                                    SLEEVE
                                                                                    - Section in metres order minimum amount of 1 m
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 041
                                                                                    MPN: 399250432
                                                                                    UNION
                                                                                    from £1.24
                                                                                    from £1.24
                                                                                    # 042
                                                                                    MPN: 186403060
                                                                                    CLAMP
                                                                                    from £1.07
                                                                                    from £1.07
                                                                                    # 050
                                                                                    MPN: 379200141
                                                                                    IN TANK FUEL FILTER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 319220141
                                                                                    # 051
                                                                                    MPN: 379200450
                                                                                    FUEL LINE SHIELD SPRING
                                                                                    from £2.56
                                                                                    from £2.56
                                                                                    # 053
                                                                                    MPN: 379200102
                                                                                    CHECK VALVE FOR VEHICLE TURNOVER
                                                                                    from £16.58
                                                                                    from £16.58
                                                                                    This part replaces part number 319220102 - and 1 more. Click to view details
                                                                                    # 054
                                                                                    MPN: 379200410
                                                                                    CLAMP
                                                                                    from £1.52
                                                                                    from £1.52
