maserati qtp v6 (1996) automatic transmission outside controls parts diagram

028.1 - Automatic Transmission Outside Controls

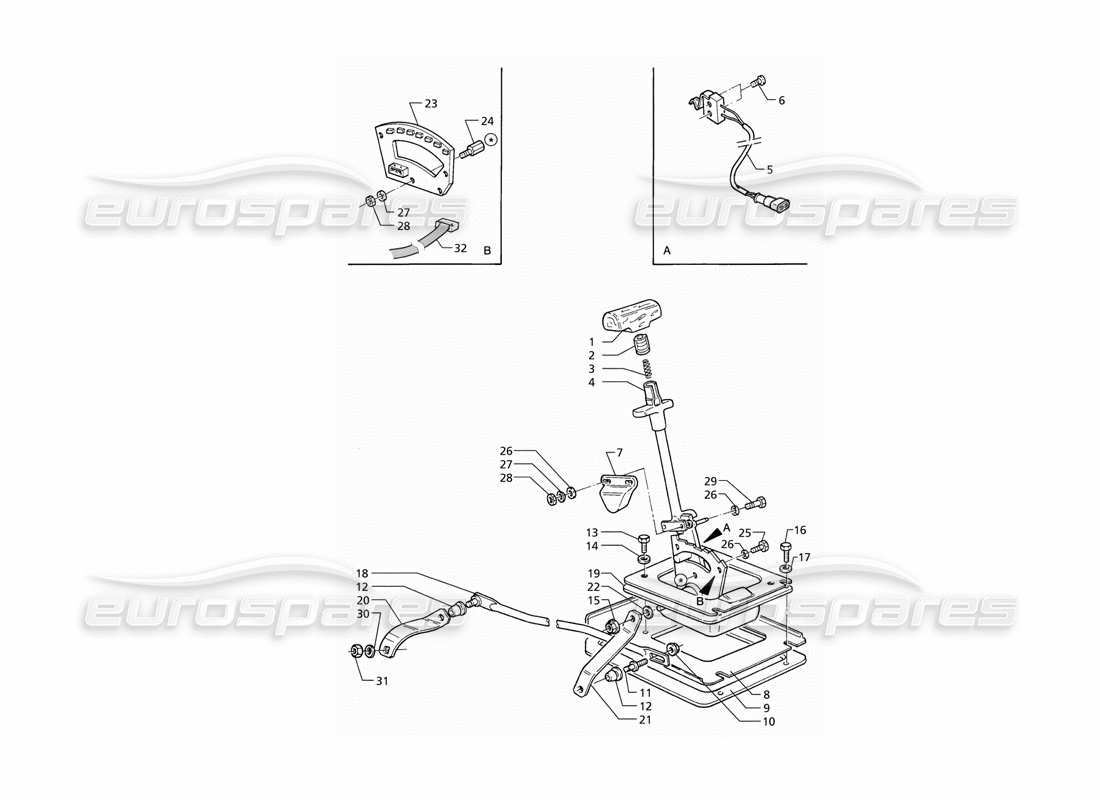

Maserati QTP V6 (1996) Automatic Transmission Outside Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 375206519
GEAR STICK KNOB
- Valid for 2.8 A.T. version
from £55.39
from £55.39
AUT. GEARSHIFT LEVER KNOB Genuine Maserati Part - New (to order)
# 002
MPN: 315232417
BUSH
- Valid for 2.8 A.T. version
from £0.90
from £0.90
This part replaces part number 375206313
AUT. GEARBOX LEVER KNOB Genuine Maserati Part - New (to order)
# 003
MPN: 315232418
SPRING
- Valid for 2.8 A.T. version
from £4.97
from £4.97
AUT. GEARBOX CONVERTER SPRIN Genuine Maserati Part - New (to order)
# 004
MPN: 315255016
GEAR SELECTOR
- Valid for 2.8 A.T. version
from £113.10
from £113.10
LEVA X SEL.MARCE X C.A.ZF Genuine Maserati Part - New (to order)
# 005
MPN: 373308224
MICROSWITCH
- Valid for 2.8 A.T. version
from £22.59
from £22.59
AUTOM.GEARSHIFT LEVER MICROSWITCH Genuine Maserati Part - New (to order)
# 006
MPN: 111502014
SCREW
- Valid for 2.8 A.T. version
from £0.90
from £0.90
VITE M 2 X 14 Genuine Maserati Part - New In stock
# 007
MPN: 373308165
MAGNET
- Valid for 2.8 A.T. version
from £3.20
from £3.20
LEVER POSITION INDICAT.MAGNE Genuine Maserati Part - New (to order)
# 008
MPN: 365209151
PLATE
- Valid for 2.8 A.T. version
from £8.29
from £8.29
COMPLETE PLATE ON TUNNEL Genuine Maserati Part - New (to order)
# 009
MPN: 315232407
GASKET
- Valid for 2.8 A.T. version
from £1.90
from £1.90
CENTRE CONSOLE GASKET FOR PL Genuine Maserati Part - New (to order)
# 010
MPN: 128350080
NUT
- Valid for 2.8 A.T. version
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 011
MPN: 315255401
THREADED PIN
- Valid for 2.8 A.T. version
from £63.36
from £63.36
PIN Genuine Maserati Part - New In stock
# 012
MPN: 315232402
BUSH
- Valid for 2.8 A.T. version
from £14.52
from £14.52
This part replaces part number 325255402
RUBBER BUSHING.3575333 Genuine Maserati Part - New (to order)
# 013
MPN: 101205012
SCREW
- Valid for 2.8 A.T. version
Maserati PART 101205012 Genuine Maserati Part - New (to order)
# 014
MPN: 135100064
WASHER
- Valid for 2.8 A.T. version
from £1.07
from £1.07
RONDELLA D 6,4X12X1 Genuine Maserati Part - New (to order)
# 015
MPN: 128350080
NUT
- Valid for 2.8 A.T. version
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 016
MPN: 167200625
BOLT
- Valid for 2.8 A.T. version
from £2.43
from £2.43
SCREW Genuine Maserati Part - New (to order)
# 017
MPN: 169020406
WASHER
- Valid for 2.8 A.T. version
from £0.77
from £0.77
FLAT WASHER Genuine Maserati Part - New In stock
# 018
MPN: 315255150
AUTOM. TRANSMISSION CONTROL ROD
- Valid for 2.8 A.T. version
from £23.96
from £23.96
Maserati PART 315255150 Genuine Maserati Part - New (to order)
# 019
MPN: 315232408
GASKET
- Valid for 2.8 A.T. version
from £1.52
from £1.52
GUARNIZIONE SUL TUNNEL X SEL Genuine Maserati Part - New (to order)
# 020
MPN: 375255405
LEVER
- Valid for 2.8 A.T. version
LEVER Genuine Maserati Part - New (to order)
# 021
MPN: 315255400
LEVER
- Valid for 2.8 A.T. version
from £5.85
from £5.85
LEVER Genuine Maserati Part - New (to order)
# 022
MPN: 315255409
CRINKLE WASHER
- Valid for 2.8 A.T. version
Maserati PART 315255409 Genuine Maserati Part - New (to order)
# 023
MPN: 373308223
ELECTRONIC CARD
- Valid for 2.8 A.T. version
from £81.69
from £81.69
SCHEDA RILEV.POSIZ. LEVA Genuine Maserati Part - New (to order)
# 024
MPN: 98086
SCREW
- Valid for 2.8 A.T. version
SCREW Genuine Maserati Part - New (to order)
# 025
MPN: 101203006
SCREW
- Valid for 2.8 A.T. version
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 026
MPN: 14496101
FLAT WASHER
- Valid for 2.8 A.T. version
from £0.52
from £0.52
WASHER FOR CONV. TOP MICR Genuine Maserati Part - New In stock
WASHER Genuine Ferrari Part - New In stock
# 027
MPN: 12605079
CRINKLE WASHER
- Valid for 2.8 A.T. version
from £0.83
from £0.83
WASHER I.D. 3,GALVANIZED Genuine Maserati Part - New In stock
# 028
MPN: 16101740
NUT
- Valid for 2.8 A.T. version
from £1.07
from £1.07
This part replaces part number 12164111
NUT Genuine Maserati Part - New In stock
NUT Genuine Ferrari Part - New (to order)
# 029
MPN: 101203010
SCREW
- Valid for 2.8 A.T. version
SCREW Genuine Maserati Part - New (to order)
# 030
MPN: 312225411
WASHER
- Valid for 2.8 A.T. version
WASHER Genuine Maserati Part - New (to order)
# 031
MPN: 315255410
NUT
- Valid for 2.8 A.T. version
from £1.07
from £1.07
DADO STOP Genuine Maserati Part - New (to order)
# 032
MPN: 373008174
FLAT CABLE
- Valid for 2.8 A.T. version
from £3.97
from £3.97
FLAT CABLE,AUT. GEARSHIFT LE Genuine Maserati Part - New (to order)
